JACO Manufacturing Company

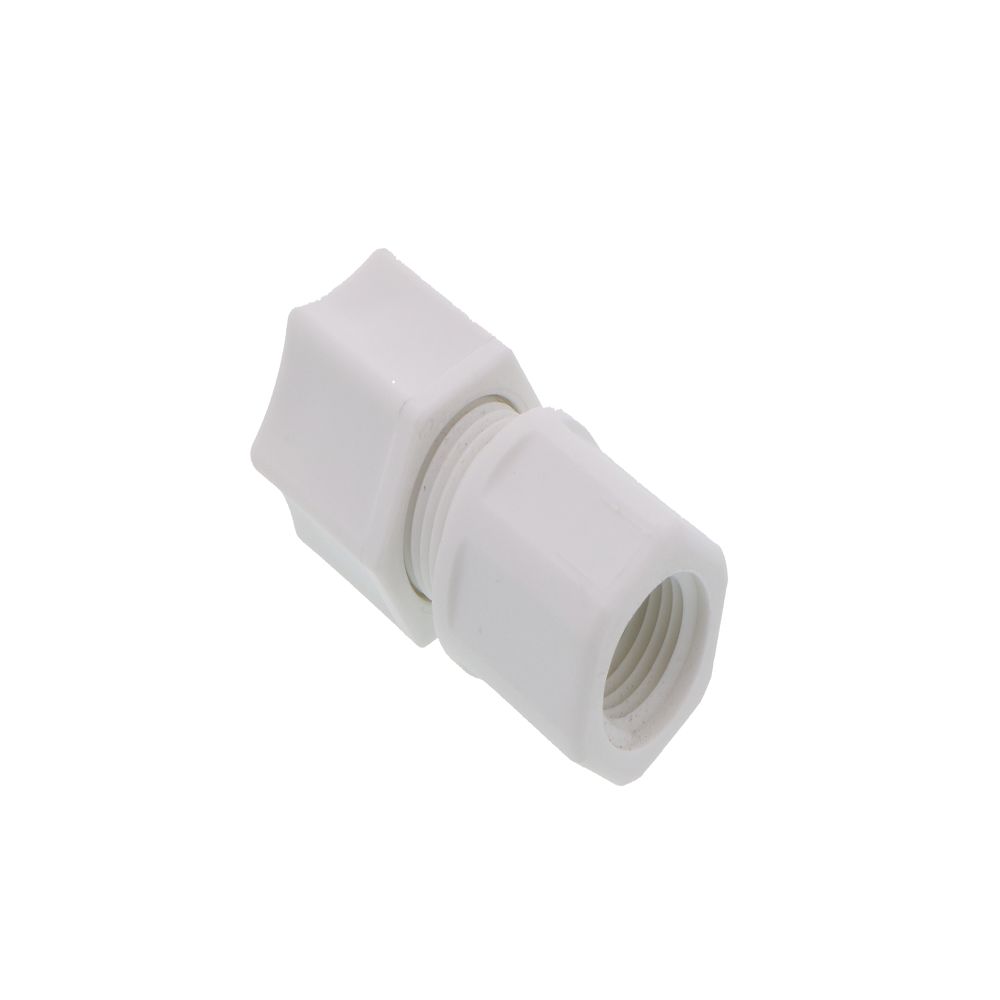

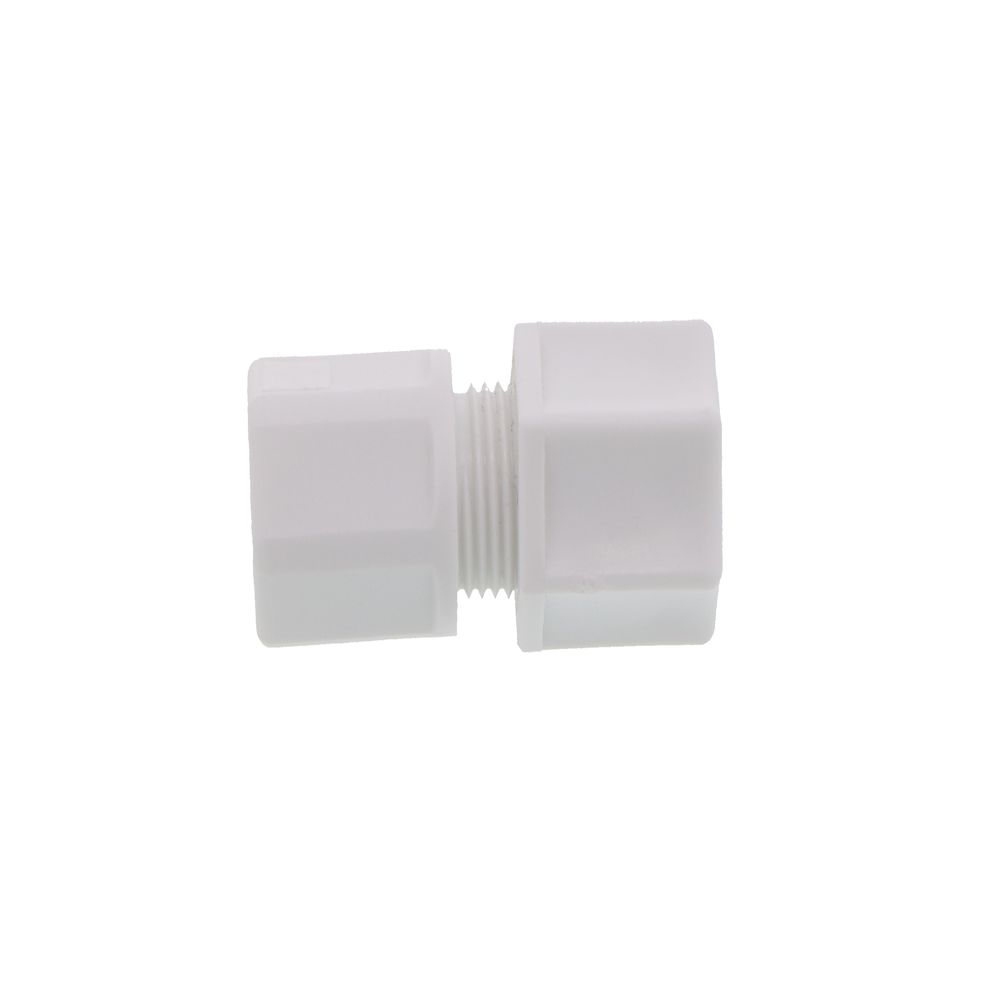

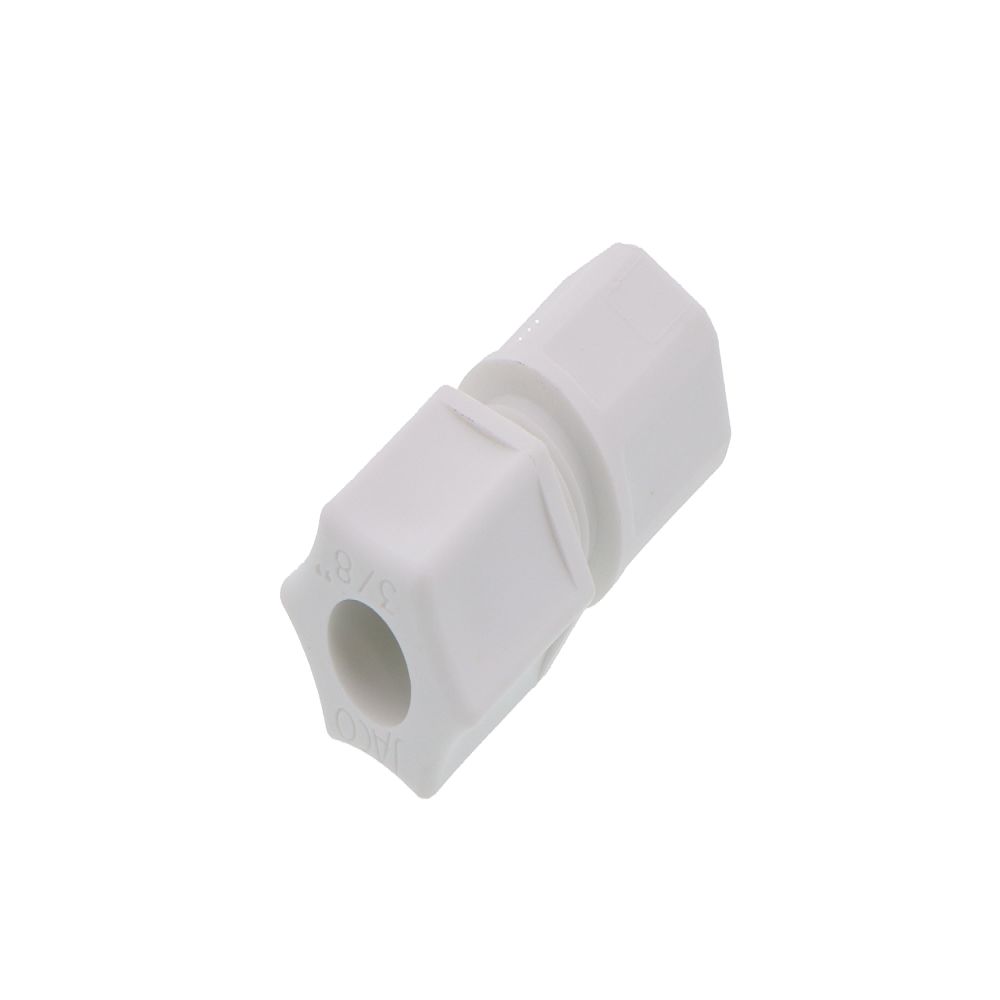

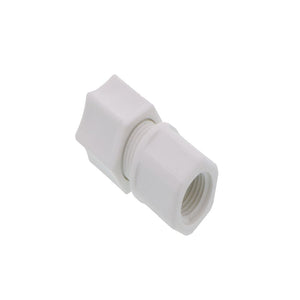

JACO 25-6-4-P-O Polypropylene Female Connector 3/8 OD Tube x 1/4 FPT

Part Number: 25-6-4-P-O

In Stock

out of stock

In Stock

$1.03


JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.

Specifications:
  • Connections: 3/8" OD tube x 1/4" FPT
  • Fitting Material: polypropylene
  • Ferrule nut with integral sleeve for use with soft plastic tubing
  • Ferrule nut thread size: 5/8-20
  • Max Pressure: 50 psi
  • Temperature Range: -30° - 215° F
  • Color: opaque white


Details

Body Material

Polypropylene

Color / Finish

Opaque white

Operating Pressure Range

50 PSI

Operating Temperature Range

-30 - 215 Degrees Fahrenheit

Outer Diameter

3/8 Inches

Type

Female Connector
