JACO Manufacturing Company

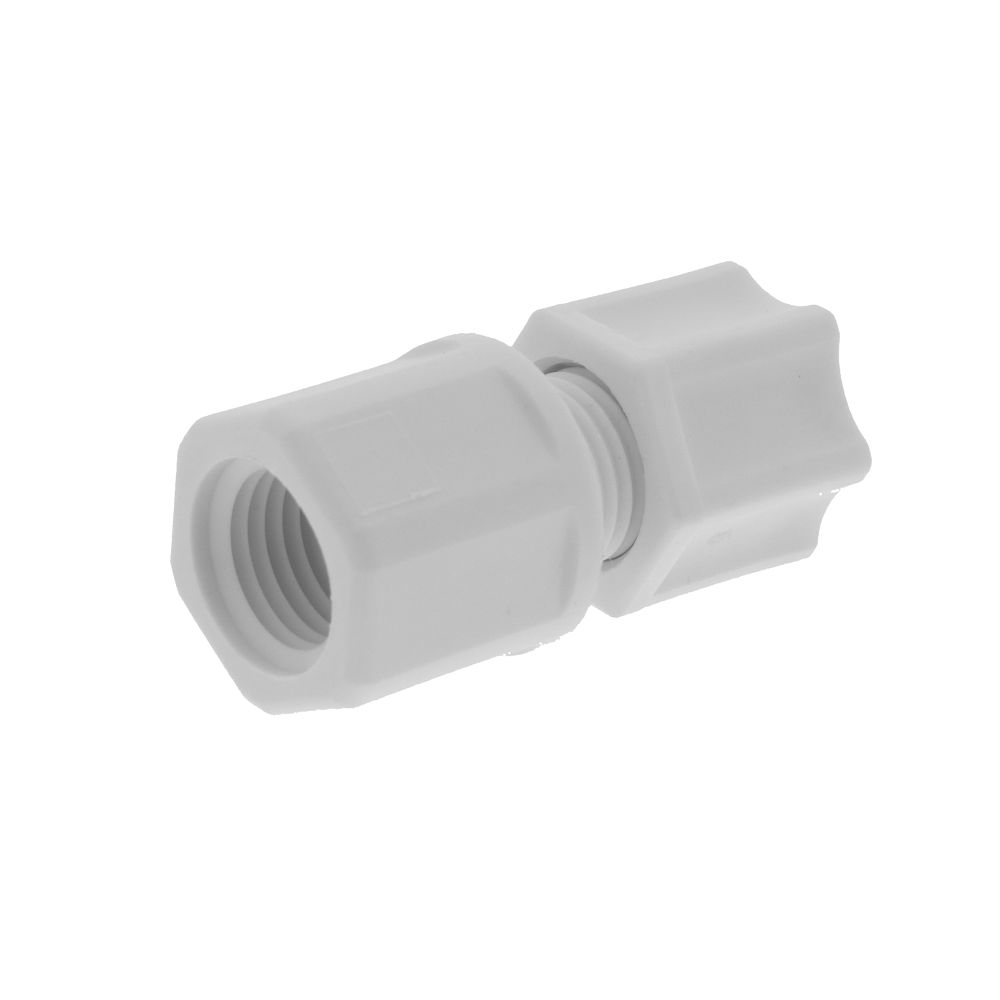

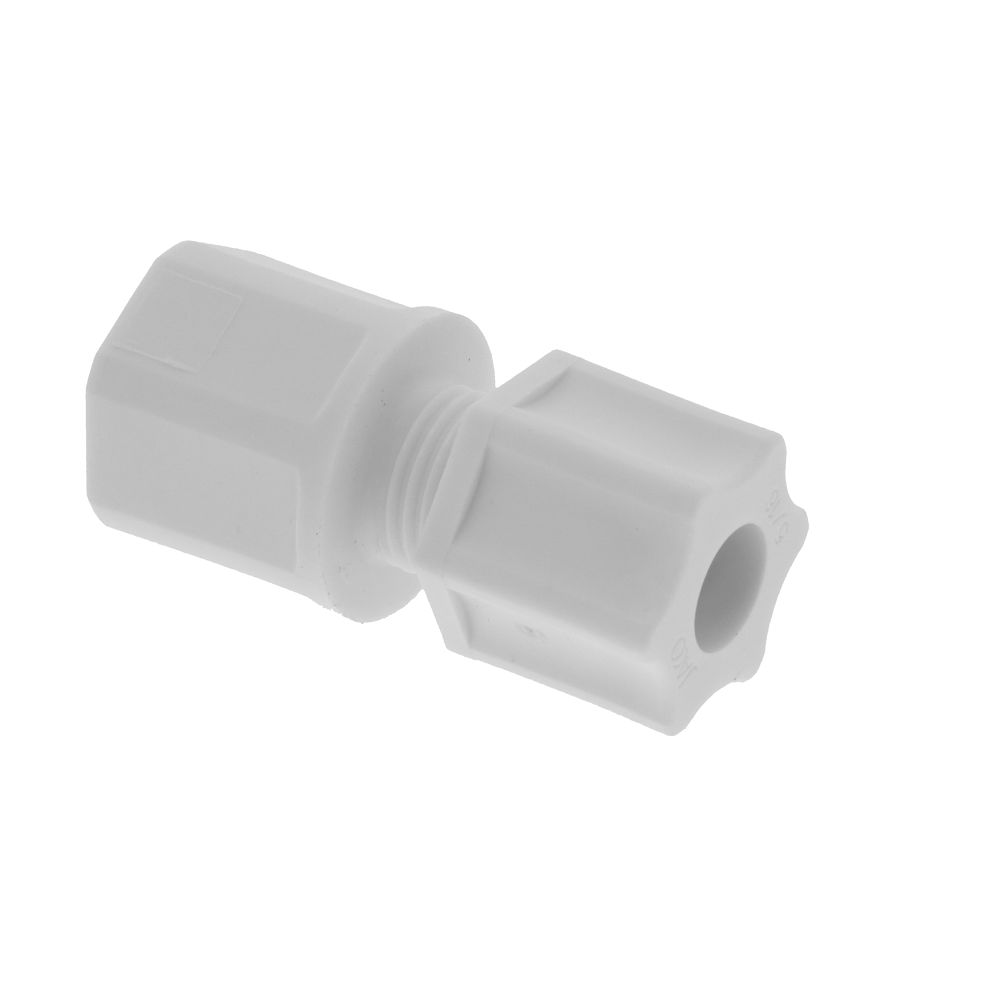

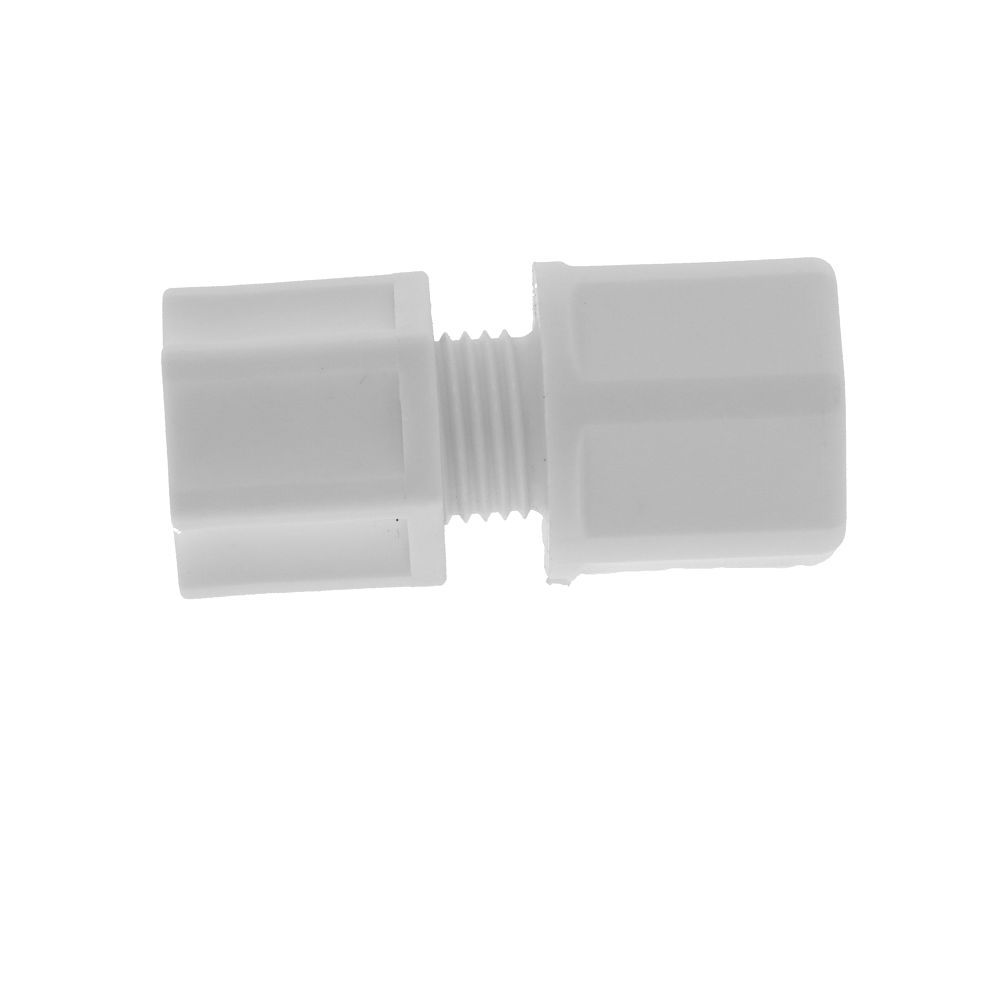

JACO 25-5-4-P-O Polypropylene Female Connector 5/16 OD Tube x 1/4 FPT

Part Number: 25-5-4-P-O

In Stock

out of stock

In Stock

$0.91

JACO 25-5-4-P-O Polypropylene Female Connector 5/16 OD Tube x 1/4 FPT - Single. JACO 25-5-4-P-O Polypropylene Female Connector 5/16 OD Tube x 1/4 FPT JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents.They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed. Connections: 5/16 OD tube x 1/4 FPT Fitting Material: polypropylene Ferrule nut with integral sleeve for use with soft plastic tubing Ferrule nut thread size: 1/2-20 Max Pressure: 50 psi Temperature Range: -30° - 215° F Color: opaque white Advantages of JACO fittings over metal compression fittings: Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing caused by a dissimilar metal meeting a fitting. Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations. Low resistance to flow due to the smooth internal surface of the fittings. Resistance to scale buildup. JACO Female Connectors With Ferrule Nut Polypropylene


Details

Body Material

Polypropylene

Color / Finish

Opaque white

Operating Pressure Range

50 PSI

Operating Temperature Range

-30 - 215 Degrees Fahrenheit

Outer Diameter

5/16 Inches

Type

Female Connector



JACO 25-5-4-P-O Polypropylene Female Connector 5/16 OD Tube x 1/4 FPT - Single. JACO 25-5-4-P-O Polypropylene Female Connector 5/16 OD Tube x 1/4 FPT JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents.They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed. Connections: 5/16 OD tube x 1/4 FPT Fitting Material: polypropylene Ferrule nut with integral sleeve for use with soft plastic tubing Ferrule nut thread size: 1/2-20 Max Pressure: 50 psi Temperature Range: -30° - 215° F Color: opaque white Advantages of JACO fittings over metal compression fittings: Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing caused by a dissimilar metal meeting a fitting. Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations. Low resistance to flow due to the smooth internal surface of the fittings. Resistance to scale buildup. JACO Female Connectors With Ferrule Nut Polypropylene

Details

Body Material

Polypropylene

Color / Finish

Opaque white

Operating Pressure Range

50 PSI

Operating Temperature Range

-30 - 215 Degrees Fahrenheit

Outer Diameter

5/16 Inches

Type

Female Connector
