Home / Fittings / Compression Fittings / JACO 20-4-P-PG Polypropylene Bulkhead Union 1/4 OD Tube x 1/4 OD Tube
JACO Manufacturing Company

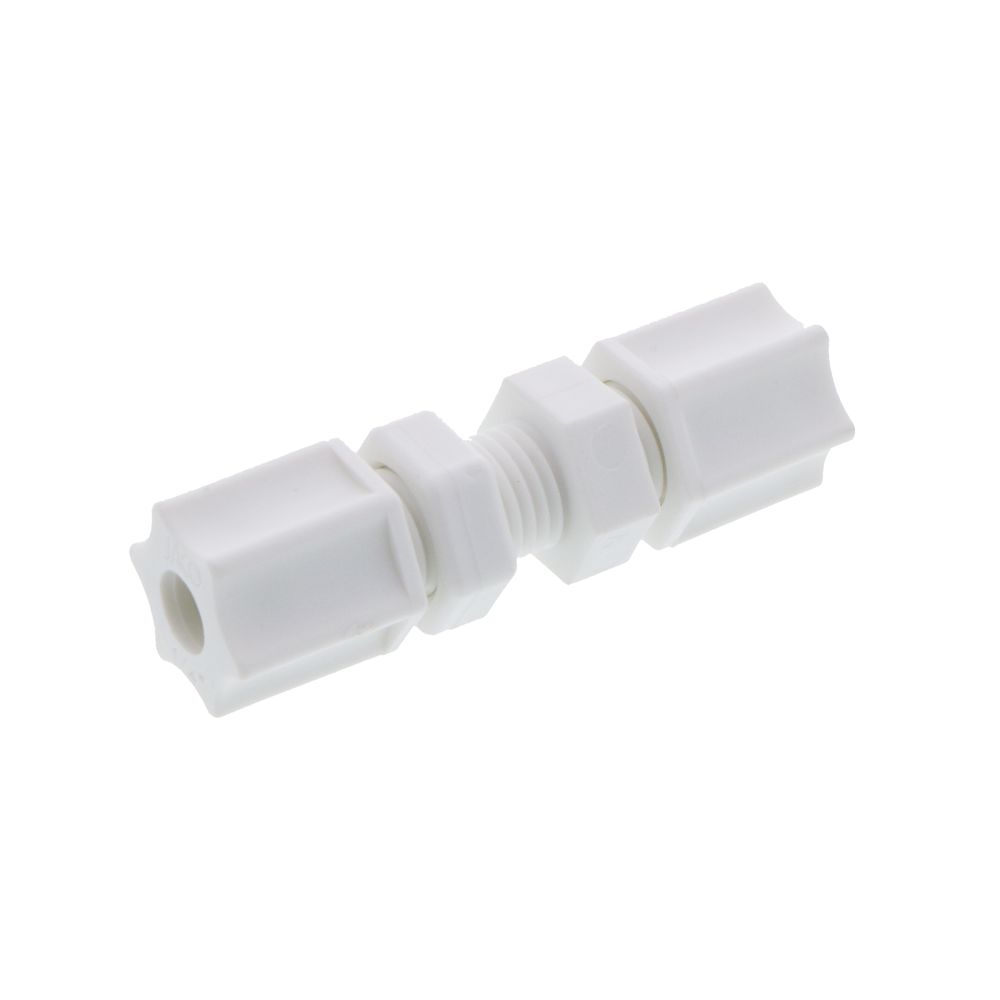

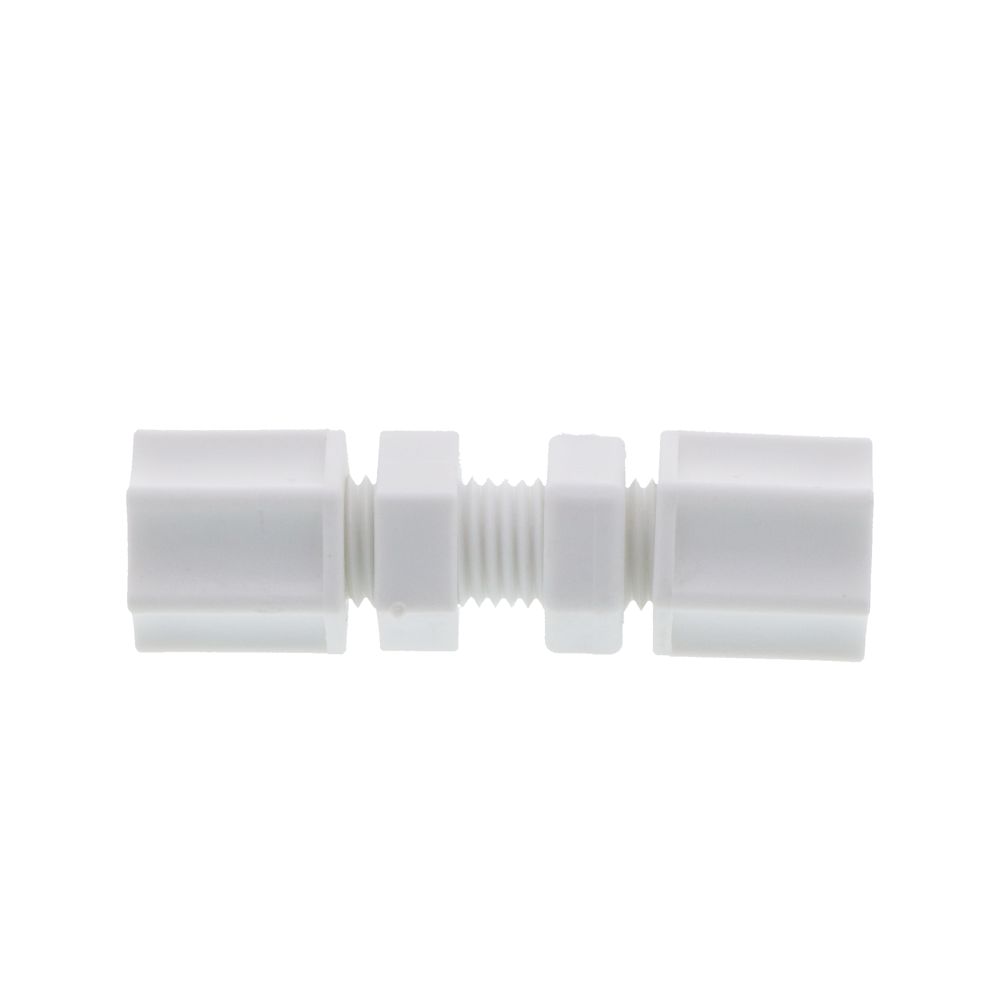

JACO 20-4-P-PG Polypropylene Bulkhead Union 1/4 OD Tube x 1/4 OD Tube

Part Number: 20-4-P-PG
Product image 1
Product image 2
Your price:
Choose
Single
200-Pack
JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.
Specifications:
  • Connections: 1/4" OD tube x 1/4" OD Tube
  • Fitting Material: polypropylene
  • Ferrule nut with plastic gripper for use with plastic tubing
  • Ferrule nut thread size: 7/16-20
  • Max Pressure: 220 psi
  • Temperature Range: -30° - 215° F
  • Color: opaque white
