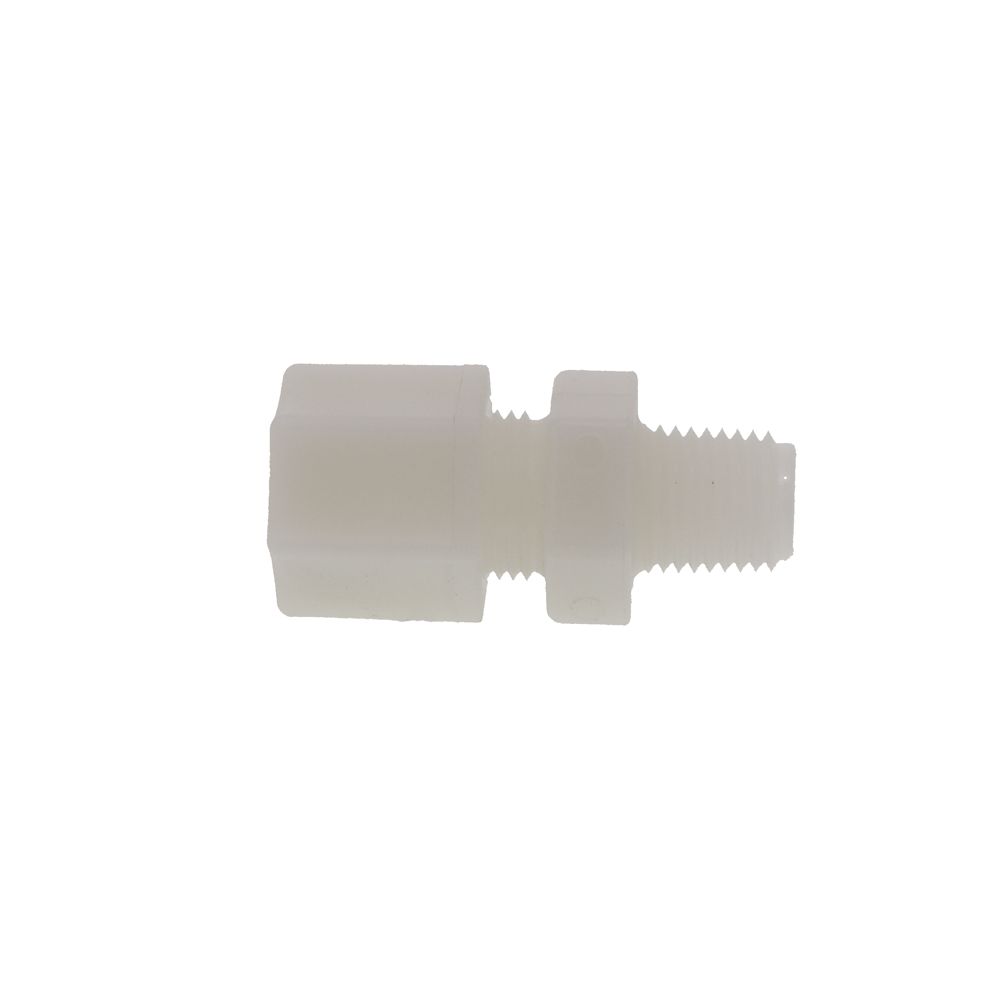

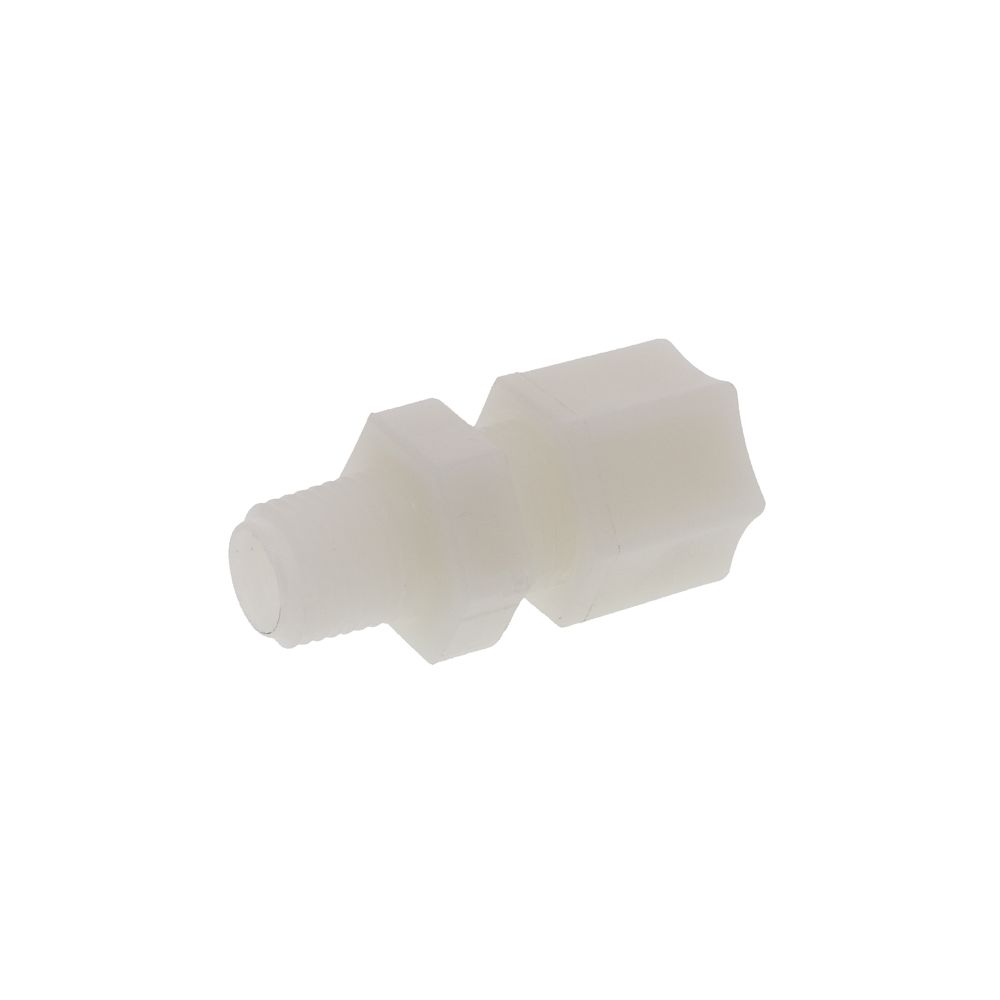

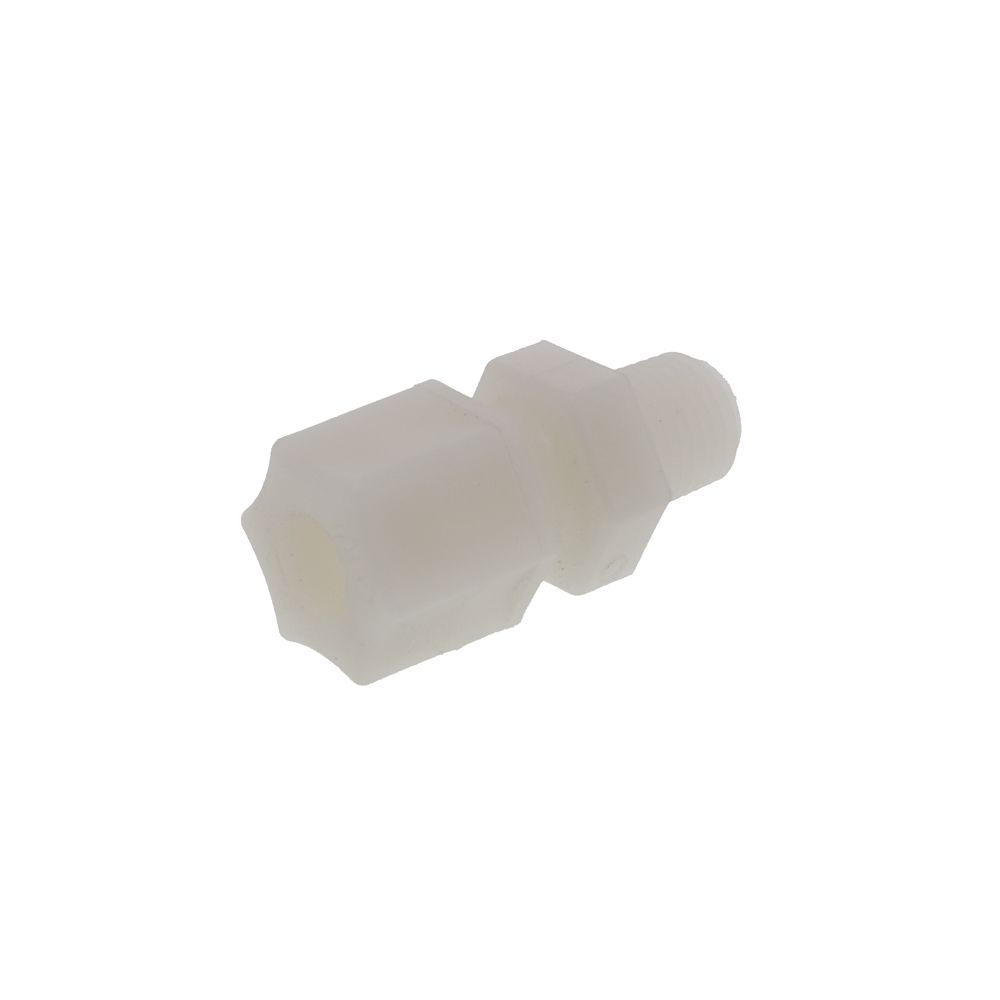

JACO 10-6-4-N-O Nylon Male Connector 3/8 OD Tube x 1/4 MPT
Part Number: 10-6-4-N-O
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Advantages of JACO fittings over metal compression fittings:
- Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
- Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
- Low resistance to flow due to the smooth internal surface of the fittings.
- Resistance to scale buildup.
- Connections: 3/8" OD tube x 1/4" MPT
- Fitting Material: nylon
- Ferrule nut with integral sleeve for use with soft plastic tubing
- Ferrule nut thread size: 7/16-20
- Max Pressure: 50 psi
- Temperature Range: -40° - 200° F
- Color: natural
Product Details | |
---|---|
Application | Water |
Body Material | Nylon |
Inlet Connection | 1/4" MPT |
Max Pressure (Psi) | 50 |
Max Temp (°F) | 250 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -40 |
Mounting Options | Thread |
Outlet Connection | 1/4" MPT |
Push-In Size | 3/8" OD |
Shape | Straight |
Size | 1/4" |
Color / Finish | White |
Connection Type | Male (MPT) |
Type | Adapter |
Product Details | |
---|---|
Application | Water |
Body Material | Nylon |
Inlet Connection | 1/4" MPT |
Max Pressure (Psi) | 50 |
Max Temp (°F) | 250 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -40 |
Mounting Options | Thread |
Outlet Connection | 1/4" MPT |
Push-In Size | 3/8" OD |
Shape | Straight |
Size | 1/4" |
Color / Finish | White |
Connection Type | Male (MPT) |
Type | Adapter |
Advantages of JACO fittings over metal compression fittings:
- Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
- Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
- Low resistance to flow due to the smooth internal surface of the fittings.
- Resistance to scale buildup.
- Connections: 3/8" OD tube x 1/4" MPT
- Fitting Material: nylon
- Ferrule nut with integral sleeve for use with soft plastic tubing
- Ferrule nut thread size: 7/16-20
- Max Pressure: 50 psi
- Temperature Range: -40° - 200° F
- Color: natural
