JACO Manufacturing Company

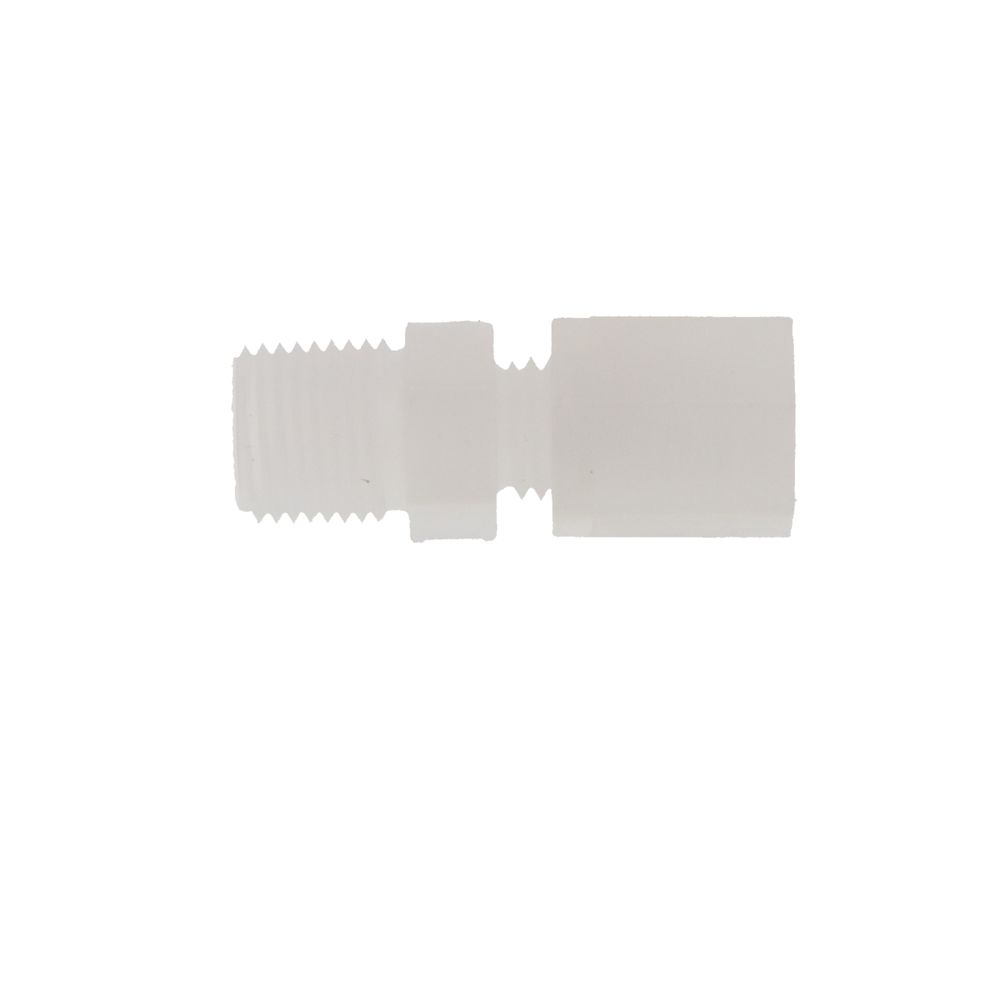

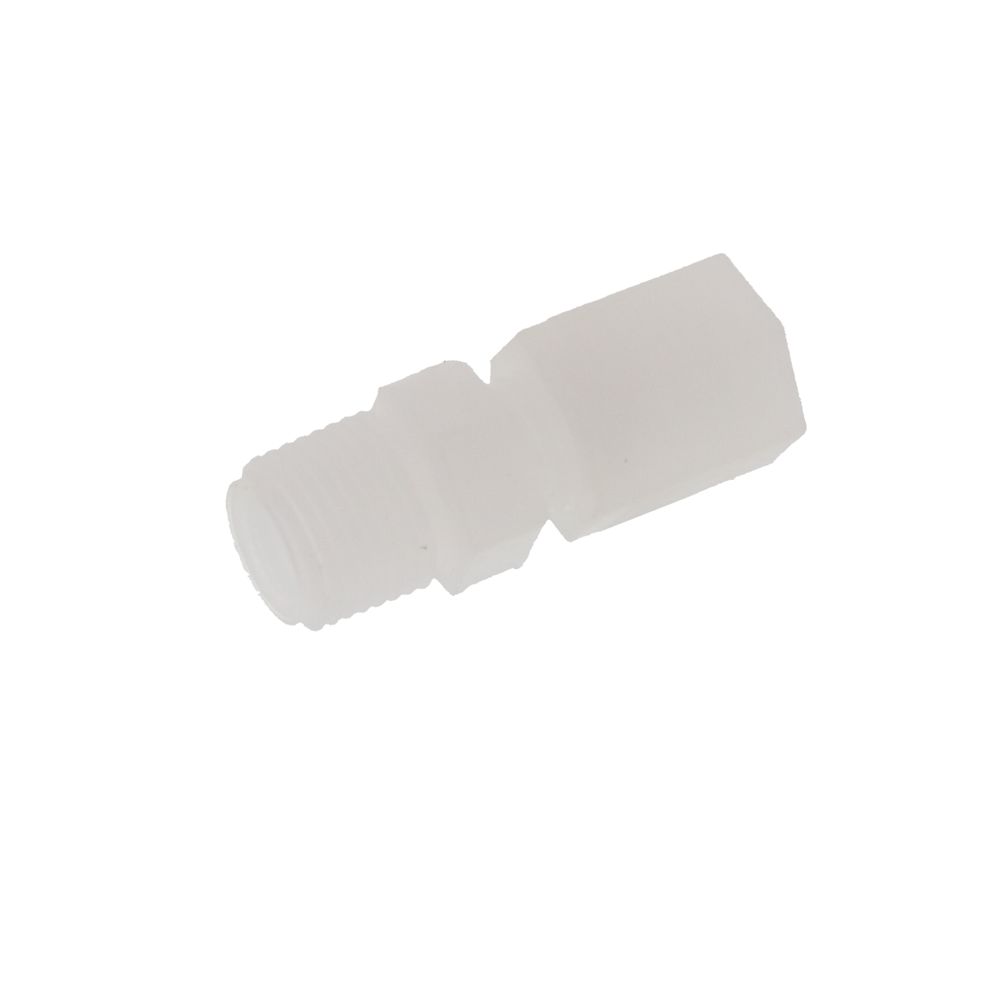

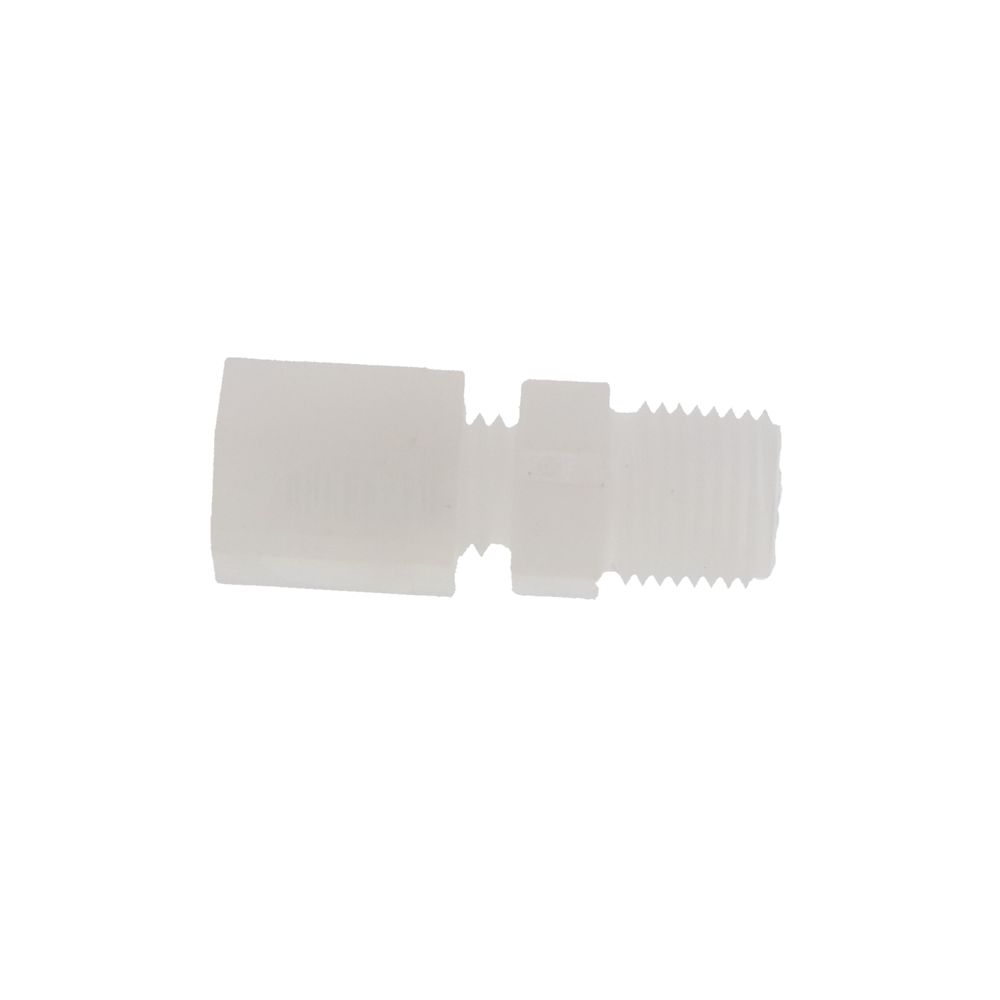

JACO 10-2-2-K-O Kynar Male Connector 1/8 OD Tube x 1/8 MPT

Part Number: 10-2-2-K-O

In Stock

out of stock

In Stock

$2.77

JACO 10-2-2-K-O Kynar fittings are made up of a polyvinylidene fluoride. These fittings have an outstanding chemical resistance for handling highly corrosive fluids. They are also NSF listed..

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.
Specifications:
  • Connections: 1/8" OD tube x 1/8" MPT
  • Fitting Material: Kynar
  • Ferrule nut with integral sleeve for use with soft plastic tubing
  • Ferrule nut thread size: 5/16-24
  • Max Pressure: 50 psi
  • Temperature Range: -80° - 275° F
  • Color: opaque white




Weight & Dimensions

Weight (lbs)

0.005

Details

Application

Water

Body Material

PVDF (Kynar)

Inlet/Outlet Connection

1/8" MPT

Max Pressure (Psi)

50

Max Temp (°F)

250

Min Pressure (Psi)

0

Min Temp (°F)

-40

Mounting Options

Thread

Push-In Size

1/8" OD

Size

1/8"

Color / Finish

White

Connection Type

Male (MPT)

Type

Adapter



JACO 10-2-2-K-O Kynar fittings are made up of a polyvinylidene fluoride. These fittings have an outstanding chemical resistance for handling highly corrosive fluids. They are also NSF listed..

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.
Specifications:
  • Connections: 1/8" OD tube x 1/8" MPT
  • Fitting Material: Kynar
  • Ferrule nut with integral sleeve for use with soft plastic tubing
  • Ferrule nut thread size: 5/16-24
  • Max Pressure: 50 psi
  • Temperature Range: -80° - 275° F
  • Color: opaque white



Weight & Dimensions

Weight (lbs)

0.005

Details

Application

Water

Body Material

PVDF (Kynar)

Inlet/Outlet Connection

1/8" MPT

Max Pressure (Psi)

50

Max Temp (°F)

250

Min Pressure (Psi)

0

Min Temp (°F)

-40

Mounting Options

Thread

Push-In Size

1/8" OD

Size

1/8"

Color / Finish

White

Connection Type

Male (MPT)

Type

Adapter
