JACO Manufacturing Company

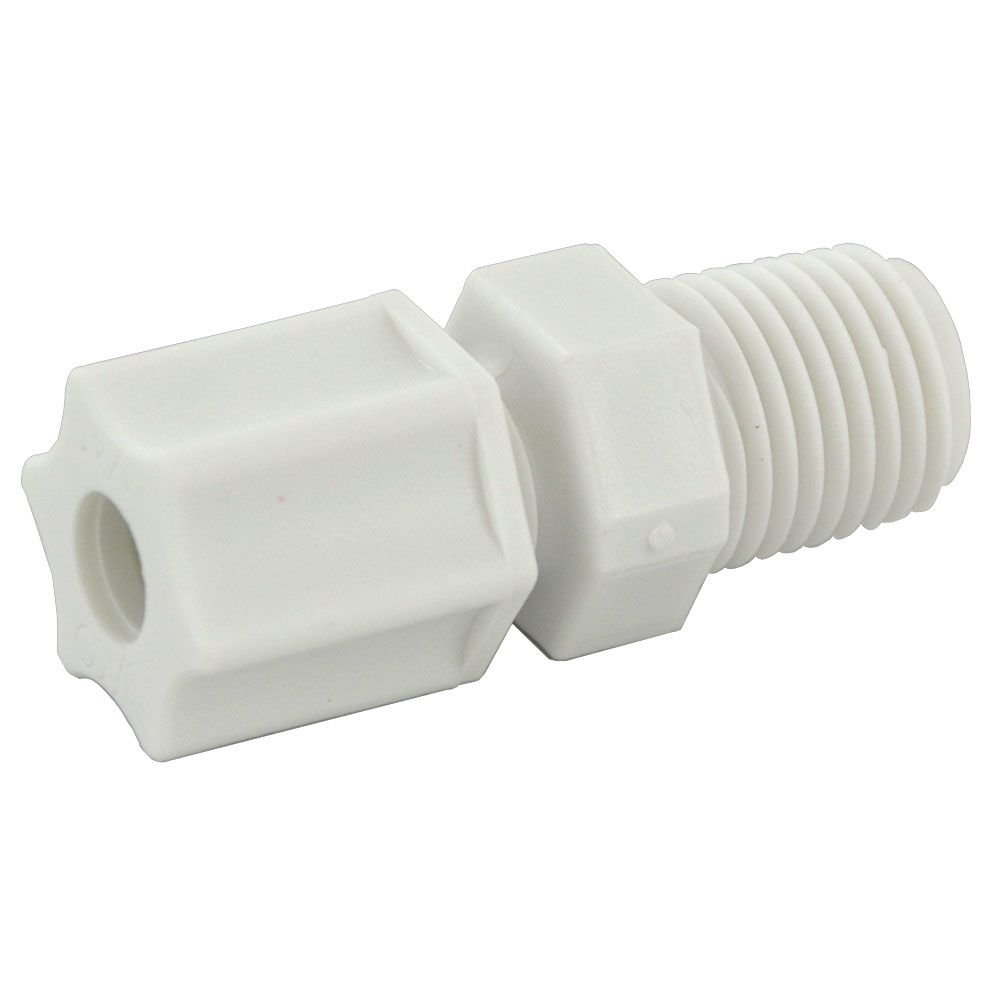

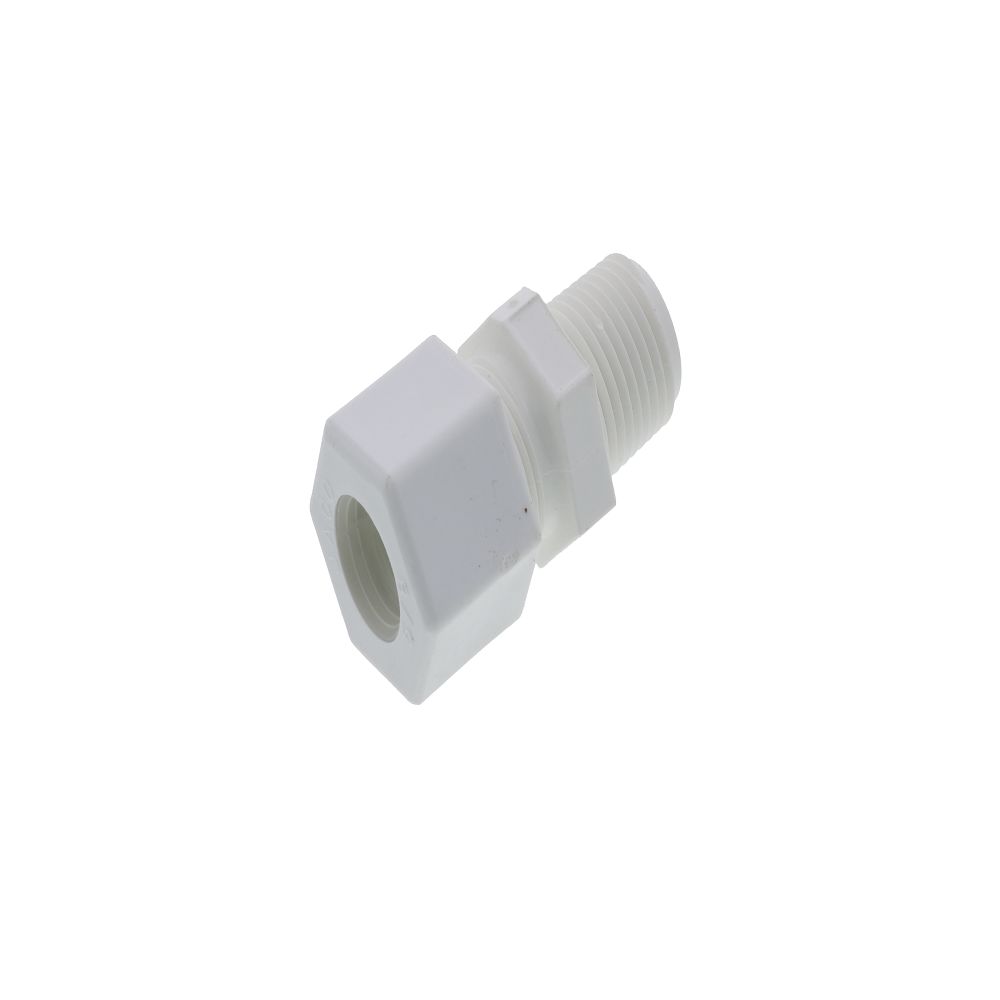

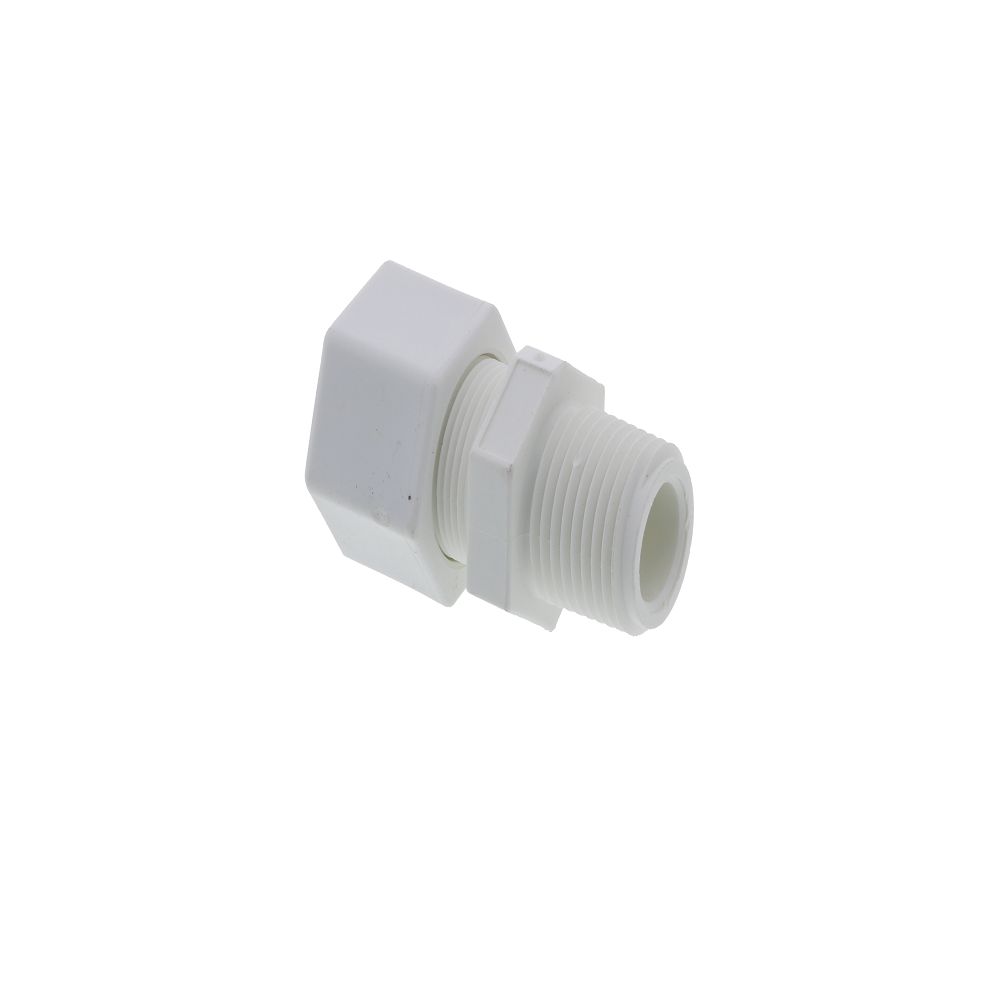

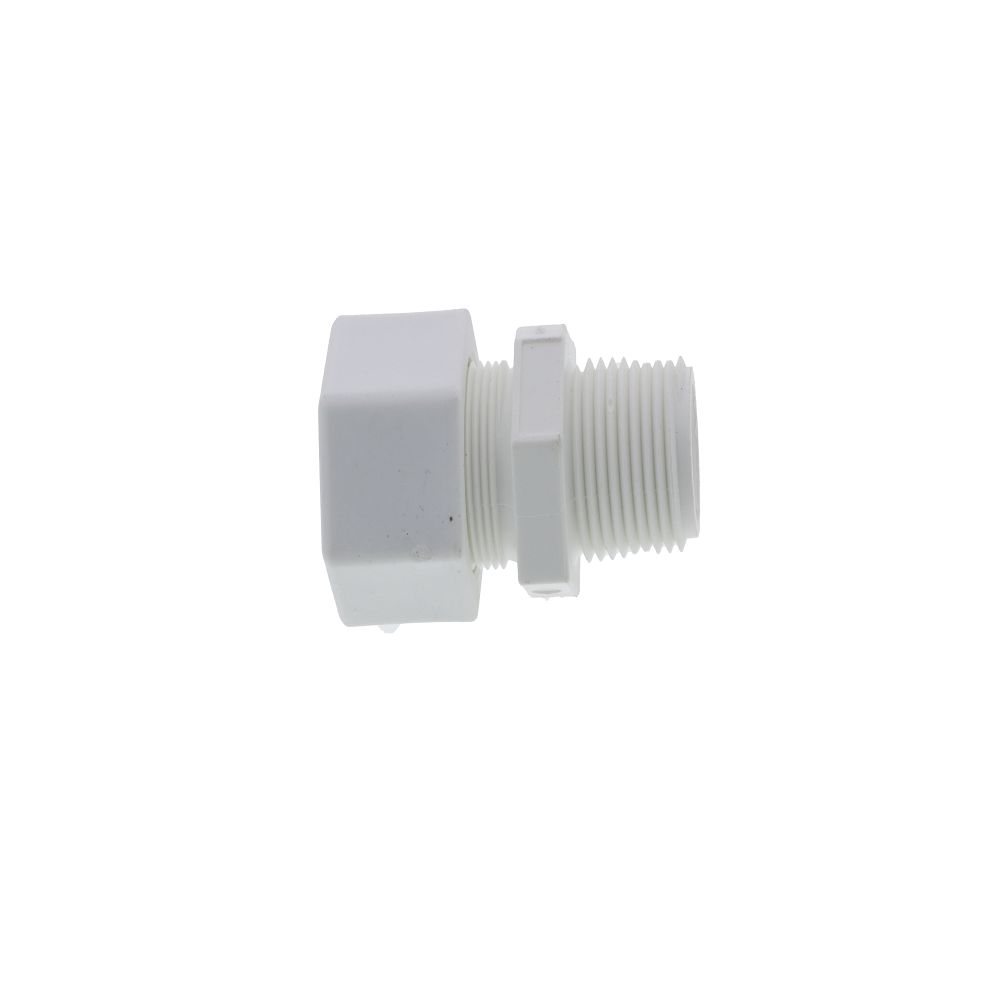

JACO 10-10-8-P-PG Polypropylene Male Connector 5/8 OD Tube x 1/2 MPT

Part Number: 10-10-8-P-PG

In Stock

out of stock

In Stock

Closeout sale item with limited availability.

$1.23 Regular price $1.40 (12% Off)

JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.
Specifications:
  • Connections: 5/8" OD tube x 1/2" MPT
  • Fitting Material: polypropylene
  • Ferrule nut with plastic gripper for use with plastic tubing
  • Ferrule nut thread size: 7/8-20
  • Max Pressure: 220 psi
  • Temperature Range: -30° - 215° F
  • Color: opaque white




Weight & Dimensions

Height (inches)

1.13

Length (inches)

2.25

Weight (lbs)

0.003125

Width (inches)

1.13

Details

Application

Water

Body Material

Polypropylene

Color / Finish

White

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

220

Max Temp (°F)

225

Min Pressure (Psi)

0

Min Temp (°F)

-30

Mounting Options

Thread

Push-In Size

5/8" OD

Size

1/2"



JACO polypropylene fittings have good chemical resistance and are unaffected by most weak acids and alkalies. Below 175°F they have good resistance to organic solvents. They should not be used with oxidants or strong acids or in continuous sunlight. The polypropylene used in JACO fittings is 20% glass filled for improved stiffness and is NSF listed.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.
Specifications:
  • Connections: 5/8" OD tube x 1/2" MPT
  • Fitting Material: polypropylene
  • Ferrule nut with plastic gripper for use with plastic tubing
  • Ferrule nut thread size: 7/8-20
  • Max Pressure: 220 psi
  • Temperature Range: -30° - 215° F
  • Color: opaque white



NOTE: Closeout sale item with limited availability.

Weight & Dimensions

Height (inches)

1.13

Length (inches)

2.25

Weight (lbs)

0.003125

Width (inches)

1.13

Details

Application

Water

Body Material

Polypropylene

Color / Finish

White

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

220

Max Temp (°F)

225

Min Pressure (Psi)

0

Min Temp (°F)

-30

Mounting Options

Thread

Push-In Size

5/8" OD

Size

1/2"
