Hydranautics

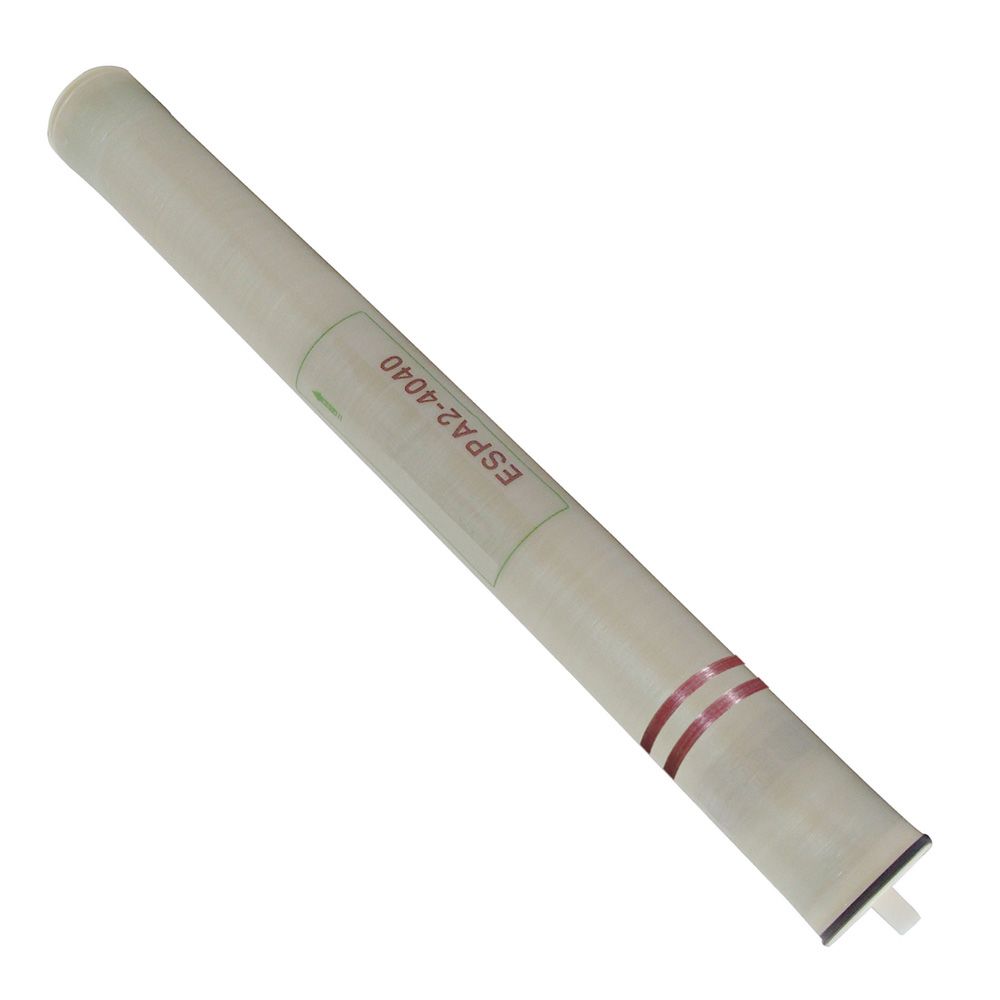

Hydranautics ESPA2-4040 4 x 40 Brackish Water RO Membrane 1900 gpd

Part Number: ESPA2-4040

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Hydranautics ESPA2-LD-4040 4 x 40 Brackish Water RO Membrane 2000 gpd as a substitute....


Hydranautics ESPA2-40402 4 x 40 Brackish Water 1,900 gpd RO Membrane is designed to operate with difficult feed water conditions and still produce a desirable combination of both high rejection and high flow. The ESPA2-4040 provides a high level of performance while maintaining efficiency, resulting in lower energy consumption.

Specifications:
  • Permeate Flow Rate: 1,900 gallons per day
  • Membrane Type: Polyamide Composite
  • Salt Rejection: 99.6%
  • Concentrate Flow Ratio: 5:1
  • Maximum Pressure: 600 psi
  • Maximum Feed Flow: 16 gpm
  • Applied Pressure: 150 psi
  • Dimensions: 4" x 40"
  • Permeate Recovery: 15%
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water




Weight & Dimensions

Weight (lbs)

16

Approx Length (Inches)

40"

Details

Max Temp (°F)

113

Max Pressure (Psi)

600

Cartridge Style

Drop-In

Diameter

4"

Flow Rate

1900 GPD

Active Area

85 sq. ft.

Average Nacl Rejection

0.99

Cleaning Ph Range

1-12

Direction

Outside - In

Inlet Pressure

150 PSI

Max Feed Silt Density Index

5.0 Silt Density Index

Max Pressure Drop

10 PSI Differential

Permeate Tube Diameter

3/4"

Ph Range

2-10.6

Max Feed Water Turbidity

1.0 Nephelometric Turbidity Units


Hydranautics

Hydranautics





Hydranautics ESPA2-40402 4 x 40 Brackish Water 1,900 gpd RO Membrane is designed to operate with difficult feed water conditions and still produce a desirable combination of both high rejection and high flow. The ESPA2-4040 provides a high level of performance while maintaining efficiency, resulting in lower energy consumption.

Specifications:
  • Permeate Flow Rate: 1,900 gallons per day
  • Membrane Type: Polyamide Composite
  • Salt Rejection: 99.6%
  • Concentrate Flow Ratio: 5:1
  • Maximum Pressure: 600 psi
  • Maximum Feed Flow: 16 gpm
  • Applied Pressure: 150 psi
  • Dimensions: 4" x 40"
  • Permeate Recovery: 15%
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water



NOTE: This item is discontinued. We recommend the Hydranautics ESPA2-LD-4040 4 x 40 Brackish Water RO Membrane 2000 gpd as a substitute.

Weight & Dimensions

Weight (lbs)

16

Approx Length (Inches)

40"

Details

Max Temp (°F)

113

Max Pressure (Psi)

600

Cartridge Style

Drop-In

Diameter

4"

Flow Rate

1900 GPD

Active Area

85 sq. ft.

Average Nacl Rejection

0.99

Cleaning Ph Range

1-12

Direction

Outside - In

Inlet Pressure

150 PSI

Max Feed Silt Density Index

5.0 Silt Density Index

Max Pressure Drop

10 PSI Differential

Permeate Tube Diameter

3/4"

Ph Range

2-10.6

Max Feed Water Turbidity

1.0 Nephelometric Turbidity Units
