Hydranautics

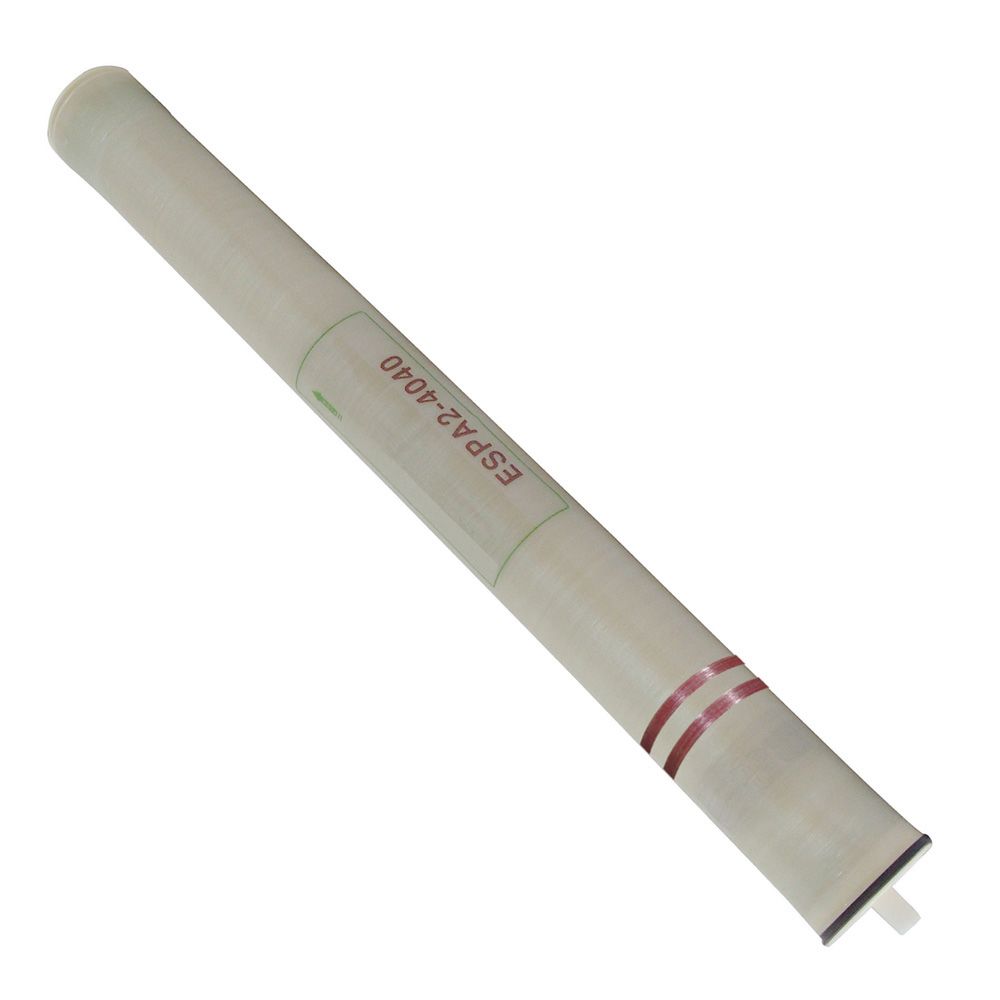

Hydranautics ESPA2-LD-4040 4 x 40 Brackish Water RO Membrane 2000 gpd

Part Number: ESPA2-LD-4040

Alt. Part Number: ESPA2-4040

In Stock

out of stock

In Stock

$240.05


The ESPA2-LD-4040 is constructed of energy saving polyamide. This low-fouling spiral wound membrane acheives high flux and lower pressure without conceeding standards for high rejection. This filter minimizes biofouling and colloidal fouling while enhancing cleanability throughout the RO system. The hard fiberglass provides strength and durability even when there are high pressure drops. The ESPA2-LD-4040 removes contaminates such as chloride, lead, fluoride, and bacteria. This filter is able to operate with difficult feed water while producing a high level of performance, resulting in lower energy consumption.

Specifications:
  • Permeate Flow Rate: 2,000 gpd
  • Membrane Type: Polyamide Composite
  • Salt Rejection: 99.6%
  • Concentrate Flow Ratio: 5:1
  • Maximum Pressure: 600 psi
  • Maximum Feed Flow: 16 gpm
  • Applied Pressure: 150 psi
  • Dimensions: 4" x 40"
  • Permeate Recovery: 15%
  • Maximum Operating Temperature: 113° F
  • Applications: Tap water, brackish water, well water, surface water


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Cartridge Style

Drop-in Element

Diameter

4 Inches

Flow Rate

2000 Gallons per day

Material Of Construction

Polyamide Thin-Film; TFC (Thin Film Composite)

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

85 Square Feet

Average Nacl Rejection

99.6 Percent

Cleaning Ph Range

1-12

Direction

Outside - In

Feed Spacer Thickness

34 mil with biostatic agent mil

Inlet Pressure

150 PSI

Max Feed Silt Density Index

5.0 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-10.6

Max Feed Water Turbidity

1.0 Nephelometric Turbidity Units


Hydranautics

Hydranautics





The ESPA2-LD-4040 is constructed of energy saving polyamide. This low-fouling spiral wound membrane acheives high flux and lower pressure without conceeding standards for high rejection. This filter minimizes biofouling and colloidal fouling while enhancing cleanability throughout the RO system. The hard fiberglass provides strength and durability even when there are high pressure drops. The ESPA2-LD-4040 removes contaminates such as chloride, lead, fluoride, and bacteria. This filter is able to operate with difficult feed water while producing a high level of performance, resulting in lower energy consumption.

Specifications:
  • Permeate Flow Rate: 2,000 gpd
  • Membrane Type: Polyamide Composite
  • Salt Rejection: 99.6%
  • Concentrate Flow Ratio: 5:1
  • Maximum Pressure: 600 psi
  • Maximum Feed Flow: 16 gpm
  • Applied Pressure: 150 psi
  • Dimensions: 4" x 40"
  • Permeate Recovery: 15%
  • Maximum Operating Temperature: 113° F
  • Applications: Tap water, brackish water, well water, surface water

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Cartridge Style

Drop-in Element

Diameter

4 Inches

Flow Rate

2000 Gallons per day

Material Of Construction

Polyamide Thin-Film; TFC (Thin Film Composite)

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

85 Square Feet

Average Nacl Rejection

99.6 Percent

Cleaning Ph Range

1-12

Direction

Outside - In

Feed Spacer Thickness

34 mil with biostatic agent mil

Inlet Pressure

150 PSI

Max Feed Silt Density Index

5.0 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-10.6

Max Feed Water Turbidity

1.0 Nephelometric Turbidity Units
