Colder Products

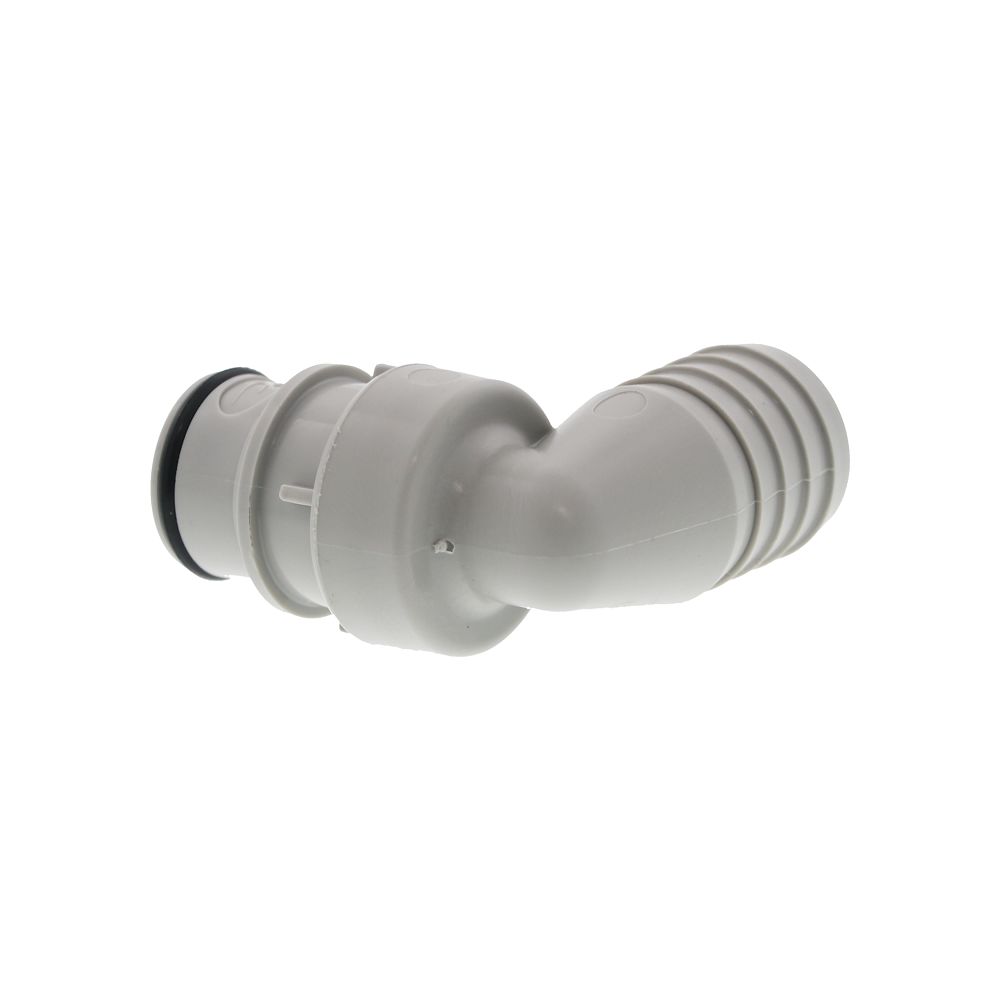

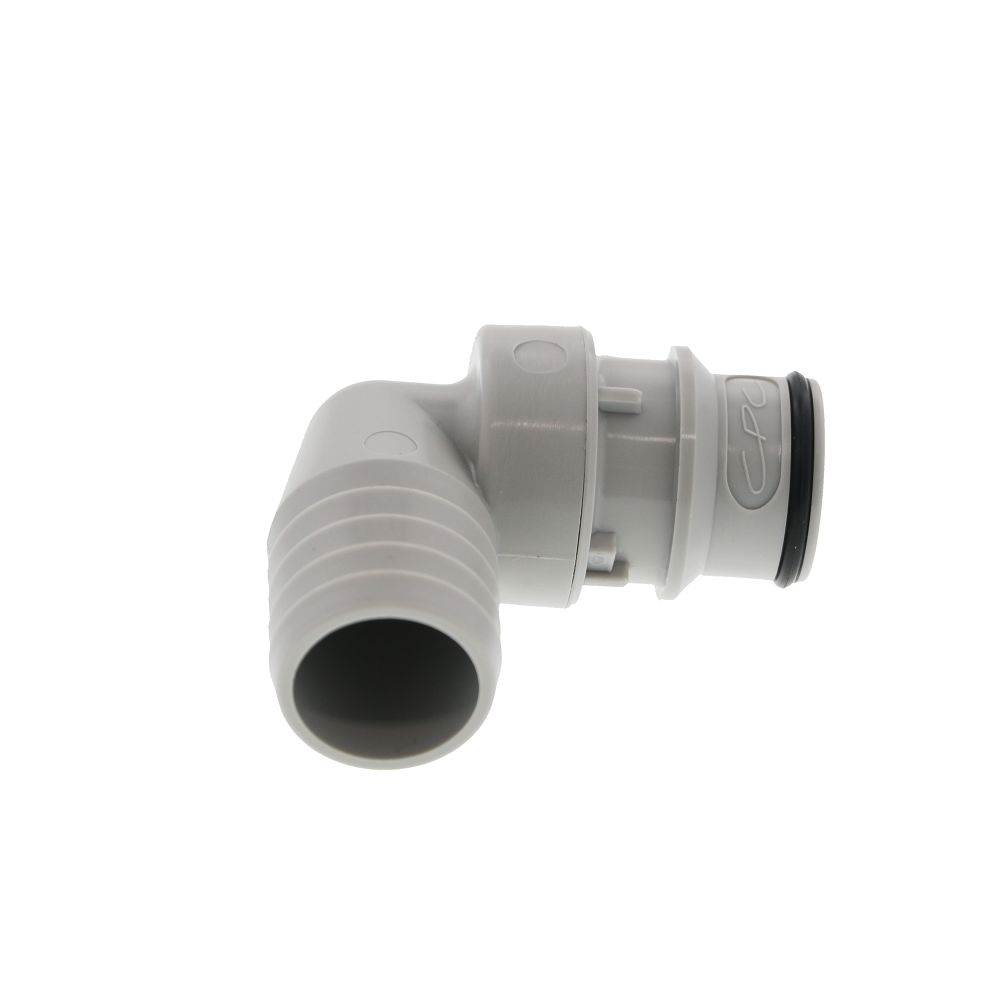

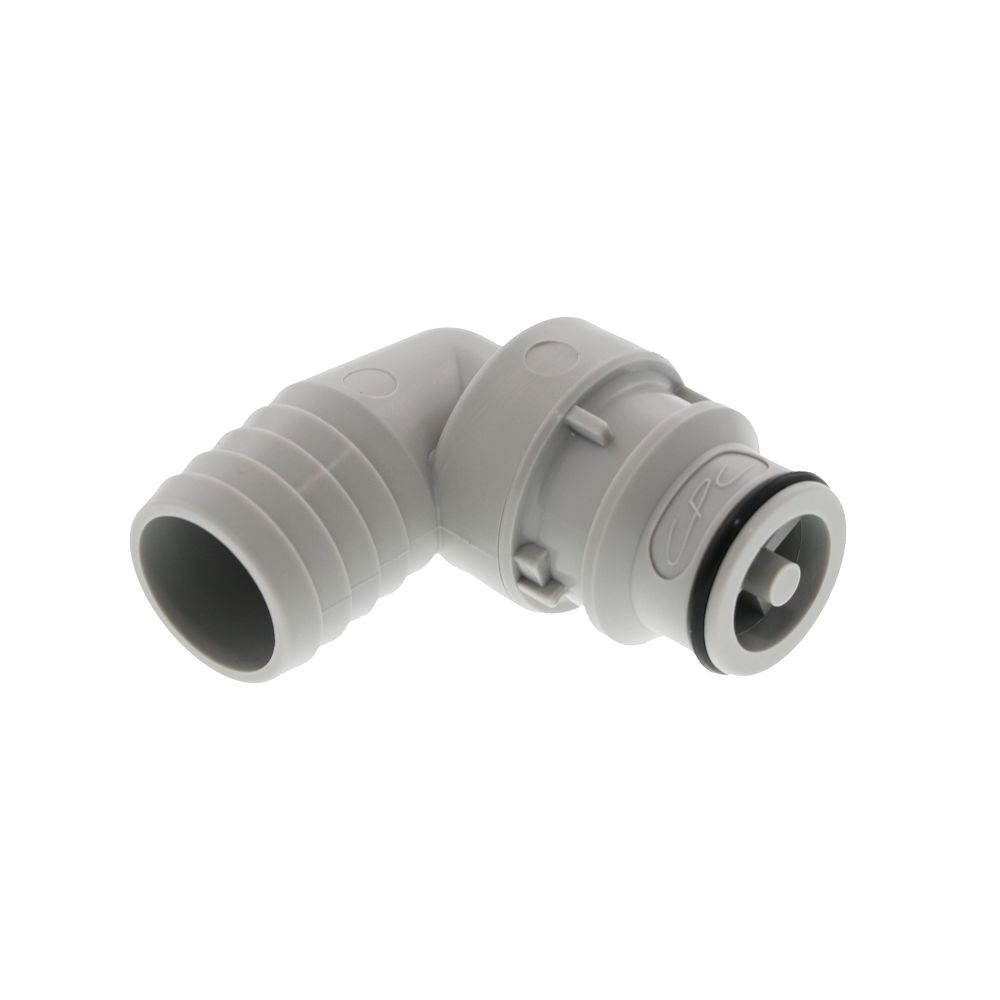

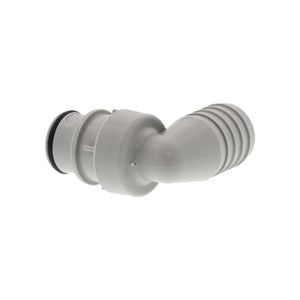

HFC231212 Elbow Hose Barb Coupling Insert 3/4 ID Barb

Part Number: HFC231212

In Stock

out of stock

In Stock

$7.52

The HFC12 Series has flow comparable to many 3/4" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units

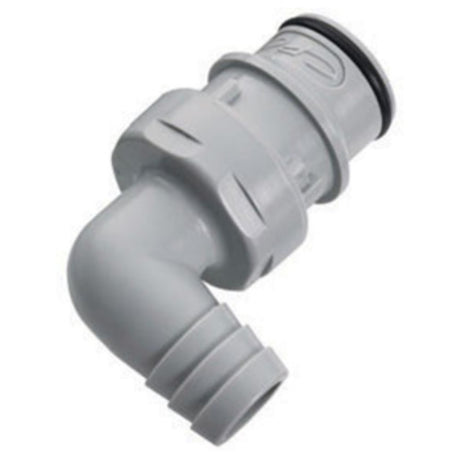

  • NSF Listed Version (Part # 64400) Available Upon Request


Details

Series

HFC12

Barb Size

3/4" ID

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Grey, Molded Grey

Max Operating Pressure

Vacuum to 60 PSI, 4.2 bar

O Rings

EPDM

Operating Temperature Range

32-160 °F

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel


HFC231212




The HFC12 Series has flow comparable to many 3/4" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (Part # 64400) Available Upon Request

Details

Series

HFC12

Barb Size

3/4" ID

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Grey, Molded Grey

Max Operating Pressure

Vacuum to 60 PSI, 4.2 bar

O Rings

EPDM

Operating Temperature Range

32-160 °F

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel
