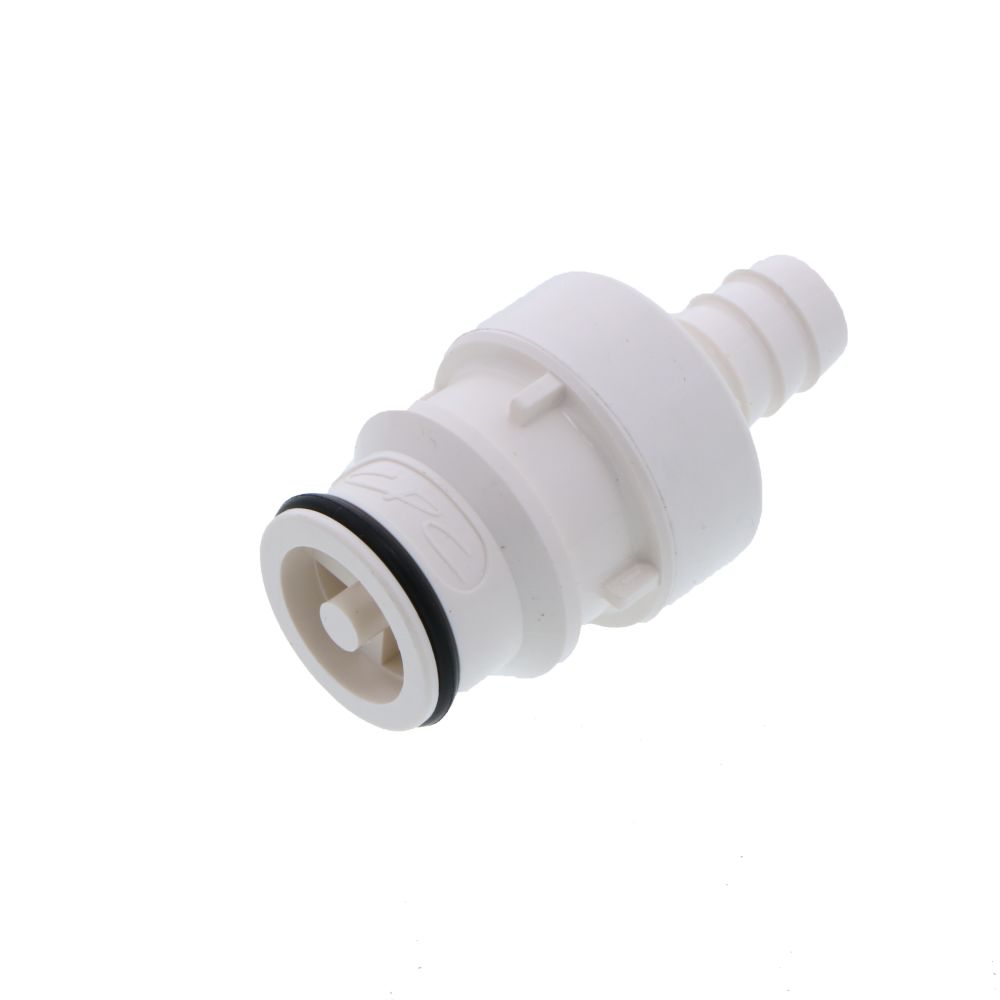

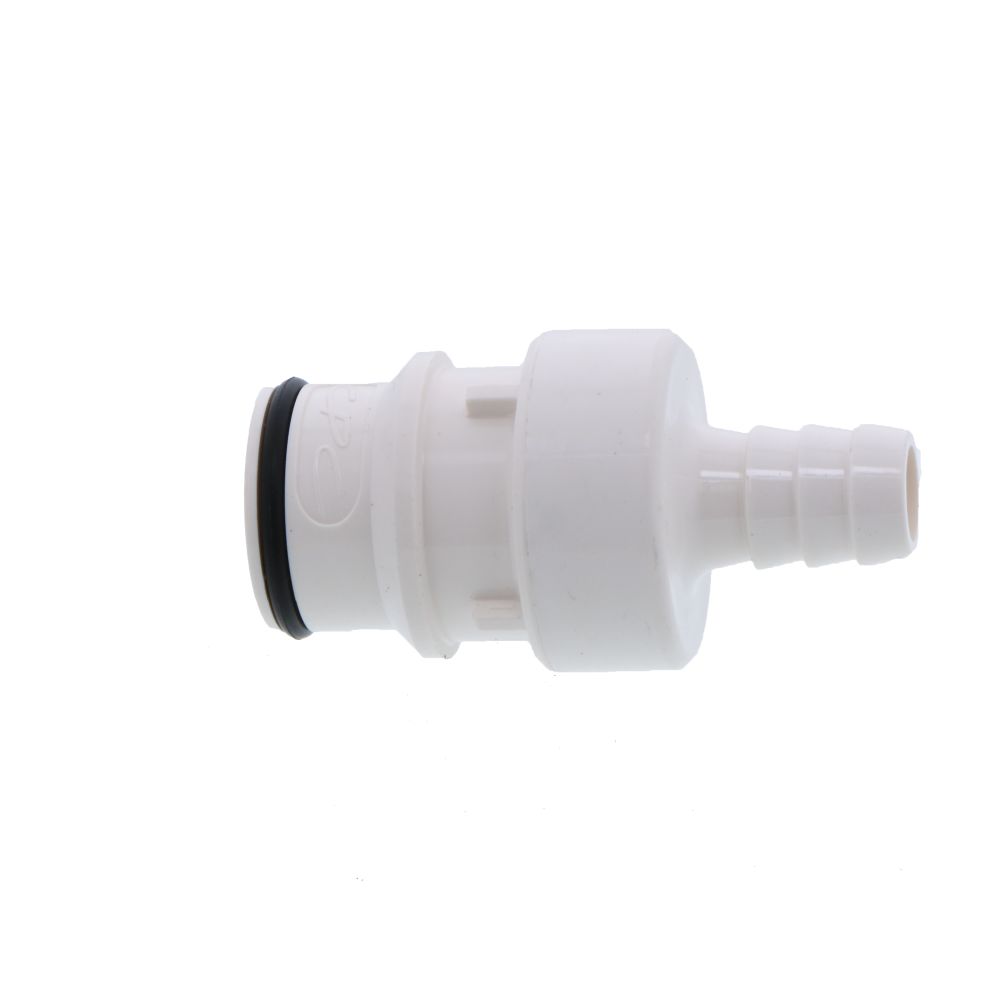

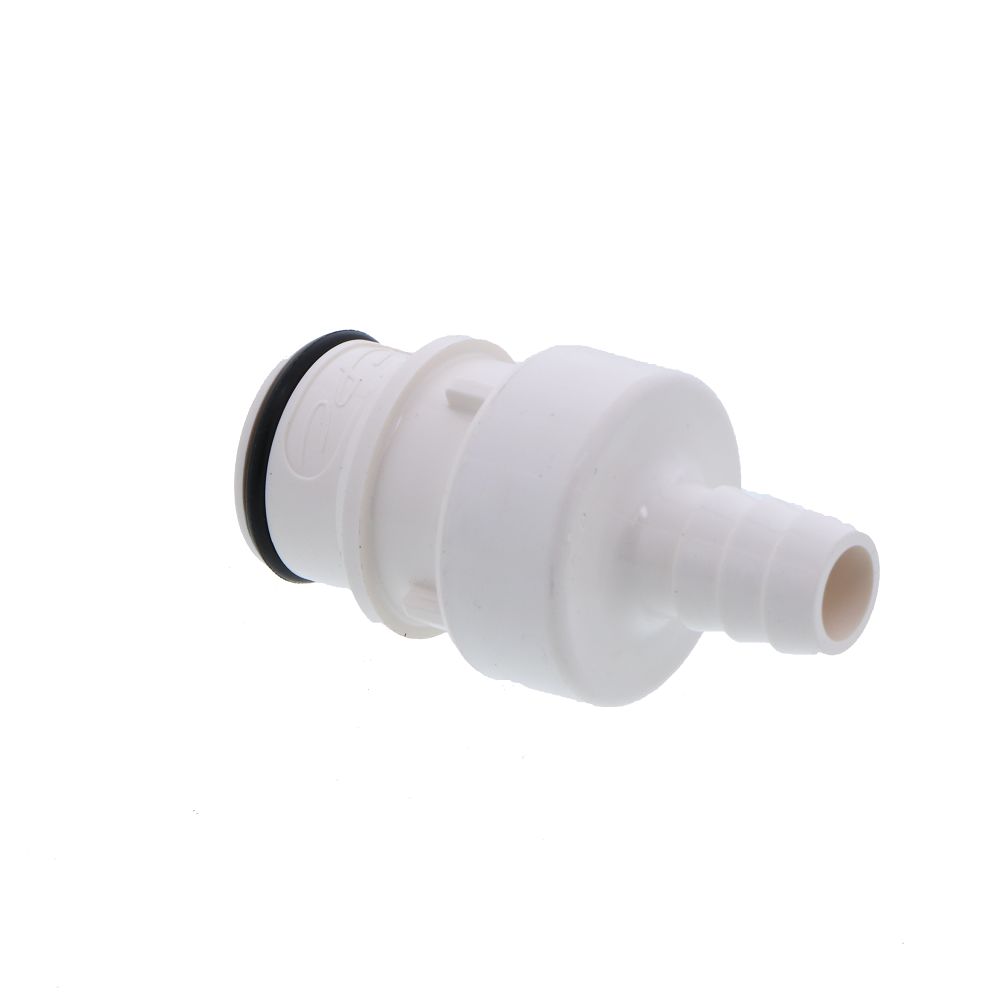

Patented HFC22635 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.
Specifications:
Specifications:
- Material: Polysulfone
- Material Finish: Molded Black
- Color: White
- Valve Option: Non-Valved
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Temperature Range: -40°F to 280°F
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
Details
Application | Water |
Barb Size | 3/8" ID |
Body Material | Polysulfone |
External Springs And Pin | 316 Stainless Steel |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 280 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | HFC35 |
Spring | 316 Stainless Steel |
Valve Type | Non-Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Insert |
Patented HFC22635 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.
Specifications:
- Material: Polysulfone
- Material Finish: Molded Black
- Color: White
- Valve Option: Non-Valved
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Temperature Range: -40°F to 280°F
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
Details
Application | Water |
Barb Size | 3/8" ID |
Body Material | Polysulfone |
External Springs And Pin | 316 Stainless Steel |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 280 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | HFC35 |
Spring | 316 Stainless Steel |
Valve Type | Non-Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Insert |
