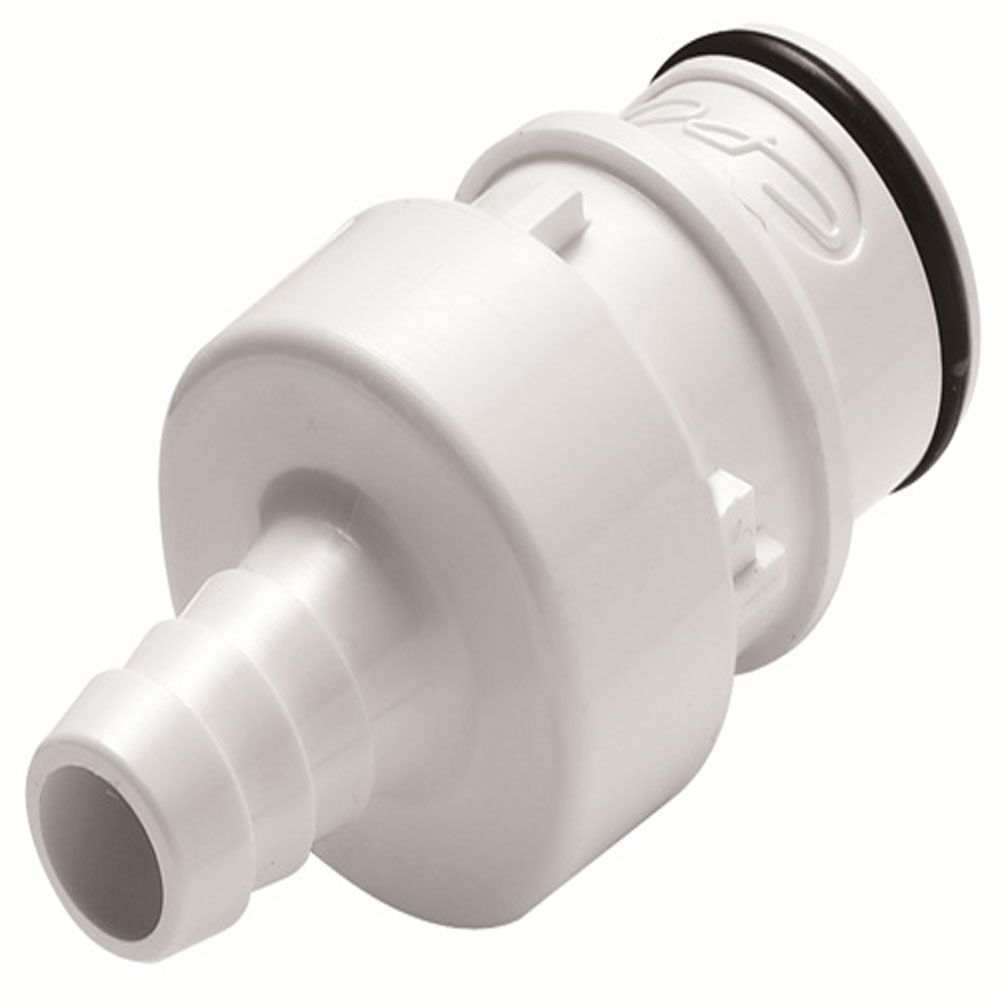

89100 NSF Non-Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb

Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are sutiable for use in water and beverage lines or food and condiment dispensing.

Specifications:

Material: Polysulfone
Material Finish: Molded White
Color: Gray
Valve Option: Non-Valved
Mounting Option: Free Floating
Pressure Range: Vacuum to 125 psi, 8.6 bar
Temperature Range: -40°F to 280°F
Seal Options: FDA EPDM
Valve Spring: 316 Stainless Steel

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	3/8" ID
Body Material	Polysulfone
Max Pressure (Psi)	125
Max Temp (°F)	280
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Number Of Seals	1
Seal Material	FDA EPDM
Series	HFC35
Shape	Straight
Spring	316 Stainless Steel
Thumb Latch	Molded White
Valve Type	Non-Valved
Color / Finish	White
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169

Product Details
Application	Water
Barb Size	3/8" ID
Body Material	Polysulfone
Max Pressure (Psi)	125
Max Temp (°F)	280
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Number Of Seals	1
Seal Material	FDA EPDM
Series	HFC35
Shape	Straight
Spring	316 Stainless Steel
Thumb Latch	Molded White
Valve Type	Non-Valved
Color / Finish	White
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
