Colder Products

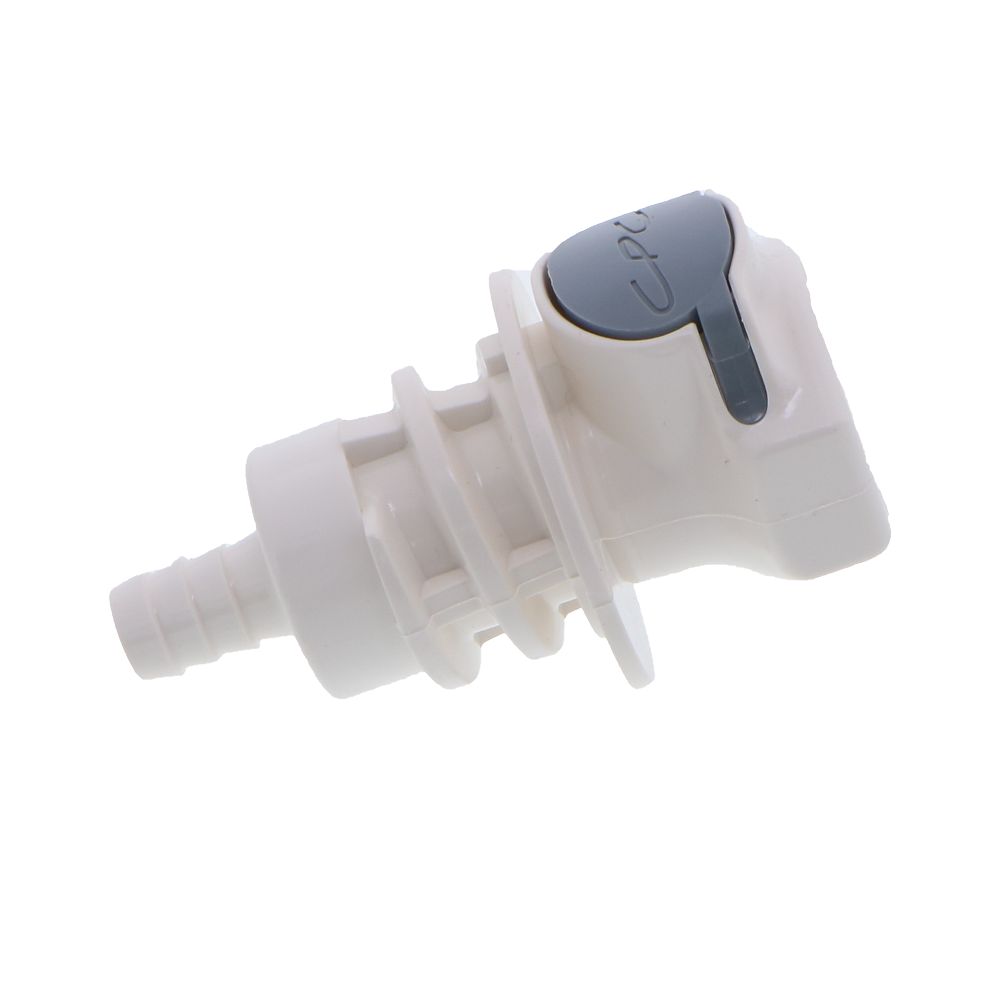

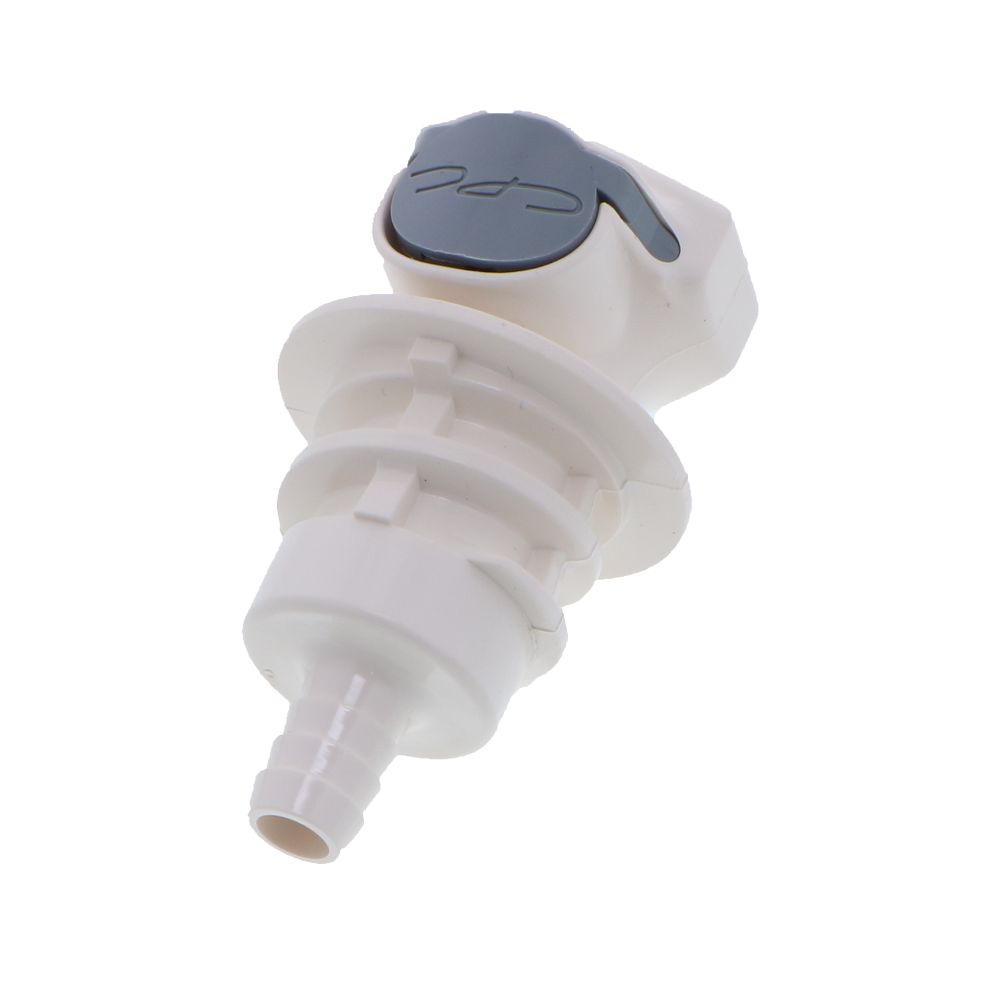

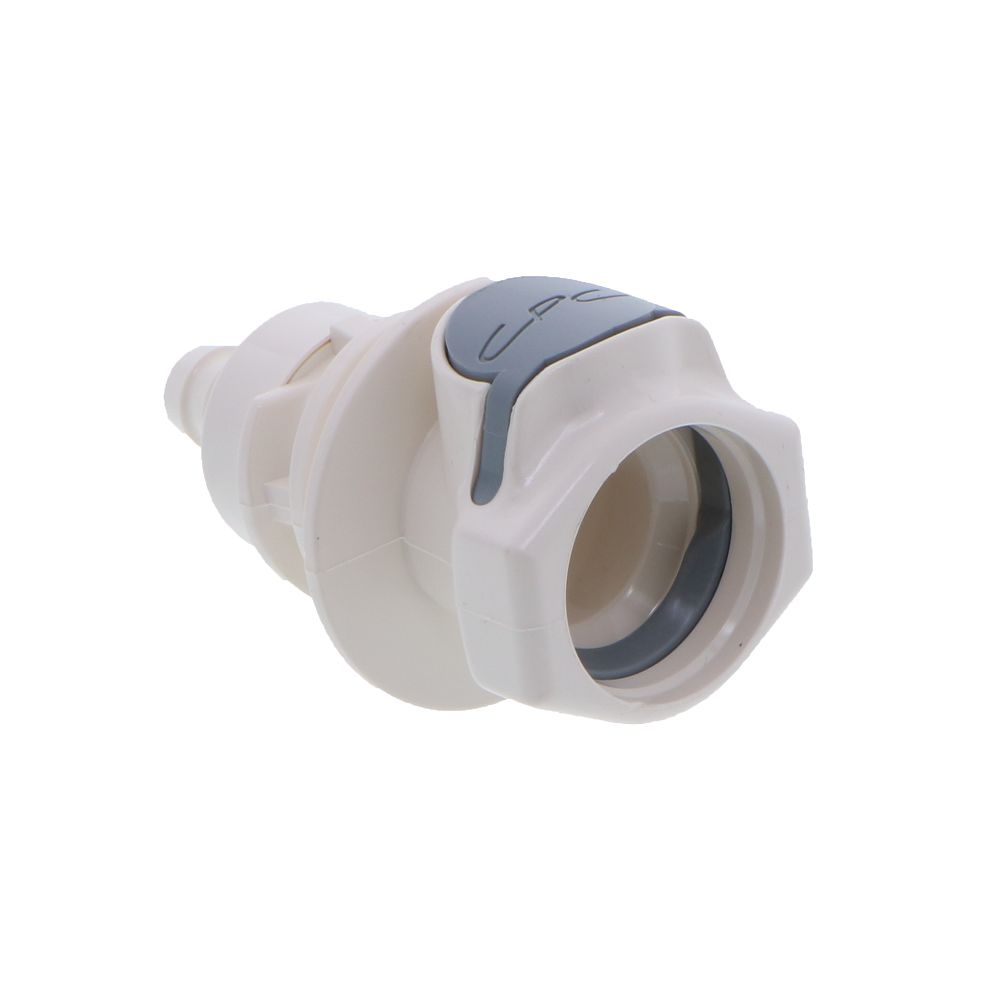

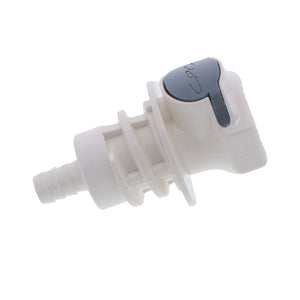

HFC16635 Panel Mount Hose Barb Coupling Body 3/8 ID Barb

Part Number: HFC16635

In Stock

out of stock

In Stock

$16.68

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range:-40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units

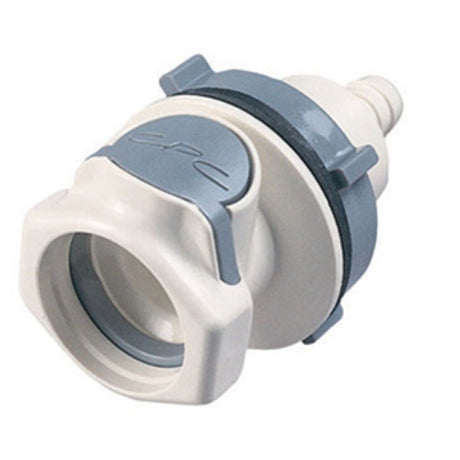

  • NSF Listed Version (part # 86500) Available Upon Request




Weight & Dimensions

Height (inches)

1.5

Length (inches)

2.63

Weight (lbs)

0.003125

Width (inches)

1.5

Details

Application

Water

Barb Size

3/8" ID

Body Material

Polysulfone

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

EPDM

Series

HFC35

Spring

316 Stainless Steel

Valve Type

Non-Valved

Color / Finish

White

Type

Coupling Body


HFC16635




The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range:-40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 86500) Available Upon Request



Weight & Dimensions

Height (inches)

1.5

Length (inches)

2.63

Weight (lbs)

0.003125

Width (inches)

1.5

Details

Application

Water

Barb Size

3/8" ID

Body Material

Polysulfone

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Seal Material

EPDM

Series

HFC35

Spring

316 Stainless Steel

Valve Type

Non-Valved

Color / Finish

White

Type

Coupling Body
