Colder Products

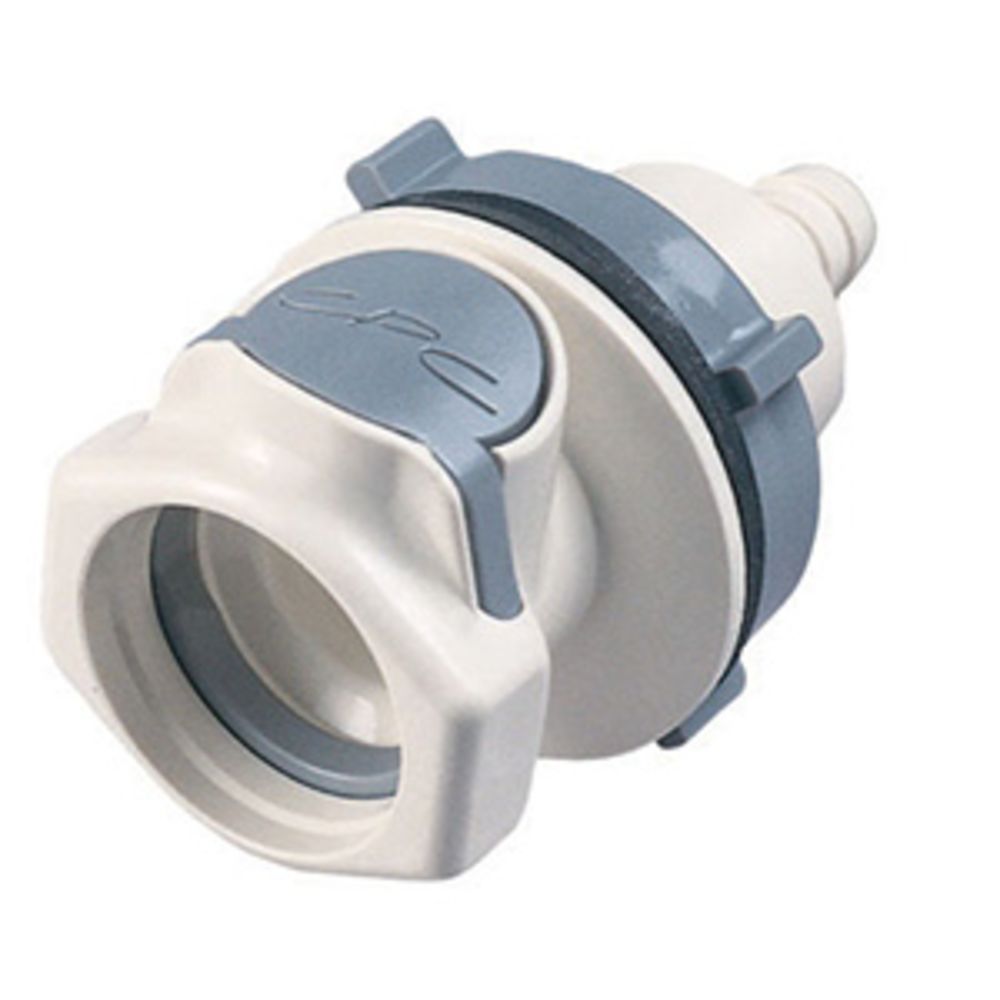

86500 NSF Non-Valved Panel Mount Hose Barb Coupling Body 3/8 ID Barb

Part Number: 86500

Alt. Part Number: HFC16635 (Non-NSF)

In Stock

out of stock

In Stock

$17.01

Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are suitable for use in water and beverage lines or food and condiment dispensing.

Specifications:
  • Material: Polysulfone
  • Material Finish: Molded White
  • Color: Gray
  • Valve Option: Non-Valved
  • Mounting Option: Panel Mount
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Temperature Range: -40°F to 280°F
  • Seal Options: EPDM
  • Valve Spring: 316 Stainless Steel


Details

Series

HFC35

Barb Size

3/8" ID

Bag Quantity

10

Body Material

Polysulfone

Color / Finish

Grey, Molded White

Max Operating Pressure

Vacuum to 125 PSI, 8.6 bar

Mounting Options

Panel Mount

Operating Temperature Range

-40-280 °F

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Non-Valved


86500




Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. NSF-listed versions are suitable for use in water and beverage lines or food and condiment dispensing.

Specifications:
  • Material: Polysulfone
  • Material Finish: Molded White
  • Color: Gray
  • Valve Option: Non-Valved
  • Mounting Option: Panel Mount
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Temperature Range: -40°F to 280°F
  • Seal Options: EPDM
  • Valve Spring: 316 Stainless Steel

Details

Series

HFC35

Barb Size

3/8" ID

Bag Quantity

10

Body Material

Polysulfone

Color / Finish

Grey, Molded White

Max Operating Pressure

Vacuum to 125 PSI, 8.6 bar

Mounting Options

Panel Mount

Operating Temperature Range

-40-280 °F

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Non-Valved

Documentation
86500

Reviews
