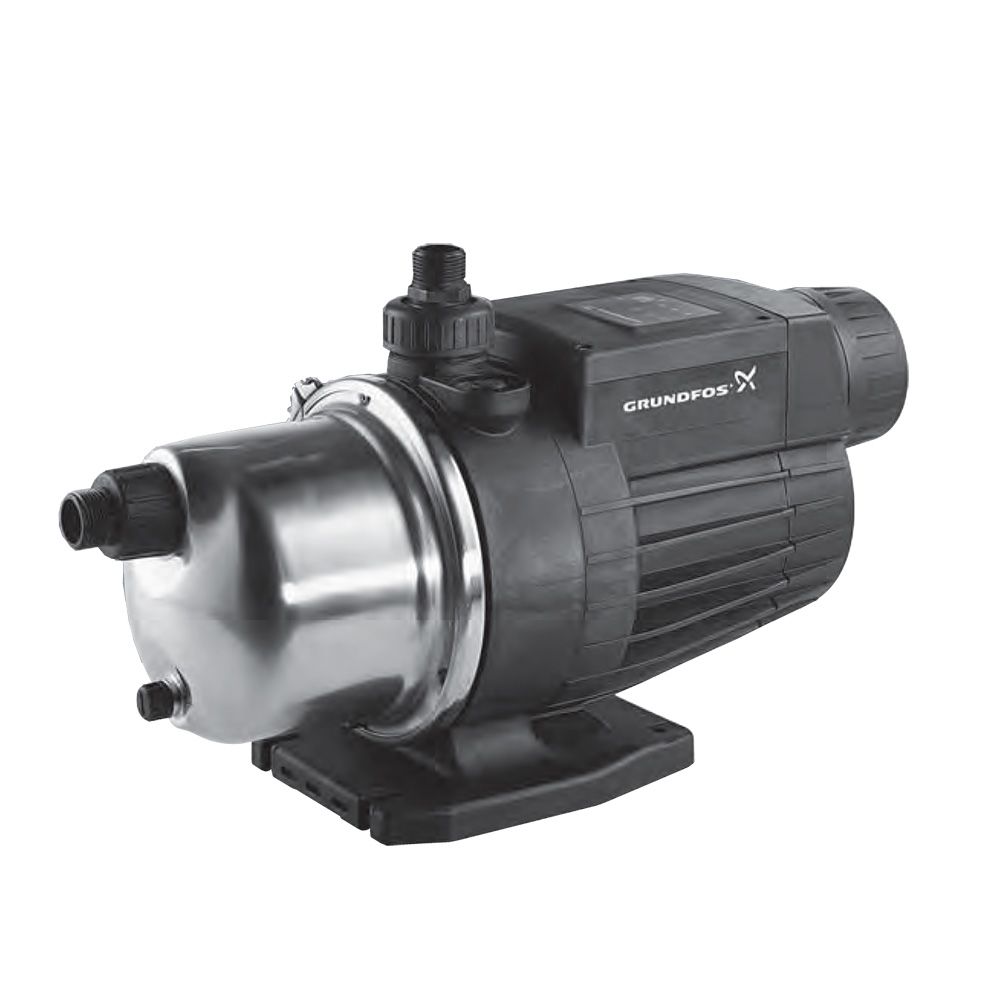

Grundfos MQ3-45 (230V) 1 HP Pressure Booster Pump - 96860207

Part Number: MQ3-45-2

Alt. Part Number: G96860207, 96860207, Formerly 96515515

In Stock

out of stock

In Stock

$559.99

The Grundfos MQ3-45 (230V) 1 HP booster pump is compact and easy to install. The pressure switch and water storage tank are already built into the MQ. The settings are clearly indicated on the user-friendly control panel with indicator lights for pump on/off and auto reset and an alarm indicating dry running or overheating.

Applications:
Grundfos MQ is built to provide clean water with no hassle. The anti-cycling feature prevents the pump from repeatedly starting and stopping with a dripping tap or minor leakage. When no water is available, the pump stops to protect itself and restarts automatically when water is available again.

NOTE: This booster pump must be placed in area that will not freeze. Placing a pump in an area with temperatures below freezing will void the Grundfos warranty.

Features:
  • Compact design: Because of its compact design, the pump requires no additional space around it.
  • Built-in protection: During dry running, excessive temperature, or any overload condition the pump will stop automatically, preventing a motor burnout.
  • Convenient all-in-one design: The Grundfos MQ is designed boost low water pressure for domestic water supply and a variety of other applications.
  • Simple operation: The pump features a user-friendly control panel with an ON/OFF button and lights to indicate the pump’s performance.
  • Additional Features:
    • Automatic reset
    • Low noise level
    • Pressure tank
    • Limited two-year warranty


    WARRANTY: Products manufactured by Grundfos Pumps Corporation are warranted to the original user to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.


Weight & Dimensions

Approx Height (Inches)

12.6 Inches

Approx Length (Inches)

22.4 Inches

Approx Width (Inches)

8.7 Inches

Details

Ambient Temperature Range

32-113 Degrees Fahrenheit

Flow Rate

22 max Gallons Per Minute

Inlet Size

1" MPT

Liquid Temperature

32-95 Degrees Fahrenheit

Max Operating Pressure

108 PSI

Outlet Size

1" MPT

Power

1 hp

Voltage

220VAC

Watts

716

Inlet Pressure

Max 44 PSI

Suction Lift

26 ft Max

Warranty & Certifications

Warranty

Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.


Grundfos

Grundfos

Grundfos

Grundfos

Grundfos




The Grundfos MQ3-45 (230V) 1 HP booster pump is compact and easy to install. The pressure switch and water storage tank are already built into the MQ. The settings are clearly indicated on the user-friendly control panel with indicator lights for pump on/off and auto reset and an alarm indicating dry running or overheating.

Applications:
Grundfos MQ is built to provide clean water with no hassle. The anti-cycling feature prevents the pump from repeatedly starting and stopping with a dripping tap or minor leakage. When no water is available, the pump stops to protect itself and restarts automatically when water is available again.

NOTE: This booster pump must be placed in area that will not freeze. Placing a pump in an area with temperatures below freezing will void the Grundfos warranty.

Features:
  • Compact design: Because of its compact design, the pump requires no additional space around it.
  • Built-in protection: During dry running, excessive temperature, or any overload condition the pump will stop automatically, preventing a motor burnout.
  • Convenient all-in-one design: The Grundfos MQ is designed boost low water pressure for domestic water supply and a variety of other applications.
  • Simple operation: The pump features a user-friendly control panel with an ON/OFF button and lights to indicate the pump’s performance.
  • Additional Features:
    • Automatic reset
    • Low noise level
    • Pressure tank
    • Limited two-year warranty


    WARRANTY: Products manufactured by Grundfos Pumps Corporation are warranted to the original user to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.

Weight & Dimensions

Approx Height (Inches)

12.6 Inches

Approx Length (Inches)

22.4 Inches

Approx Width (Inches)

8.7 Inches

Details

Ambient Temperature Range

32-113 Degrees Fahrenheit

Flow Rate

22 max Gallons Per Minute

Inlet Size

1" MPT

Liquid Temperature

32-95 Degrees Fahrenheit

Max Operating Pressure

108 PSI

Outlet Size

1" MPT

Power

1 hp

Voltage

220VAC

Watts

716

Inlet Pressure

Max 44 PSI

Suction Lift

26 ft Max

Warranty & Certifications

Warranty

Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.
