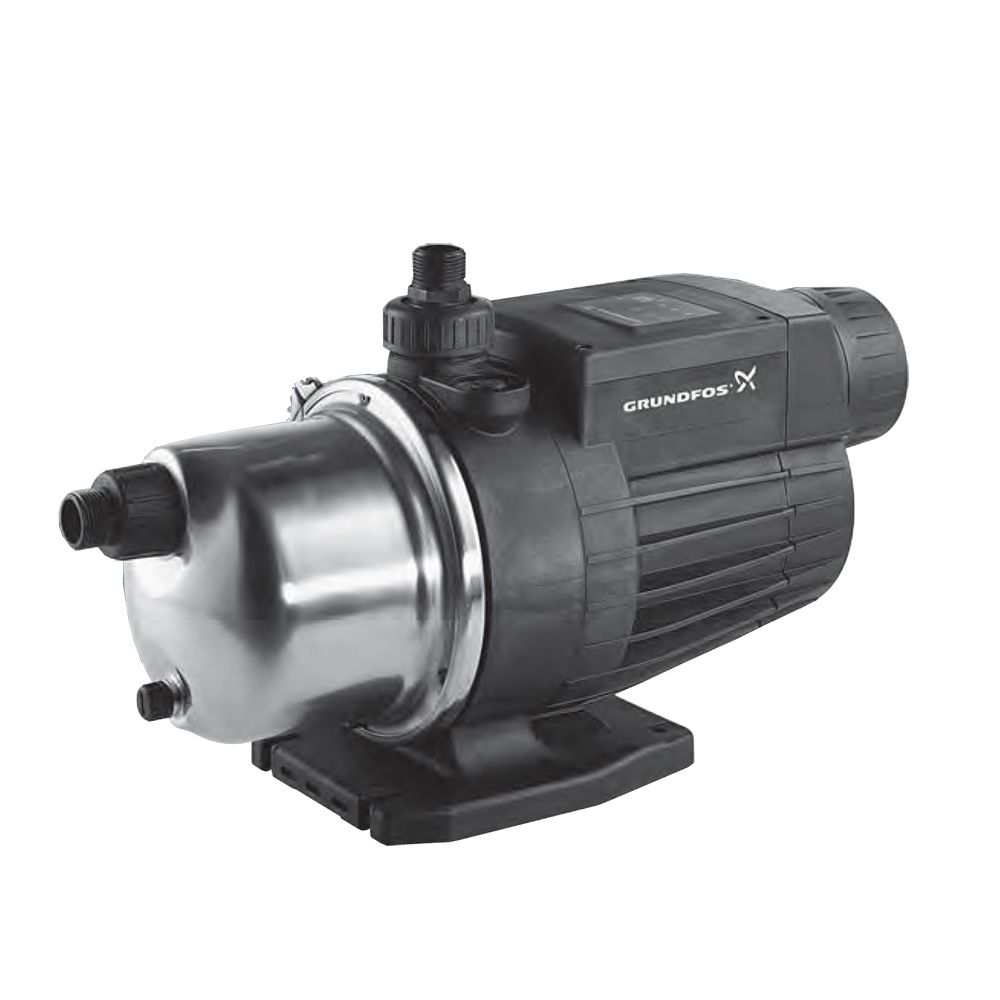

Name: Grundfos MQ3-35 (230V) 3/4 HP Pressure Booster Pump
Brand: Grundfos
SKU: MQ3-35-2
Price: 977.6 USD
Availability: OutOfStock
Rating: 4.8 (4 reviews)

The Grundfos MQ pump is compact and extremely easy to install. The pressure switch and tank are already built into the MQ. Furthermore, it is self priming and water cooled with a very low noise level. The outlet pipe connection can be angled up to 5º to fit your existing pipe-work. Grundfos' MQ pump is simple and easy to operate. The settings are clearly indicated on the user friendly control panel with indicator lights for Pump on/off, auto reset, and an alarm indicating dry running or overheating.

Grundfos MQ is built for trouble free operation. It's construction from corrosion resistant materials means it can be used for clean water. The anti-cycling feature prevents the pump from repeatedly starting and stopping in the event of a dripping tap or a minor leak. If there is no water available, the pump will stop to protect itself and restart automatically when water is available again.
Features:

Class A capacitor increases length of operation
More robust Printed Circuit offers increased capacity to function during power fluctuations
Potting material added to protect Printed Circuit Board components
High Torque Motor assures positive starts
Diffuser design increases hydraulic performance

Warranty:
Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.

NOTE: Pump must be placed in area that will not freeze, as this will cause damage to the pump. Placing a pump in an area that is susceptible to freezing, WILL void the Grundfos warranty.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Ambient Temperature Range	32-113 °F
Inlet Connection	1" MPT
Inlet Pressure	44 PSI
Liquid Temperature	32-113 °F
Outlet Connection	1" MPT
Power	3/4 hp 565 Watts
Pump Max Flow Rate (Gpm)	22
Pump Max Pressure (Psi)	108
Series	MQ3
Size	1"
Suction Lift	26 ft Max
Voltage Type	AC
Connection Type	Male (MPT)
Voltage	230VAC
Warranty & Certifications
Warranty	Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.
Shipping Dimensions
Shipping Length	24 in.
Shipping Width	10 in.
Shipping Height	14 in.
Product Weight & Dimensions
Product Height	14
Product Length	24
Product Width	10
Product Weight (lbs)	33

Product Details
Ambient Temperature Range	32-113 °F
Inlet Connection	1" MPT
Inlet Pressure	44 PSI
Liquid Temperature	32-113 °F
Outlet Connection	1" MPT
Power	3/4 hp 565 Watts
Pump Max Flow Rate (Gpm)	22
Pump Max Pressure (Psi)	108
Series	MQ3
Size	1"
Suction Lift	26 ft Max
Voltage Type	AC
Connection Type	Male (MPT)
Voltage	230VAC
Warranty & Certifications
Warranty	Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.
Product Weight & Dimensions
Product Weight (lbs)	512.25
