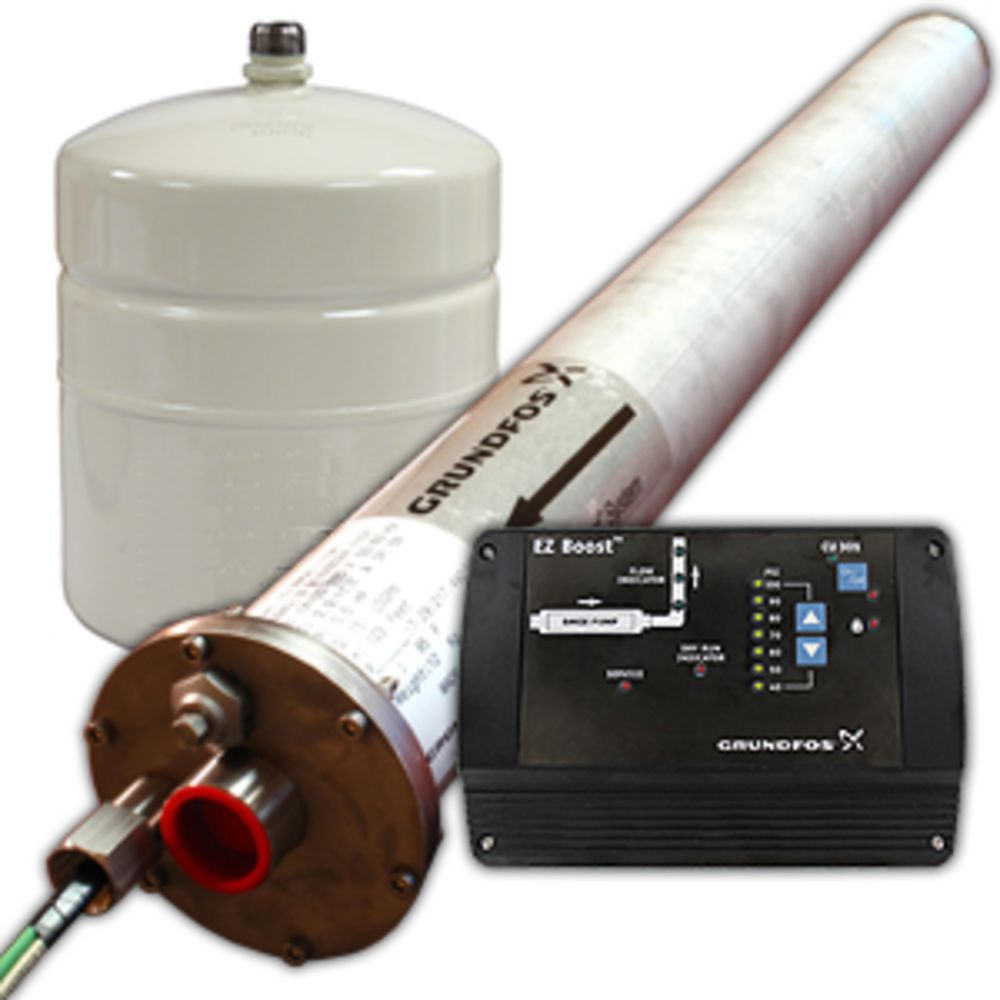

![Grundfos 22 BMQE 05B-120 Ez Boost Complete System Kit [230V]](http://cdn.shopify.com/s/files/1/2723/8896/products/a0bklqxet3wbeniidsd5_1500x.jpg?v=1600424731)
The EZ Boost Controller governs the BMQE pump's variable speed. Consequently the pump can be set to any duty point from minimum to maximum. Buy this complete system today and save.
NOTE: Pump must be placed in area that will not freeze, as this will cause damage to the pump. Placing a pump in an area that is susceptible to freezing, WILL void the Grundfos warranty.
Features:
- Maintenance-free operation
- Quiet operation
- Variable speed
- Electronic control and communication
- Parallel connection capability
- Dry-running protection
- High efficiency of pump and motor
- Soft starter
- Over voltage and under voltage protection
- Overload protection
- Over temperature protection
- Determine the pressure needed at your maximum flow
- Determine your current available pressure (inlet pressure)
- Select a pump from the chart that gives you the difference (desired pressure - available pressure = difference)
WARRANTY: Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.
 | |
| 1. EZ Boost BMQE Pump | 4. Pressure Sensor |
| 2. EZ Boost Controller | 5. Mounting Bracket |
| 3. Diaphragm Tank | 6. Flex Connector |
| (recommended size 2 U.S. gallons (8 liter)/130 psi | |
Weight & Dimensions
Approx Height (Inches) | 4.6" |
Approx Length (Inches) | 43.3" |
Approx Width (Inches) | 4.6" |
Weight (lbs) | 41 |
Details
Ambient Temperature Range | Min 32 °F |
Inlet/Outlet Connection | 1" MPT, 1-1/4" MPT |
Inlet Pressure | Min. 8 (Max. limited by operating pressure) PSI |
Liquid Temperature | 95 °F |
Max Head Pressure | 300 ft./130 psi |
Max Pressure (Psi) | 347 |
Power | 1/2 hp |
Size | 1", 1-1/4" |
Connection Type | Male (MPT) |
Flow Rate | Max. 39 (8.9 m3/h) |
Voltage | 230VAC |
Warranty & Certifications
Certifications | ISO 9001 |
Warranty | Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture. |
Product Videos
This complete system kit includes a pressure relief tank, pressure sensor and controller. The BMQE pump's state-of-the-art motor provides high efficiency, variable speed, quiet operation and soft starting. The EZ Boost has built-in safeties and the small footprint allows for either horizontal or vertical installations.
The EZ Boost Controller governs the BMQE pump's variable speed. Consequently the pump can be set to any duty point from minimum to maximum. Buy this complete system today and save.
NOTE: Pump must be placed in area that will not freeze, as this will cause damage to the pump. Placing a pump in an area that is susceptible to freezing, WILL void the Grundfos warranty.
Features:
- Maintenance-free operation
- Quiet operation
- Variable speed
- Electronic control and communication
- Parallel connection capability
- Dry-running protection
- High efficiency of pump and motor
- Soft starter
- Over voltage and under voltage protection
- Overload protection
- Over temperature protection
- Determine the pressure needed at your maximum flow
- Determine your current available pressure (inlet pressure)
- Select a pump from the chart that gives you the difference (desired pressure - available pressure = difference)
WARRANTY: Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.
| |
| 1. EZ Boost BMQE Pump | 4. Pressure Sensor |
| 2. EZ Boost Controller | 5. Mounting Bracket |
| 3. Diaphragm Tank | 6. Flex Connector |
| (recommended size 2 U.S. gallons (8 liter)/130 psi | |
NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.
Weight & Dimensions
Approx Height (Inches) | 4.6" |
Approx Length (Inches) | 43.3" |
Approx Width (Inches) | 4.6" |
Weight (lbs) | 41 |
Details
Ambient Temperature Range | Min 32 °F |
Inlet/Outlet Connection | 1" MPT, 1-1/4" MPT |
Inlet Pressure | Min. 8 (Max. limited by operating pressure) PSI |
Liquid Temperature | 95 °F |
Max Head Pressure | 300 ft./130 psi |
Max Pressure (Psi) | 347 |
Power | 1/2 hp |
Size | 1", 1-1/4" |
Connection Type | Male (MPT) |
Flow Rate | Max. 39 (8.9 m3/h) |
Voltage | 230VAC |
Warranty & Certifications
Certifications | ISO 9001 |
Warranty | Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture. |
Documentation
