Grundfos 22 BMQE 05A-80 Ez Boost Complete System Kit (230V)

Part Number: 91128528-Kit

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

The BMQE pump's state-of-the-art motor provides high efficiency, variable speed, quiet operation and soft starting. The EZ Boost has built-in safeties and the small footprint allows for either horizontal or vertical installations.The EZ Boost Controller governs the BMQE pump's variable speed. Consequently the pump can be set to any duty point from minimum to maximum. Buy this complete system today and save.

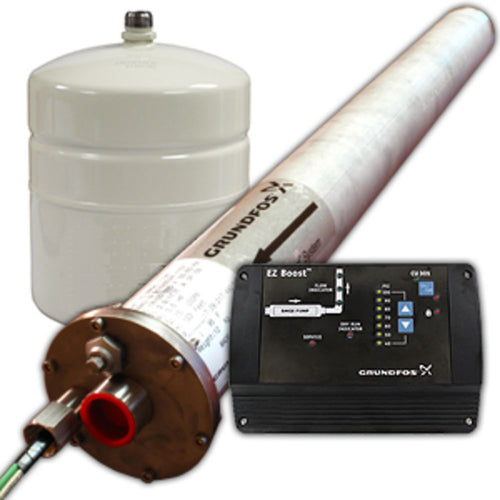

This complete system kit includes the BMQE Pump, EZ Boost Controller and pressure sensor, and a pressure relief tank.

NOTE: Pump must be placed in area that will not freeze, as this will cause damage to the pump. Placing a pump in an area that is susceptible to freezing, WILL void the Grundfos warranty.

 Features:
  • Maintenance-free operation
  • Quiet operation
  • Variable speed
  • Electronic control and communication
  • Parallel connection capability
  • Dry-running protection
  • High efficiency of pump and motor
  • Soft starter
  • Over voltage and under voltage protection
  • Overload protection
  • Over temperature protection
Grundfos BMQE Sizing Quick Guide
  1. Determine the pressure needed at your maximum flow
  2.  Determine your current available pressure (inlet pressure)
  3.  Select a pump from the chart that gives you the difference (desired pressure - available pressure = difference)
Example: I need maximum 15 gpm with a total pressure of 60 psi. My current pressure available is 20 psi, therefore, I need a boost of 40 psi. The correct selection would be a Model 15 BMQE 05A - 110. (See highlighted selection in chart below)

WARRANTY: Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.


1. EZ Boost BMQE Pump 4. Pressure Sensor
2. EZ Boost Controller 5. Mounting Bracket
3. Diaphragm Tank 6. Flex Connector
(recommended size 2 U.S. gallons (8 liter)/130 psi


Weight & Dimensions

Weight (lbs)

38

Approx Height (Inches)

4.6"

Approx Length (Inches)

43.3"

Approx Width (Inches)

4.6"

Details

Max Pressure (Psi)

347

Ambient Temperature Range

Min 32 °F

Liquid Temperature

95 °F

Power

1/2 hp

Size

1", 1-1/4"

Voltage

230VAC

Inlet Pressure

Min. 8 (Max. limited by operating pressure) PSI

Max Head Pressure

300 ft./130 psi

Inlet/Outlet Connection

1" MPT, 1-1/4" MPT

Warranty & Certifications

Certifications

ISO 9001

Warranty

Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.


Grundfos


Product Videos


The BMQE pump's state-of-the-art motor provides high efficiency, variable speed, quiet operation and soft starting. The EZ Boost has built-in safeties and the small footprint allows for either horizontal or vertical installations.The EZ Boost Controller governs the BMQE pump's variable speed. Consequently the pump can be set to any duty point from minimum to maximum. Buy this complete system today and save.

This complete system kit includes the BMQE Pump, EZ Boost Controller and pressure sensor, and a pressure relief tank.

NOTE: Pump must be placed in area that will not freeze, as this will cause damage to the pump. Placing a pump in an area that is susceptible to freezing, WILL void the Grundfos warranty.

 Features:
  • Maintenance-free operation
  • Quiet operation
  • Variable speed
  • Electronic control and communication
  • Parallel connection capability
  • Dry-running protection
  • High efficiency of pump and motor
  • Soft starter
  • Over voltage and under voltage protection
  • Overload protection
  • Over temperature protection
Grundfos BMQE Sizing Quick Guide
  1. Determine the pressure needed at your maximum flow
  2.  Determine your current available pressure (inlet pressure)
  3.  Select a pump from the chart that gives you the difference (desired pressure - available pressure = difference)
Example: I need maximum 15 gpm with a total pressure of 60 psi. My current pressure available is 20 psi, therefore, I need a boost of 40 psi. The correct selection would be a Model 15 BMQE 05A - 110. (See highlighted selection in chart below)

WARRANTY: Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.


1. EZ Boost BMQE Pump 4. Pressure Sensor
2. EZ Boost Controller 5. Mounting Bracket
3. Diaphragm Tank 6. Flex Connector
(recommended size 2 U.S. gallons (8 liter)/130 psi

NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Weight (lbs)

38

Approx Height (Inches)

4.6"

Approx Length (Inches)

43.3"

Approx Width (Inches)

4.6"

Details

Max Pressure (Psi)

347

Ambient Temperature Range

Min 32 °F

Liquid Temperature

95 °F

Power

1/2 hp

Size

1", 1-1/4"

Voltage

230VAC

Inlet Pressure

Min. 8 (Max. limited by operating pressure) PSI

Max Head Pressure

300 ft./130 psi

Inlet/Outlet Connection

1" MPT, 1-1/4" MPT

Warranty & Certifications

Certifications

ISO 9001

Warranty

Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.
