Home / Fittings / Quick-Connect Fittings / Adapter / Gray DMfit Straight MNPT Male - 3/8 Push-In x 1/8 MNPT

DMFit

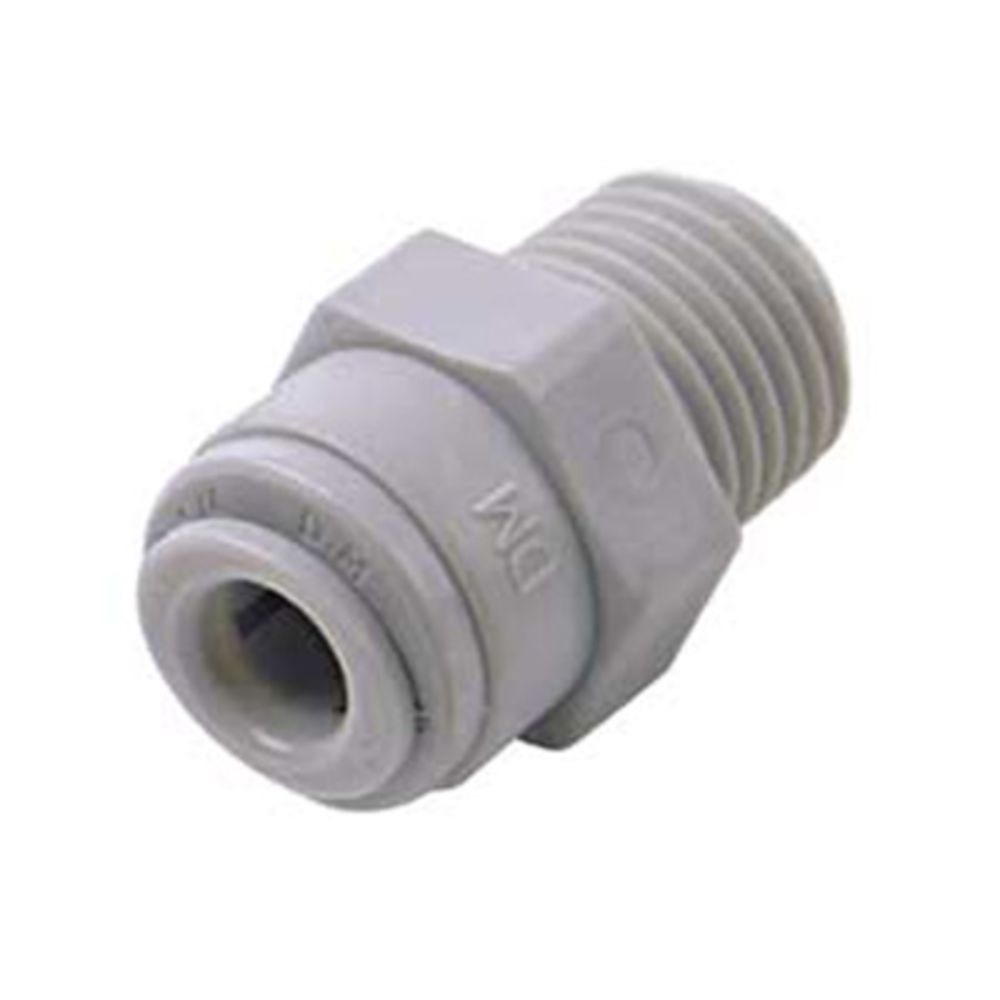

Gray DMfit Straight MNPT Male - 3/8 Push-In x 1/8 MNPT

Part Number: AMC0602

Main Product Image

Product image 1

Product image 2

Product image 3

Product image 4

DMFit

Gray DMfit Straight MNPT Male - 3/8 Push-In x 1/8 MNPT

Part Number: AMC0602

Choose

Single Bag of 20 5 Bags Box of 100

Quantity

similar items

Also availabe in WHITE

Features:
- Acetal copolymer construction
- O-rings are NBR (Buna-N)
- Unique oval collet design
- FDA approved materials
- For water, air, gasses, vacuum & liquids
- NSF Certified 51 & 61
- Fittings may be gray or white based on availability

Also availabe in WHITE

Features:
- Acetal copolymer construction
- O-rings are NBR (Buna-N)
- Unique oval collet design
- FDA approved materials
- For water, air, gasses, vacuum & liquids
- NSF Certified 51 & 61
- Fittings may be gray or white based on availability

Product Details
Application	Water Air Food Beverage
Body Material	Acetal Copolymer
Inlet Connection	1/8" MPT
Max Pressure (Psi)	170
Max Temp (°F)	150
Min Pressure (Psi)	Vacuum
Min Temp (°F)	34
Mounting Options	Thread
Outlet Connection	1/8" MPT
Push-In Size	3/8" OD
Seal Material	Buna-N
Series	Acetal
Shape	Straight
Size	1/8"
Color / Finish	Gray
Connection Type	Male (MPT)
Origin	Korea
Sub-Type	Male Adapter
Type	Adapter
Warranty & Certifications
Certifications	NSF 61, NSF 51, FDA Approved
