Fluid-o-Tech

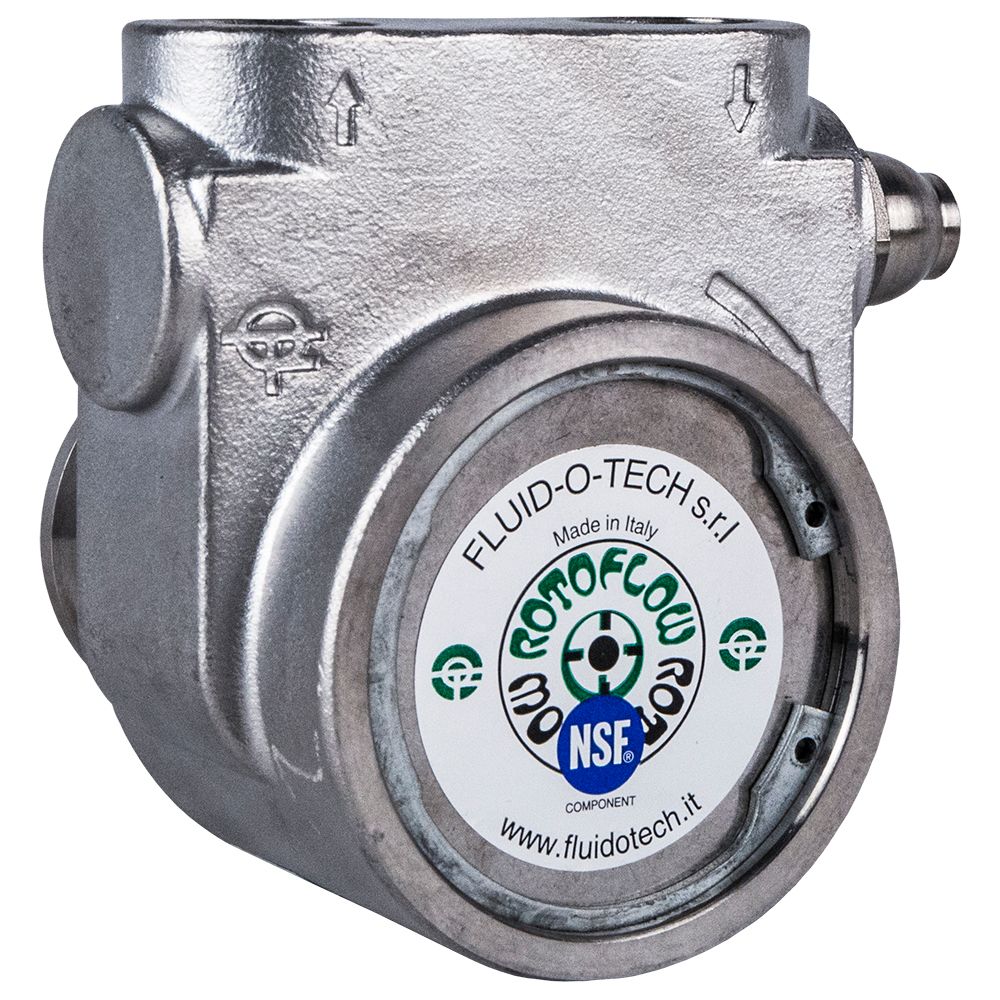

Fluid-o-Tech Stainless Steel Rotary Vane Pump 320 GPH - 1/2" NPT

Part Number: PA-1011-225

Alt. Part Number: PA1011, PA1001BNENN0000

In Stock

out of stock

In Stock

$218.46

Fluid-o-Tech PA-1011 is a 327 gallon per hour rotary vane pump. The PA611 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of Stainless Steel, and comes with a band clamp mount and a pressure bypass.

Specifications:
  • Flow rate: 320 gallons per hour
  • Material: Stainless Steel housing & graphite chamber
  • 1/2" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • Max Speed: 1450 RPM
  • Stainless Steel: AISI 303
  • High Volume Rotary Vane Pump
Applications:
  • Post-mix drink dispensers
  • Cooling & booster systems
  • Fuel injection systems
  • Reverse osmosis systems
  • Ultra-filtration systems
  • Water dispensing systems




Weight & Dimensions

Length (inches)

4.38

Height (inches)

4.31

Width (inches)

3.63

Weight (lbs)

3.059375

Details

Body Material

Stainless Steel

Flow Rate

320 GPH

Mounting Options

Clamp On

Power

1 hp, 2 hp

Size

1/2"

Elastomer Type

Buna-N

Max Outlet Pressure

230 PSI

Nominal Speed - Rpm

1450

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

Yes

Inlet/Outlet Connection

1/2" MPT

Warranty & Certifications

Certifications

NSF 169; WRAS


Fluid-o-Tech




Fluid-o-Tech PA-1011 is a 327 gallon per hour rotary vane pump. The PA611 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of Stainless Steel, and comes with a band clamp mount and a pressure bypass.

Specifications:
  • Flow rate: 320 gallons per hour
  • Material: Stainless Steel housing & graphite chamber
  • 1/2" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • Max Speed: 1450 RPM
  • Stainless Steel: AISI 303
  • High Volume Rotary Vane Pump
Applications:
  • Post-mix drink dispensers
  • Cooling & booster systems
  • Fuel injection systems
  • Reverse osmosis systems
  • Ultra-filtration systems
  • Water dispensing systems



Weight & Dimensions

Length (inches)

4.38

Height (inches)

4.31

Width (inches)

3.63

Weight (lbs)

3.059375

Details

Body Material

Stainless Steel

Flow Rate

320 GPH

Mounting Options

Clamp On

Power

1 hp, 2 hp

Size

1/2"

Elastomer Type

Buna-N

Max Outlet Pressure

230 PSI

Nominal Speed - Rpm

1450

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

Yes

Inlet/Outlet Connection

1/2" MPT

Warranty & Certifications

Certifications

NSF 169; WRAS
