Fluid-o-Tech

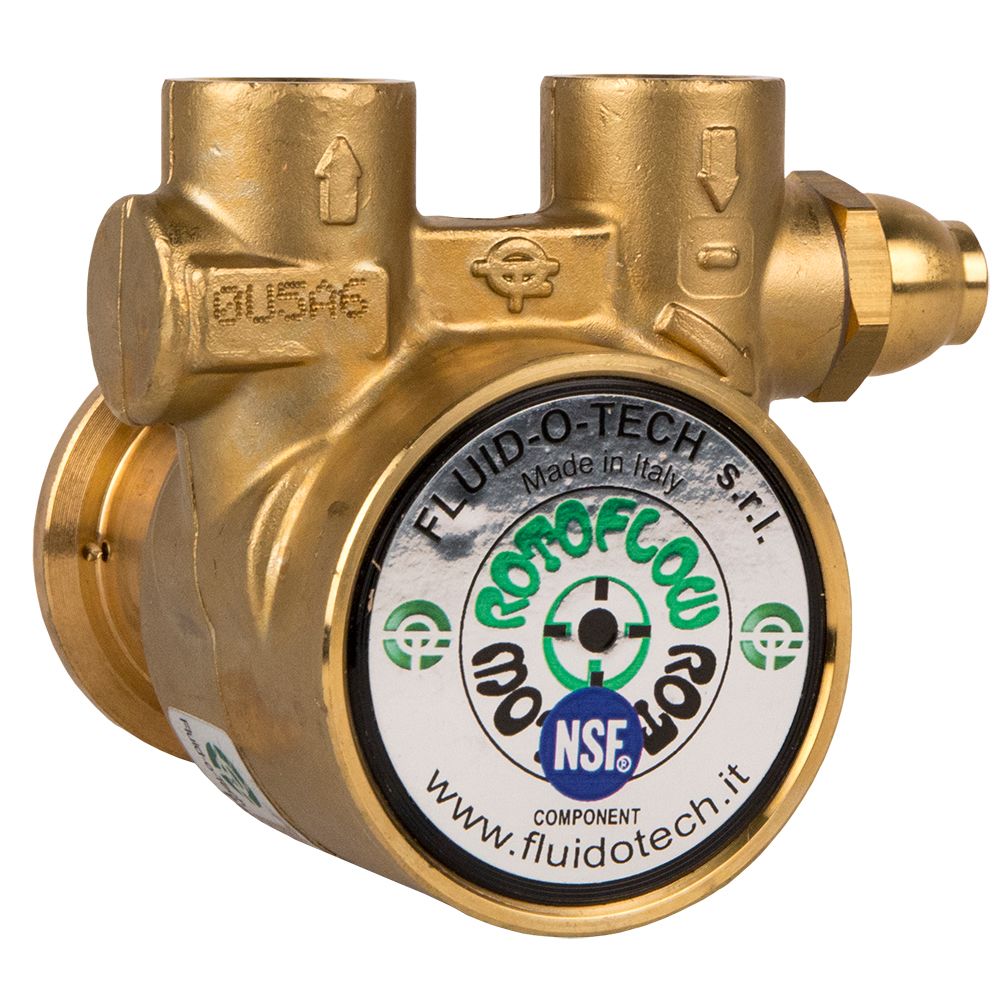

Fluid-o-Tech Brass Rotary Vane Pump 320 GPH Bypass - 1/2" NPT

Part Number: DV-1001-225

In Stock

out of stock

In Stock

$173.32

Intended Use:
Fluid-o-Tech PB1001 is a 320 gallon per hour rotary vane pump. The PB1001 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of brass, and comes with a band clamp mount and a pressure bypass.

Features:
  • Flow rate: 320 gallons per hour
  • Material: Brass housing & graphite chamber
  • 1/2" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • High Volume Rotary Vane Pump

Fluid-o-Tech Rotary Vane Pump Applications
  • Post-mix drink dispensers
  • Cooling & booster systems
  • Fuel injection systems
  • Reverse osmosis systems
  • Ultra-filtration systems
  • Water dispensing systems



Weight & Dimensions

Weight (lbs)

3

Details

Max Temp (°F)

158

Max Pressure (Psi)

290

Body Material

Brass

Flow Rate

320 GPH

Housing Material

Brass

Mounting Options

Clamp On

Size

1/2"

Inlet/Outlet Connection

1/2" MPT


Fluid-o-Tech




Intended Use:
Fluid-o-Tech PB1001 is a 320 gallon per hour rotary vane pump. The PB1001 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of brass, and comes with a band clamp mount and a pressure bypass.

Features:
  • Flow rate: 320 gallons per hour
  • Material: Brass housing & graphite chamber
  • 1/2" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • High Volume Rotary Vane Pump

Fluid-o-Tech Rotary Vane Pump Applications
  • Post-mix drink dispensers
  • Cooling & booster systems
  • Fuel injection systems
  • Reverse osmosis systems
  • Ultra-filtration systems
  • Water dispensing systems


Weight & Dimensions

Weight (lbs)

3

Details

Max Temp (°F)

158

Max Pressure (Psi)

290

Body Material

Brass

Flow Rate

320 GPH

Housing Material

Brass

Mounting Options

Clamp On

Size

1/2"

Inlet/Outlet Connection

1/2" MPT

Documentation
