Fluid-o-Tech

Fluid-o-Tech Stainless Steel Rotary Vane Pump 250 gph 1/2" NPT

Part Number: PA0801HNEDN0000

In Stock

out of stock

In Stock

$331.20

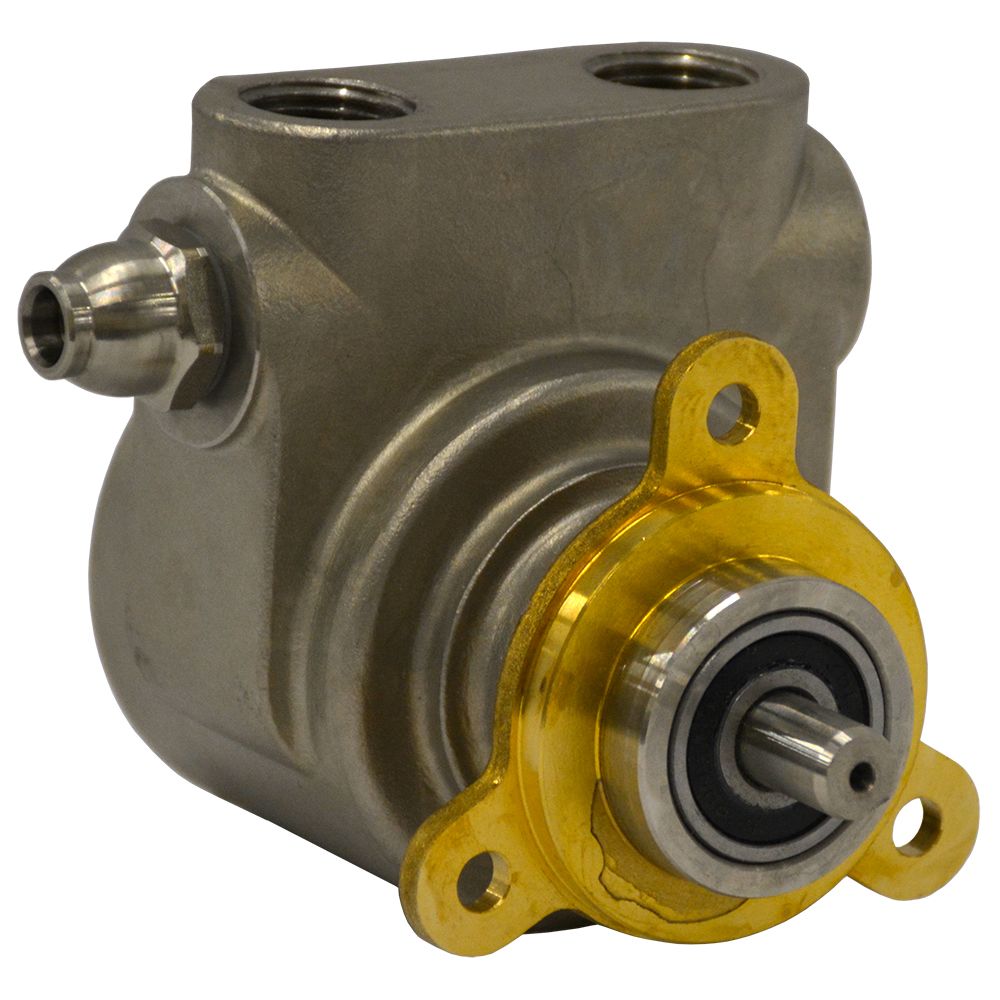

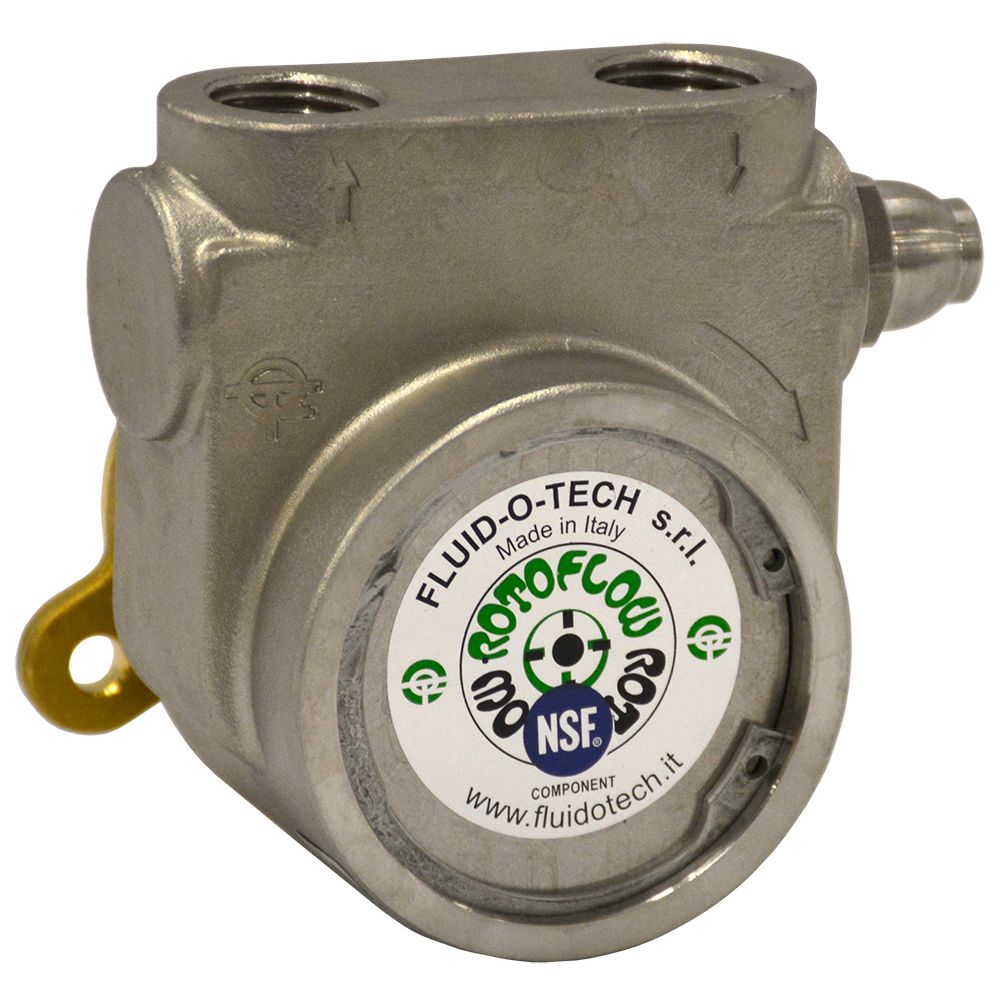

Fluid-o-Tech PA0801HNEDN0000 is a high volume rotary vane pump. The PA0801HNEDN0000 has an NSF approved Buna-N seal, and a flow rate of 250 gallons per hour. The pump housing is constructed out of stainless steel, and comes with a three bolt flange mount and a pressure bypass.

  • Flow rate: 250 gallons per hour
  • Material: Stainless Steel
  • 1/2" NPT ports
  • NSF approved Buna-N seal
  • Three bolt flange mount
  • Max Static Pressure: 290 psi
  • Max Operating Temperature: 158°F
Applications:
  • Beverage Vending Machines
  • Booster Systems
  • Cooling Systems
  • Espresso Coffee Machines
  • Post Mix Drink Dispensers
  • Water Dispensers
  • Water Treatment



Weight & Dimensions

Weight (lbs)

4.5

Details

Body Material

Stainless Steel

Flow Rate

250 GPH

Housing Material

Stainless Steel

Mounting Options

Bolt-On

Size

1/2"

Motor Rpm

1725 RPM

Inlet/Outlet Connection

1/2" FPT
