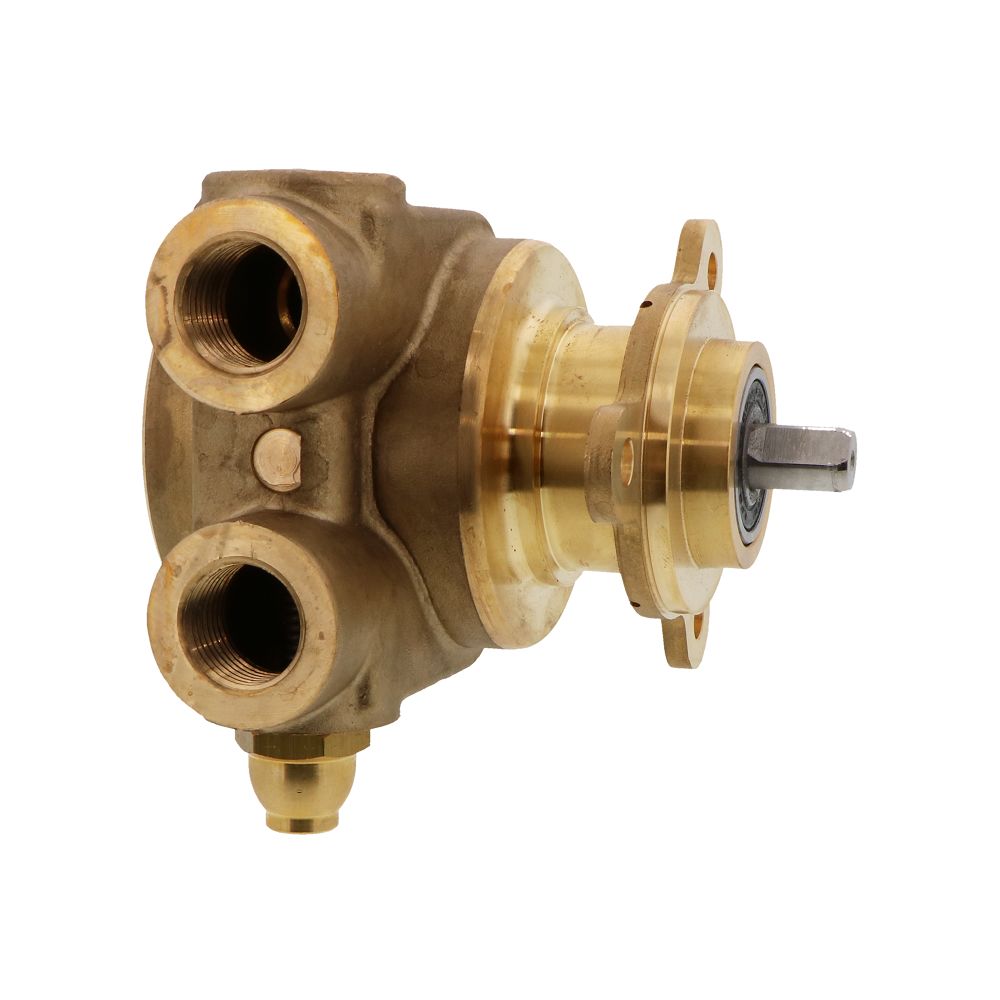

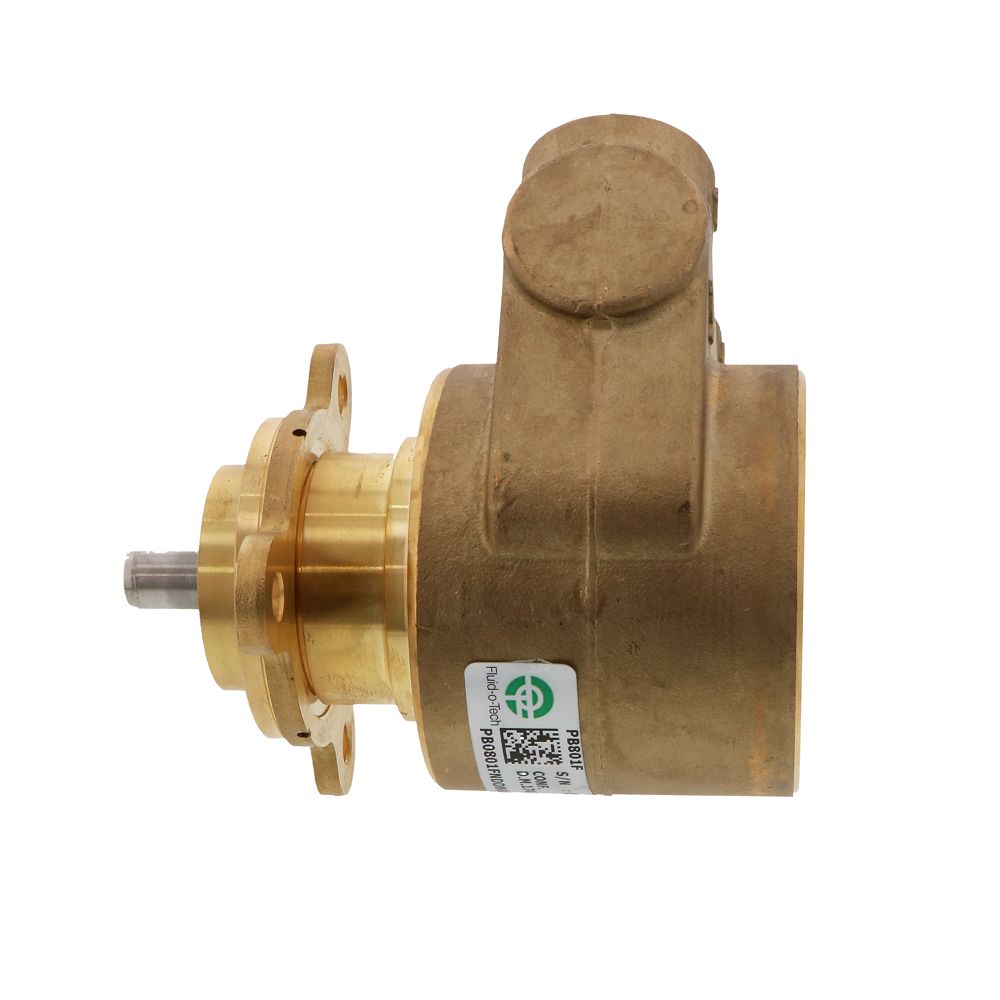

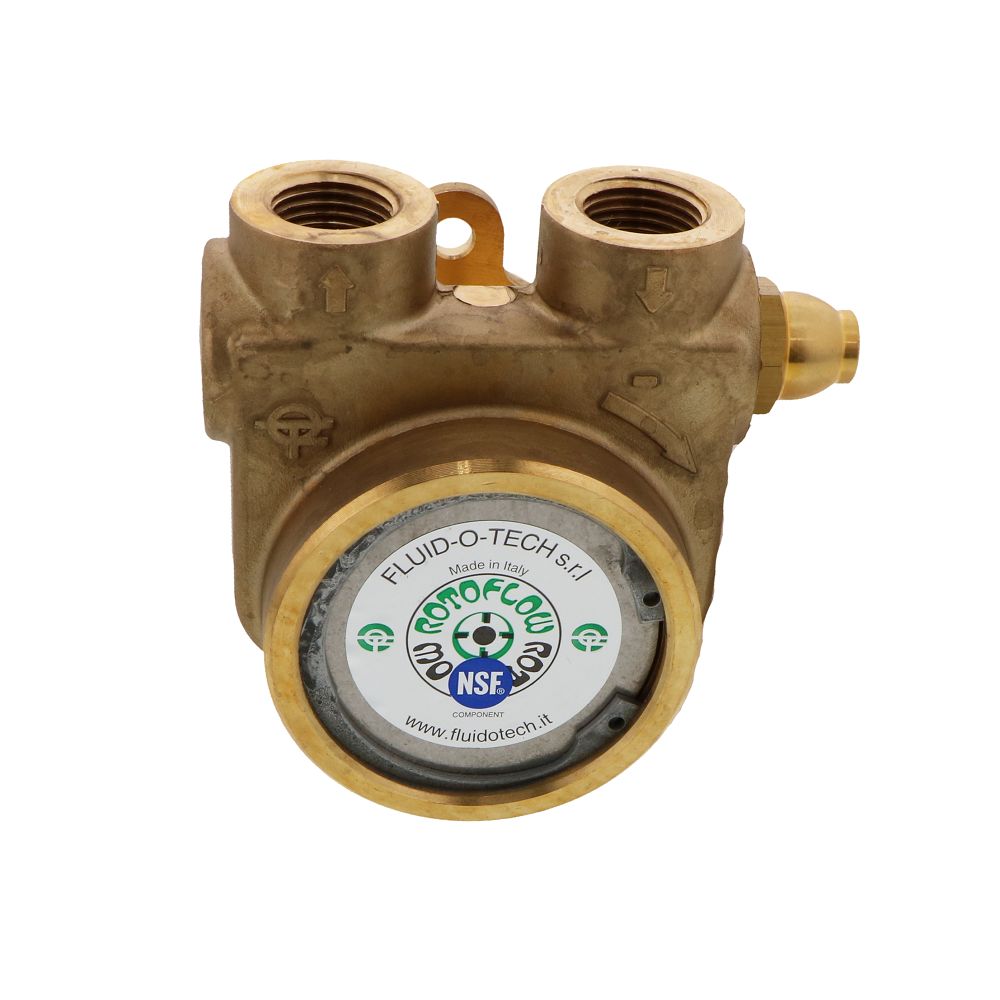

Fluid-o-Tech PB801 Lead Free Brass Rotary Vane Pump 250 gph 1/2" NPT
Part Number: PB0801FNDDN0000
Alt. Part Number: PB801
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Applications:
- Beverage Vending Machines
- Booster Systems
- Cooling Systems
- Espresso Coffee Machines
- Post Mix Drink Dispensers
- Water Dispensers
- Water Treatment
- Flow rate: 250 gallons per hour
- Material: lead-free brass housing, graphite chamber
- 1/2" NPT ports
- NSF approved Buna-N seal
- Three bolt flange mount
- Max Static Pressure: 290 psi
- Max Operating Temperature: 158°F
Product Details | |
---|---|
Body Material | Brass |
Housing Material | Lead-free Brass |
Inlet Connection | 1/2" FPT |
Motor Rpm | 1725 RPM |
Mounting Options | Bolt-On |
Outlet Connection | 1/2" FPT |
Pump Max Flow Rate (Gpm) | 250 |
Pump Max Pressure (Psi) | 290 |
Size | 1/2" |
Connection Type | Female (FPT) |
Type | Rotary Vane Pumps |
Shipping Dimensions | |
Shipping Length | 6 in. |
Shipping Width | 6 in. |
Shipping Height | 4 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 4.65 |
Applications:
- Beverage Vending Machines
- Booster Systems
- Cooling Systems
- Espresso Coffee Machines
- Post Mix Drink Dispensers
- Water Dispensers
- Water Treatment
- Flow rate: 250 gallons per hour
- Material: lead-free brass housing, graphite chamber
- 1/2" NPT ports
- NSF approved Buna-N seal
- Three bolt flange mount
- Max Static Pressure: 290 psi
- Max Operating Temperature: 158°F
Product Details | |
---|---|
Body Material | Brass |
Housing Material | Lead-free Brass |
Inlet Connection | 1/2" FPT |
Motor Rpm | 1725 RPM |
Mounting Options | Bolt-On |
Outlet Connection | 1/2" FPT |
Pump Max Flow Rate (Gpm) | 250 |
Pump Max Pressure (Psi) | 290 |
Size | 1/2" |
Connection Type | Female (FPT) |
Type | Rotary Vane Pumps |
Shipping Dimensions | |
Shipping Length | 6 in. |
Shipping Width | 6 in. |
Shipping Height | 4 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 4.65 |
