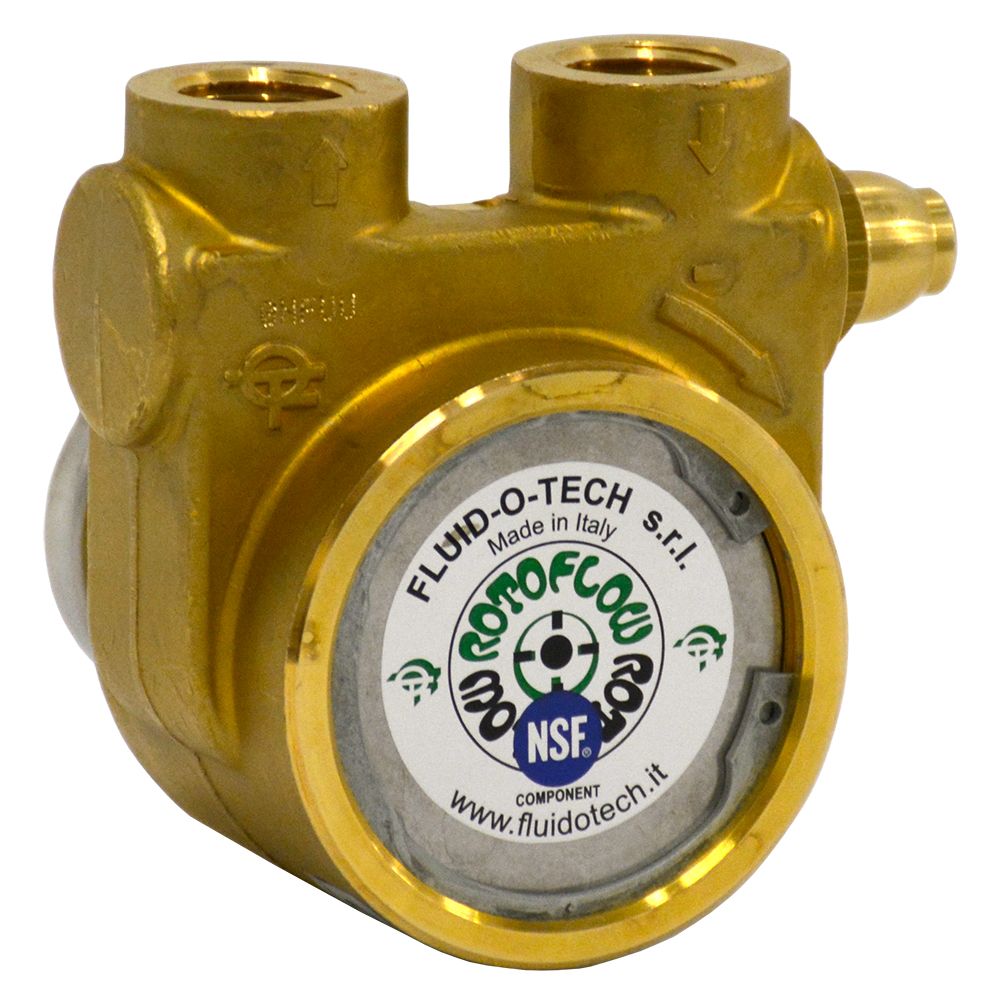

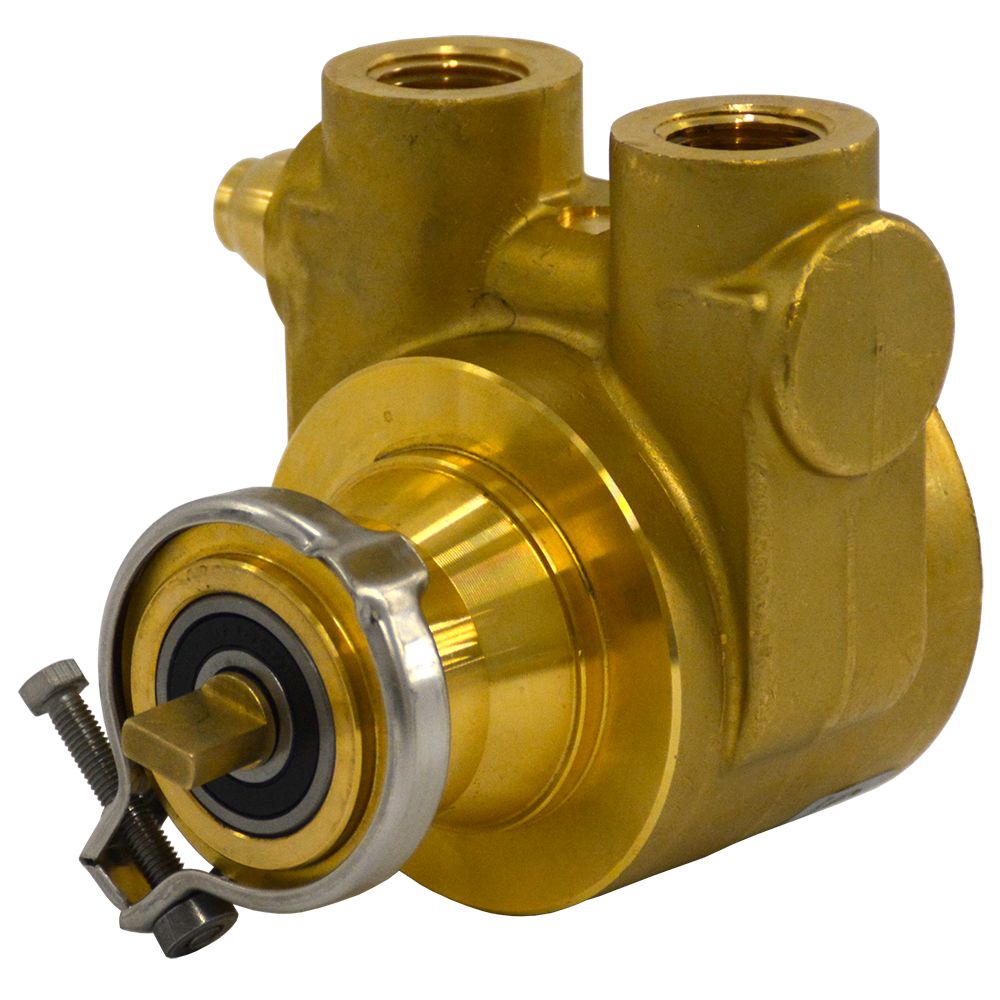

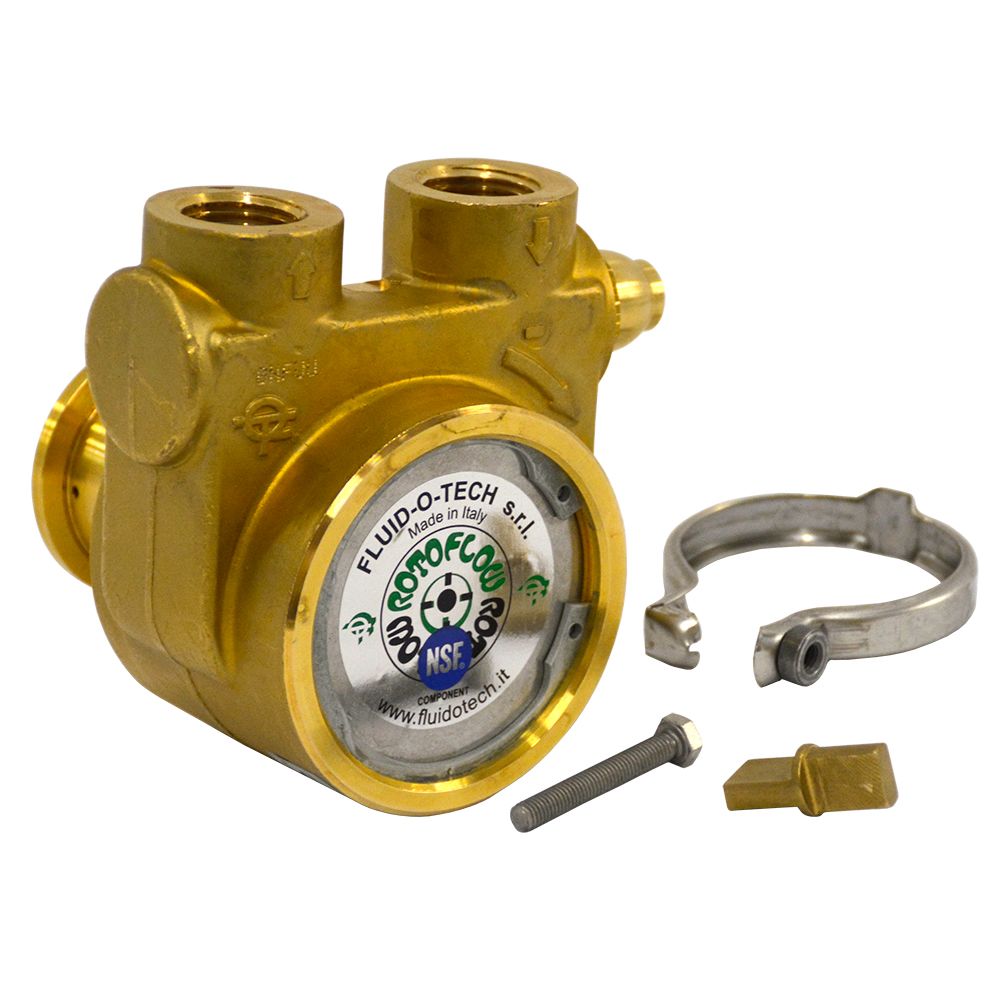

Fluid-o-Tech Lead Free Brass Rotary Vane Pump with Brass Key 250 gph 1/2" NPT

Part Number: PB0801ANDFN5032

In Stock

out of stock

In Stock

$191.82

Fluid-o-Tech PB0801ANDFN5032 is a 250 gallon per hour rotary vane pump. The PB0801ANDFN5032 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of lead-free brass, and comes with a band clamp mount and a pressure bypass.

Specifications:
  • Flow rate: 250 gallons per hour
  • Material: lead-free brass housing, graphite chamber
  • 1/2" NPT ports
  • NSF approved Buna-N seal
  • Band clamp mount
  • Max Static Pressure: 290 psi
  • Max Operating Temperature: 158°F
Applications:
  • Beverage Vending Machines
  • Booster Systems
  • Cooling Systems
  • Espresso Coffee Machines
  • Post Mix Drink Dispensers
  • Water Dispensers
  • Water Treatment


Weight & Dimensions

Weight (lbs)

4.5

Details

Body Material

Brass

Flow Rate

250 GPH

Mounting Options

Clamp On

Power

1 hp, 2 hp

Size

1/2"

Elastomer Type

Buna-N

Max Outlet Pressure

230 PSI

Nominal Speed - Rpm

1450

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

Yes

Inlet/Outlet Connection

1/2" FPT

Warranty & Certifications

Certifications

NSF 169; WRAS
