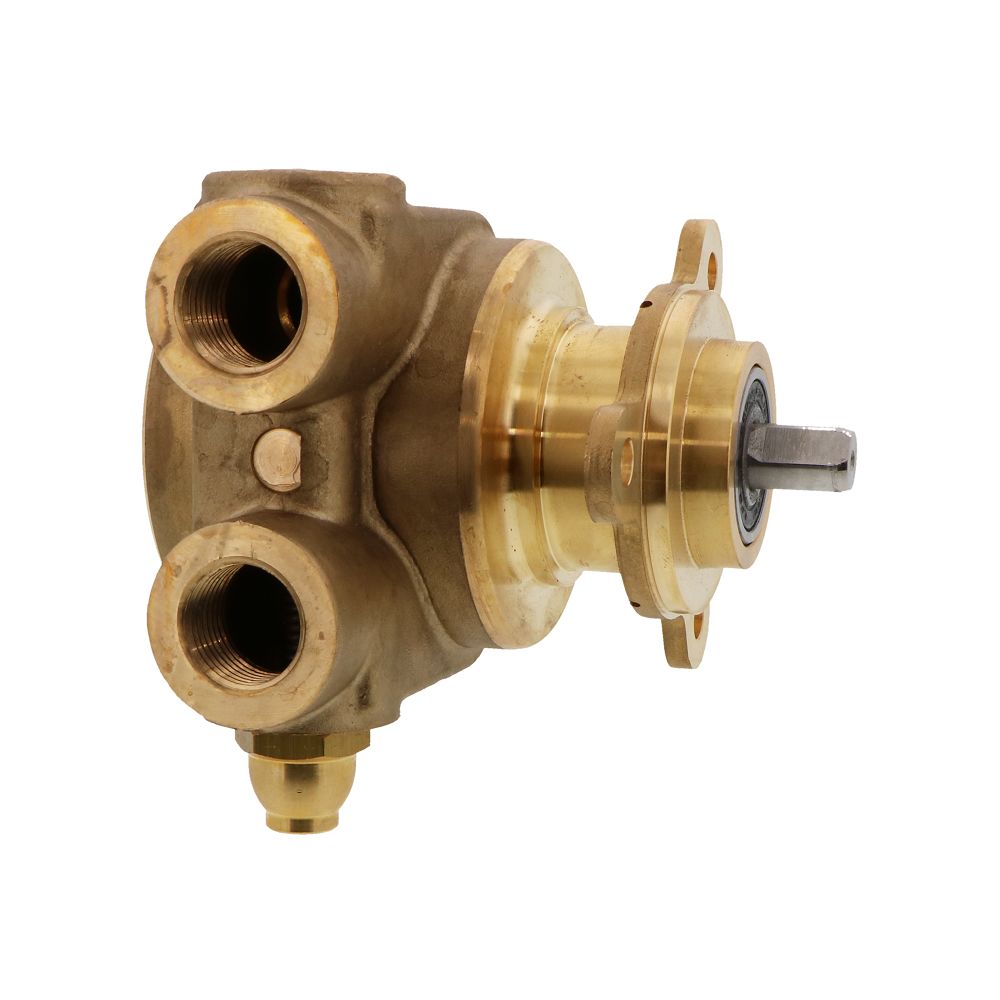

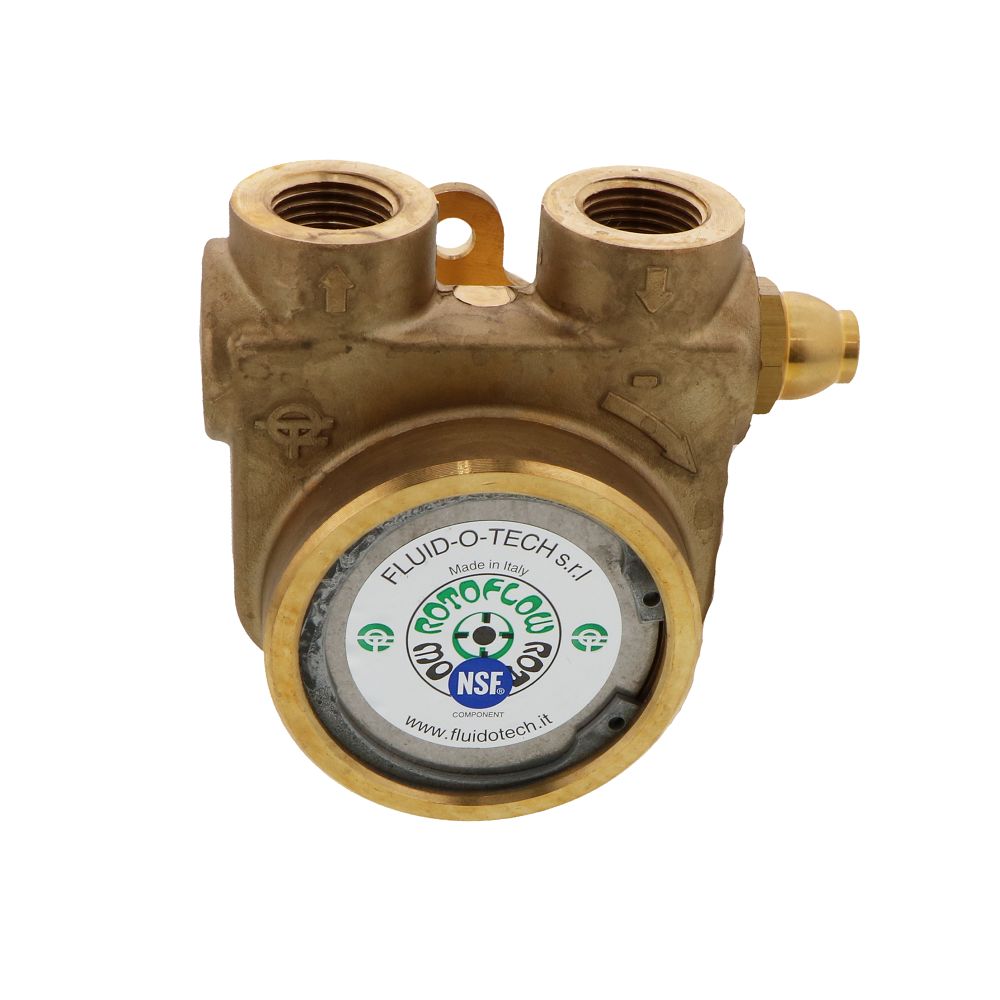

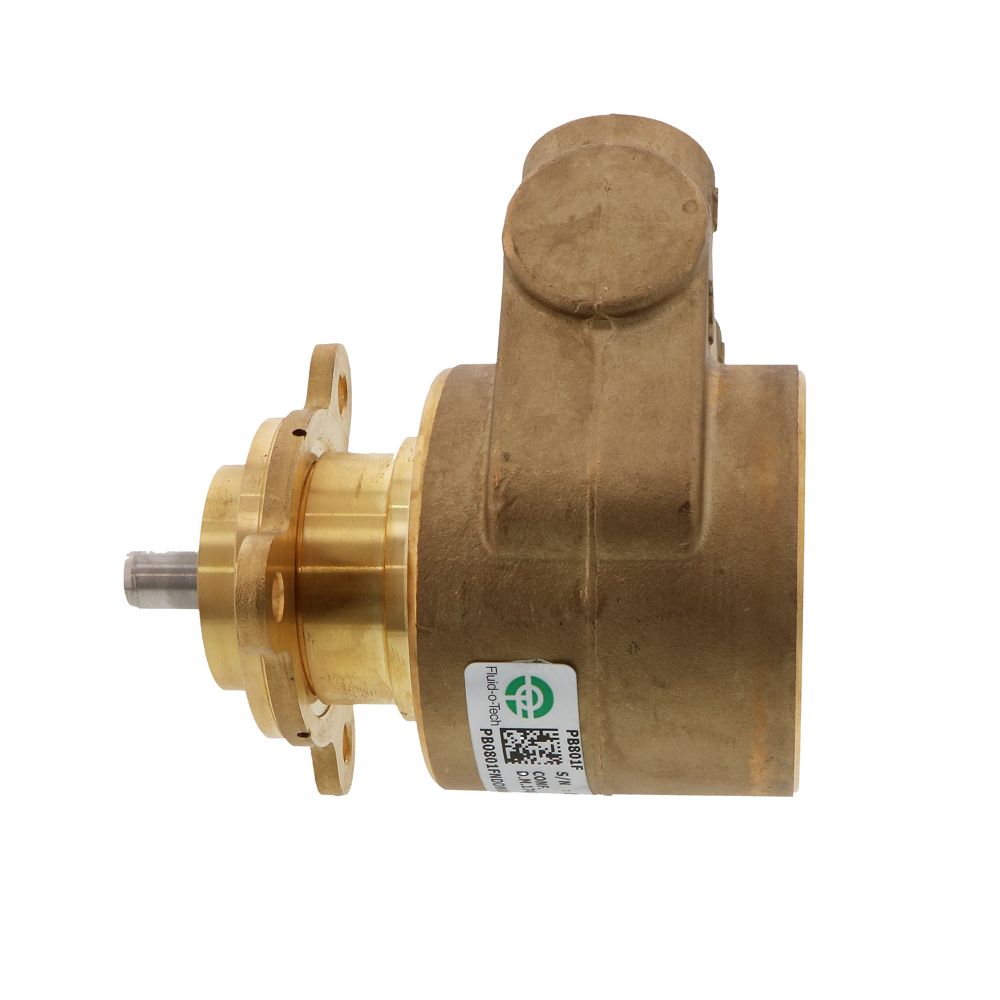

Fluid-o-Tech PB801 Lead Free Brass Rotary Vane Pump 250 gph 1/2" NPT

Name: Fluid-o-Tech PB801 Lead Free Brass Rotary Vane Pump 250 gph 1/2" NPT
Brand: Fluid-o-Tech
SKU: PB0801FNDDN0000
Price: 155.99 USD
Availability: InStock

Part Number: PB0801FNDDN0000 Alt. Part Number: PB801

1 3

Fluid-o-Tech

Fluid-o-Tech PB801 Lead Free Brass Rotary Vane Pump 250 gph 1/2" NPT

Part Number: PB0801FNDDN0000 Alt. Part Number: PB801

$155.99

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Fluid-o-Tech PB0801FNDDN0000 is a high volume rotary vane pump. The PB0801FNDDN0000 has an NSF approved Buna-N seal, and a flow rate of 250 gallons per hour. The pump housing is constructed out of lead-free brass, and comes with a three bolt flange mount and a pressure bypass.

Applications:

Beverage Vending Machines
Booster Systems
Cooling Systems
Espresso Coffee Machines
Post Mix Drink Dispensers
Water Dispensers
Water Treatment

Specifications:

Flow rate: 250 gallons per hour
Material: lead-free brass housing, graphite chamber
1/2" NPT ports
NSF approved Buna-N seal
Three bolt flange mount
Max Static Pressure: 290 psi
Max Operating Temperature: 158°F

Specifications

Product Details
Body Material	Brass
Housing Material	Lead-free Brass
Inlet Connection	1/2" FPT
Motor Rpm	1725 RPM
Mounting Options	Bolt-On
Outlet Connection	1/2" FPT
Pump Max Flow Rate (Gpm)	250
Pump Max Pressure (Psi)	290
Size	1/2"
Connection Type	Female (FPT)
Type	Rotary Vane Pumps
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	4.65
