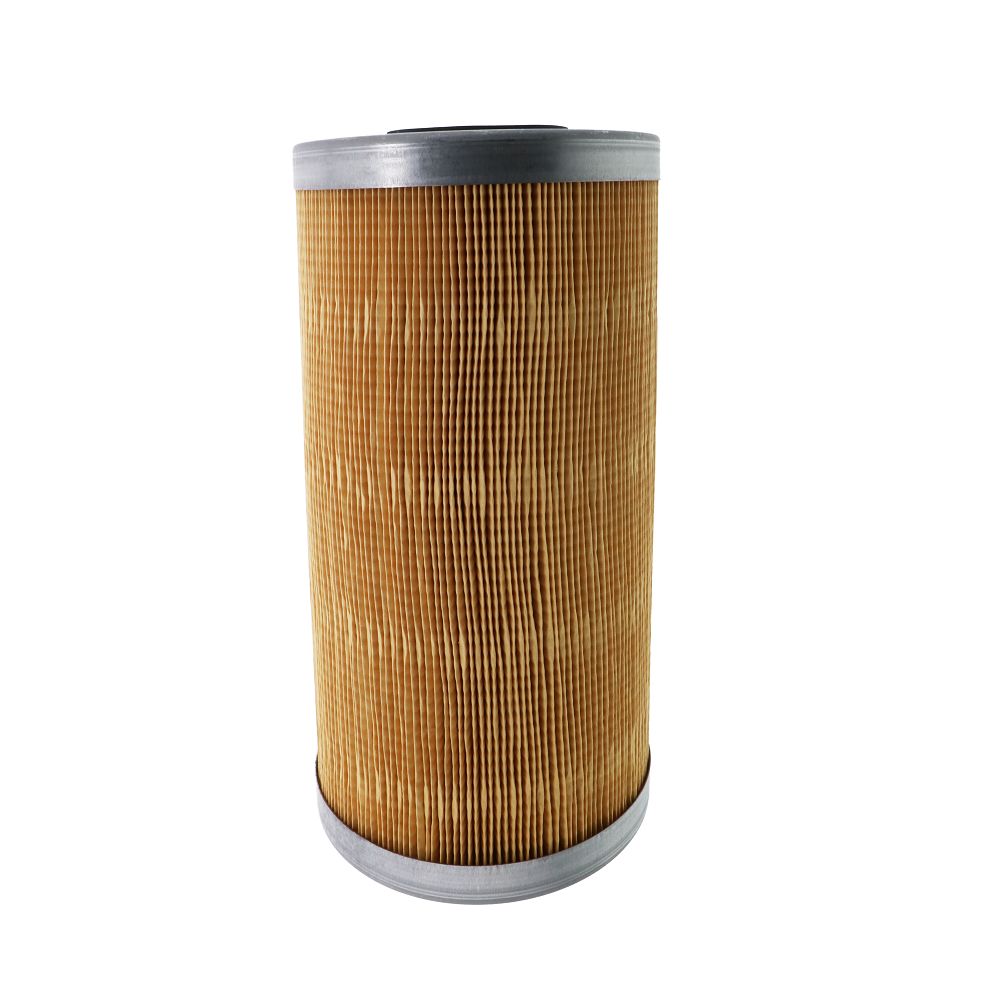

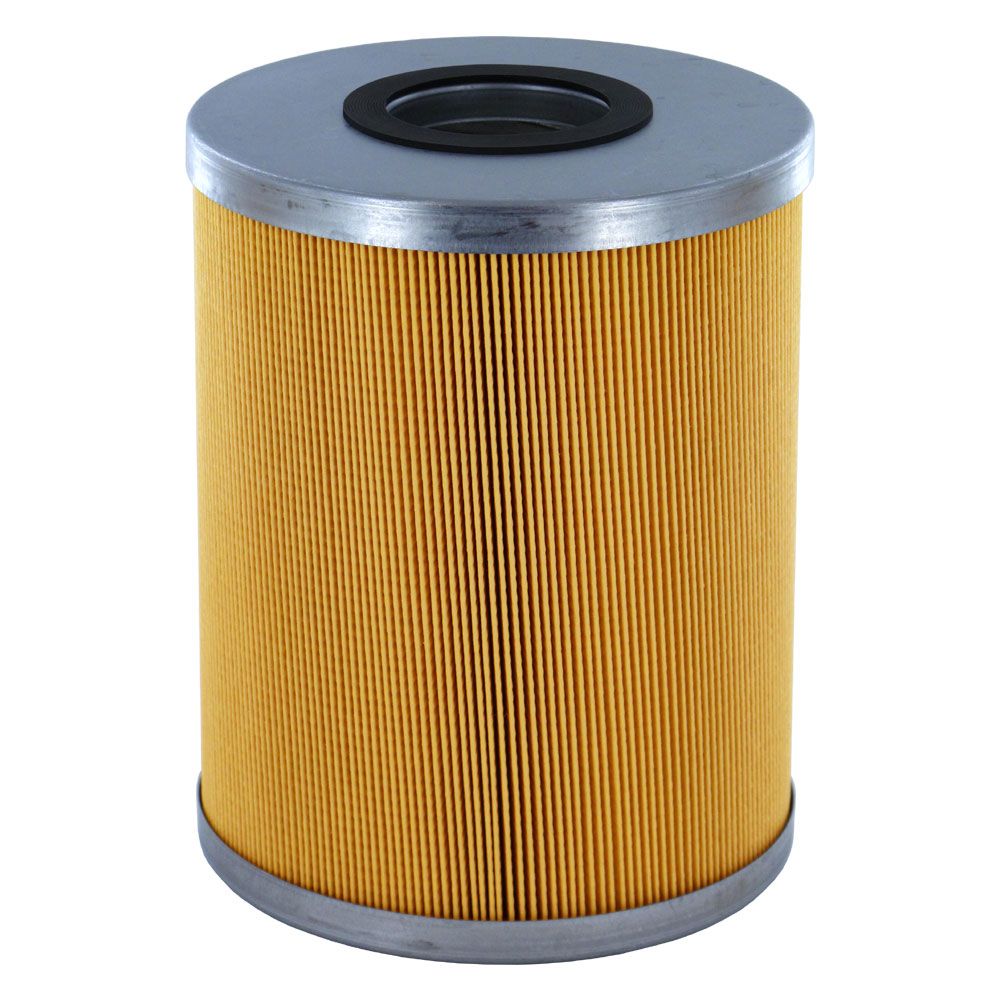

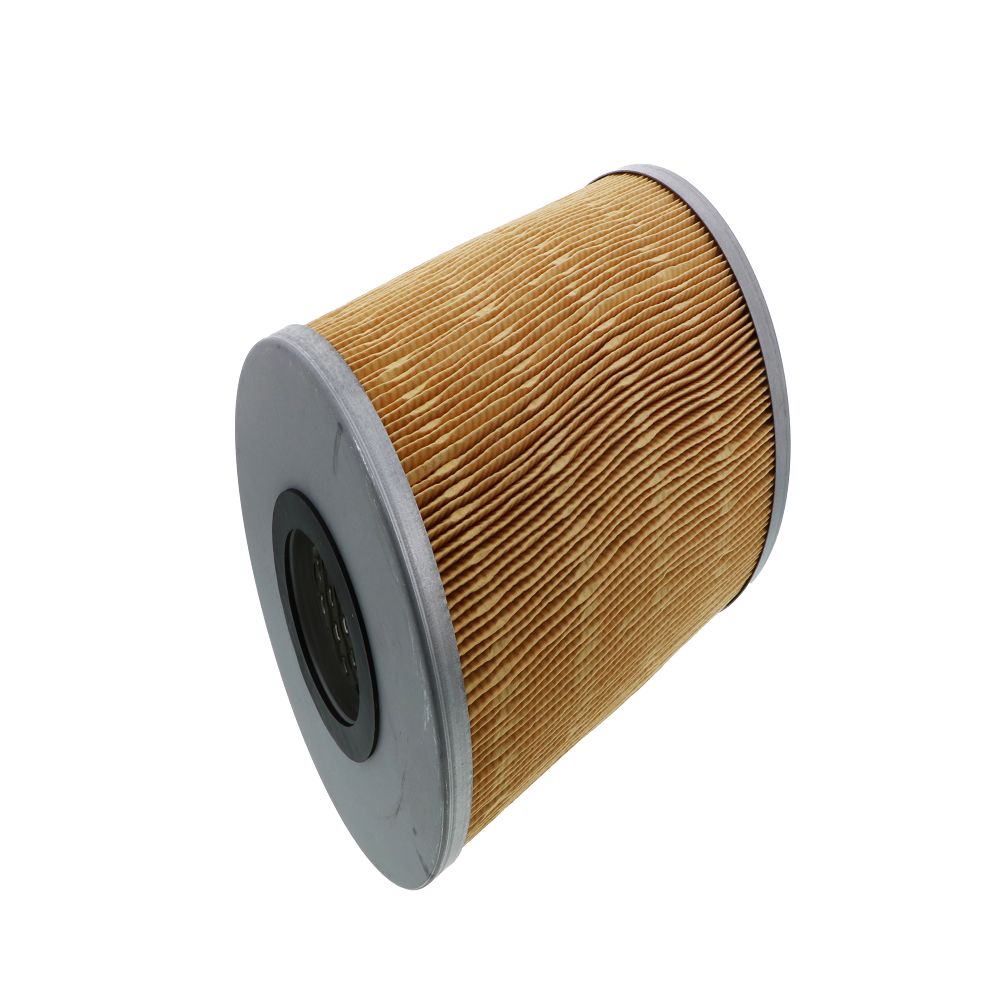

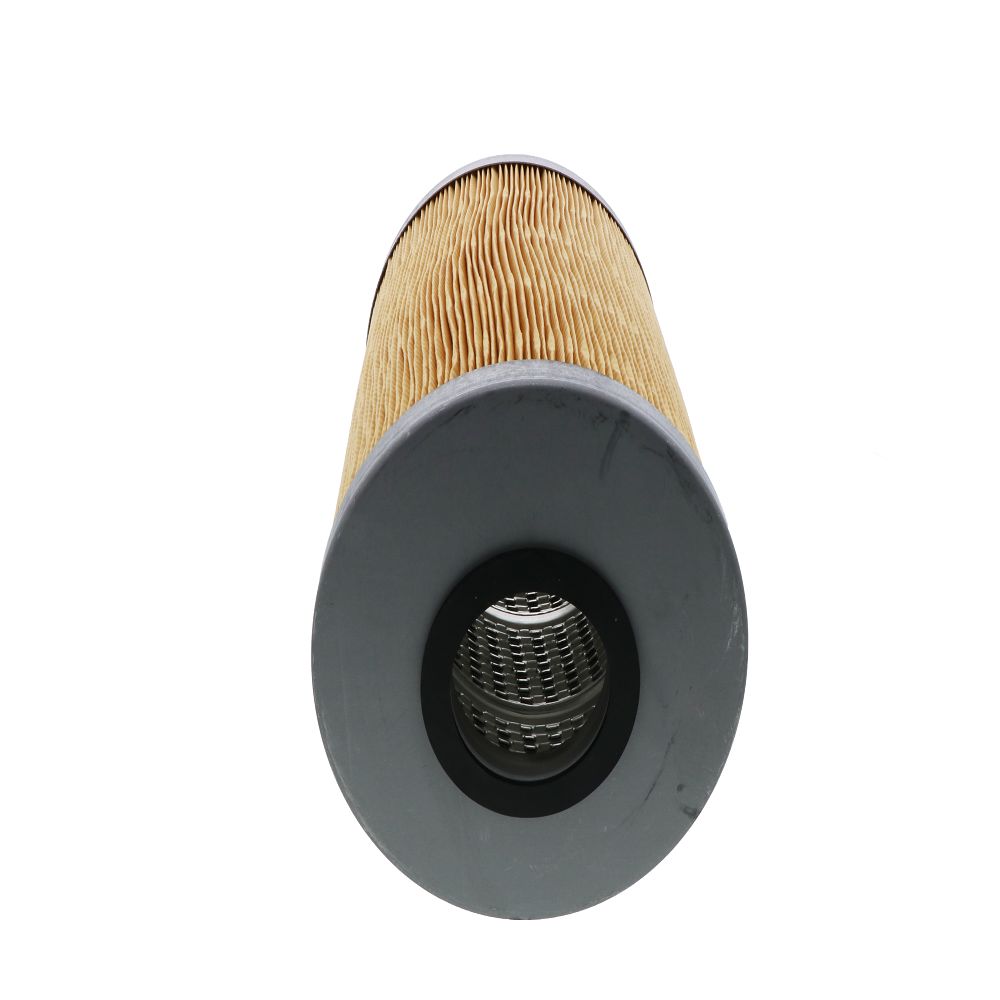

Flow-Max High Temp Jumbo 40 Cartridge - 20 mic

Part Number: FMPIC-40-20-HT

In Stock

out of stock

In Stock

$120.99

The Flow-Max Phenolic Impregnated Cellulose Cartridges and designed for industrial hot water and non-aqueous applications and can be used in the following applications:

Features:
  • High Temperature industrial water filtration
  • Lubricating oil
  • Cutting fluids
  • Solvents
  • Distillate fuel
  • Fuel oil
  • Hydraulic fluids
Note: Jumbo 40, 90, and 170 cartridges fit in Flow-Max housings only. Phenolic impregnated cellulose cartridges are not cleanable or reusable; and they are not suitable for potable water.


Weight & Dimensions

Approx Length (Inches)

9-5/8" (24.4 cm)

Details

Cap Material

Electro Plated Tin

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

1

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust, Particulates, Hot Water

Initial Pressure Drop

70 PSI Differential

Inner/Outer Wraps

Electro Plated Tin

Media Type

Phenolic Impregnated Cellulose

Micron Rating (Nominal)

20 Micron

Operating Temperature Range

-20 - 250 Degrees Fahrenheit

Outer Diameter

7-3/4"


Flow-Max




The Flow-Max Phenolic Impregnated Cellulose Cartridges and designed for industrial hot water and non-aqueous applications and can be used in the following applications:

Features:
  • High Temperature industrial water filtration
  • Lubricating oil
  • Cutting fluids
  • Solvents
  • Distillate fuel
  • Fuel oil
  • Hydraulic fluids
Note: Jumbo 40, 90, and 170 cartridges fit in Flow-Max housings only. Phenolic impregnated cellulose cartridges are not cleanable or reusable; and they are not suitable for potable water.

Weight & Dimensions

Approx Length (Inches)

9-5/8" (24.4 cm)

Details

Cap Material

Electro Plated Tin

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

1

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust, Particulates, Hot Water

Initial Pressure Drop

70 PSI Differential

Inner/Outer Wraps

Electro Plated Tin

Media Type

Phenolic Impregnated Cellulose

Micron Rating (Nominal)

20 Micron

Operating Temperature Range

-20 - 250 Degrees Fahrenheit

Outer Diameter

7-3/4"
