Watts

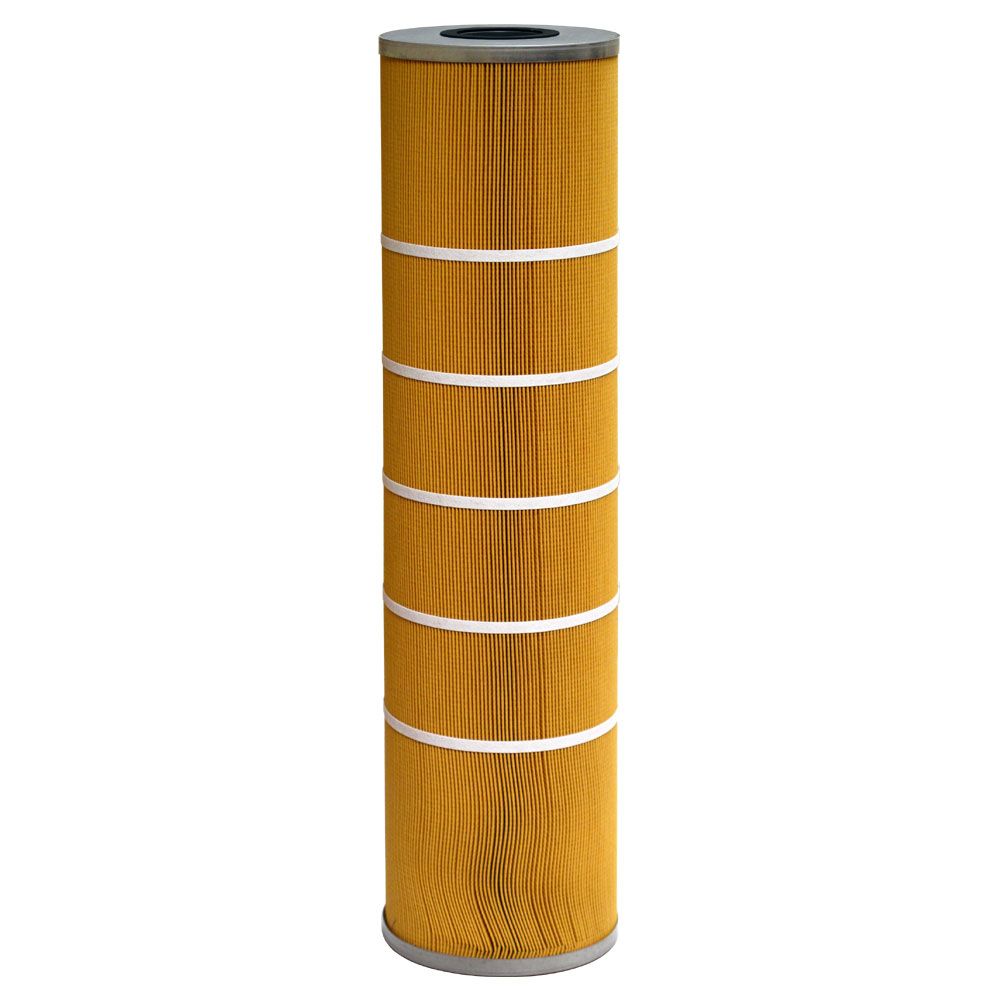

Flow-Max High Temp Jumbo 170 Cartridge - 20 mic

Part Number: FMPIC-170-20-HT

In Stock

out of stock

In Stock

$159.99


The Flow-Max Phenolic Impregnated Cellulose Cartridges are designed for industrial hot water and non-aqueous applications.
    Applications:
  • High Temperature industrial water filtration
  • Lubricating oil
  • Cutting fluids
  • Solvents
  • Distillate fuel
  • Fuel oil
  • Hydraulic fluids
Note: Jumbo 40, 90, and 170 cartridges fit in Flow-Max housings only. Phenolic impregnated cellulose cartridges are not cleanable or reusable; and they are not suitable for potable water.

Disclaimer: Watts® is a registered trademark of Watts Water Technologies, Inc, which is not affiliated or otherwise associated with Fresh Water Systems, Inc. or this site. Fresh Water Systems, Inc acknowledges and confirms that it has not been granted any license or authority from Watts Water Technologies, Inc to use the mark, and further confirms that any and all use of the mark on this site is for identification and descriptive purposes only and such use is not intended to, does not, and shall not be deemed to imply any association or affiliation between Watts Water Technologies, Inc. and Fresh Water Systems, Inc. of any nature whatsoever.


Weight & Dimensions

Approx Length (Inches)

30.75 (78.1 cm)

Details

Cap Material

Electro Plated Tin

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

1

Filter Application

Sediment/Dirt/Rust; Particulates; Hot Water

Initial Pressure Drop

70 PSI Differential

Inner/Outer Wraps

Electro Plated Tin

Media Type

Phenolic Impregnated Cellulose

Micron Rating (Nominal)

20 Micron

Operating Temperature Range

-20 - 250 Degrees Fahrenheit

Outer Diameter

7-3/4"


Flow-Max
