FloPlus 3/4" FPT Standard Clear High Flow System

Part Number: 152090

Alt. Part Number: WFP3/4C-10A, 152090

In Stock

out of stock

In Stock

Closeout sale item with limited availability.

$37.52

The WFP3/4C-10AFW is a standard, high-flow carbon block system. Utilizing the unique Fiberdyne® carbon technology, the WFP3/4C-10AFW system delivers extremely low pressure drop while maintaining a 0.5 micron efficiency for the best chlorine taste & odor reduction and the reduction of cysts.

Specifications:
  • Low pressure drop and high flow
  • Up to 1 gpm MAX flow rate
  • Nominal 0.5 micron filtration rating
  • Removes 99.5% of Cryptosporidium and Giardia Cysts
  • Maximum chlorine taste & odor reduction
  • Radial flow filtration for longer filter life
  • Ideal for low water pressure situations
  • Clear housing allows visual inspection of the filter working

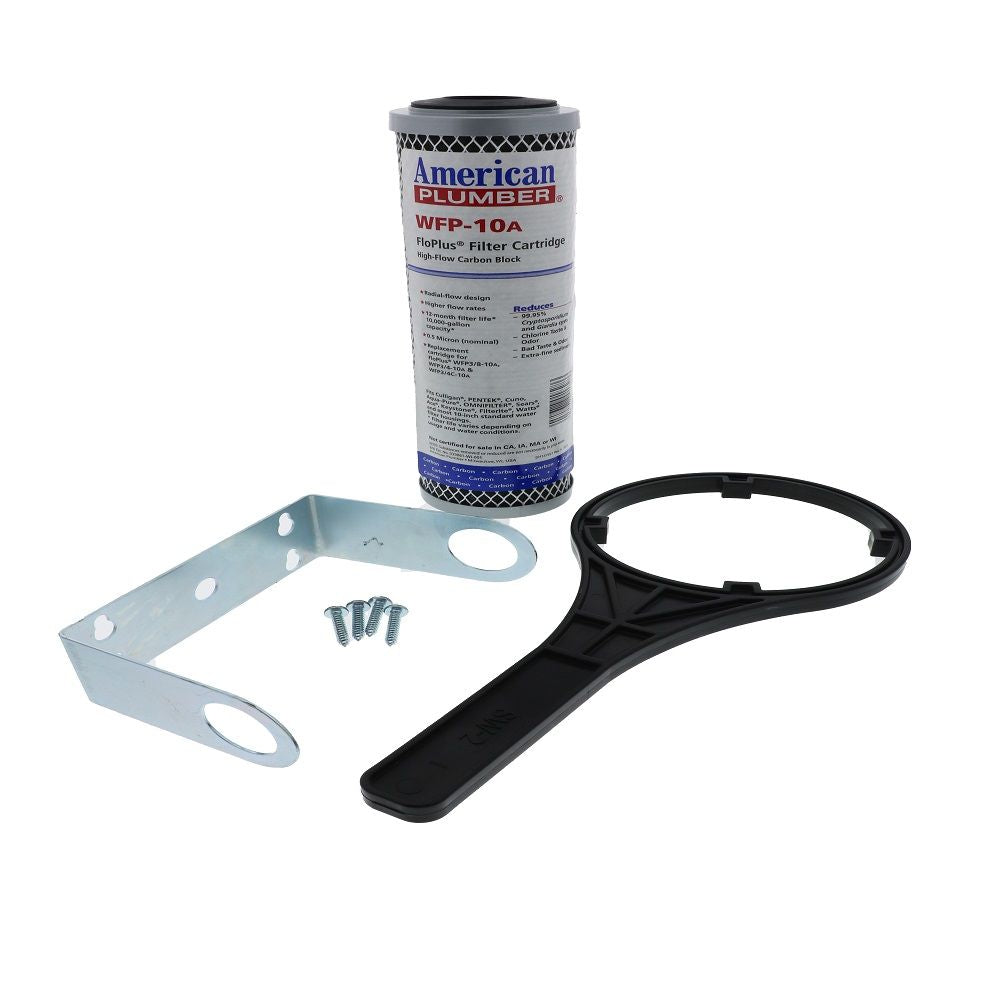

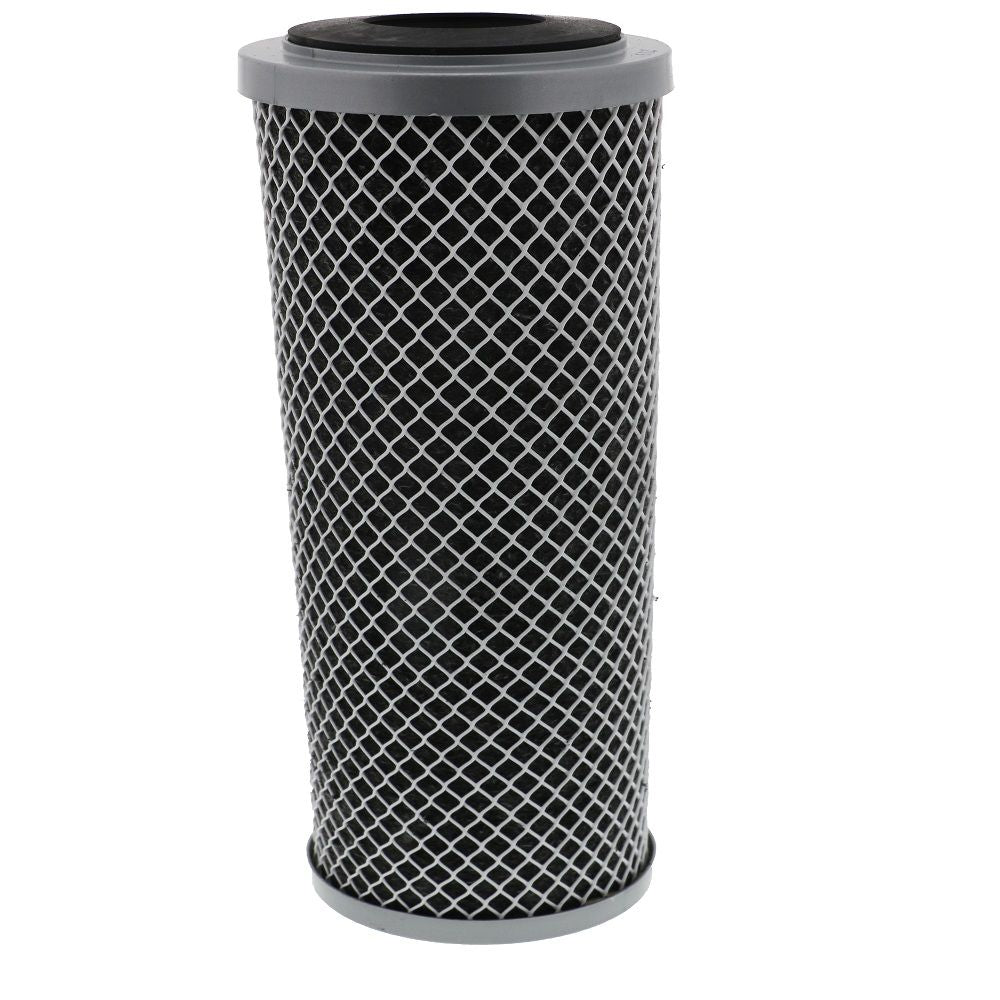

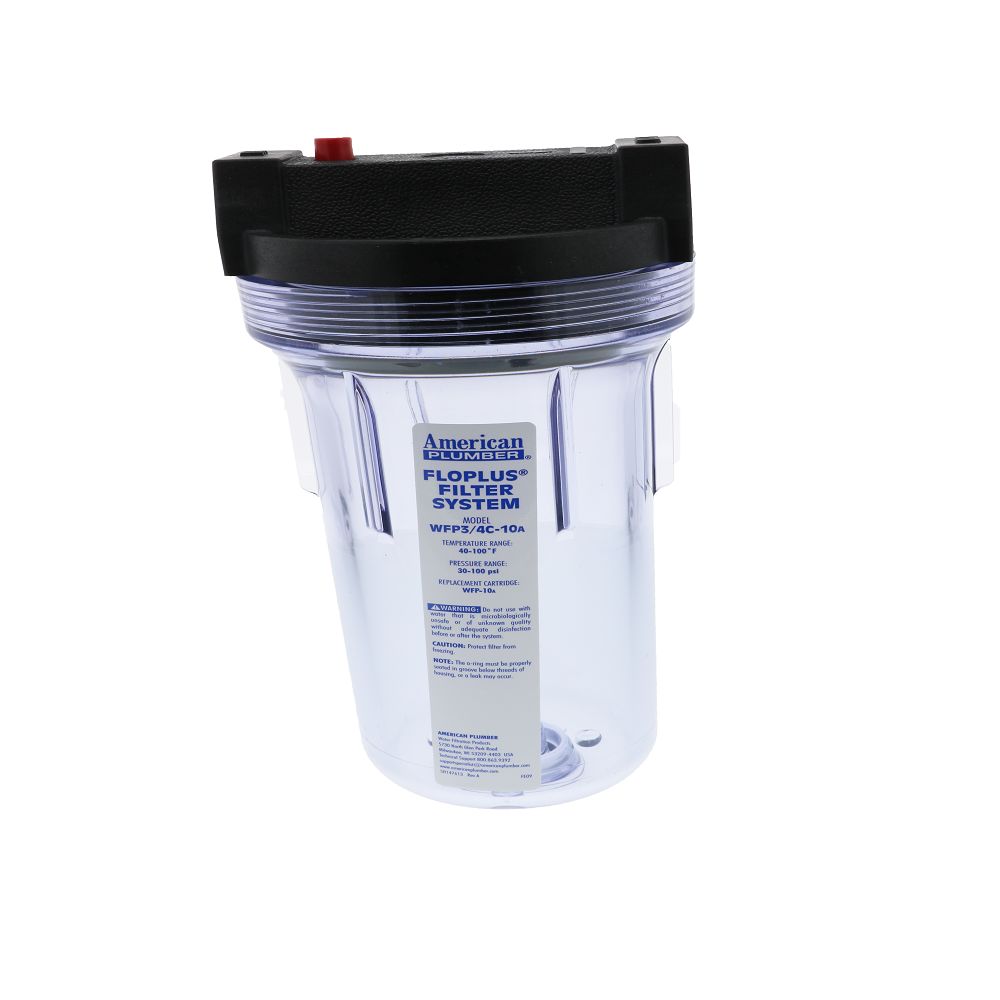

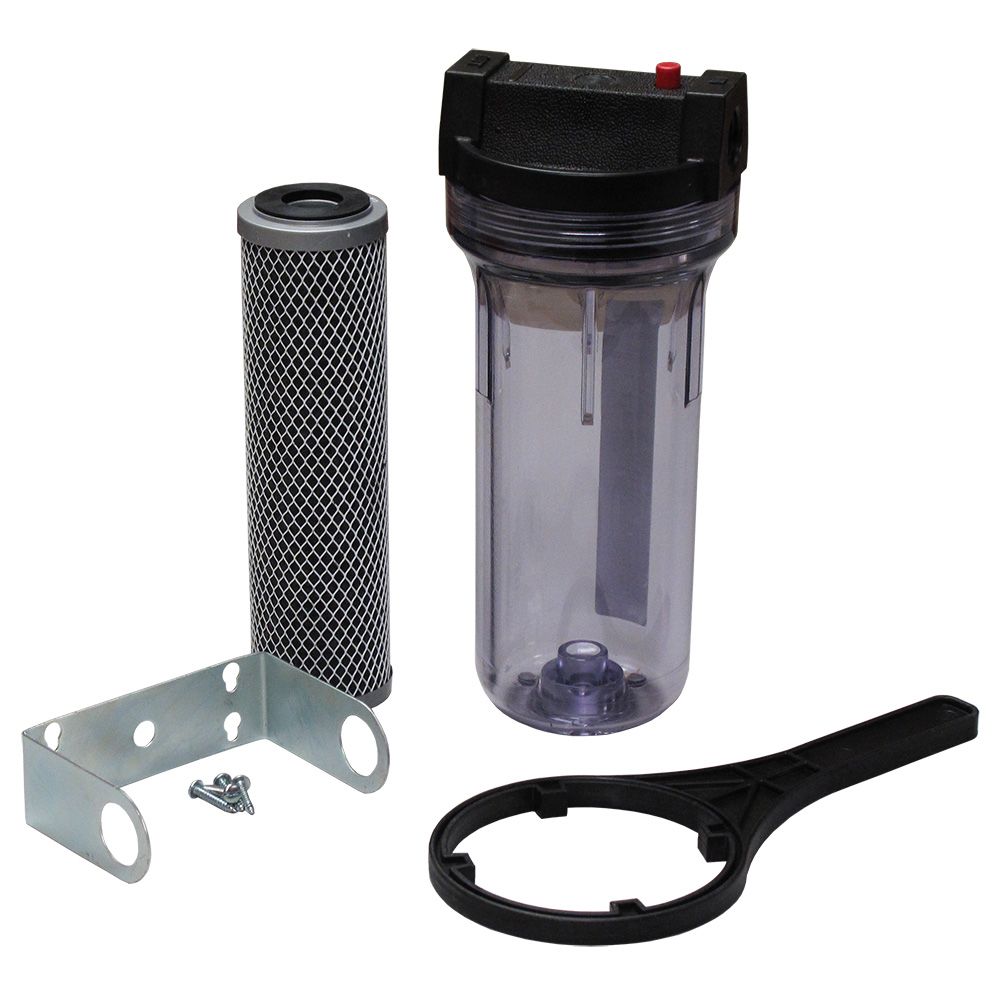

System includes the FloPlus-10 filter cartridge, Pentek 3G Standard Clear Housing with pressure relief button, and a Standard Filter Housing Wrench.

NOTE: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.



Weight & Dimensions

Approx Depth

5-5/8"

Approx Height (Inches)

12-1/4"

Approx Width (Inches)

5-5/8"

Case Quantity

1

Cube Measurement

0.4638671875

Height (inches)

14.25

Length (inches)

7.5

Weight (lbs)

4.5

Width (inches)

7.5

Details

Application

Whole House

Capacity

10,000 Gallons

Inlet/Outlet Connection

3/4" FPT

Max Pressure (Psi)

125

Max Temp (°F)

125

Micron Rating (Nominal)

0.5 µm

Min Pressure (Psi)

30

Min Temp (°F)

40

Size

3/4"

Change Frequency

10,000 Gallons

Connection Type

Female (FPT)

Contaminants Reduced

Chlorine/Taste/Odor, Sediment/Dirt/Rust, Cysts

Flow Rate

1 GPM

Type

Carbon Filtration System


FloPlus

FloPlus




The WFP3/4C-10AFW is a standard, high-flow carbon block system. Utilizing the unique Fiberdyne® carbon technology, the WFP3/4C-10AFW system delivers extremely low pressure drop while maintaining a 0.5 micron efficiency for the best chlorine taste & odor reduction and the reduction of cysts.

Specifications:
  • Low pressure drop and high flow
  • Up to 1 gpm MAX flow rate
  • Nominal 0.5 micron filtration rating
  • Removes 99.5% of Cryptosporidium and Giardia Cysts
  • Maximum chlorine taste & odor reduction
  • Radial flow filtration for longer filter life
  • Ideal for low water pressure situations
  • Clear housing allows visual inspection of the filter working
System includes the FloPlus-10 filter cartridge, Pentek 3G Standard Clear Housing with pressure relief button, and a Standard Filter Housing Wrench.

NOTE: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.


NOTE: Closeout sale item with limited availability.

Weight & Dimensions

Approx Depth

5-5/8"

Approx Height (Inches)

12-1/4"

Approx Width (Inches)

5-5/8"

Case Quantity

1

Cube Measurement

0.4638671875

Height (inches)

14.25

Length (inches)

7.5

Weight (lbs)

4.5

Width (inches)

7.5

Details

Application

Whole House

Capacity

10,000 Gallons

Inlet/Outlet Connection

3/4" FPT

Max Pressure (Psi)

125

Max Temp (°F)

125

Micron Rating (Nominal)

0.5 µm

Min Pressure (Psi)

30

Min Temp (°F)

40

Size

3/4"

Change Frequency

10,000 Gallons

Connection Type

Female (FPT)

Contaminants Reduced

Chlorine/Taste/Odor, Sediment/Dirt/Rust, Cysts

Flow Rate

1 GPM

Type

Carbon Filtration System
