Flexcon Industries

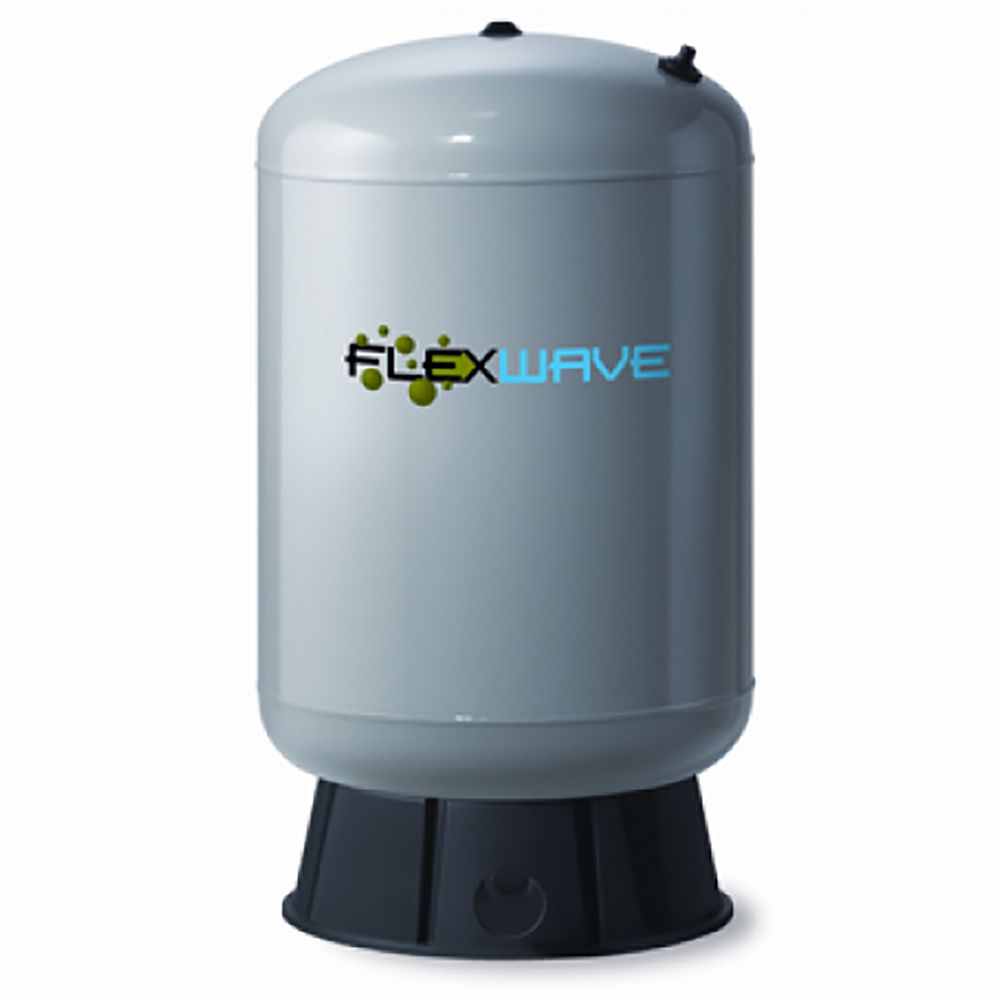

Flexcon Flexwave Steel Storage Tank - 119 Gal

Part Number: SSRO120

In Stock

out of stock

In Stock

$2,689.85

The Flexwave SSRO Storage Tank is an industry exclusive water tank that features all stainless steel construction. It has been tested to assure air tight construction.

Specifications:
  • Volume: 120 Gal/450 L
  • Connection: 1-1/4" NPT Female
  • Max Working Pressure: 125 psi/8.62 bar
  • Max Working Temperature: 140°F/60°C
Materials Of Construction:
  • Outer shell: Cold rolled and drawn steel
  • Connection: 304 stainless steel
  • CAD2 Water Chamber:
    • 100% butyl diaphragm
    • Polypropylene lower chamber
  • Air valve: Brass with rubber O-ring seal




Weight & Dimensions

Height (inches)

61

Length (inches)

26

Weight (lbs)

154

Width (inches)

26

Details

Inlet/Outlet Connection

1-1/4" FPT

Max Pressure (Psi)

125

Max Temp (°F)

140

Size

1-1/4"

Volume

119 Gallon


Flexcon




The Flexwave SSRO Storage Tank is an industry exclusive water tank that features all stainless steel construction. It has been tested to assure air tight construction.

Specifications:
  • Volume: 120 Gal/450 L
  • Connection: 1-1/4" NPT Female
  • Max Working Pressure: 125 psi/8.62 bar
  • Max Working Temperature: 140°F/60°C
Materials Of Construction:
  • Outer shell: Cold rolled and drawn steel
  • Connection: 304 stainless steel
  • CAD2 Water Chamber:
    • 100% butyl diaphragm
    • Polypropylene lower chamber
  • Air valve: Brass with rubber O-ring seal



Weight & Dimensions

Height (inches)

61

Length (inches)

26

Weight (lbs)

154

Width (inches)

26

Details

Inlet/Outlet Connection

1-1/4" FPT

Max Pressure (Psi)

125

Max Temp (°F)

140

Size

1-1/4"

Volume

119 Gallon
