Flexcon Industries

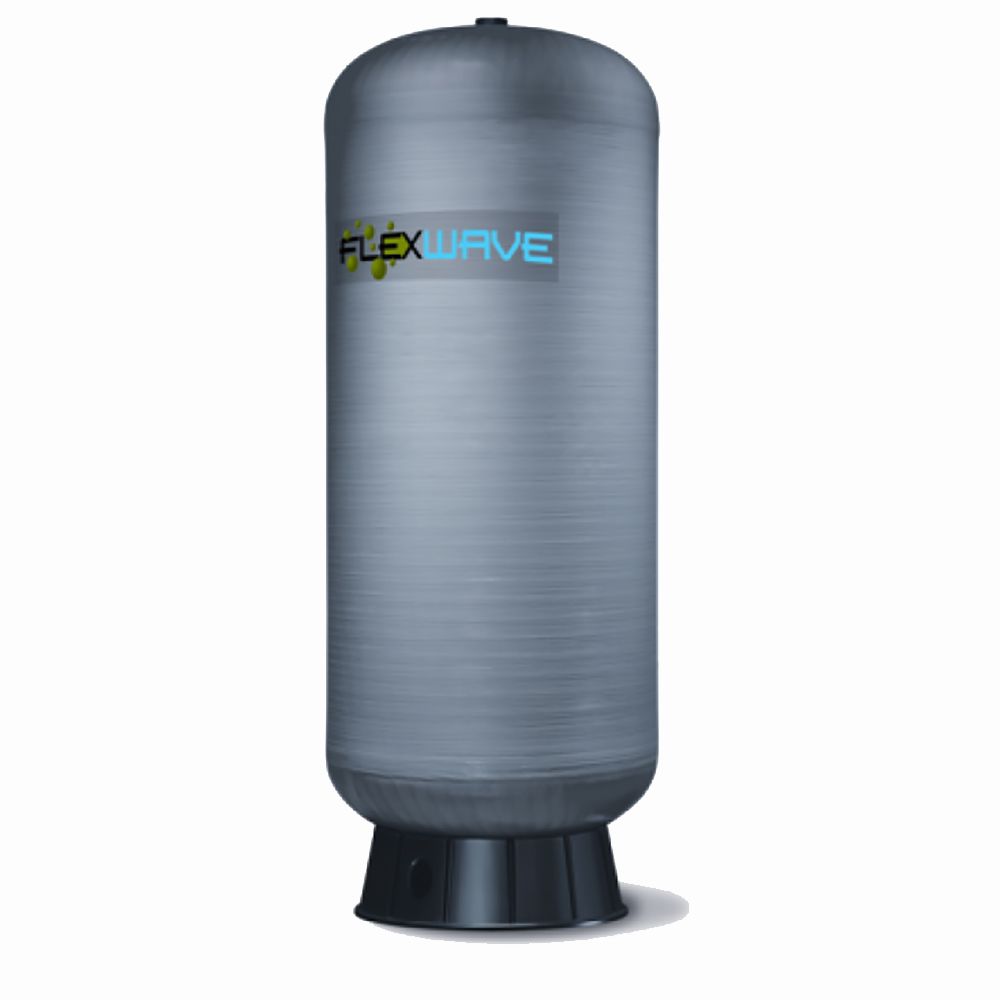

Flexcon Flexwave Non-Diaphragm Composite Storage/Utility Tank - 119 Gal

Part Number: FWC120

In Stock

out of stock

In Stock

$579.23

The Flexwave FWC Non-Diaphragm Composite Tank is made up a ribbed base for expceptional strength and durability, and contains bolt holes for seismic and skid mount applications.The polypropylene liner is non-corrosive and adds no taste or odor to your stored water.

Specifications:
  • Volume: 120 Gal/454 L
  • Connection:
    • Socket: 1-1/4" Sch 80
    • Top Port: 1-1/4" FPT
  • Max Working Pressure: 100 psi/6.89 bar
  • Max Working Temperature: 120°F/48.9°C
Materials Of Construction:
  • Top and bottom domes: Injection molded copolymer polypropylene
  • Shell: Extruded Polypropylene
  • Outer shell: Composite construction with fiberglass coated with epoxy resin
  • Base: Injection molded high-impact ABS
  • Top port: Stainless steel reinforced




Weight & Dimensions

Height (inches)

71.5

Length (inches)

24.2

Weight (lbs)

83.5

Width (inches)

24.2

Details

Inlet/Outlet Connection

1-1/4" FPT; 1-1/4" Socket

Max Pressure (Psi)

100

Max Temp (°F)

120

Size

1-1/4"

Volume

119 Gallon


Flexcon




The Flexwave FWC Non-Diaphragm Composite Tank is made up a ribbed base for expceptional strength and durability, and contains bolt holes for seismic and skid mount applications.The polypropylene liner is non-corrosive and adds no taste or odor to your stored water.

Specifications:
  • Volume: 120 Gal/454 L
  • Connection:
    • Socket: 1-1/4" Sch 80
    • Top Port: 1-1/4" FPT
  • Max Working Pressure: 100 psi/6.89 bar
  • Max Working Temperature: 120°F/48.9°C
Materials Of Construction:
  • Top and bottom domes: Injection molded copolymer polypropylene
  • Shell: Extruded Polypropylene
  • Outer shell: Composite construction with fiberglass coated with epoxy resin
  • Base: Injection molded high-impact ABS
  • Top port: Stainless steel reinforced



Weight & Dimensions

Height (inches)

71.5

Length (inches)

24.2

Weight (lbs)

83.5

Width (inches)

24.2

Details

Inlet/Outlet Connection

1-1/4" FPT; 1-1/4" Socket

Max Pressure (Psi)

100

Max Temp (°F)

120

Size

1-1/4"

Volume

119 Gallon
