Flexcon Industries

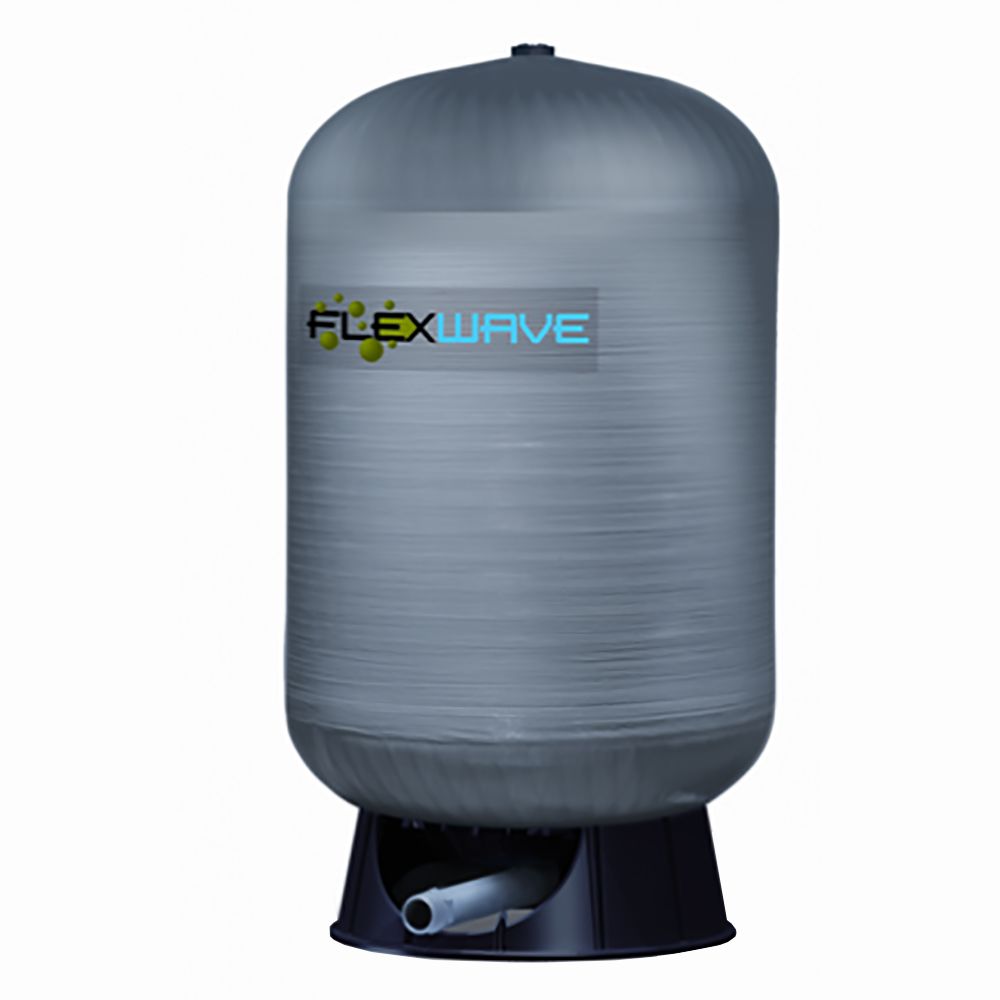

Flexcon Flexwave Composite Storage Tank - 40 Gal

Part Number: FWRO40

In Stock

out of stock

In Stock

$1,459.46

The Flexwave FWRO Composite Storage Tank is made up of a polypropylene liner that ensures no leaking issues. The fiberglass wound outer shell increases the integrity of the strength of the shape of the tank.

Specifications:
  • Volume: 40 Gal/151.2 L
  • Connection: 1-1/4" NPT Female
  • Max Working Pressure: 125 psi/8.62 bar
  • Max Working Temperature: 120°F/48.9°C
Materials Of Construction:
  • Outer shell: Continuous wound fiberglass and high temperature epoxy resin
  • Inner shell: Seamless, spun welded construction
  • Connection: NPT male thread, rigid Sch. 80 PVC
  • CAD-2 Water Chamber:
    • 100% butyl diaphragm
    • Polypropylene lower
  • Air valve: Brass with rubber O-ring seal




Weight & Dimensions

Length (inches)

21.4

Height (inches)

36.5

Width (inches)

21.4

Weight (lbs)

38

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Size

1-1/4"

Volume

40 Gallon

Inlet/Outlet Connection

1-1/4" FPT


Flexcon




The Flexwave FWRO Composite Storage Tank is made up of a polypropylene liner that ensures no leaking issues. The fiberglass wound outer shell increases the integrity of the strength of the shape of the tank.

Specifications:
  • Volume: 40 Gal/151.2 L
  • Connection: 1-1/4" NPT Female
  • Max Working Pressure: 125 psi/8.62 bar
  • Max Working Temperature: 120°F/48.9°C
Materials Of Construction:
  • Outer shell: Continuous wound fiberglass and high temperature epoxy resin
  • Inner shell: Seamless, spun welded construction
  • Connection: NPT male thread, rigid Sch. 80 PVC
  • CAD-2 Water Chamber:
    • 100% butyl diaphragm
    • Polypropylene lower
  • Air valve: Brass with rubber O-ring seal



Weight & Dimensions

Length (inches)

21.4

Height (inches)

36.5

Width (inches)

21.4

Weight (lbs)

38

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Size

1-1/4"

Volume

40 Gallon

Inlet/Outlet Connection

1-1/4" FPT
