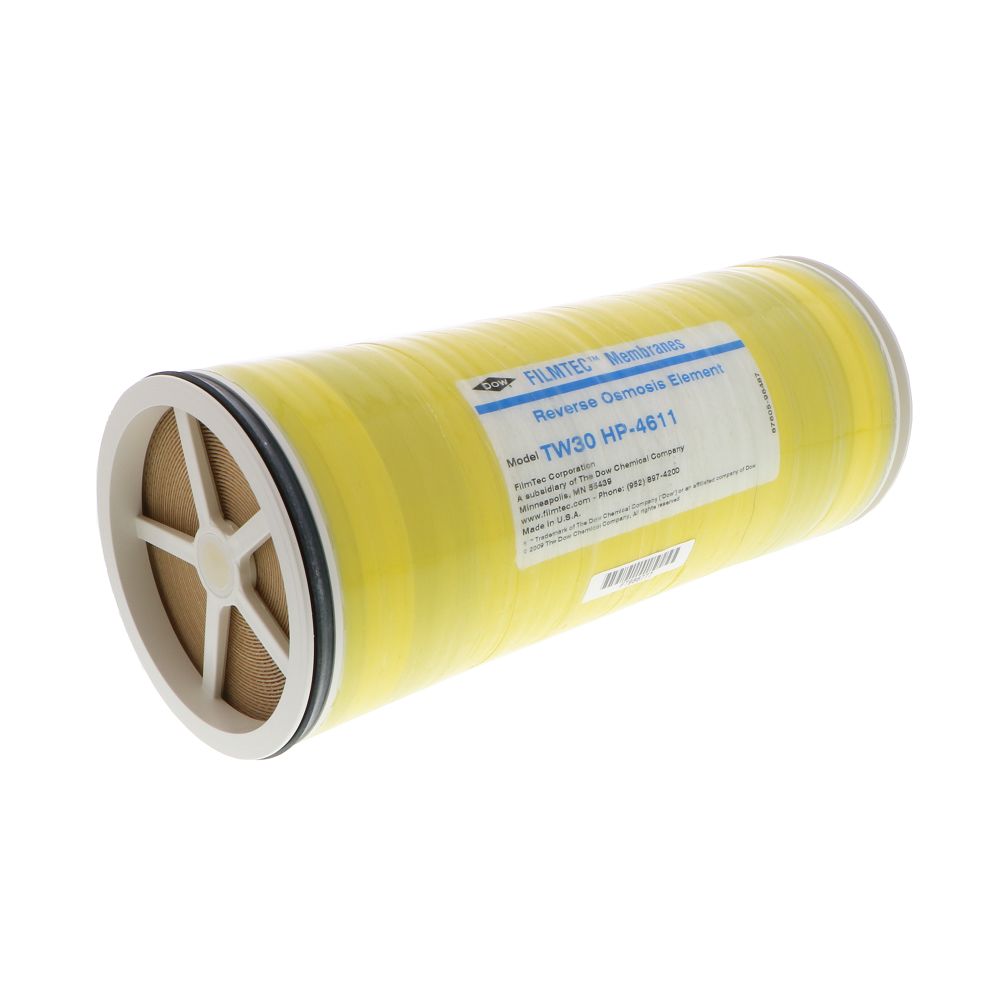

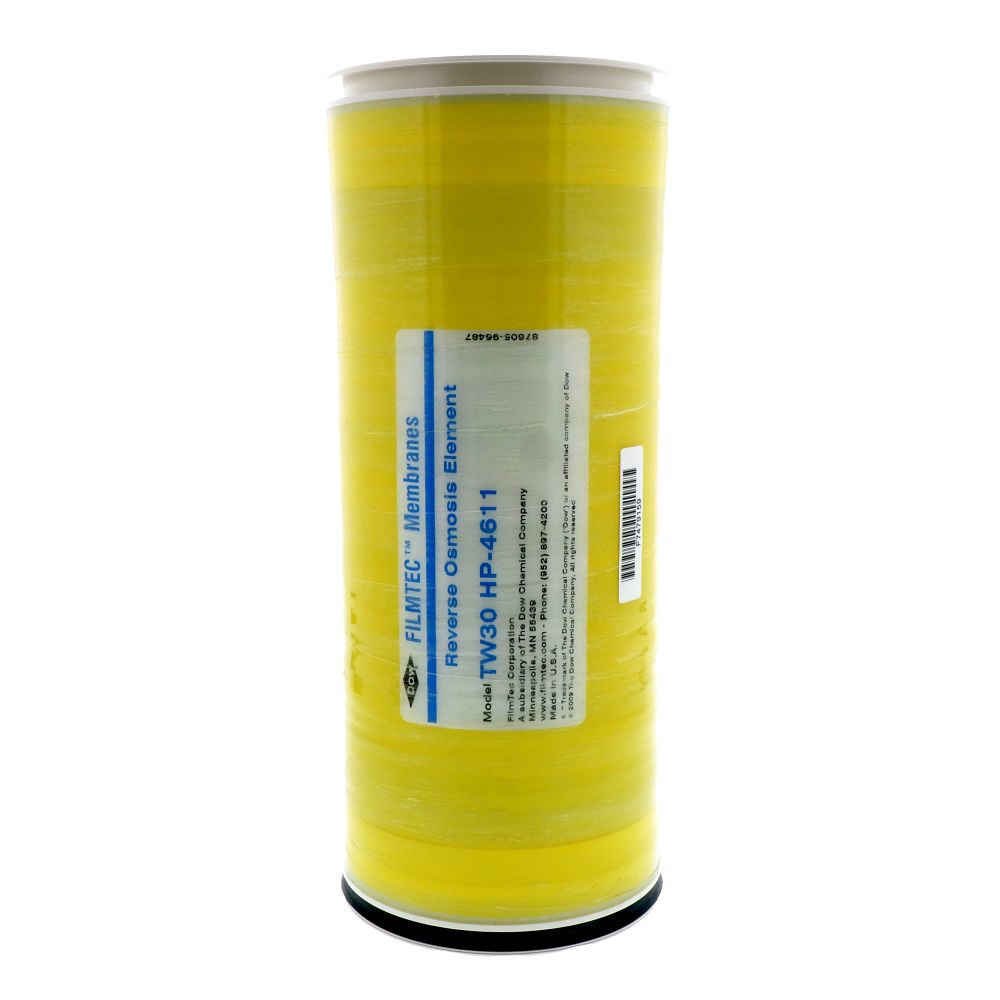

Filmtec TW30HP-4611 Tap Water High Production 1200 GPD RO Membrane Element

Part Number: TW30HP-4611

In Stock

out of stock

In Stock

$495.60


The Dow FILMTEC Tap Water High Production Membranes are specifically designed to meet the strict requirements of medical, hospital, dialysis clinics and other high purity water applications. The 4.6" diameter of these reverse osmosis elements provides increased active area for greater flow rates.

Specifications:
  • Up to 1,200 Gallon Per Day production
  • Up to 600 SIPG
  • Highest quality water for hospitals, dialysis clinics and other medical applications
  • Provides superior permeate flow and salt rejection
  • Made with the same high quality materials of construction as larger elements used in municipal and industrial systems


Weight & Dimensions

Approx Length (Inches)

11 Inches

Details

Cartridge Style

Drop-in Element

Diameter

4.6 Inches

Flow Rate

1200 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Average Nacl Rejection

99 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11


Filmtec





The Dow FILMTEC Tap Water High Production Membranes are specifically designed to meet the strict requirements of medical, hospital, dialysis clinics and other high purity water applications. The 4.6" diameter of these reverse osmosis elements provides increased active area for greater flow rates.

Specifications:
  • Up to 1,200 Gallon Per Day production
  • Up to 600 SIPG
  • Highest quality water for hospitals, dialysis clinics and other medical applications
  • Provides superior permeate flow and salt rejection
  • Made with the same high quality materials of construction as larger elements used in municipal and industrial systems

Weight & Dimensions

Approx Length (Inches)

11 Inches

Details

Cartridge Style

Drop-in Element

Diameter

4.6 Inches

Flow Rate

1200 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Average Nacl Rejection

99 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11
