Filmtec

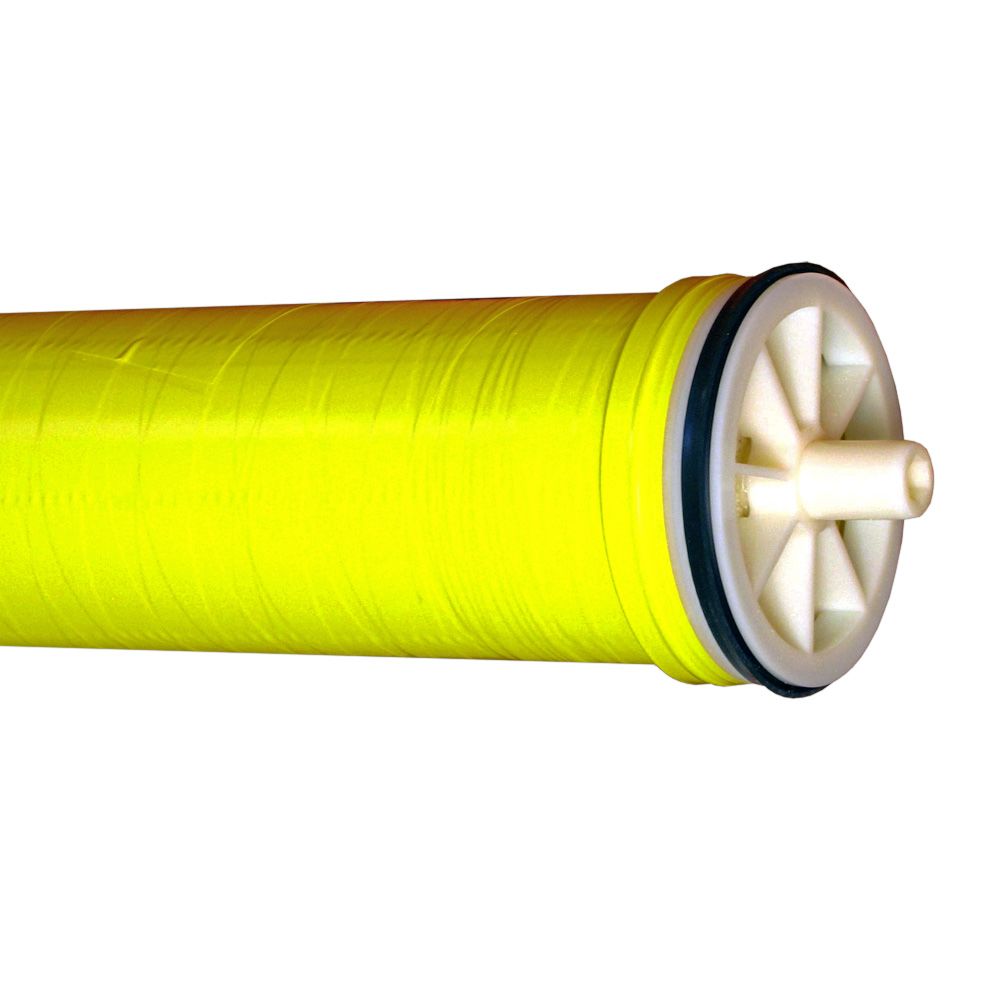

Filmtec TW30-4014 Tap Water 525 GPD RO Membrane Element

Part Number: TW30-4014

Alt. Part Number: 80605

In Stock

out of stock

In Stock

$247.14


The Dow FILMTEC Tap Water Membranes are specifically designed for small commercial grade applications. These TFC (Thin Film Composite) reverse osmosis elements are designed to withstand the high pressure of commercial applications, and can be utilized in single or multi-element housing or pressure vessel configurations.

Specifications:
  • 525 Gallon Per Day
  • 600 PSI maximum operating pressure
  • This Film Composite Membrane
  • High quality and low energy costs
  • Provides long lasting and reliable performance

Compatible with: Filmtec Membranes | 80605


Weight & Dimensions

Approx Length (Inches)

14 Inches

Details

Cartridge Style

Drop-in Element

Diameter

3.9 Inches

Flow Rate

525 Gallons per day

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

20 Square Feet

Average Nacl Rejection

99.5 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

13 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11


Filmtec





The Dow FILMTEC Tap Water Membranes are specifically designed for small commercial grade applications. These TFC (Thin Film Composite) reverse osmosis elements are designed to withstand the high pressure of commercial applications, and can be utilized in single or multi-element housing or pressure vessel configurations.

Specifications:
  • 525 Gallon Per Day
  • 600 PSI maximum operating pressure
  • This Film Composite Membrane
  • High quality and low energy costs
  • Provides long lasting and reliable performance

Compatible with: Filmtec Membranes | 80605

Weight & Dimensions

Approx Length (Inches)

14 Inches

Details

Cartridge Style

Drop-in Element

Diameter

3.9 Inches

Flow Rate

525 Gallons per day

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

20 Square Feet

Average Nacl Rejection

99.5 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

13 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11
