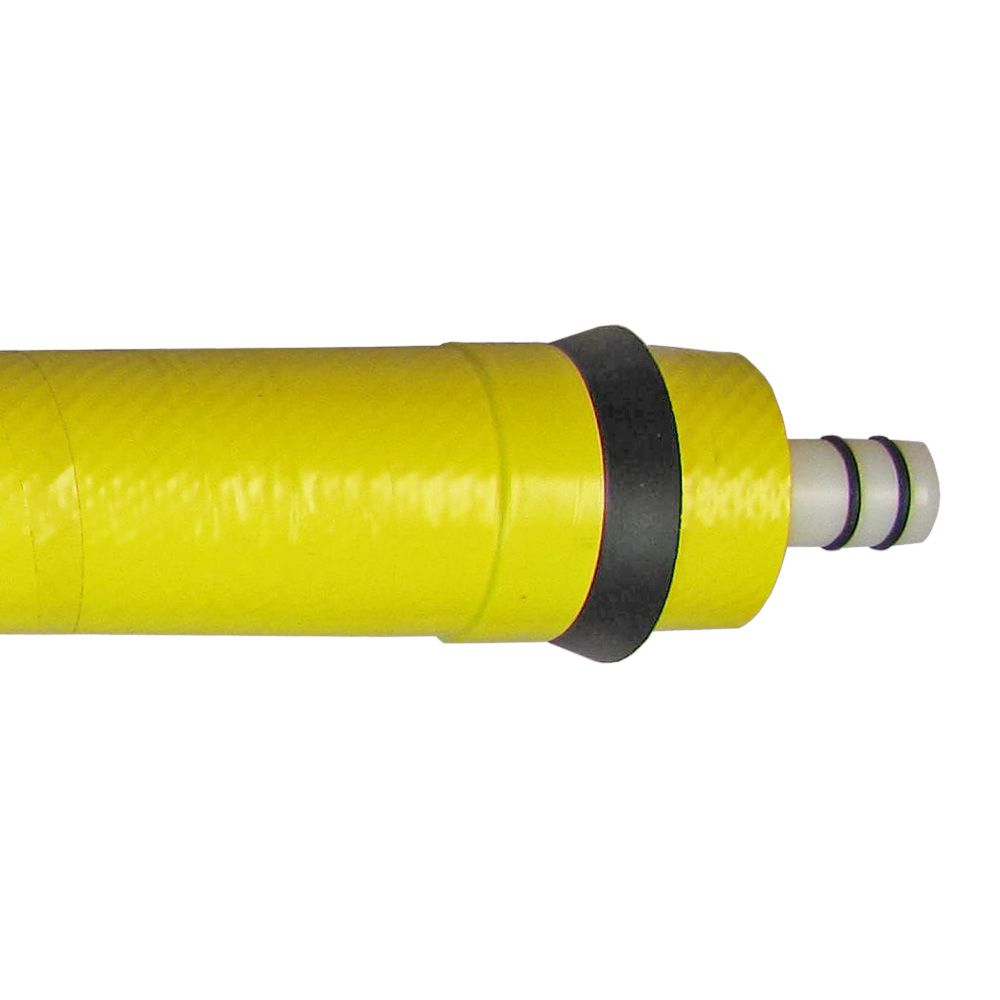

Filmtec TW30-2540 Tap Water 850 GPD RO Membrane Element

The Dow FILMTEC Tap Water Membranes are specifically designed for small commercial grade applications. These TFC (Thin Film Composite) reverse osmosis elements are designed to withstand the high pressure of commercial applications, and can be utilized in single or multi-element housing or pressure vessel configurations.

Specifications:

850 Gallon Per Day
600 PSI maximum operating pressure
This Film Composite Membrane
High quality and low energy costs
Provides long lasting and reliable performance

Filmtec RO membranes are wet packed

Compatible with:

Filmtec Membranes

80643

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	28 sq. ft.
Application	Brackish Water Food Processing Food & Beverage Medical Equipment
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Spacer Thickness	28 mil
Inlet Pressure	225 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	6 gpm (1.4)
Max Pressure Drop	13 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	850 gpd (3.2)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Stabilized Salt Rejection Cl- (%)	0.995
Cartridge Style	Drop-in
Diameter	2.4"
Shipping Dimensions
Shipping Length	40 in.
Shipping Width	2.25 in.
Shipping Height	2.25 in.
Product Weight & Dimensions
Product Height	2.25 in.
Product Length	40 in.
Product Width	2.25 in.
Product Weight (lbs)	2.021875

Filmtec TW30-2540 Tap Water 850 GPD RO Membrane Element Manual
