Filmtec

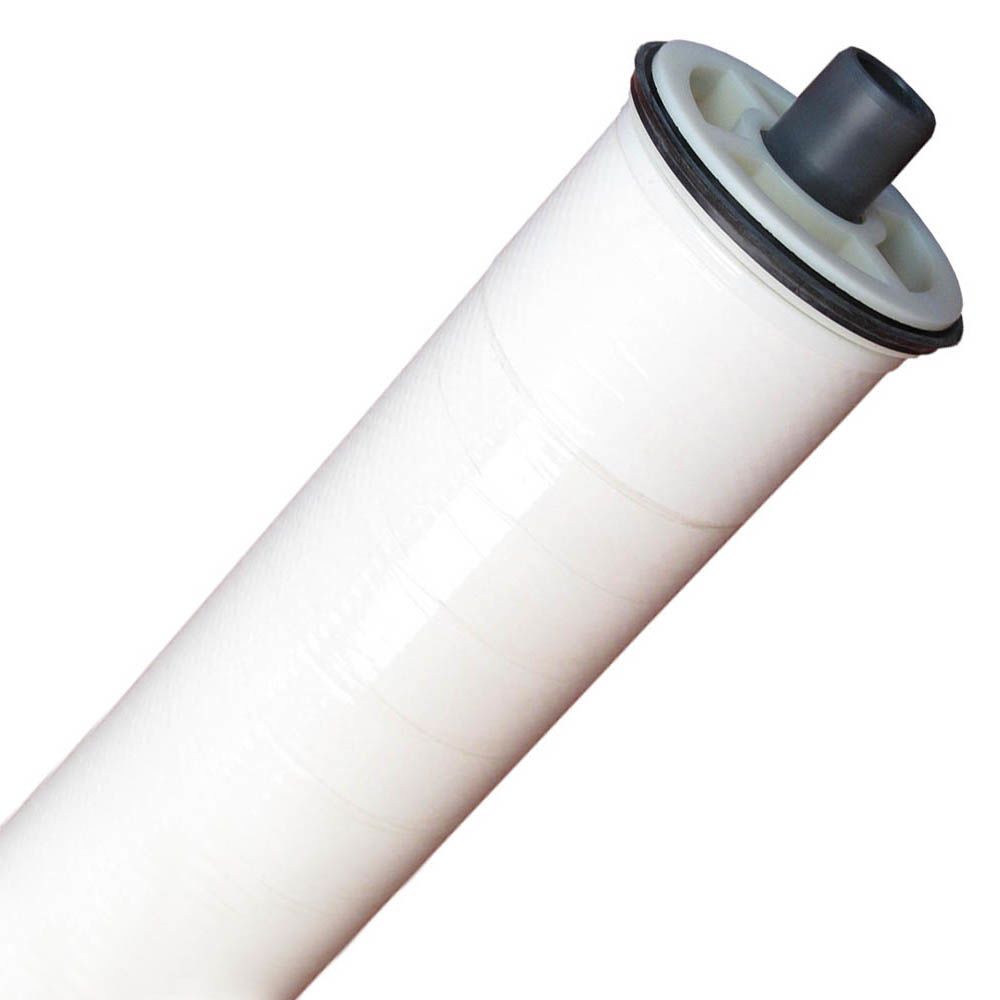

Filmtec Tap Water - Low Energy Membrane, 2.5" x 40" 1000 GPD

Part Number: LP-2540

Alt. Part Number: 231653

In Stock

out of stock

In Stock

$197.99


A complete range of FILMTEC™ 2540-size elements is available to meet a wide variety of customer needs for commercial applications, from the highest purity water to the lowest total system costs.

Specifications:
  • Better system performance & economics by operating at very low applied pressure
  • Made with a patented technology
  • Provides consistent and reliable system performance
  • FILMTEC LP-2540 offers a high production, low pressure RO membrane for commercial application for high purity water.
  • May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Cartridge Style

Drop-in Element

Diameter

2.4 Inches

Flow Rate

1,000 Gallons per day

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

28 Square Feet

Average Nacl Rejection

99.2 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

145 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

13 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11


Filmtec





A complete range of FILMTEC™ 2540-size elements is available to meet a wide variety of customer needs for commercial applications, from the highest purity water to the lowest total system costs.

Specifications:
  • Better system performance & economics by operating at very low applied pressure
  • Made with a patented technology
  • Provides consistent and reliable system performance
  • FILMTEC LP-2540 offers a high production, low pressure RO membrane for commercial application for high purity water.
  • May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Cartridge Style

Drop-in Element

Diameter

2.4 Inches

Flow Rate

1,000 Gallons per day

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

28 Square Feet

Average Nacl Rejection

99.2 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

145 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

13 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11
