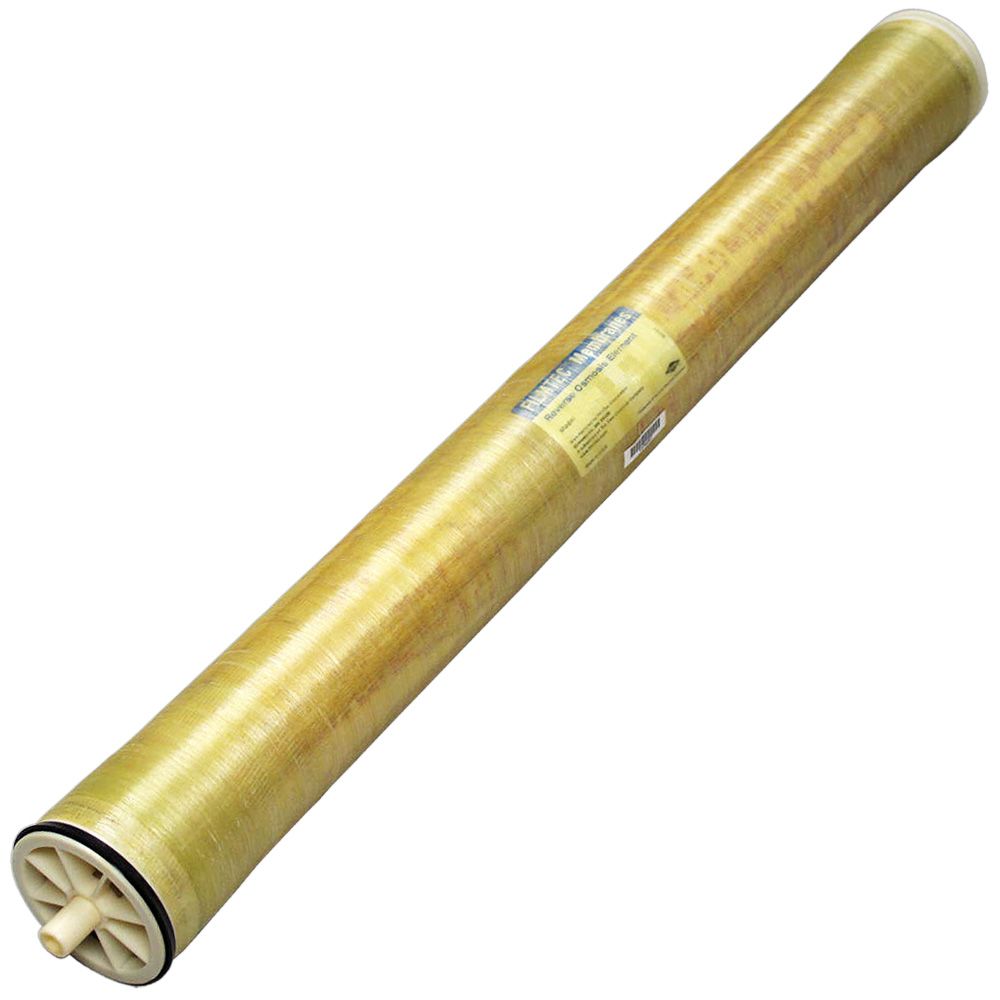

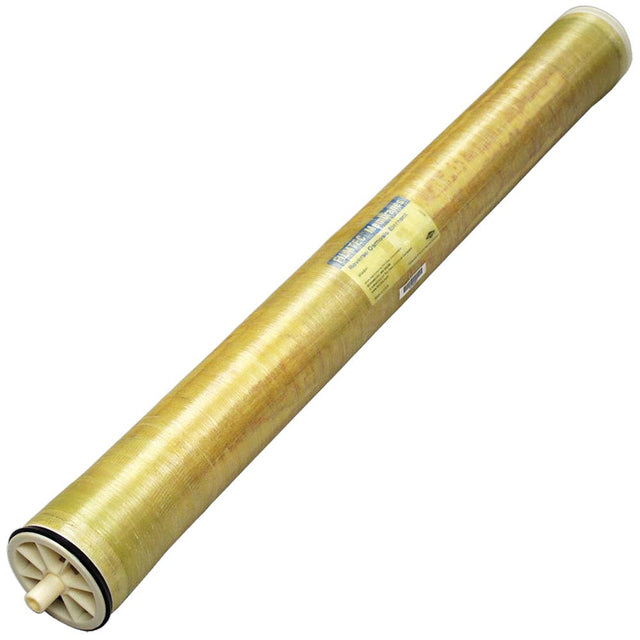

Filmtec SW30XHR-440i Sea Water 6600 GPD RO Membrane 8 x 40

Home / Filters & Cartridges / RO Membranes / Filmtec SW30XHR-440i Sea Water 6600 GPD RO Membrane 8 x 40

Filmtec

Filmtec SW30XHR-440i Sea Water 6600 GPD RO Membrane 8 x 40

Part Number: SW30XHR-440I

Filmtec

Filmtec SW30XHR-440i Sea Water 6600 GPD RO Membrane 8 x 40

Part Number: SW30XHR-440I

One-time purchase

Subscription

Subscription details

Your price:

Quantity

The Dow FILMTEC SW30XHR-440i Sea Water Membrane element offers a combination of High Rejection (HR) and Low Energy (LE) requirements to allow lower total costs with medium and high salinity feed water. These elements comes with the distinct iLEC Interlocking Endcaps that help reduce system operating costs and reduce the risk of o-ring leaks that cause poor water quality.

Features:

Up to 6600 Gallon Per Day production
Up to 1200 PSIG Operating Pressure
Salt Rejection: 99.8%
Boron Rejection: 92%
Fits 8" Membrane Housings or Pressure Vessels
28 mil feed spacer promotes improved cleaning and resistance to fouling
Guaranteed active area of 440 sq. ft. permits the lowest system cost by maximizing productivity while enabling accurate and predictable system design and operating flux.
High NaCl and boron rejection to help meet World Health Organization (WHO) and other drinking water standards.
Effective use in permeate staged seawater desalination systems without impairing the performance of the downstream stage.
Uses iLEC interlocking endcaps that help reduce system operating costs and risk of o-ring leaks that can cause poor water quality
High performance over the operating lifetime because oxidative treatments are not used in membrane production. This is one reason DOW FILMTEC elements are more durable and may be cleaned more effectively over a wider pH range (1-13) than other RO elements.
Automated, precision fabrication with a greater number of shorter membrane leaves reducing the effect of overall fouling and maximizing element efficiency, helping to lower your cost of operation.

Filmtec RO membranes are wet packed

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	440 sq. ft.
Average Nacl Rejection	0.99
Boron Rejection	0.92
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Feed Spacer Thickness	28 mil
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	15 PSId
Max Pressure (Psi)	1200psi
Max Temp (°F)	113°F
Minimum Salt Rejection Cl- (%)	0.9965
Permeate Flow Rate	8,200 gpd (31)
Permeate Tube Diameter	1-1/8"
Ph Range	2-11
Stabilized Salt Rejection Cl- (%)	0.998
Change Frequency	5 Years
Diameter	8"
Origin	U.S.A.
Shipping Dimensions
Shipping Length	40 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	43

Up to 6600 Gallon Per Day production
Up to 1200 PSIG Operating Pressure
Salt Rejection: 99.8%
Boron Rejection: 92%
Fits 8" Membrane Housings or Pressure Vessels
28 mil feed spacer promotes improved cleaning and resistance to fouling
Guaranteed active area of 440 sq. ft. permits the lowest system cost by maximizing productivity while enabling accurate and predictable system design and operating flux.
High NaCl and boron rejection to help meet World Health Organization (WHO) and other drinking water standards.
Effective use in permeate staged seawater desalination systems without impairing the performance of the downstream stage.
Uses iLEC interlocking endcaps that help reduce system operating costs and risk of o-ring leaks that can cause poor water quality
High performance over the operating lifetime because oxidative treatments are not used in membrane production. This is one reason DOW FILMTEC elements are more durable and may be cleaned more effectively over a wider pH range (1-13) than other RO elements.
Automated, precision fabrication with a greater number of shorter membrane leaves reducing the effect of overall fouling and maximizing element efficiency, helping to lower your cost of operation.

Filmtec RO membranes are wet packed

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
