Filmtec

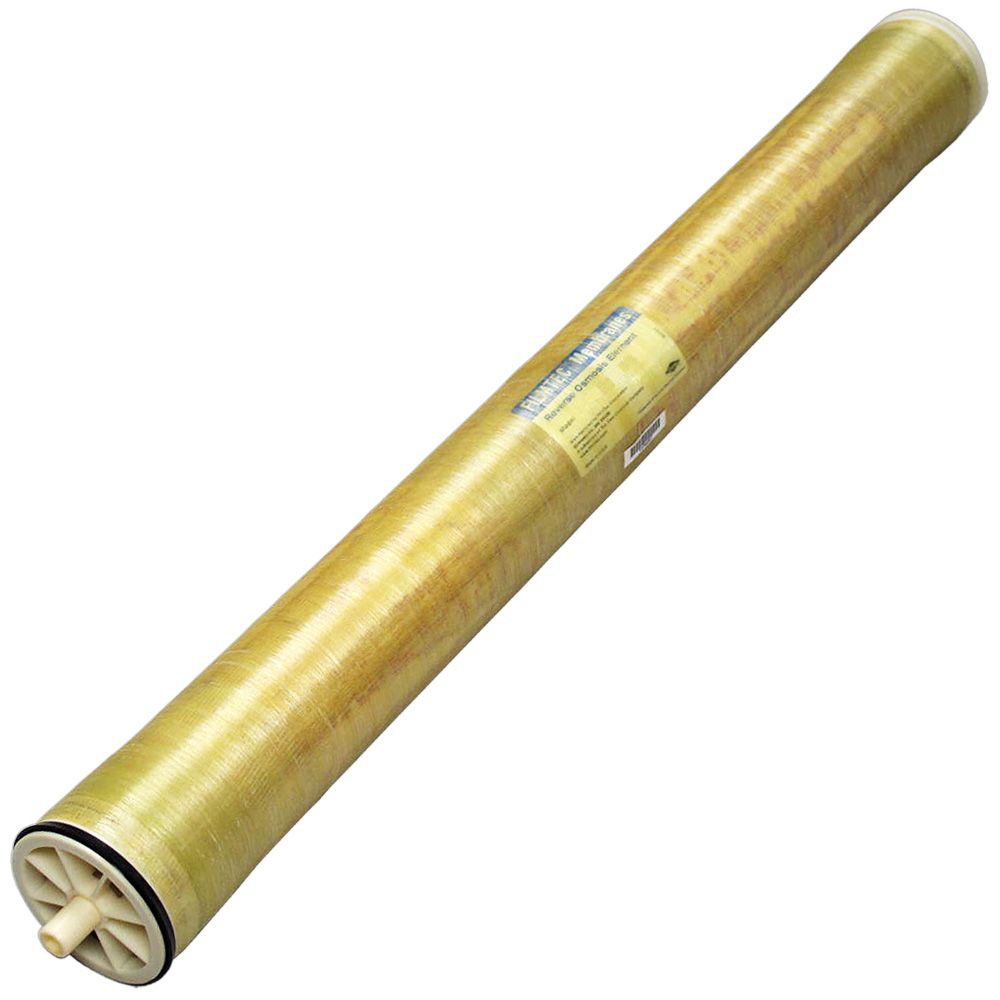

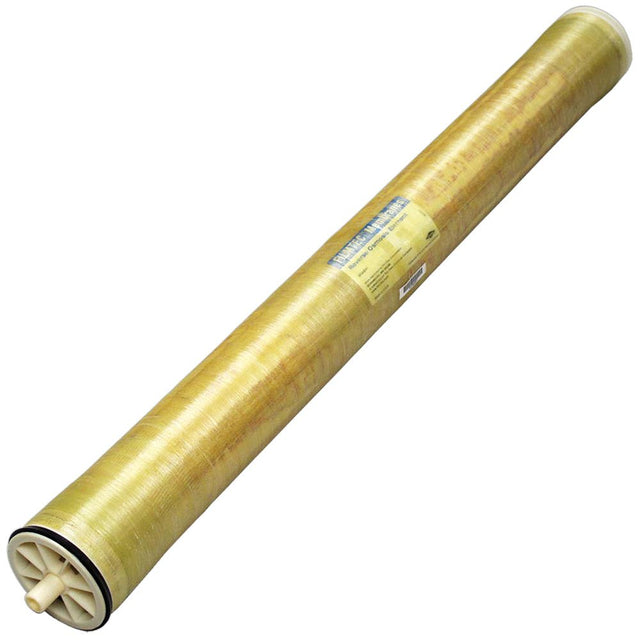

Filmtec SW30HRLE-440i Sea Water 8200 GPD RO Membrane Element 8 x 40

Part Number: SW30HRLE-440i

In Stock

out of stock

In Stock

$992.86


The Dow FILMTEC SW30HR LE-440i Sea Water Membrane element offers a combination of High Rejection (HR) and Low Energy (LE) requirements to allow lower total costs with medium and high salinity feed water. These elements comes with the distinct iLEC Interlocking Endcaps that help reduce system operating costs and reduce the risk of o-ring leaks that cause poor water quality.
Features:
  • Up to 8200 Gallon Per Day production
  • Up to 1200 PSIG Operating Pressure
  • Salt Rejection: 99.8%
  • Boron Rejection: 92%
  • Fits 8" Membrane Housings or Pressure Vessels
  • 28 mil feed spacer promotes improved cleaning and resistance to fouling
  • Guaranteed active area of 440 sq. ft. permits the lowest system cost by maximizing productivity while enabling accurate and predictable system design and operating flux.
  • High NaCl and boron rejection to help meet World Health Organization (WHO) and other drinking water standards.
  • Effective use in permeate staged seawater desalination systems without impairing the performance of the downstream stage.
  • Uses iLEC interlocking endcaps that help reduce system operating costs and risk of o-ring leaks that can cause poor water quality
  • High performance over the operating lifetime because oxidative treatments are not used in membrane production. This is one reason DOW FILMTEC elements are more durable and may be cleaned more effectively over a wider pH range (1-13) than other RO elements.
  • Automated, precision fabrication with a greater number of shorter membrane leaves reducing the effect of overall fouling and maximizing element efficiency, helping to lower your cost of operation.


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Capacity

5 years months

Diameter

8 Inches

Flow Rate

8200 Gallons per day

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1200 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Active Area

440 Square Feet

Average Nacl Rejection

99.8 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Contaminants Reduced

92% Boron

Direction

Outside - In

Feed Spacer Thickness

28 mil

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2-11


Filmtec





The Dow FILMTEC SW30HR LE-440i Sea Water Membrane element offers a combination of High Rejection (HR) and Low Energy (LE) requirements to allow lower total costs with medium and high salinity feed water. These elements comes with the distinct iLEC Interlocking Endcaps that help reduce system operating costs and reduce the risk of o-ring leaks that cause poor water quality.
Features:
  • Up to 8200 Gallon Per Day production
  • Up to 1200 PSIG Operating Pressure
  • Salt Rejection: 99.8%
  • Boron Rejection: 92%
  • Fits 8" Membrane Housings or Pressure Vessels
  • 28 mil feed spacer promotes improved cleaning and resistance to fouling
  • Guaranteed active area of 440 sq. ft. permits the lowest system cost by maximizing productivity while enabling accurate and predictable system design and operating flux.
  • High NaCl and boron rejection to help meet World Health Organization (WHO) and other drinking water standards.
  • Effective use in permeate staged seawater desalination systems without impairing the performance of the downstream stage.
  • Uses iLEC interlocking endcaps that help reduce system operating costs and risk of o-ring leaks that can cause poor water quality
  • High performance over the operating lifetime because oxidative treatments are not used in membrane production. This is one reason DOW FILMTEC elements are more durable and may be cleaned more effectively over a wider pH range (1-13) than other RO elements.
  • Automated, precision fabrication with a greater number of shorter membrane leaves reducing the effect of overall fouling and maximizing element efficiency, helping to lower your cost of operation.

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Capacity

5 years months

Diameter

8 Inches

Flow Rate

8200 Gallons per day

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1200 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Active Area

440 Square Feet

Average Nacl Rejection

99.8 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Contaminants Reduced

92% Boron

Direction

Outside - In

Feed Spacer Thickness

28 mil

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2-11
