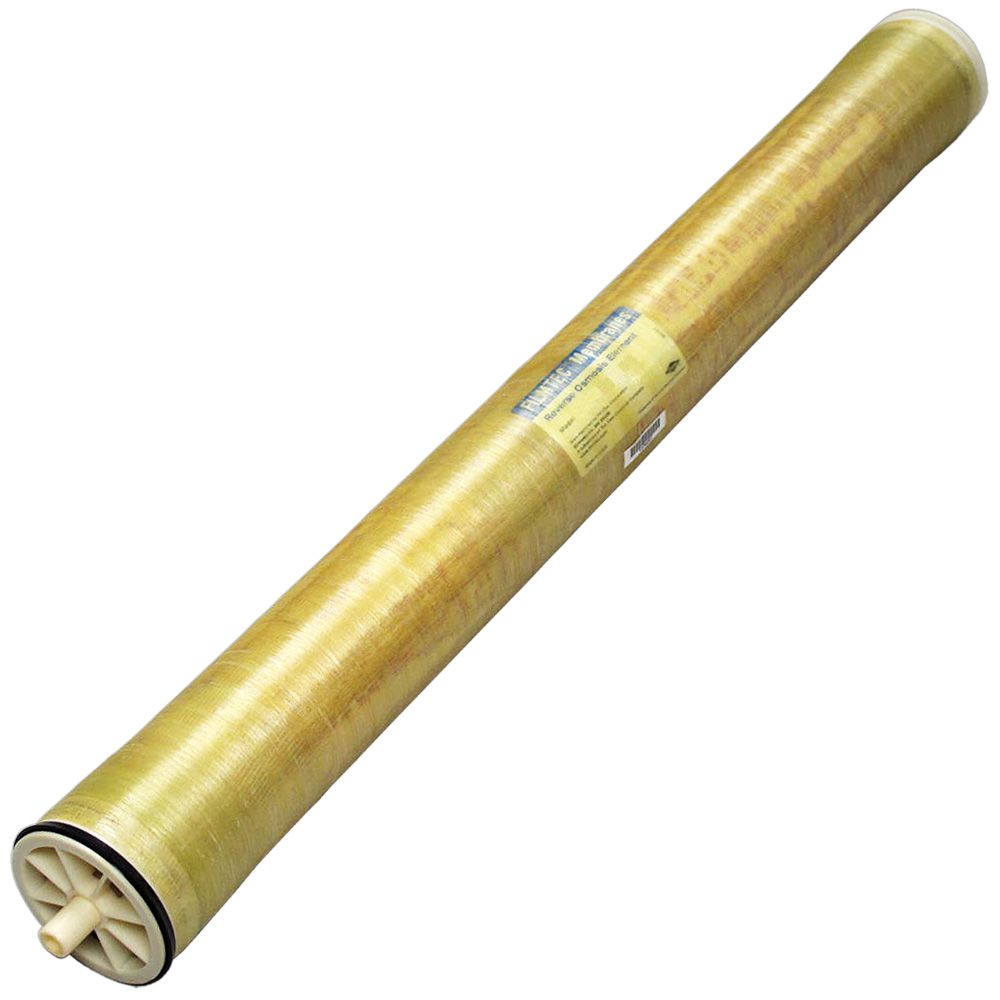

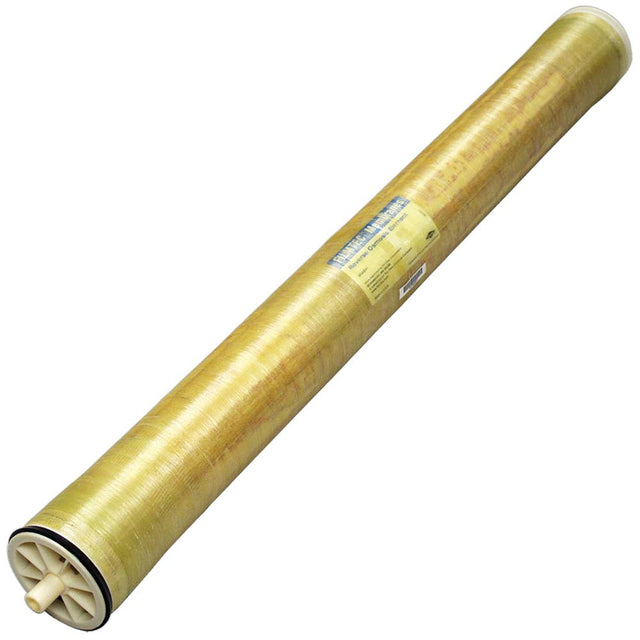

Filmtec SW30HRLE-400 Sea Water 7500 GPD RO Membrane Element

Part Number: SW30HRLE-400

Alt. Part Number: 217822

In Stock

out of stock

In Stock

$975.00


The Dow FILMTEC SW30HR LE-400 Sea Water Membrane element offers a combination of High Rejection (HR) and Low Energy (LE) requirements to allow lower total costs with medium and high salinity feed water. It can be used in multiple membrane systems to treat sea water for small private or shipboard desalination.

Features:
  • Up to 7500 gallon per day production
  • Up to 1200 psig
  • Enables systems to be designed and operated to optimize operating cost through lower energy consumption or to optimize capital cost through higher productivity at lower operating fluxes.
  • High NaCl and boron rejection to help meet World Health Organization (WHO) and other drinking water standards.
  • Effective use in permeate staged seawater desalination systems without impairing the performance of the downstream stage.
  • High performance over the operating lifetime without the use of oxidative post-treatments. This is one reason DOW FILMTEC elements are more durable and may be cleaned more effectively over a wider pH range (1-13) than other RO elements.
  • Automated, precision fabrication with a greater number of shorter membrane leaves reducing the effect of overall fouling and maximizing element efficiency, helping to lower your cost of operation.
  • Applications: sea water, industrial and process water, municipal/potable water, shipboard seawater desalination, sea water boron removal


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Capacity

5 years months

Cartridge Style

Drop-in Element

Diameter

7.9 Inches

Flow Rate

7500 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1200 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

400 Square Feet

Average Nacl Rejection

99.8 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Contaminants Reduced

92% Boron

Direction

Outside - In

Feed Spacer Thickness

28 mil

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5.0 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2-11


Filmtec





The Dow FILMTEC SW30HR LE-400 Sea Water Membrane element offers a combination of High Rejection (HR) and Low Energy (LE) requirements to allow lower total costs with medium and high salinity feed water. It can be used in multiple membrane systems to treat sea water for small private or shipboard desalination.

Features:
  • Up to 7500 gallon per day production
  • Up to 1200 psig
  • Enables systems to be designed and operated to optimize operating cost through lower energy consumption or to optimize capital cost through higher productivity at lower operating fluxes.
  • High NaCl and boron rejection to help meet World Health Organization (WHO) and other drinking water standards.
  • Effective use in permeate staged seawater desalination systems without impairing the performance of the downstream stage.
  • High performance over the operating lifetime without the use of oxidative post-treatments. This is one reason DOW FILMTEC elements are more durable and may be cleaned more effectively over a wider pH range (1-13) than other RO elements.
  • Automated, precision fabrication with a greater number of shorter membrane leaves reducing the effect of overall fouling and maximizing element efficiency, helping to lower your cost of operation.
  • Applications: sea water, industrial and process water, municipal/potable water, shipboard seawater desalination, sea water boron removal

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Capacity

5 years months

Cartridge Style

Drop-in Element

Diameter

7.9 Inches

Flow Rate

7500 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1200 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

400 Square Feet

Average Nacl Rejection

99.8 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Contaminants Reduced

92% Boron

Direction

Outside - In

Feed Spacer Thickness

28 mil

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5.0 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2-11
