Home / Filters & Cartridges / RO Membranes / Salt Water (Desalination) / Filmtec SW30-4040 Sea Water 1950 GPD RO Membrane Element

Filmtec

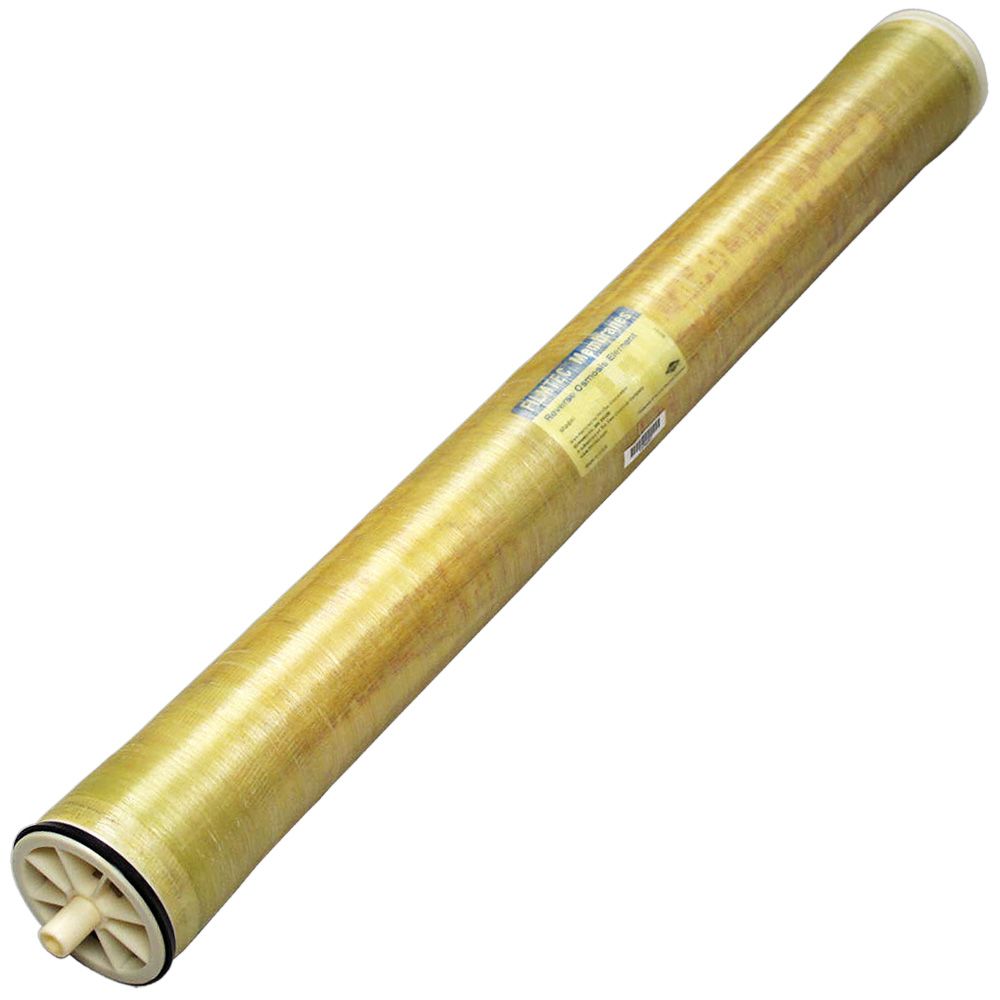

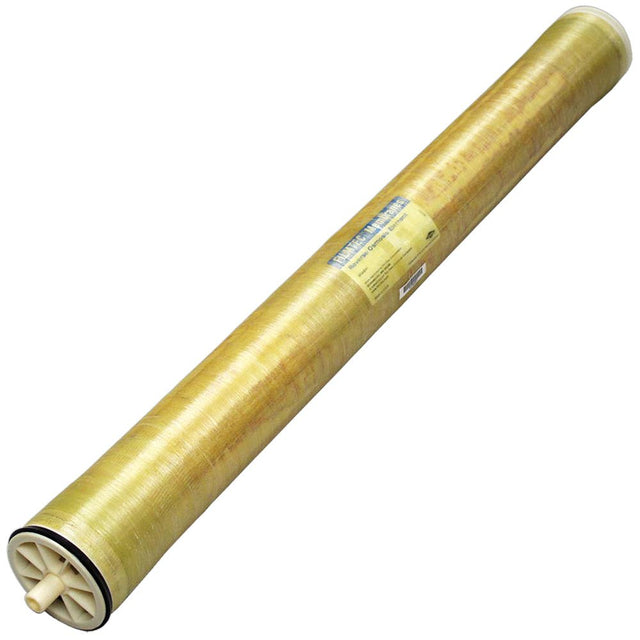

Filmtec SW30-4040 Sea Water 1950 GPD RO Membrane Element

Part Number: SW30-4040

Filmtec

Filmtec SW30-4040 Sea Water 1950 GPD RO Membrane Element

Part Number: SW30-4040

One-time purchase

Subscription

Subscription details

Quantity

similar items

The Dow FILMTEC SW30-4040 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.4 percent stabilized salt rejection.

Features:

Highest Flow Rate. The SW30-4040 Membrane features the highest flow rates available to meet the water demands of both sea-based and land-based desalinators.

Consistent Performance. Combined automated and precision element fabrication result in the most consistent product performance when compared to other seawater membranes.
Reduced Expenses. The SW30-4040 filter membrane may also be operated at lower pressures to reduce pump size, cost and operating expenses.

Additional Specifications:

Permeate Flow Rate: 1950 gpd
Maximum Pressure: 1000 psi
Fits Standard 4" Housings or Pressure Vessels

Filmtec RO membranes are wet packed

Highest Flow Rate. The SW30-4040 Membrane features the highest flow rates available to meet the water demands of both sea-based and land-based desalinators.

Consistent Performance. Combined automated and precision element fabrication result in the most consistent product performance when compared to other seawater membranes.
Reduced Expenses. The SW30-4040 filter membrane may also be operated at lower pressures to reduce pump size, cost and operating expenses.

Additional Specifications:

Permeate Flow Rate: 1950 gpd
Maximum Pressure: 1000 psi
Fits Standard 4" Housings or Pressure Vessels

Filmtec RO membranes are wet packed

Product Details
Active Area	80 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Inlet Pressure	800 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	16 gpd (3.6)
Max Pressure Drop	15 PSI Differential
Max Pressure (Psi)	1000psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	1,950 gpd (7.4)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Stabilized Salt Rejection Cl- (%)	0.994
Cartridge Style	Drop-in
Change Frequency	5 Years
Diameter	3.9"
Shipping Dimensions
Shipping Length	42 in.
Shipping Width	5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Height	4.5 in.
Product Length	41.5 in.
Product Width	5 in.
Product Weight (lbs)	9.5
