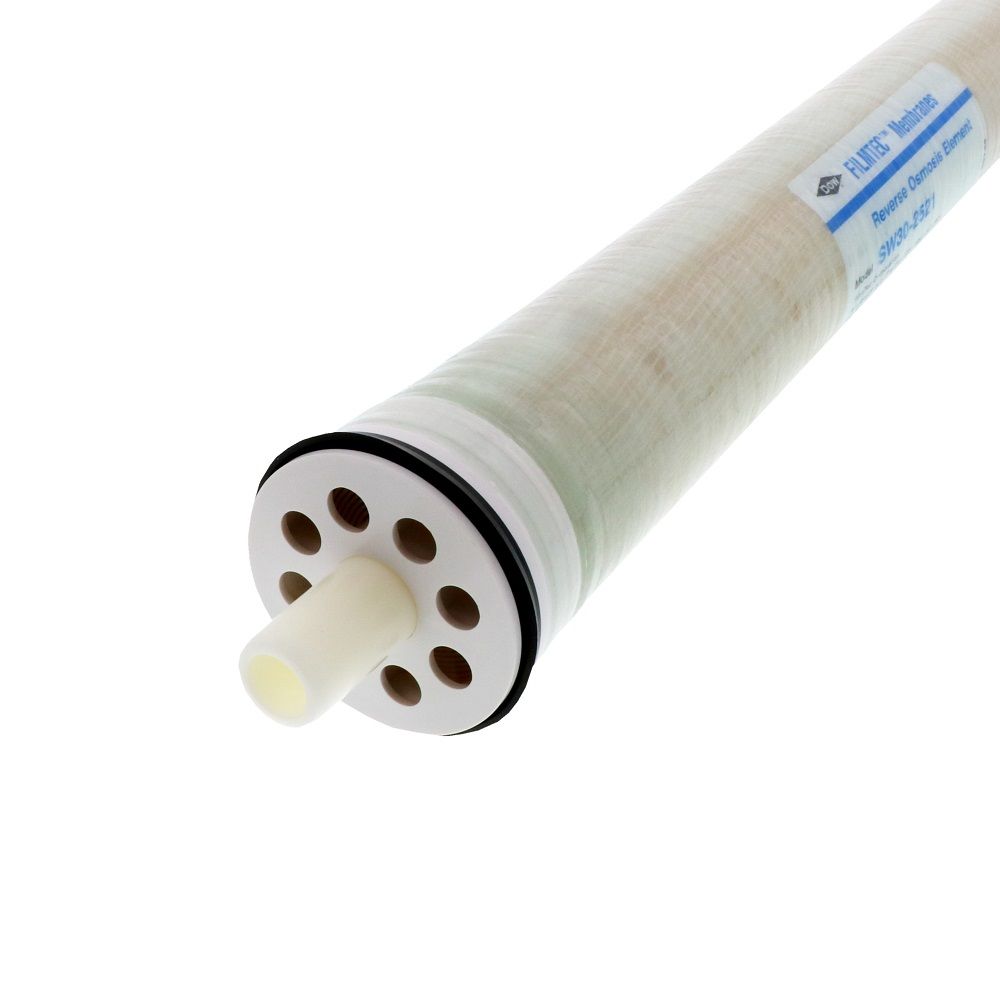

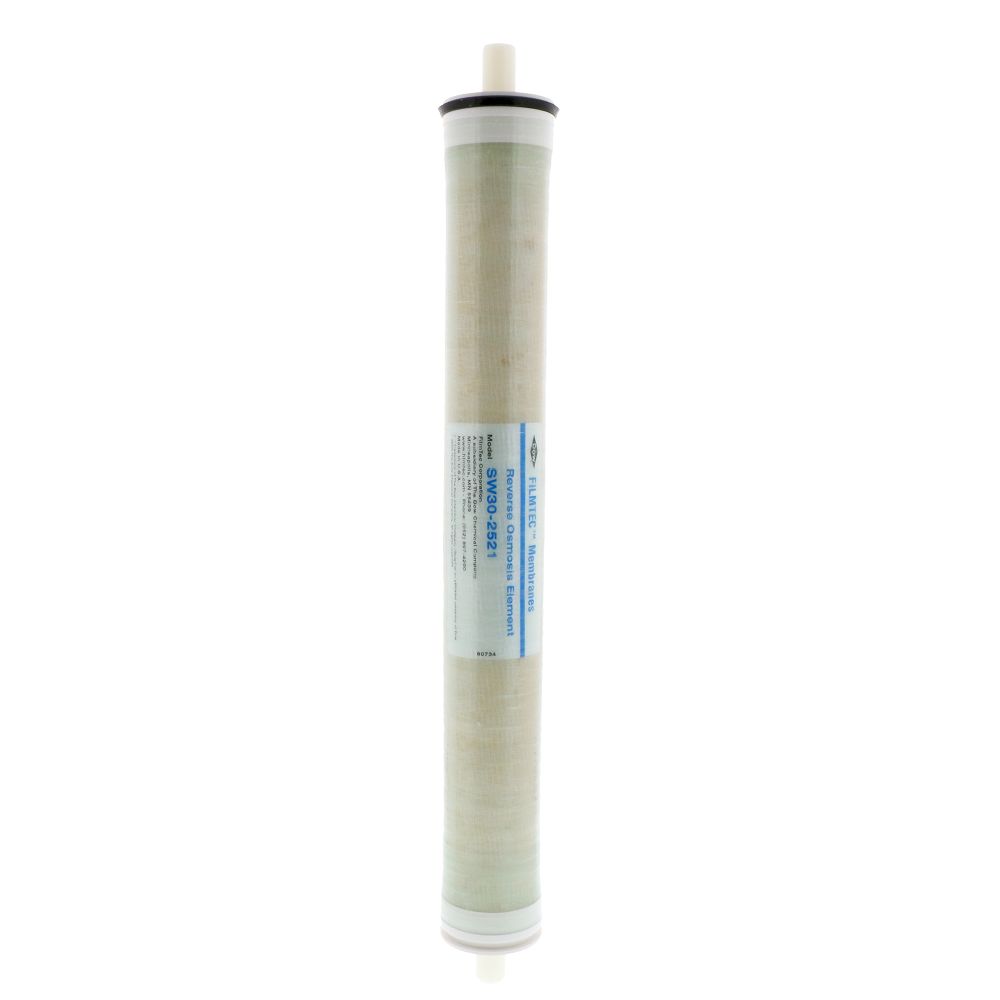

Filmtec SW30-2521 Sea Water 300 GPD RO Membrane Element

Part Number: SW30-2521

In Stock

out of stock

In Stock

$194.35


The Dow FILMTEC SW30-2521 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.4 percent stabilized salt rejection.

Features:
  • Up to 300 Gallon Per Day production
  • Up to 800 SIPG
  • Fits Standard 2.5" Housings or Pressure Vessels
  • Dow Filmtec SW30-2521 reverse osmosis membranes offer high productivity while maintaining excellent salt rejection.
  • Filmtec Desalination SW30-2521 reverse osmosis elements can be operated at a lower pressure in order to reduce pump size, cost, and operating expenses.
  • Filmtec Seawater SW30-2521 RO membrane elements have the highest flow rates available to meet the water demands of both sea-based and land-based desalinators.
  • Dow Filmtec Part #80734


Weight & Dimensions

Approx Length (Inches)

21 Inches

Details

Capacity

5 years months

Cartridge Style

Drop-in Element

Diameter

2.4 Inches

Flow Rate

300 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1000 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

13 Square Feet

Average Nacl Rejection

99.4 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11


Filmtec





The Dow FILMTEC SW30-2521 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.4 percent stabilized salt rejection.

Features:
  • Up to 300 Gallon Per Day production
  • Up to 800 SIPG
  • Fits Standard 2.5" Housings or Pressure Vessels
  • Dow Filmtec SW30-2521 reverse osmosis membranes offer high productivity while maintaining excellent salt rejection.
  • Filmtec Desalination SW30-2521 reverse osmosis elements can be operated at a lower pressure in order to reduce pump size, cost, and operating expenses.
  • Filmtec Seawater SW30-2521 RO membrane elements have the highest flow rates available to meet the water demands of both sea-based and land-based desalinators.
  • Dow Filmtec Part #80734

Weight & Dimensions

Approx Length (Inches)

21 Inches

Details

Capacity

5 years months

Cartridge Style

Drop-in Element

Diameter

2.4 Inches

Flow Rate

300 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1000 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

13 Square Feet

Average Nacl Rejection

99.4 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11
