Filmtec

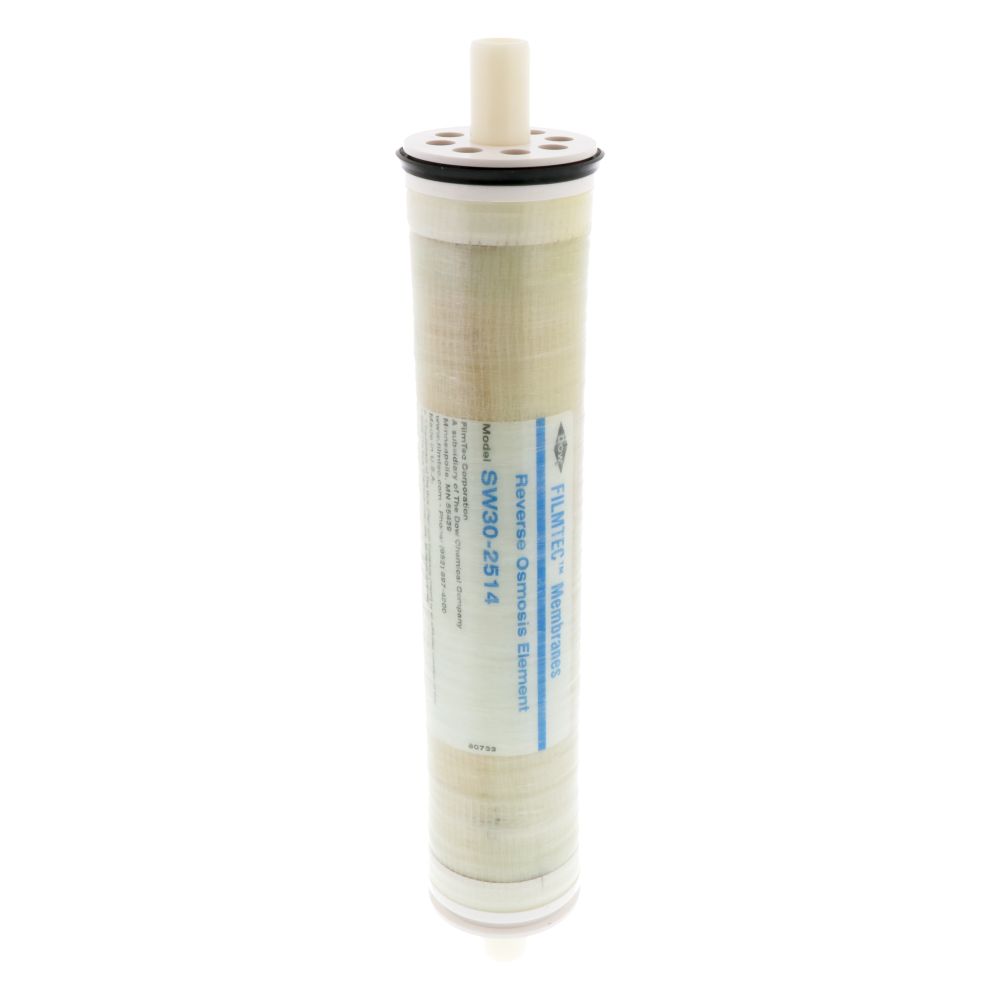

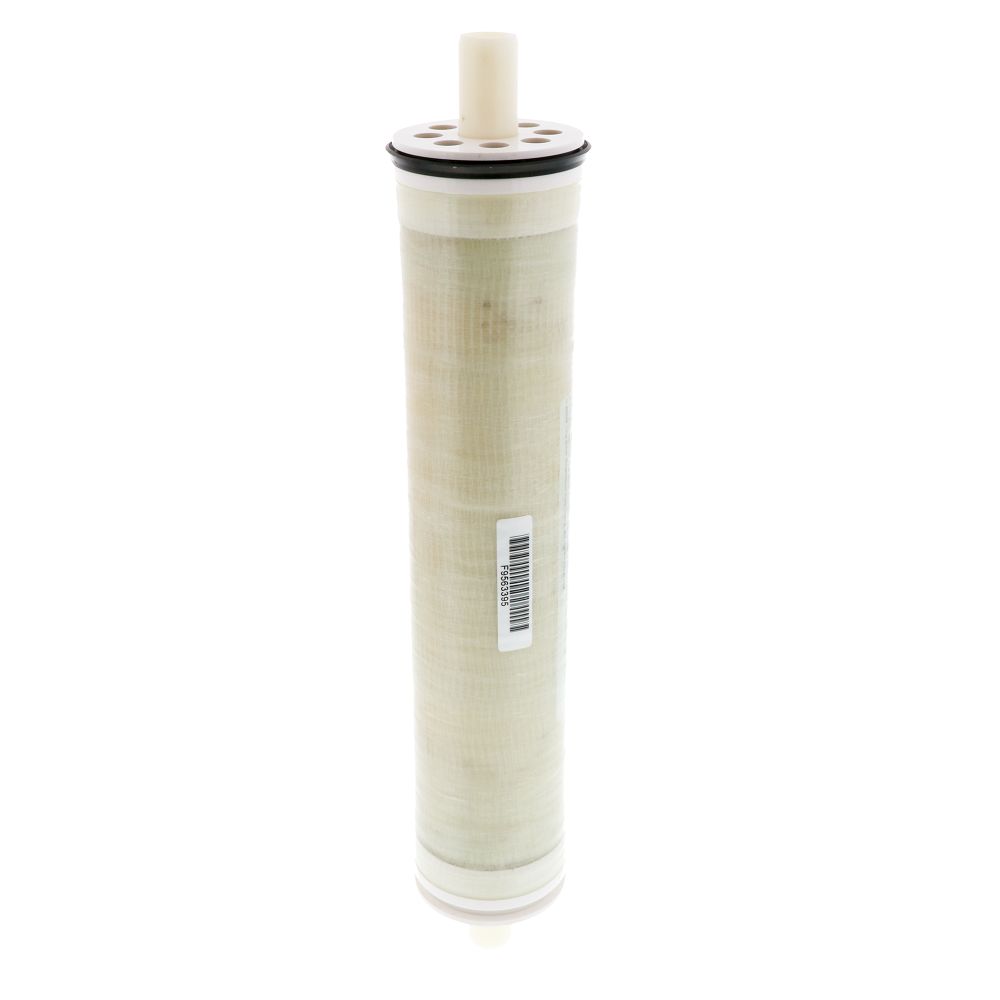

Filmtec SW30-2514 Sea Water 150 GPD RO Membrane Element

Part Number: SW30-2514

In Stock

out of stock

In Stock

$221.99

The Dow FILMTEC SW30-2514 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.4 percent stabilized salt rejection.
Features:
  • Up to 150 Gallon Per Day production
  • Up to 800 SIPG
  • Fits Standard 2.5" Housings or Pressure Vessels
  • Highest flow rates available to meet the water demands of both sea-based and land-based desalinators
  • May also be operated at lower pressure to reduce pump size, cost and operating expenses
  • Improved FILMTEC seawater membrane combined with automated, precision element fabrication result in the most consistent product performance available



Compatible with:
Filmtec Membranes80733

Weight & Dimensions

Length (inches)

14

Weight (lbs)

4

Details

Active Area

6.5 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

800 PSI

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Feed Silt Density Index

5 Silt Density Index

Max Flow Rate

6 gpd (1.4)

Max Pressure Drop

15 PSI Differential

Max Pressure (Psi)

1000psi

Max Temp (°F)

113°F

Membrane Type

Spiral Wound

Permeate Flow Rate

150 gpd (0.6)

Permeate Tube Diameter

3/4"

Ph Range

2-11

Stabilized Salt Rejection Ci- (%)

0.994

Cartridge Style

Drop-in

Change Frequency

5 Years

Diameter

2.4"

Product Length

14"


Filmtec




The Dow FILMTEC SW30-2514 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.4 percent stabilized salt rejection.
Features:
  • Up to 150 Gallon Per Day production
  • Up to 800 SIPG
  • Fits Standard 2.5" Housings or Pressure Vessels
  • Highest flow rates available to meet the water demands of both sea-based and land-based desalinators
  • May also be operated at lower pressure to reduce pump size, cost and operating expenses
  • Improved FILMTEC seawater membrane combined with automated, precision element fabrication result in the most consistent product performance available



Compatible with:
Filmtec Membranes80733

Weight & Dimensions

Length (inches)

14

Weight (lbs)

4

Details

Active Area

6.5 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

800 PSI

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Feed Silt Density Index

5 Silt Density Index

Max Flow Rate

6 gpd (1.4)

Max Pressure Drop

15 PSI Differential

Max Pressure (Psi)

1000psi

Max Temp (°F)

113°F

Membrane Type

Spiral Wound

Permeate Flow Rate

150 gpd (0.6)

Permeate Tube Diameter

3/4"

Ph Range

2-11

Stabilized Salt Rejection Ci- (%)

0.994

Cartridge Style

Drop-in

Change Frequency

5 Years

Diameter

2.4"

Product Length

14"
