Filmtec

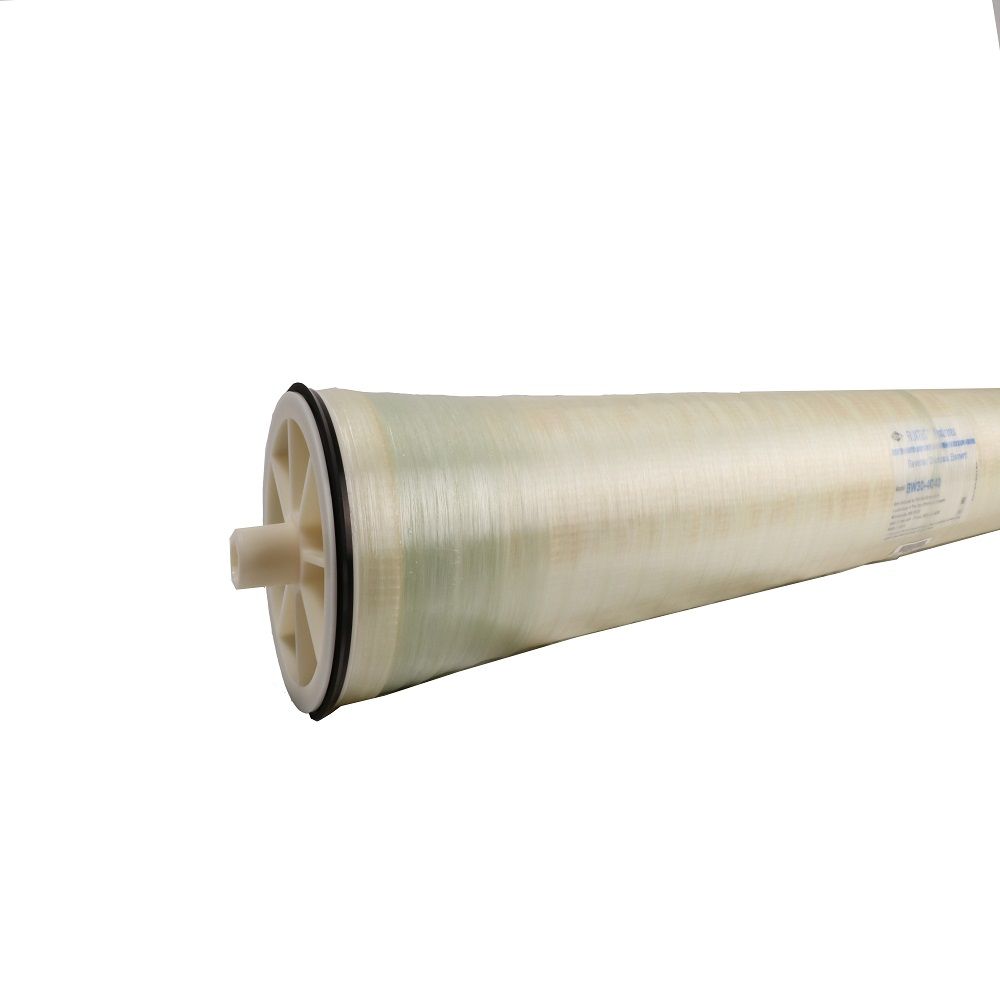

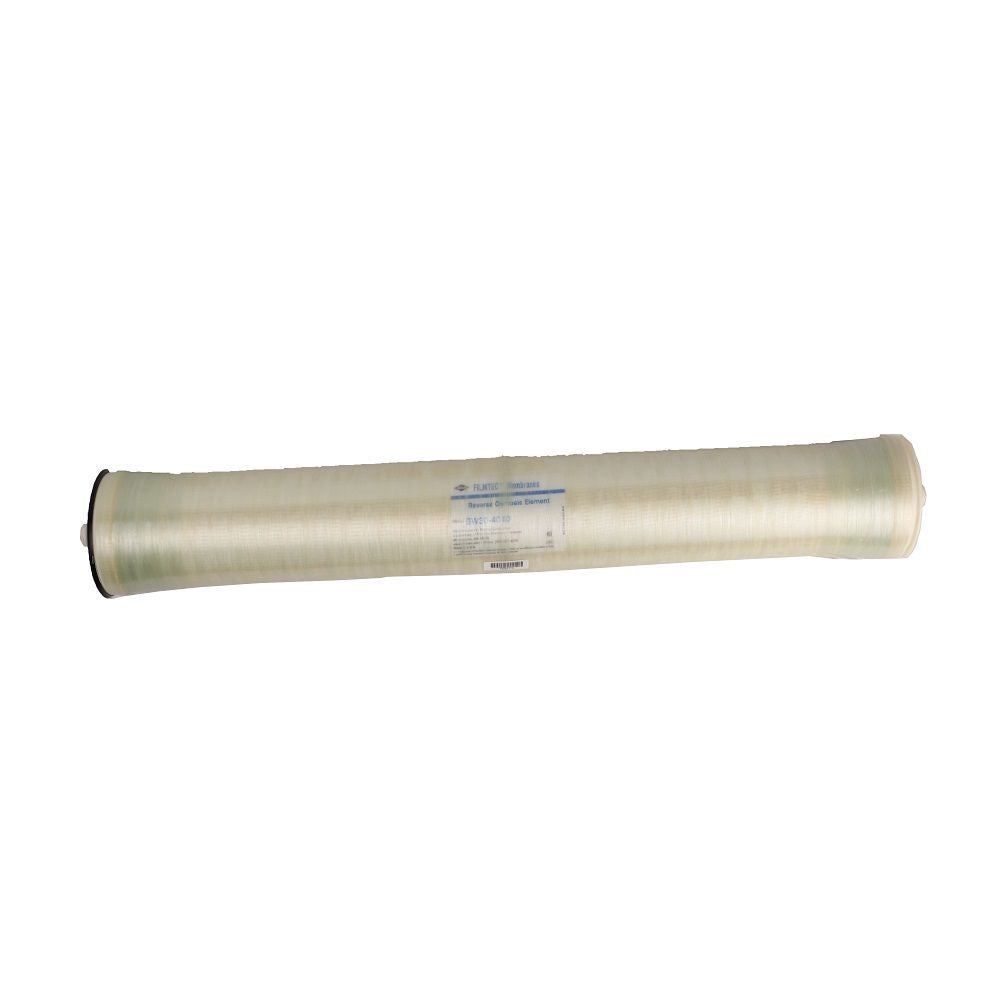

Filmtec BW30-4040 Brackish Water 2400 GPD RO Membrane Element

Part Number: BW30-4040

In Stock

out of stock

In Stock

$265.71


The Dow FILMTEC BW Brackish Water Membranes are specifically designed for light industrial applications with higher than normal silt density. Due to the fiberglass outer wrap, these brackish water (BW) membranes can consistently sustain the higher pressures required in these applications.

Specifications:
  • Up to 2400 gallon per day production
  • Up to 600 SIPG
  • Fits standard 4" housings or pressure vessels
  • FILMTEC BW30-4040 is the industry standard for reliable operation and production of the highest quality water

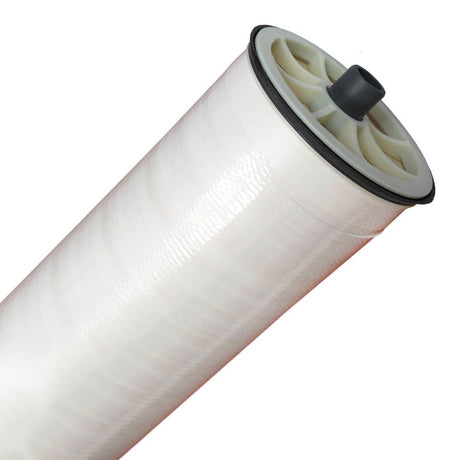

Compatible with: Desal AG-Series Tap Water/Brackish RO Elements | 1206761, Filmtec Membranes | 80783


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Cartridge Style

Drop-in Element

Diameter

3.9 Inches

Flow Rate

2400 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

78 Square Feet

Average Nacl Rejection

99.5 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11


Filmtec





The Dow FILMTEC BW Brackish Water Membranes are specifically designed for light industrial applications with higher than normal silt density. Due to the fiberglass outer wrap, these brackish water (BW) membranes can consistently sustain the higher pressures required in these applications.

Specifications:
  • Up to 2400 gallon per day production
  • Up to 600 SIPG
  • Fits standard 4" housings or pressure vessels
  • FILMTEC BW30-4040 is the industry standard for reliable operation and production of the highest quality water

Compatible with: Desal AG-Series Tap Water/Brackish RO Elements | 1206761, Filmtec Membranes | 80783

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Cartridge Style

Drop-in Element

Diameter

3.9 Inches

Flow Rate

2400 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

78 Square Feet

Average Nacl Rejection

99.5 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11
