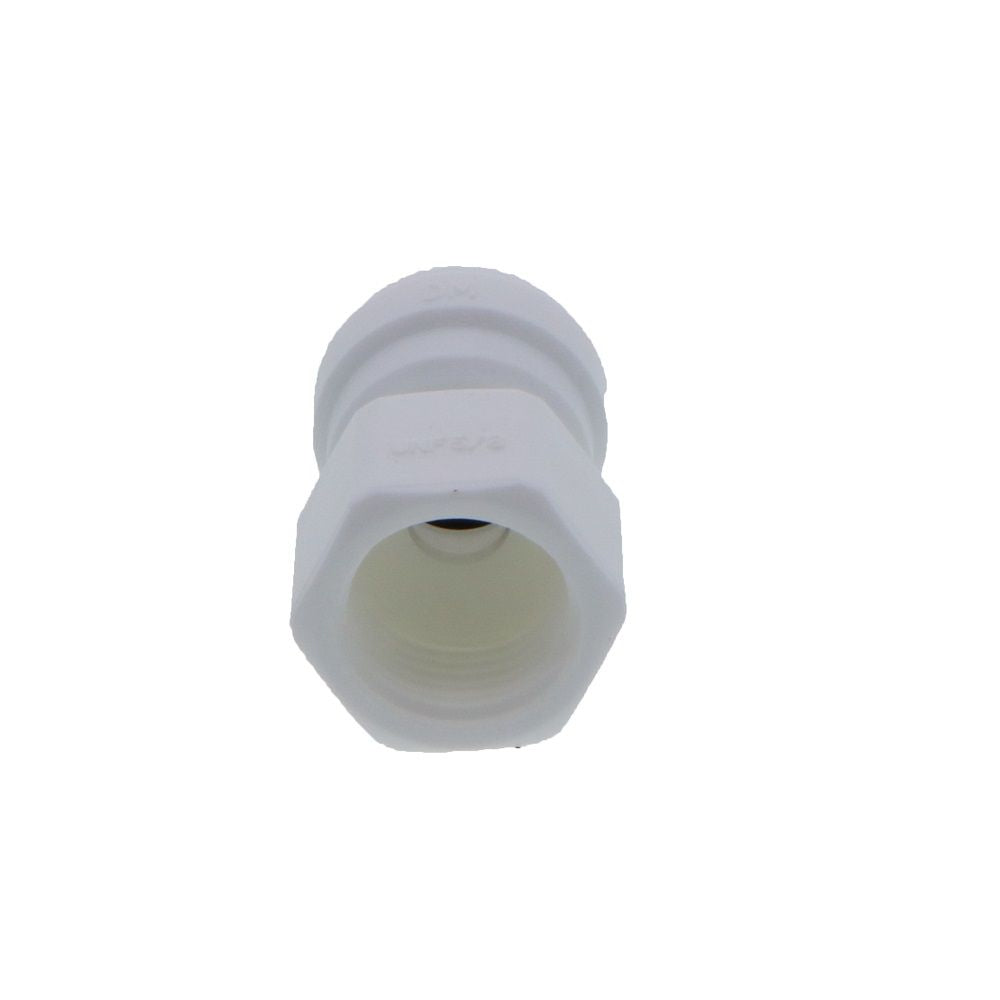

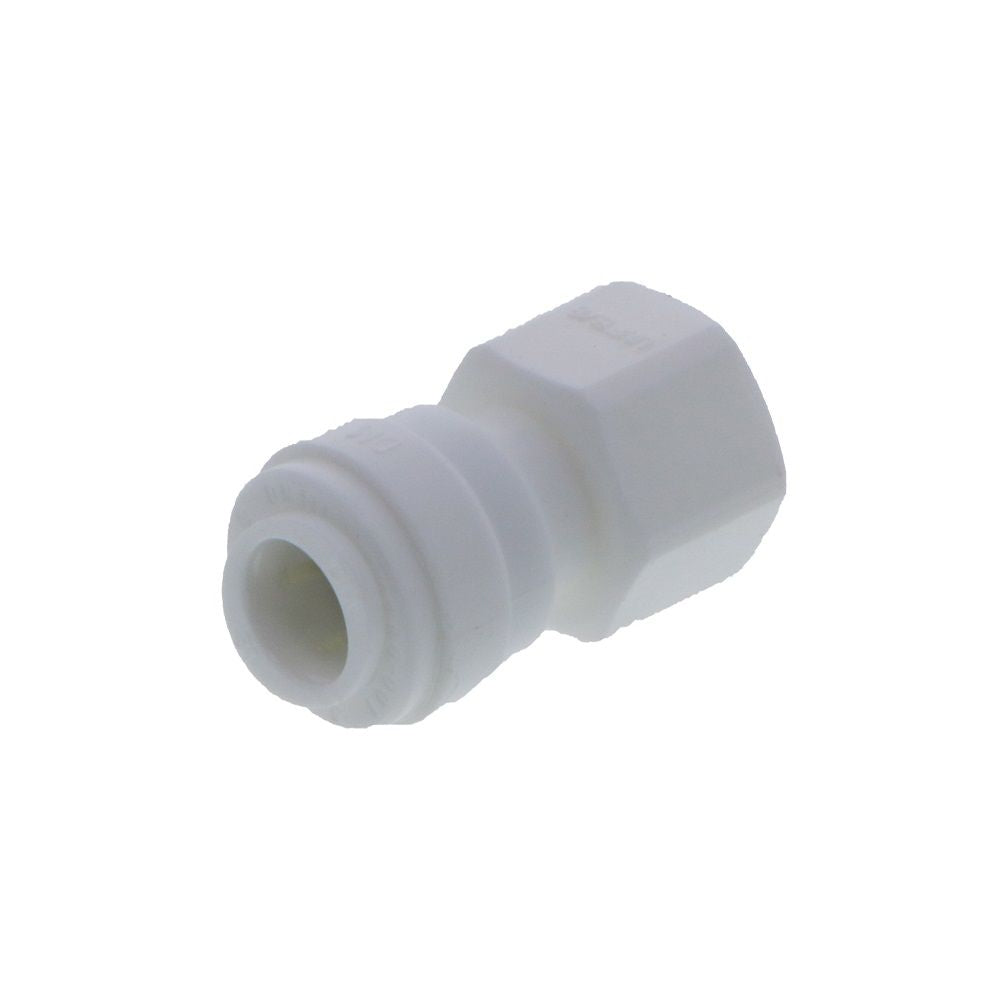

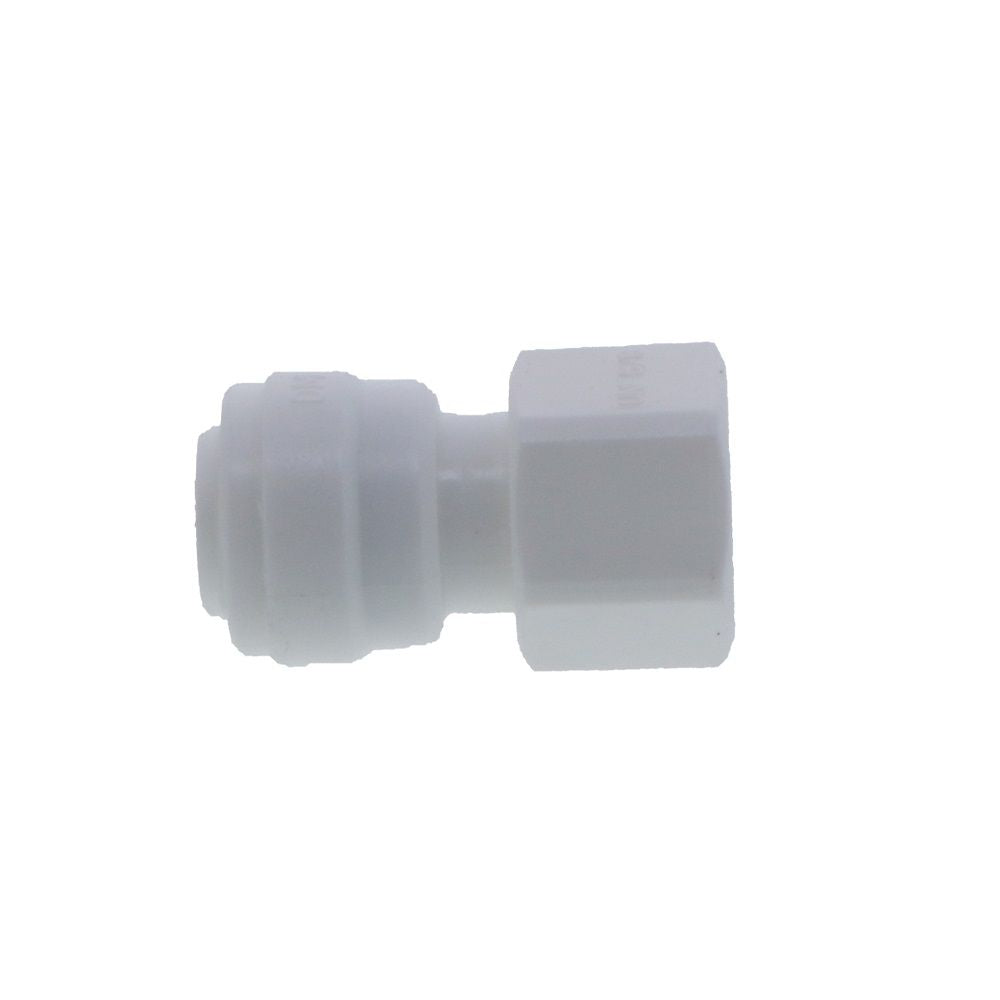

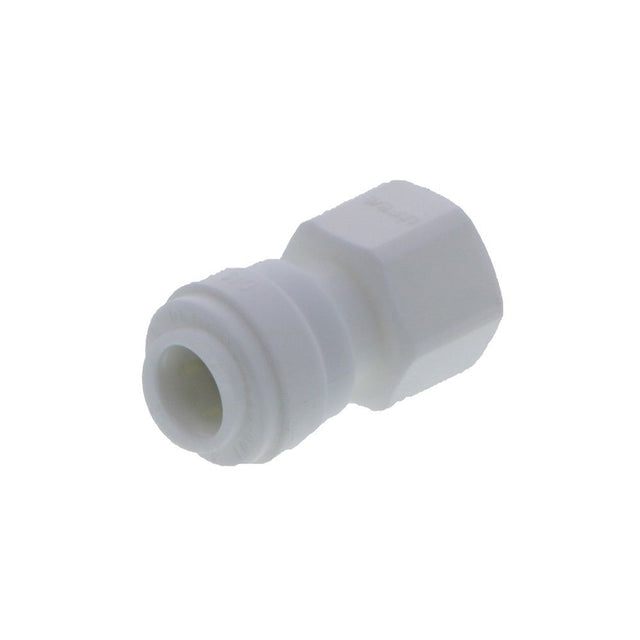

Female Flare Connector - 3/8 Tube x 5/8 Flare

Part Number: AFAUF065/8VW

Alt. Part Number: U0620676

Your price:

Choose

Single

BAG of 10

5 BAGS

BOX of 350

Quantity

similar items

The 3/8" Quick Connect x 5/8" Female Flare Connector is suitable for use with coffee, brewing, and vending machine applications. Push in technology allows quick disconnects with no tools required.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Air Food Beverage
Body Material	Acetal Copolymer
Inlet Connection	5/8-18 UNF
Max Pressure (Psi)	170
Max Temp (°F)	150
Min Pressure (Psi)	Vacuum
Min Temp (°F)	34
Mounting Options	Thread
Outlet Connection	5/8-18 UNF
Push-In Size	3/8" OD
Seal Material	Buna-N
Series	Acetal
Shape	Straight
Size	5/8-18
Color / Finish	Gray White
Connection Type	Flare
Origin	Korea
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
