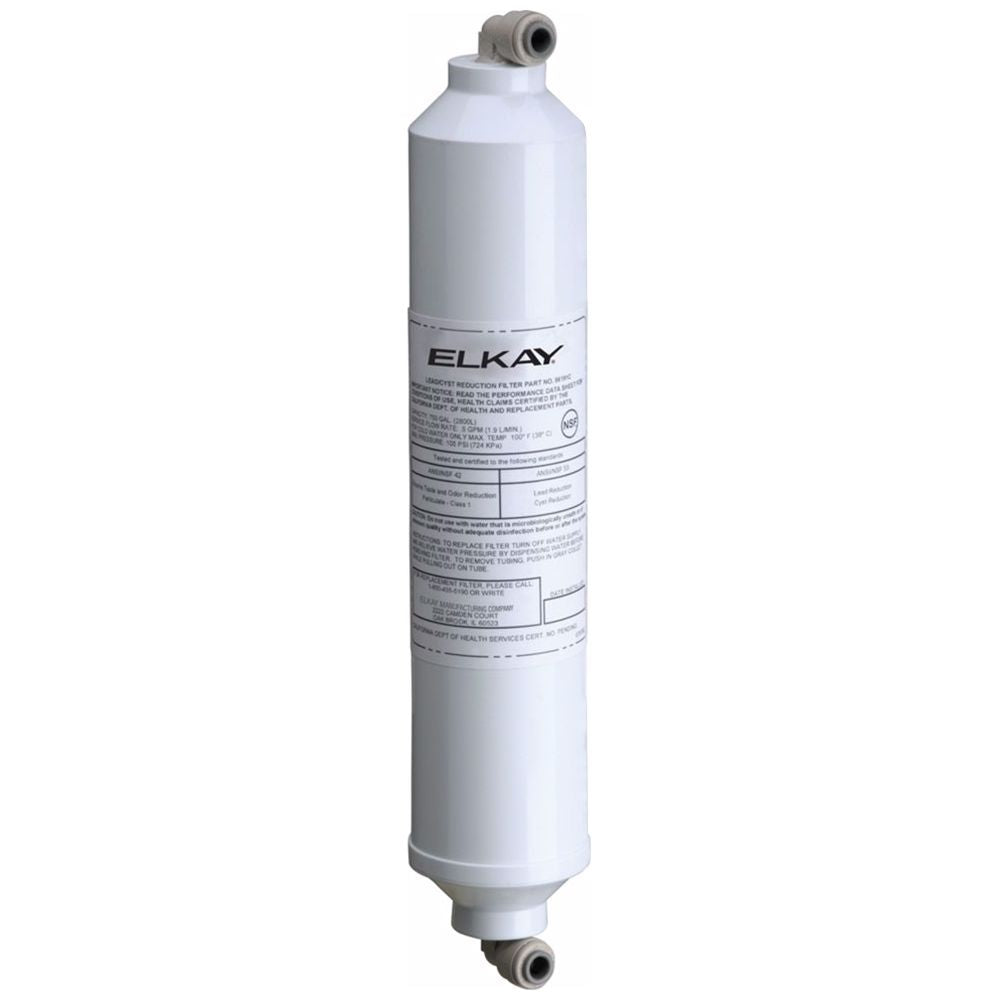

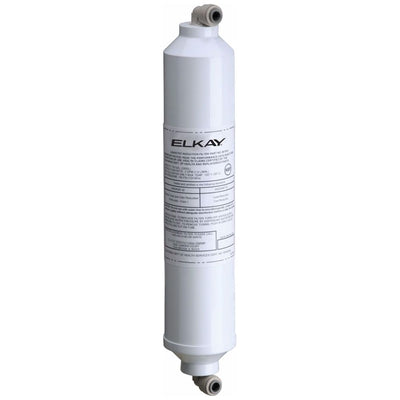

Elkay 56192C Aqua Sentry® LF2 Replacement Filter

Part Number: 56192C

In Stock

out of stock

In Stock

$65.85


The Elkay 56192C Aqua Sentry® LF2 Filter is designed for the Elkay water coolers, drinking fountains, classroom bubblers and instant hot and cold water dispensers. This high quality filter is designed to effectively remove dangerous cysts like giardia and cryptosporidium from your water, as well as discoloration, chlorine, taste and odors. The Elkay 56192C has been constructed with a patented lead removal media and activated carbon. This filter is very easy to change out in a sanitary way; the encapsulated in-line design ensures your hands never touch the filter media. The radial flow design of this cartridge provides more surface area for the untreated water, while the final filter mesh prevents loose carbon fines from getting in the water.
WQA Gold Seal This filter has been tested by WQA to the following Standards: NSF/ANSI Standard 42 Chlorine-Class 1, Particulate-Class 1, Taste and Odor. NSF/ANSI Standard 53 for Reduction of Lead and Cysts.

Quality Assurance The LF2 is warranted to be free from defects in material and workmanship for a period of one year from date of installation. Warranty is limited to repair or replacement of defective component.

Installation Instructions:
  1. Disconnect electrical power and close water supply valve before proceeding
  2. The filter should be installed in the cold water line prior to chiller with the outlet higher than the inlet
  3. Flow indicator (arrow) on filter should point in the same direction as water flow
  4. After installing new filter, open water supply valve and check for leaks. Reconnect electrical power supply. Flush system sufficiently (approximately 3 minutes) to effectively remove small residue of carbon fines
Features & Specifications:
  • Size: 3-1/4" OD x 12-1/2" L
  • Water Inlet Connection: 1/4" OD tube
  • Water Outlet Connection: 1/4" OD tube
  • Filter Capacity: 500 gal.
  • Maximum Flow Rate: 0.75 GPM
  • Water Temperature: 40-100°F
  • Maximum Line Pressure: 105 PSI
  • Minimum Line Pressure: 25 PSI
  • Change Frequency: 6 months
  • Filter Media: Activated Carbon
  • Assembled in the USA
  • Certified by WQA for reduction claims
  • One year limited warranty
NOTE: A water shutoff valve should be installed on the incoming water line to aid in future servicing of filter.

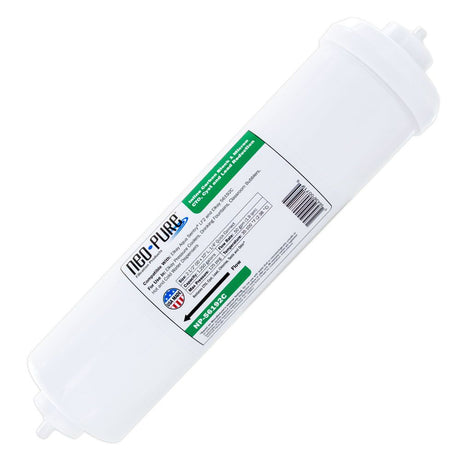

Compatible with: Halsey Taylor | HWF142, Neo-Pure | NP-56192C, NP-LF2


Details

Capacity

6 months, 500 gal. Gallons

Initial Pressure Drop

105 PSI PSI Differential

Max Flow Rate

0.75 GPM Gallons Per Minute

Media Type

Activated Carbon

Operating Pressure Range

25 PSI PSI

Operating Temperature Range

40-100°F Degrees Fahrenheit

Origin

China

Warranty & Certifications

Certifications

WQA
