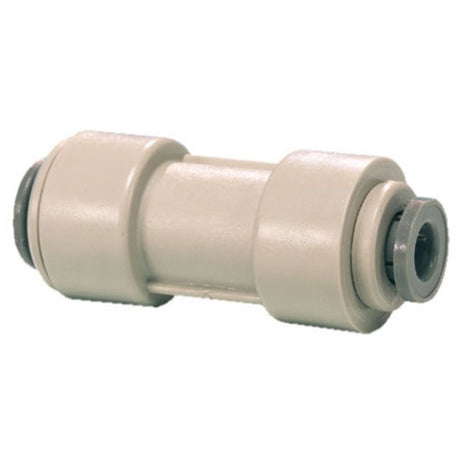

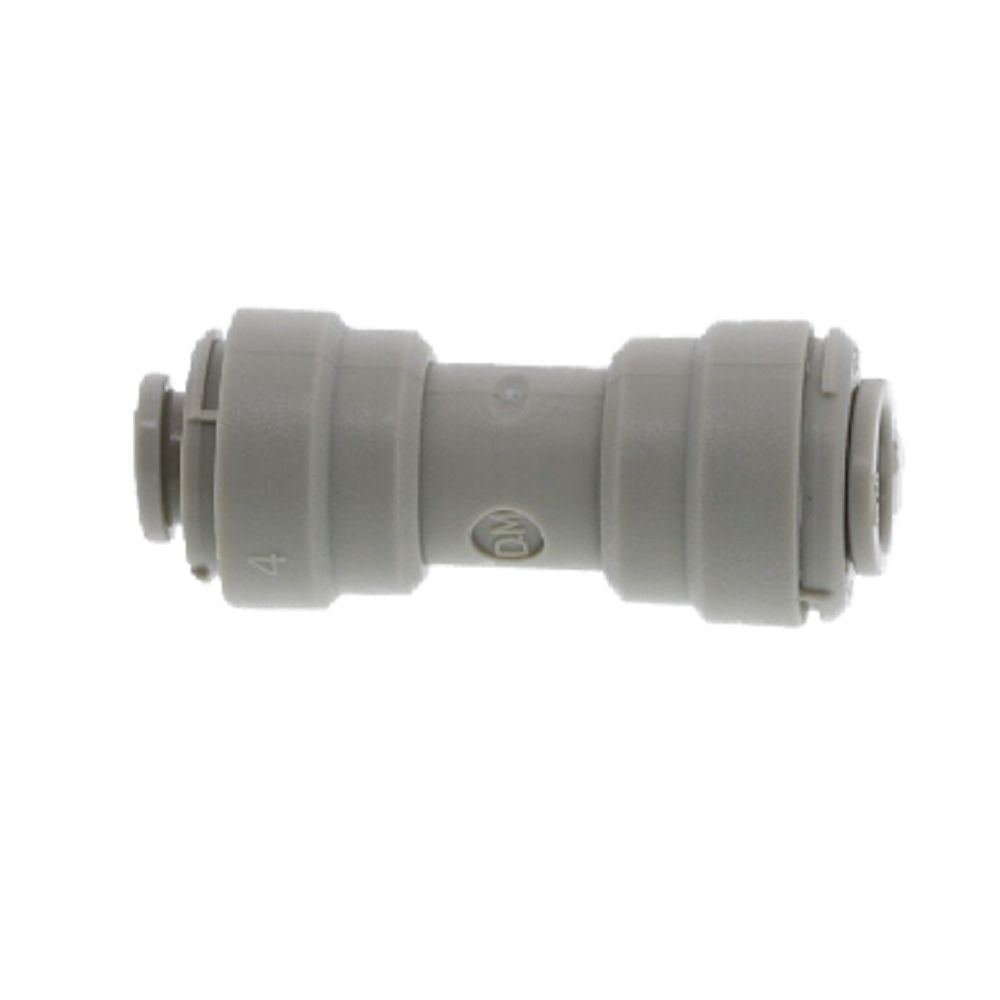

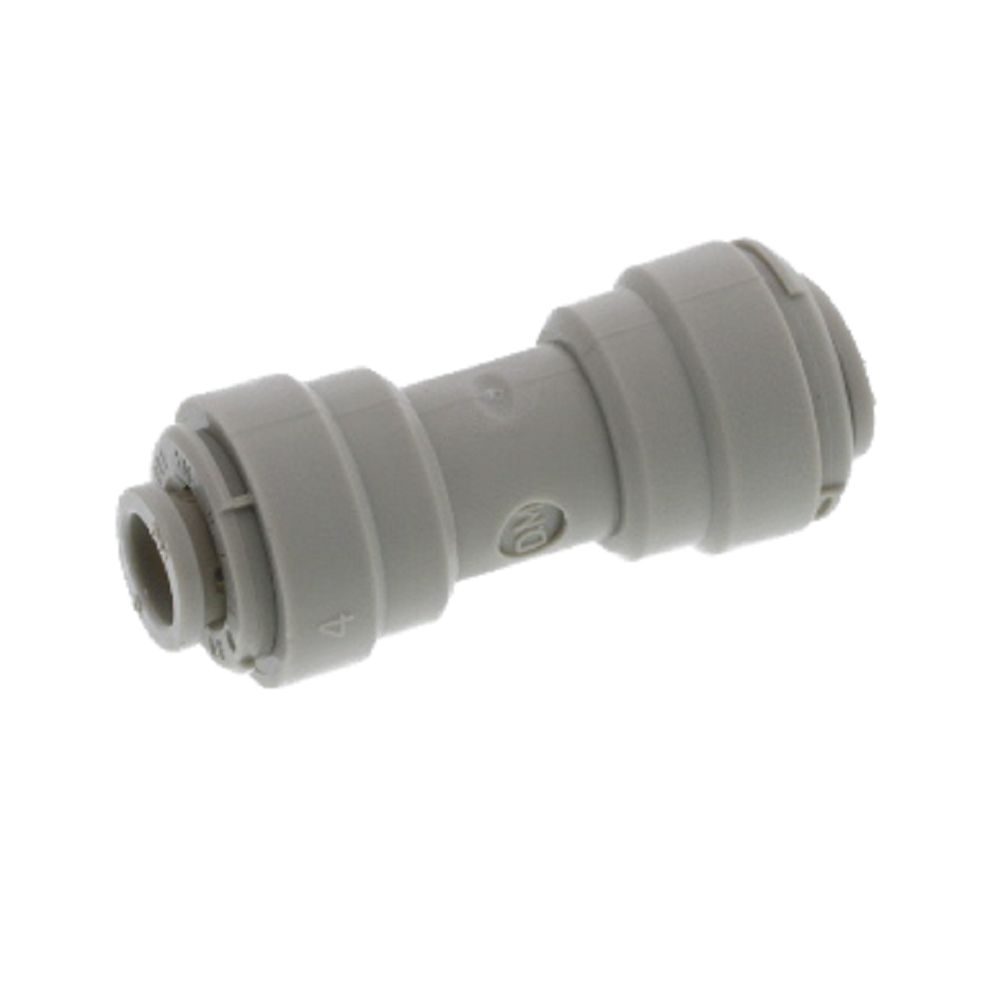

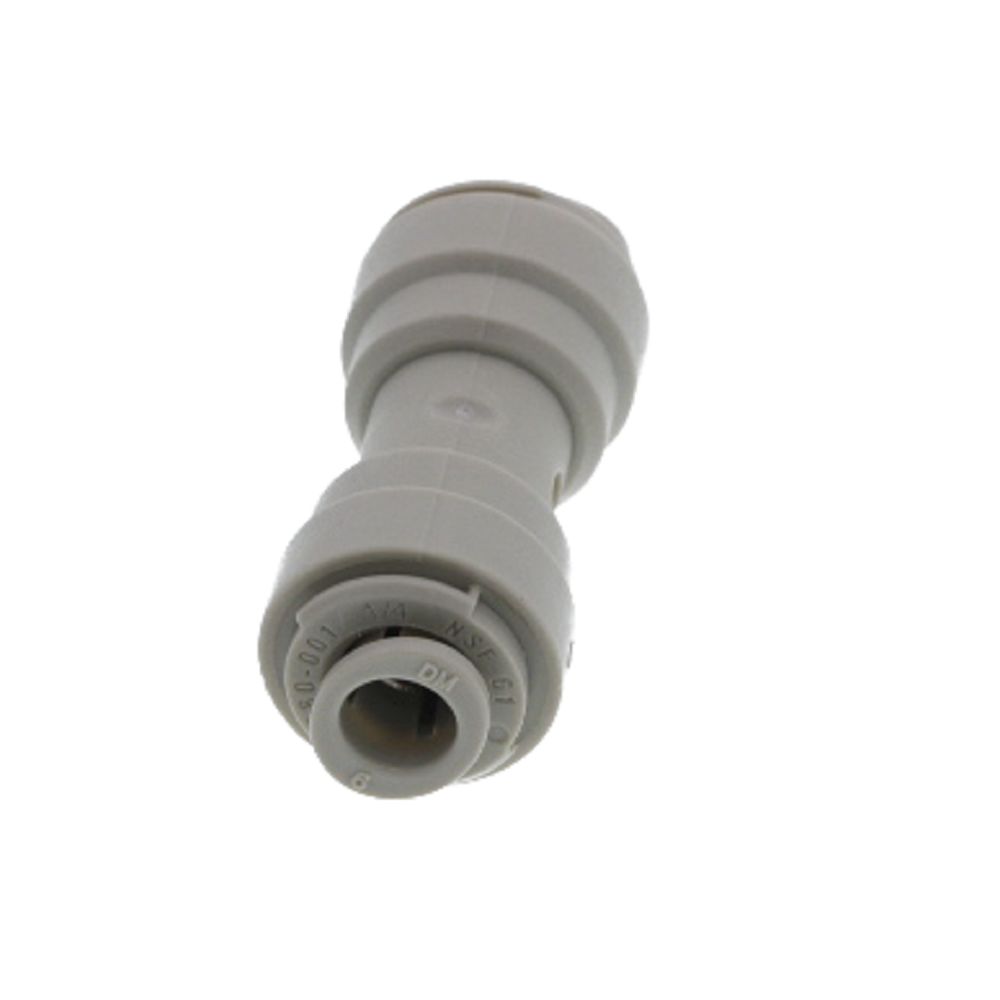

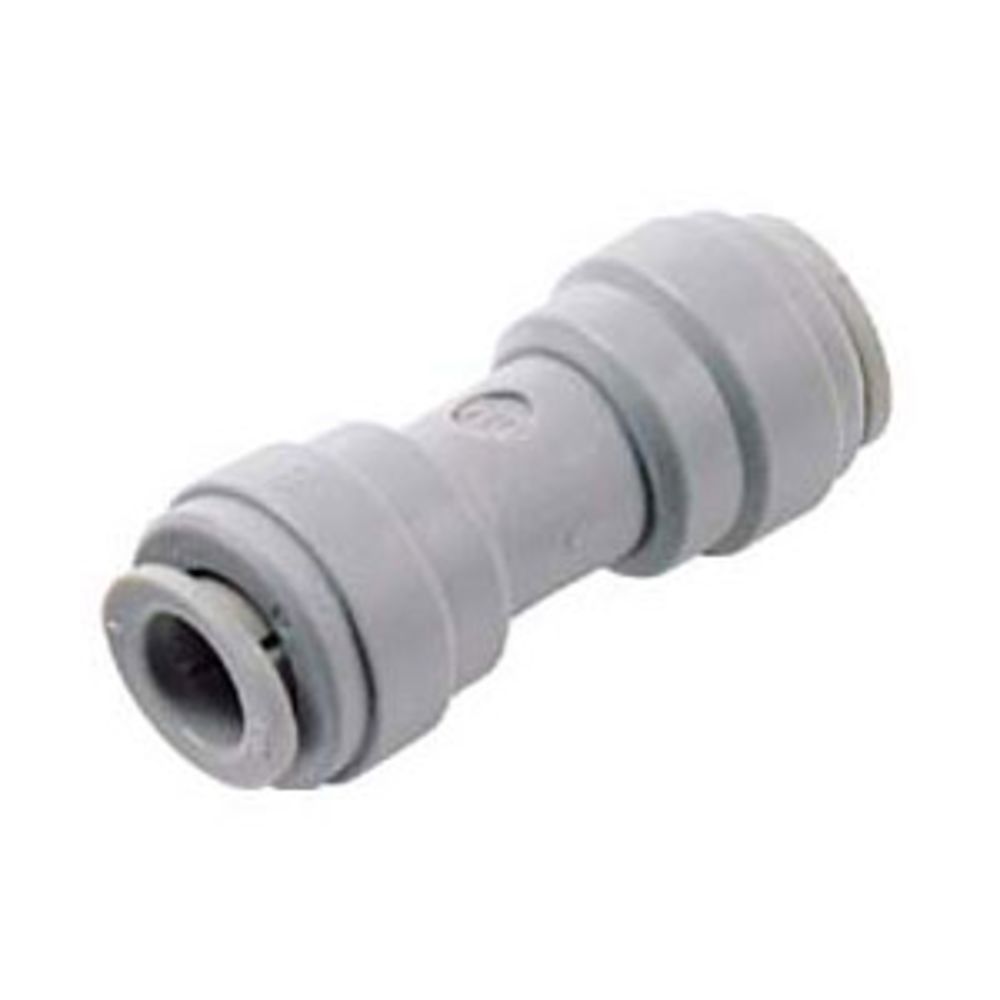

DMfit Union Connector - 5/16 Push-in x 1/4 Push-in
Part Number: AUC0504
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
- Acetal copolymer construction
- O-rings are NBR (Buna-N)
- Unique oval collet design
- FDA approved materials
- For water, air, gases, vacuum, & liquids
- NSF Certified 51 & 62
- Fittings may be gray or white based on availability
WARNING!
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 34 |
Mounting Options | Free Floating |
Push-In Size | 5/16" OD 1/4" OD |
Seal Material | Buna-N |
Series | Acetal |
Shape | Straight |
Color / Finish | Gray White |
Origin | Korea |
Sub-Type | Reducer Coupling |
Type | Coupling |
| Warranty & Certifications | |
Certifications | NSF 61, NSF 51, FDA Approved |
