DMFit

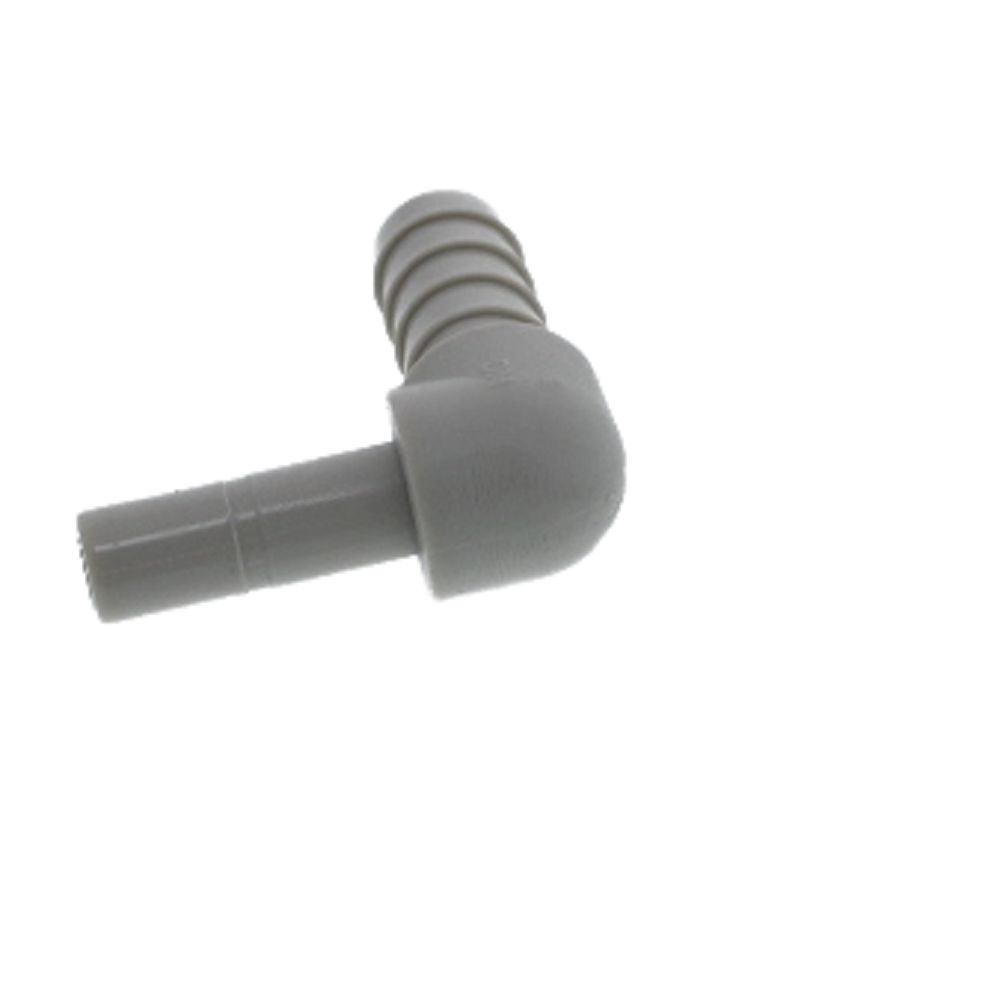

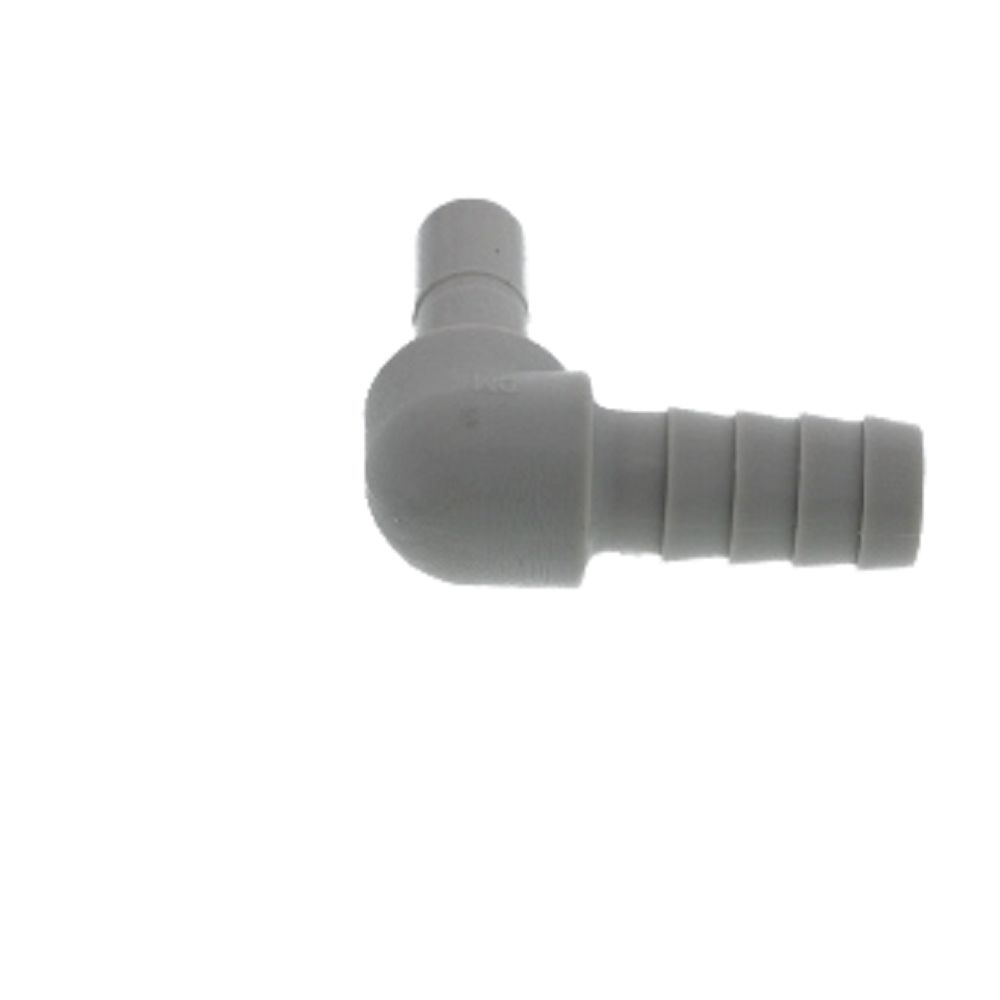

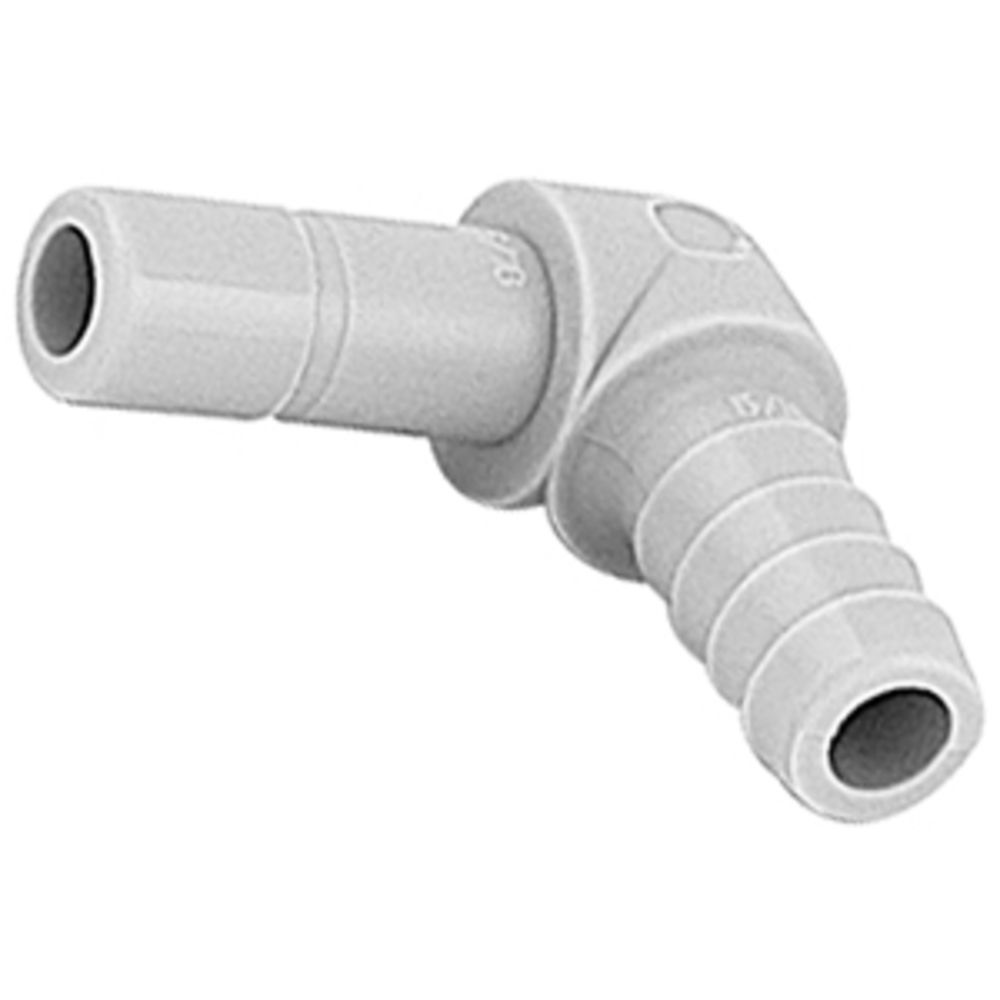

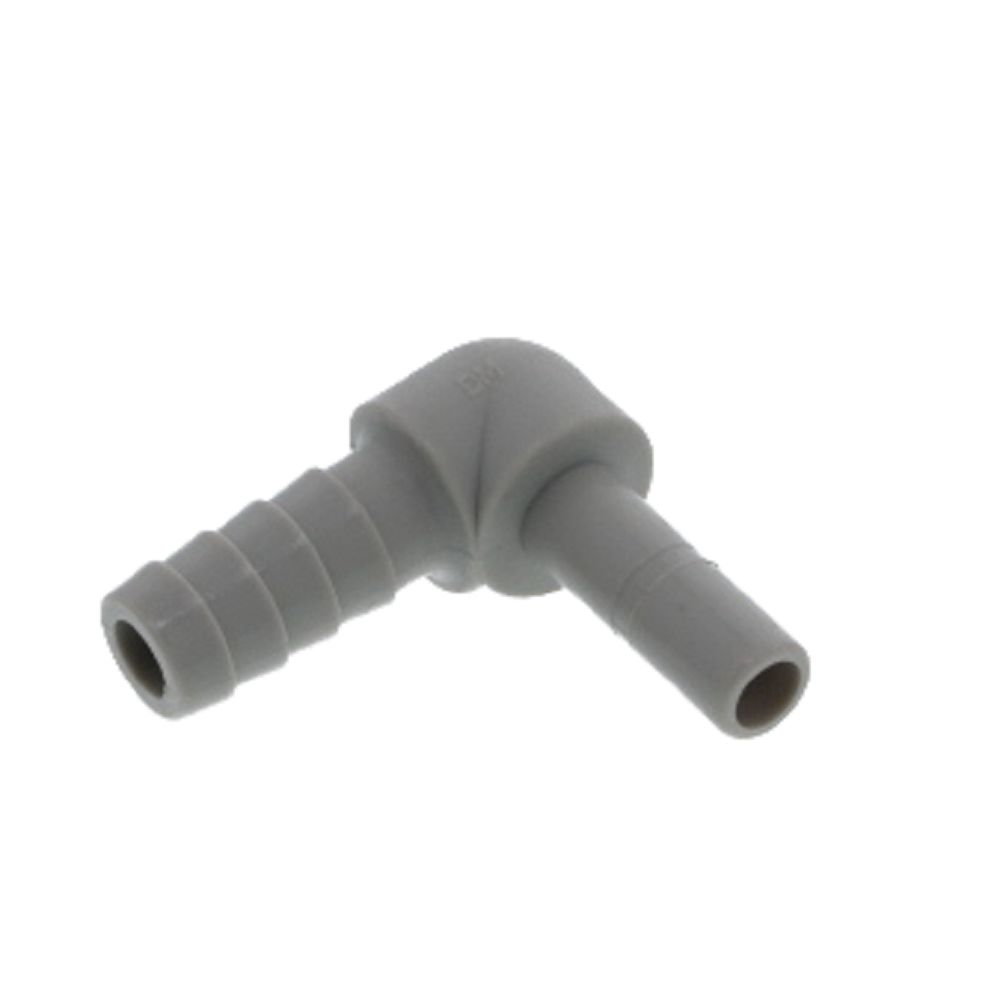

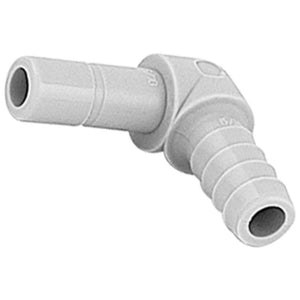

DMfit Stem Elbow Barb Connector - 1/4 OD Stem x 5/16 ID Barb

Part Number: ATEB0405

In Stock

out of stock

In Stock

$1.05

Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gases, vacuum, & liquids
  • NSF Certified 51 & 62
  • Fittings may be gray or white based on availability




Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

1.25

Length (inches)

1.25

Weight (lbs)

0.000625

Width (inches)

0.38

Details

Application

Water, Air, Food, Beverage

Barb Size

5/16" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Free Floating

Series

Acetal

Stem Size

1/4" OD

Color / Finish

Gray, White

Sub-Type

Stem to Barb Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved



Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gases, vacuum, & liquids
  • NSF Certified 51 & 62
  • Fittings may be gray or white based on availability



Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

1.25

Length (inches)

1.25

Weight (lbs)

0.000625

Width (inches)

0.38

Details

Application

Water, Air, Food, Beverage

Barb Size

5/16" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Free Floating

Series

Acetal

Stem Size

1/4" OD

Color / Finish

Gray, White

Sub-Type

Stem to Barb Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
