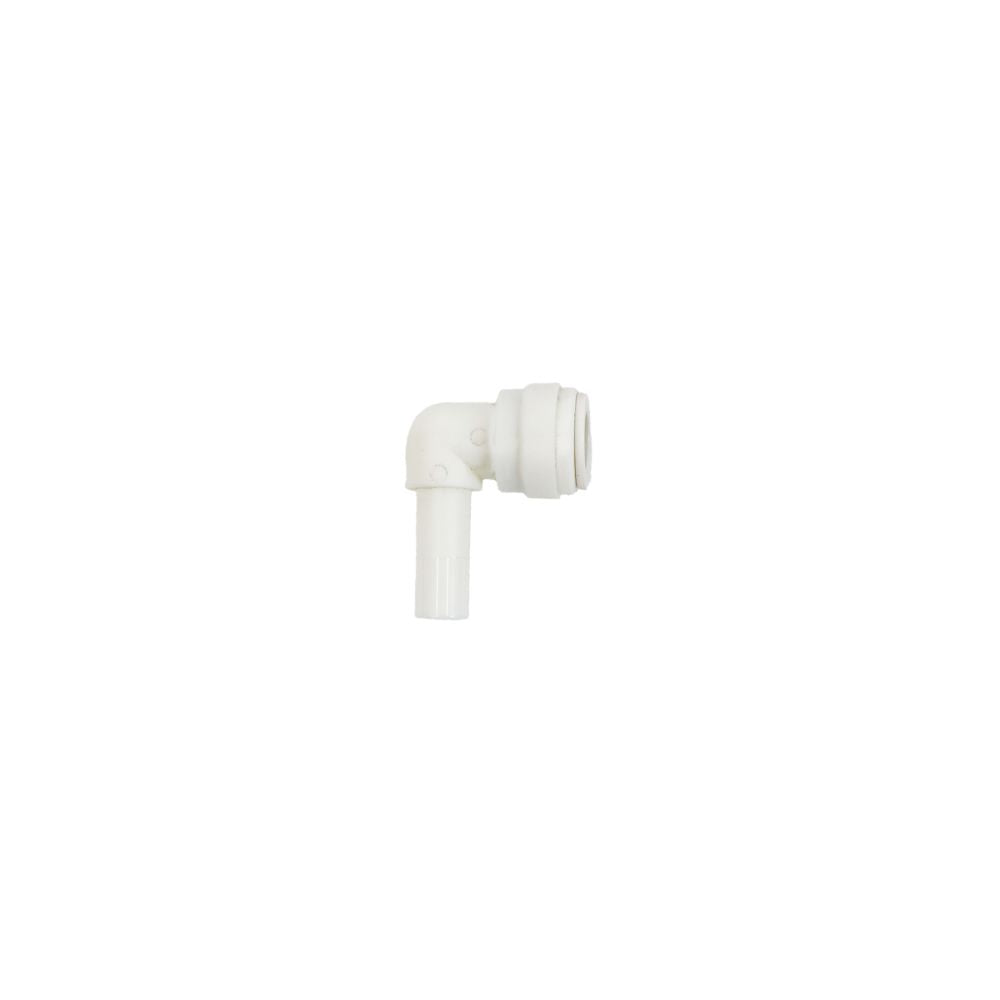

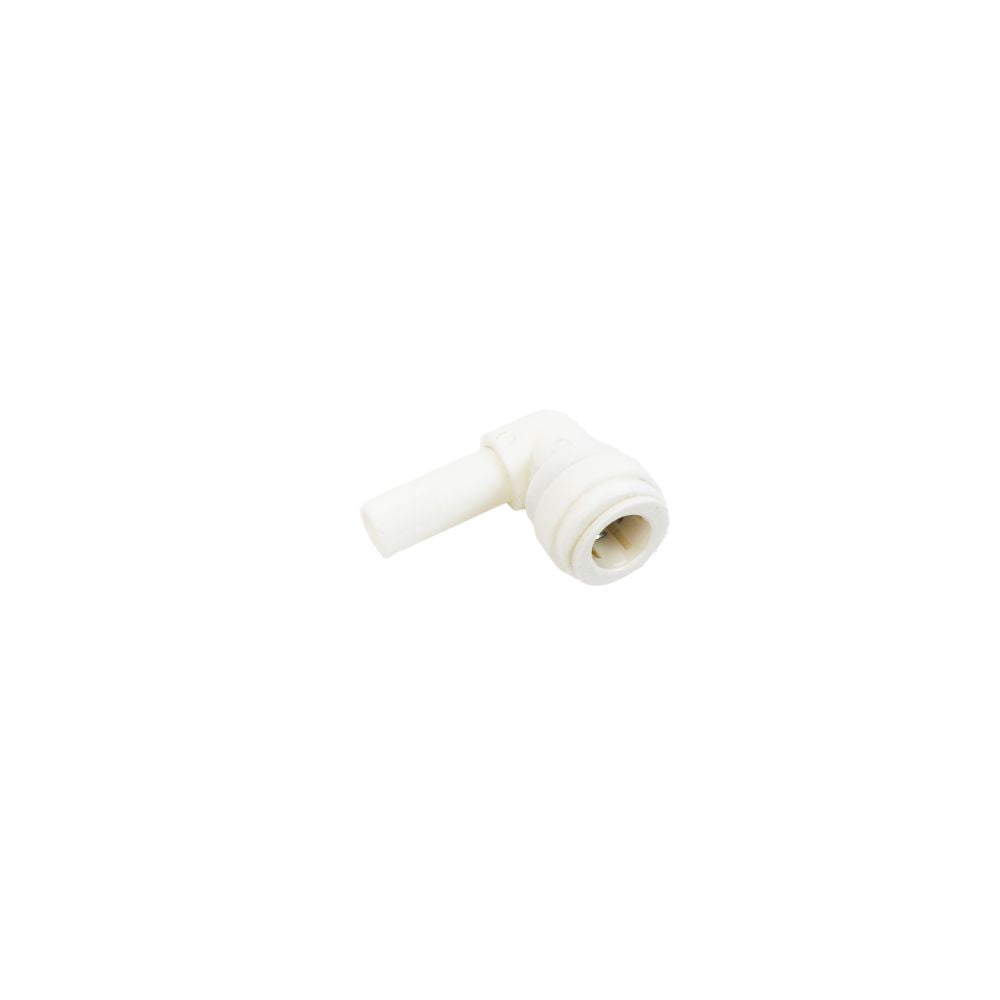

DMfit Plug In Elbow PP White 3/8 QC x 3/8 OD Stem

Part Number: PTEU0606

1 2

DMFit

DMfit Plug In Elbow PP White 3/8 QC x 3/8 OD Stem

Part Number: PTEU0606

$2.63

Quantity

Unit Price

Price

Savings

$2.63

—

$2.56

$25.65

250

$2.49

$624.91

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The stem elbow connectors are used to connect OD tubing sizes. The stem inserts into push to fit fittings to change tubing direction 90 degrees. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to change tubing direction 90 degrees
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect quickly
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with food grade EPDM O-Ring
NSF 51 & 61 Certified

Specifications

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	3/8" OD
Shape	Elbow
Stem Size	3/8" OD
Color / Finish	White
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.045

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	3/8" OD
Shape	Elbow
Stem Size	3/8" OD
Color / Finish	White
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.44999999999999996

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	3/8" OD
Shape	Elbow
Stem Size	3/8"
Color / Finish	White
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	9

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

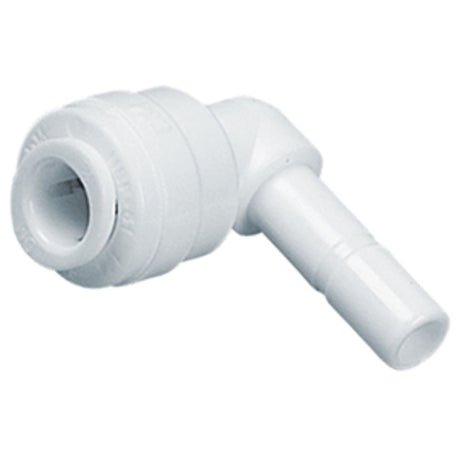

Facet	DMFit DMfit Plug In Elbow PP White 3/8 QC x 3/8 OD Stem Regular price From $2.63 Low stock Part #: PTEU0606 Save up to 5% with bulk pricing Current Product	NeoFit NeoFit - Acetal Natural White Stem Elbow 3/8" tube x 3/8" stem Regular price From $2.48 Part #: ATEU66-W Save up to 8% with bulk pricing View details	NeoFit NeoFit - Polypropylene Natural White Stem Elbow- 3/8"tube OD x 3/8"stem Regular price From $2.29 Part #: PTEU66-W Save up to 14% with bulk pricing View details
Price
Price	Regular price From $2.63	Regular price From $2.48	Regular price From $2.29
Part #
Part #	PTEU0606	ATEU66-W	PTEU66-W
Description
Description	The stem elbow connectors are used to connect OD tubing sizes. The stem inserts into push to fit fittings to change tubing direction 90 degrees....	The stem elbows makes connecting OD tube sizes to a push-in fitting easy. The stem inserts into push-in fittings to change tubing direction 90 degrees....	The NeoFit stem elbow connectors are used to connect OD tubing sizes. The stem inserts into push-to-fit fittings to change the tubing direction by 90...
