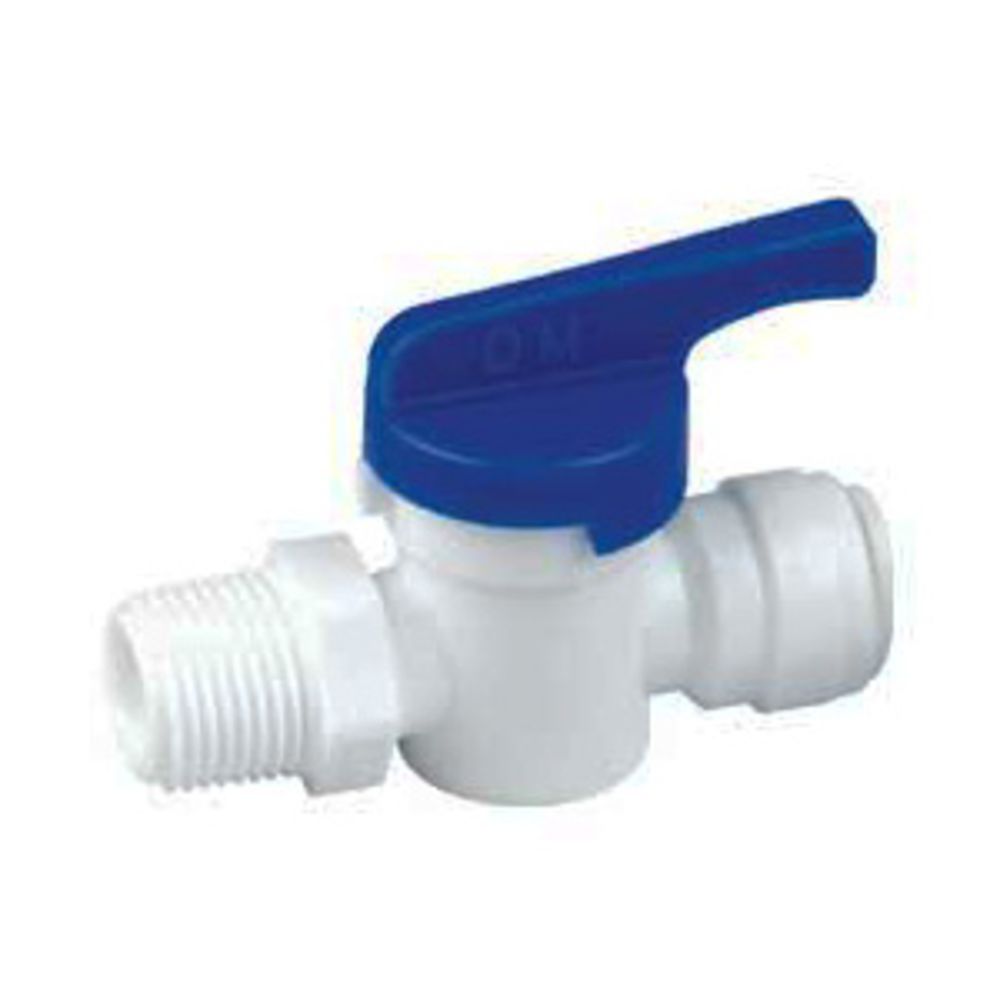

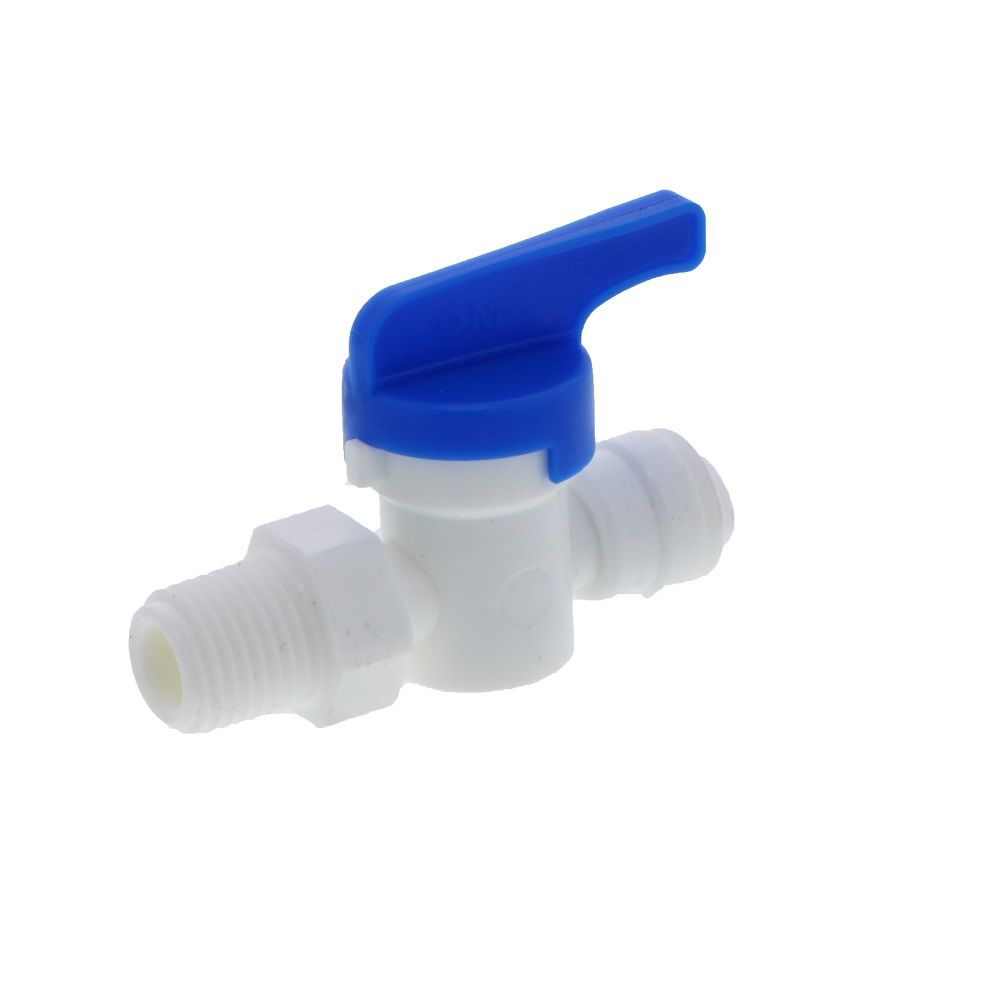

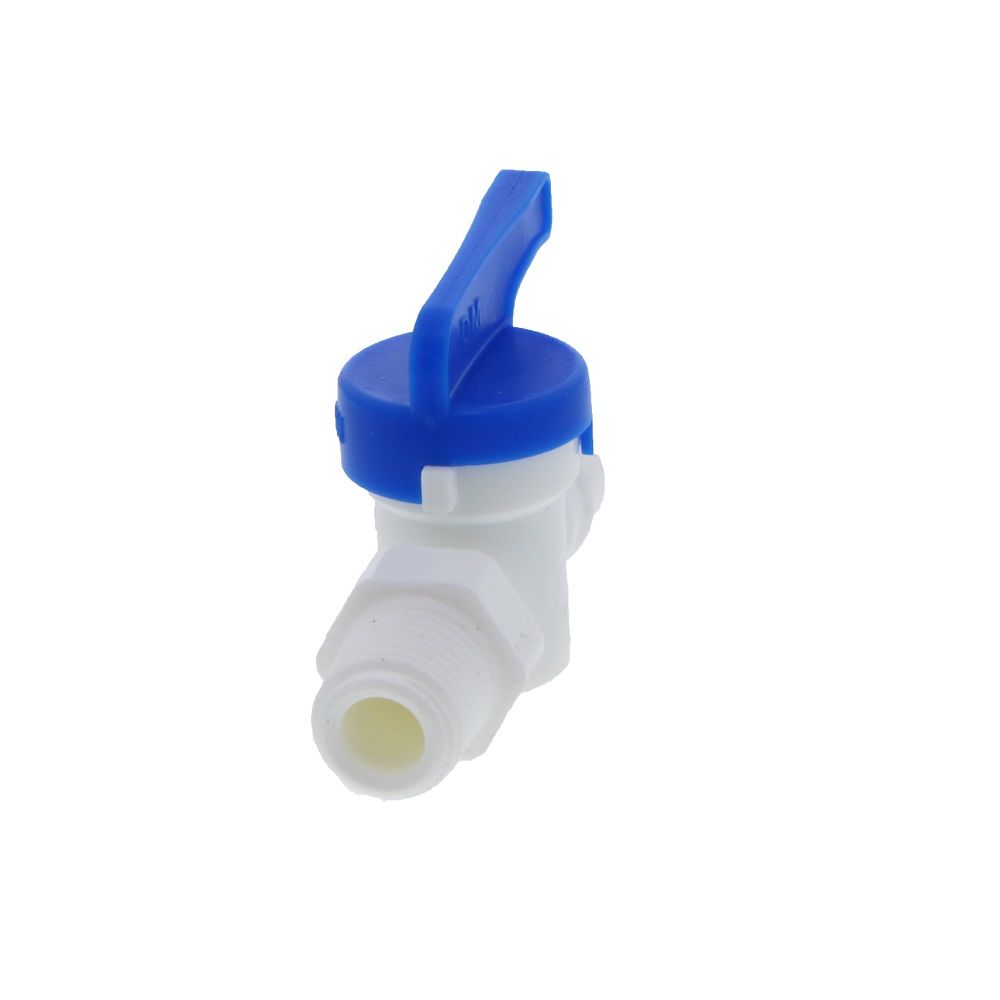

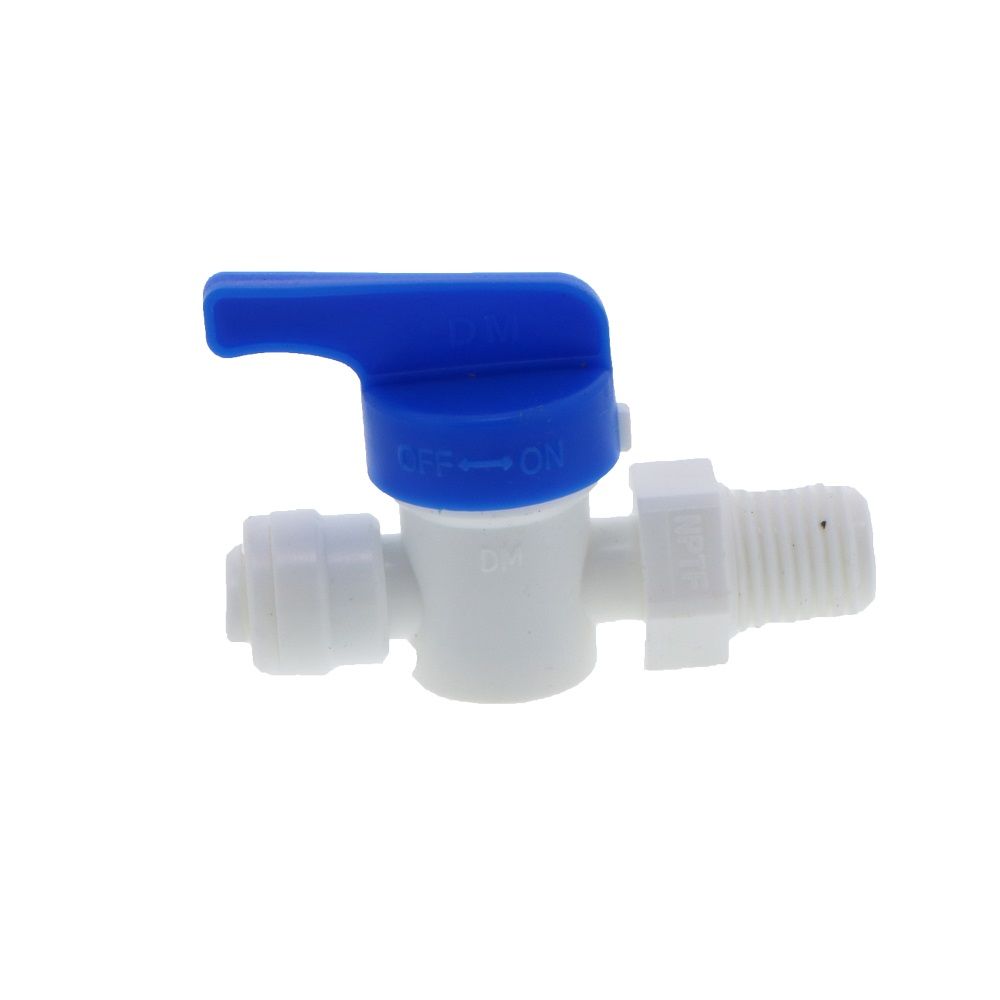

DMfit Hand Valve Male Connector - 1/4" Push-in x 1/4" NPTF

Part Number: AHMC0404

In Stock

out of stock

In Stock

$5.91 Regular price

Specifications:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum, & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability




Weight & Dimensions

Weight (lbs)

0.075

Details

Series

Acetal

Max Temp (°F)

150

Max Pressure (Psi)

145

Min Temp (°F)

-4

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water, Air

Body Material

Acetal

Box Quantity

150

Color / Finish

White

Seal Material

Buna-N

Size

1/4"

Inlet/Outlet Connection

1/4" MPT

Warranty & Certifications

Certifications

NSF 61, NSF 51, NSF 372



Specifications:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum, & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability



Weight & Dimensions

Weight (lbs)

0.075

Details

Series

Acetal

Max Temp (°F)

150

Max Pressure (Psi)

145

Min Temp (°F)

-4

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water, Air

Body Material

Acetal

Box Quantity

150

Color / Finish

White

Seal Material

Buna-N

Size

1/4"

Inlet/Outlet Connection

1/4" MPT

Warranty & Certifications

Certifications

NSF 61, NSF 51, NSF 372
