Home / Fittings / Quick-Connect Fittings / Adapter / DMfit Female Flare Adapter - 5/16 Push-in x 7/16-20UNF- Cone type

DMFit

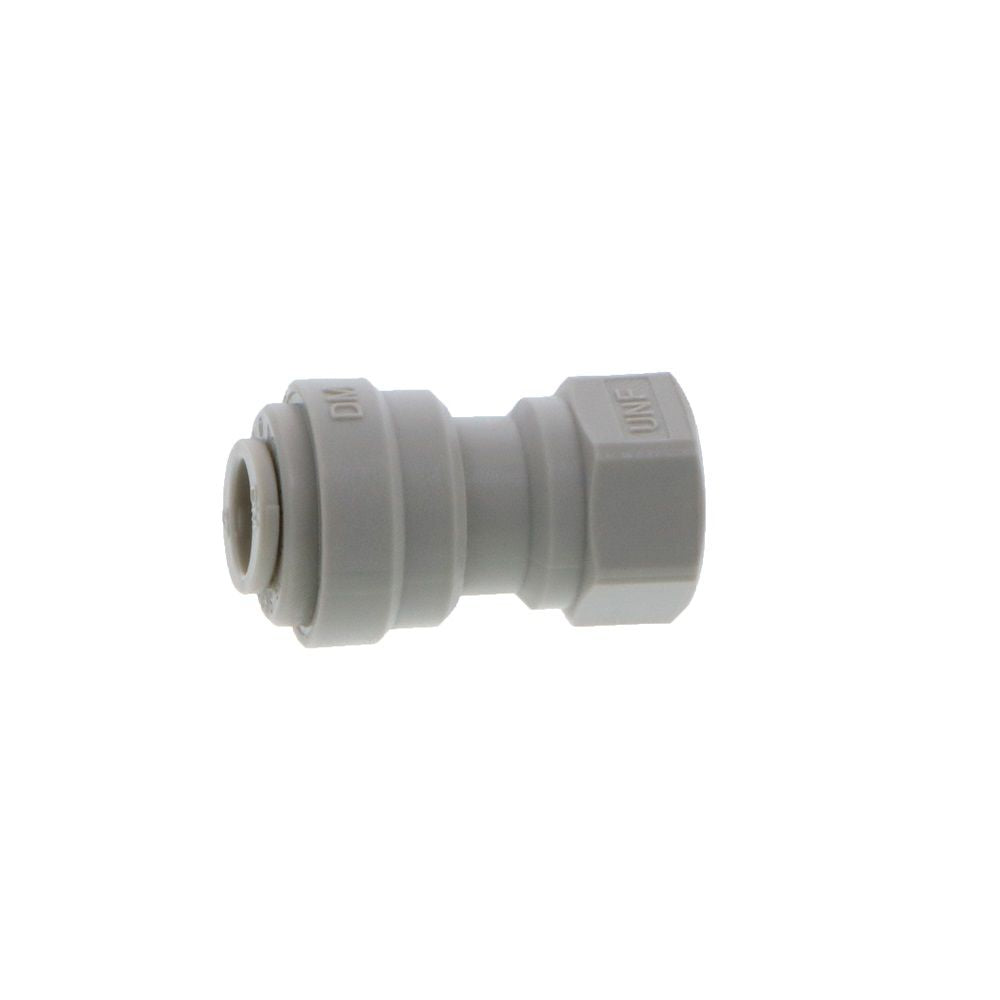

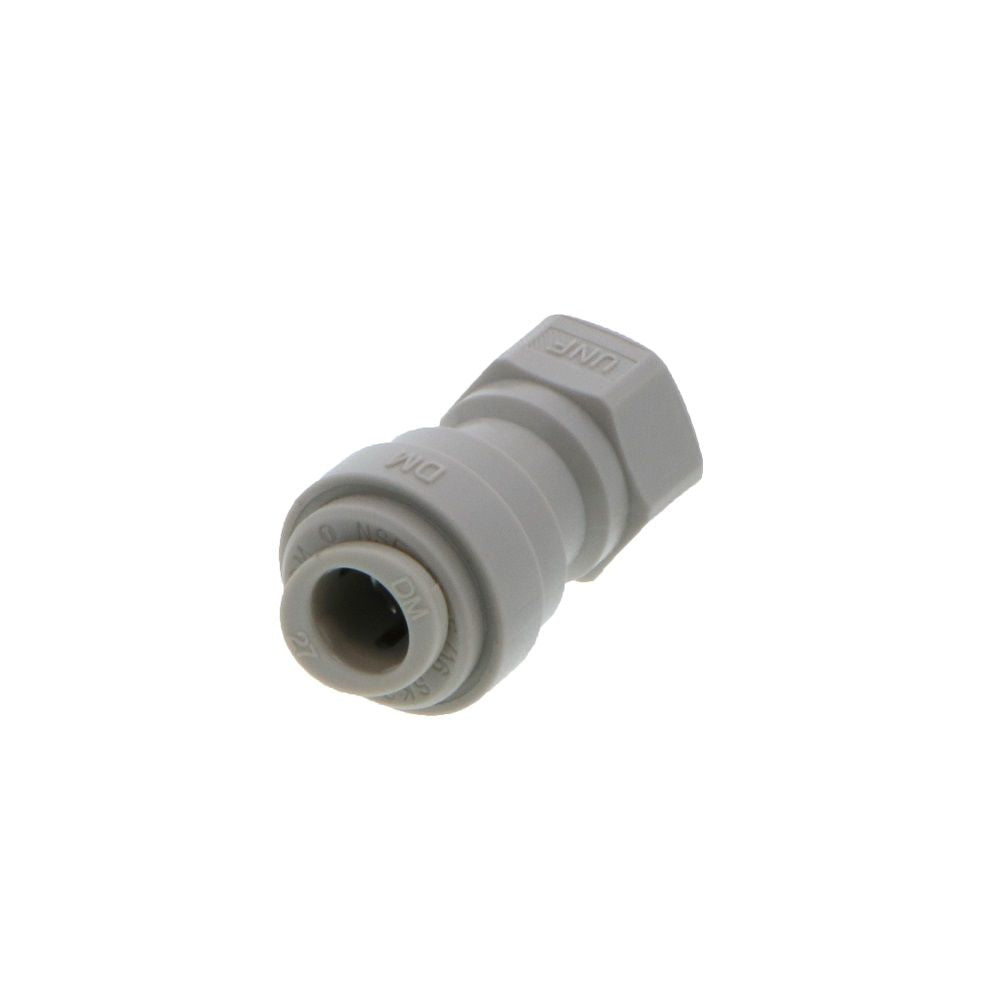

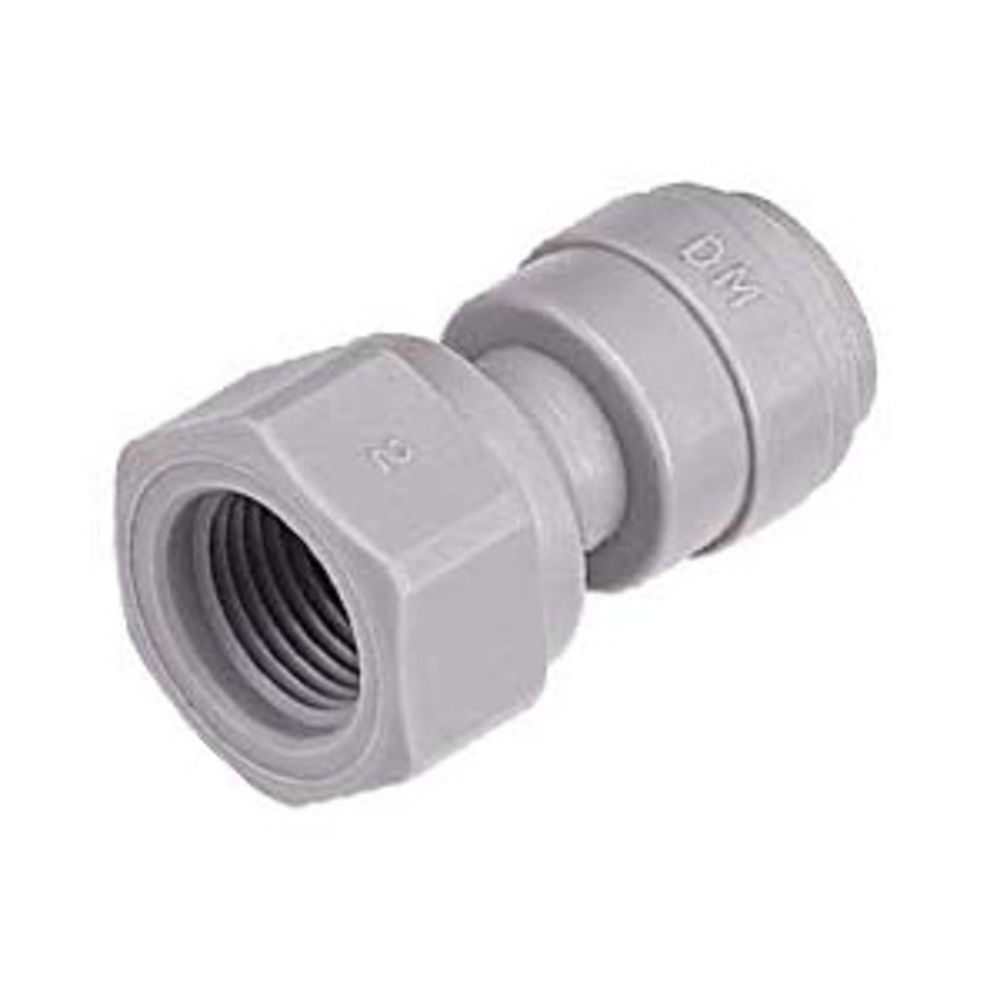

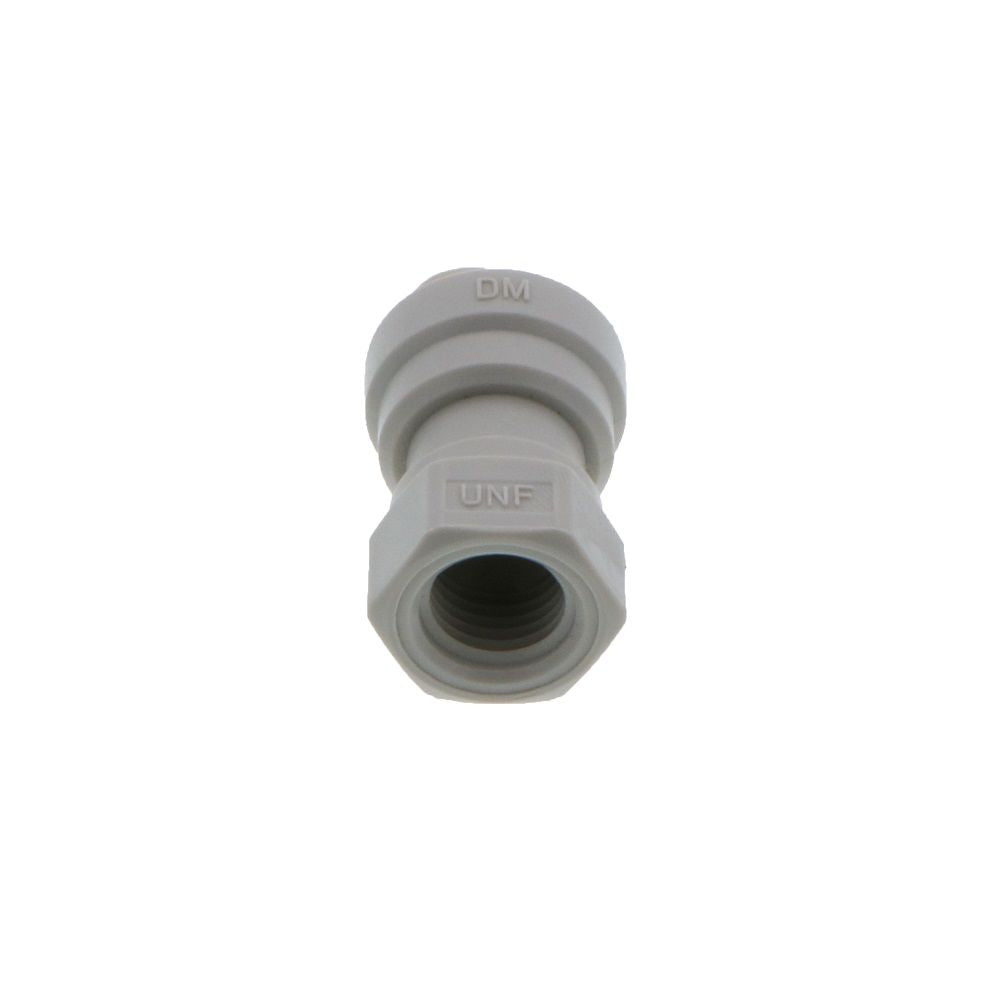

DMfit Female Flare Adapter - 5/16 Push-in x 7/16-20UNF- Cone type

Part Number: AFAUF057/16C

DMFit

DMfit Female Flare Adapter - 5/16 Push-in x 7/16-20UNF- Cone type

Part Number: AFAUF057/16C

Choose

Single BAG of 10 5 BAGS BOX of 300

Quantity

Features:

Acetal copolymer construction
O-rings are NBR (Buna-N)
Unique oval collet design
FDA approved materials
For water, air, gasses, vacuum & liquids
NSF Certified 51 & 61
Fittings may be gray or white based on availability

Product Details
Application	Water Air Food Beverage
Body Material	Acetal Copolymer
Inlet Connection	7/16-20 UNF
Max Pressure (Psi)	230
Max Temp (°F)	150
Min Pressure (Psi)	Vacuum
Min Temp (°F)	34
Mounting Options	Thread
Outlet Connection	7/16-20 UNF
Push-In Size	5/16" OD
Seal Material	Buna-N
Series	Acetal
Shape	Straight
Size	7/16-20
Color / Finish	Gray White
Connection Type	UNF
Origin	Korea
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Certifications	NSF 61, NSF 51, FDA Approved
