DMFit

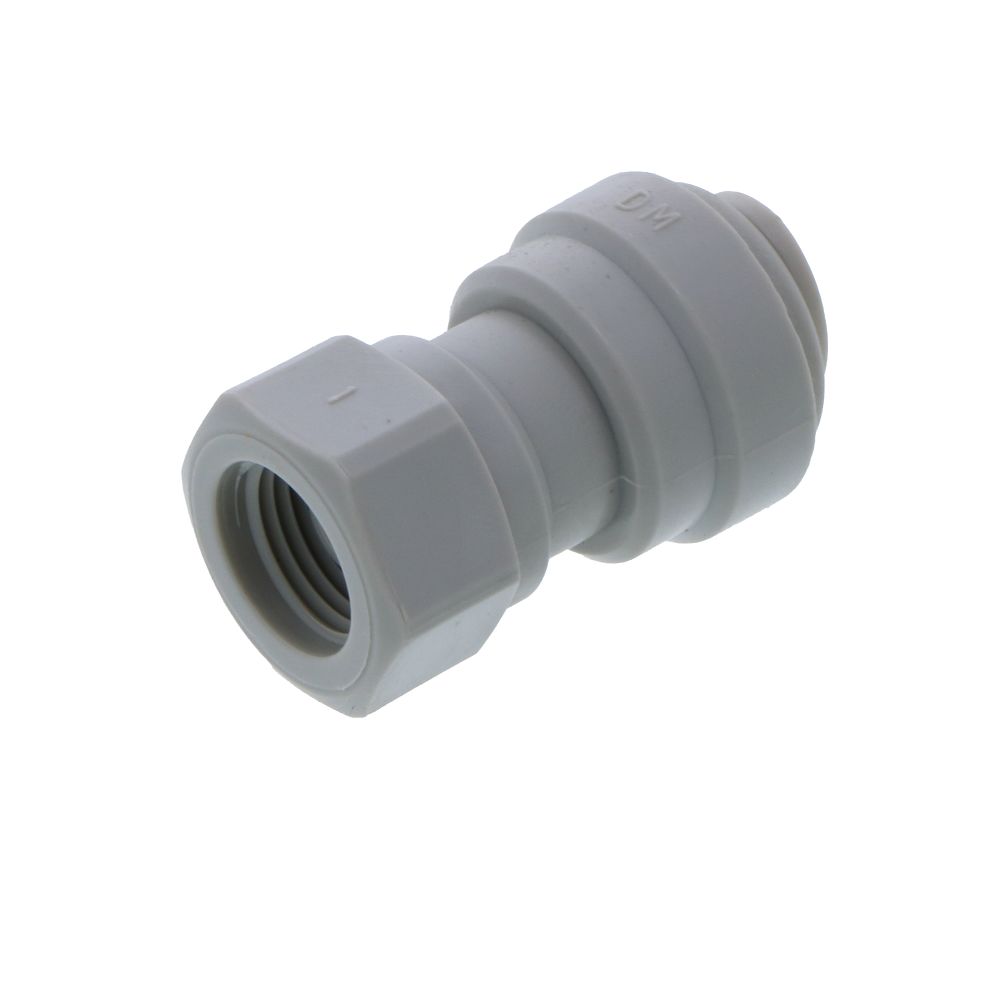

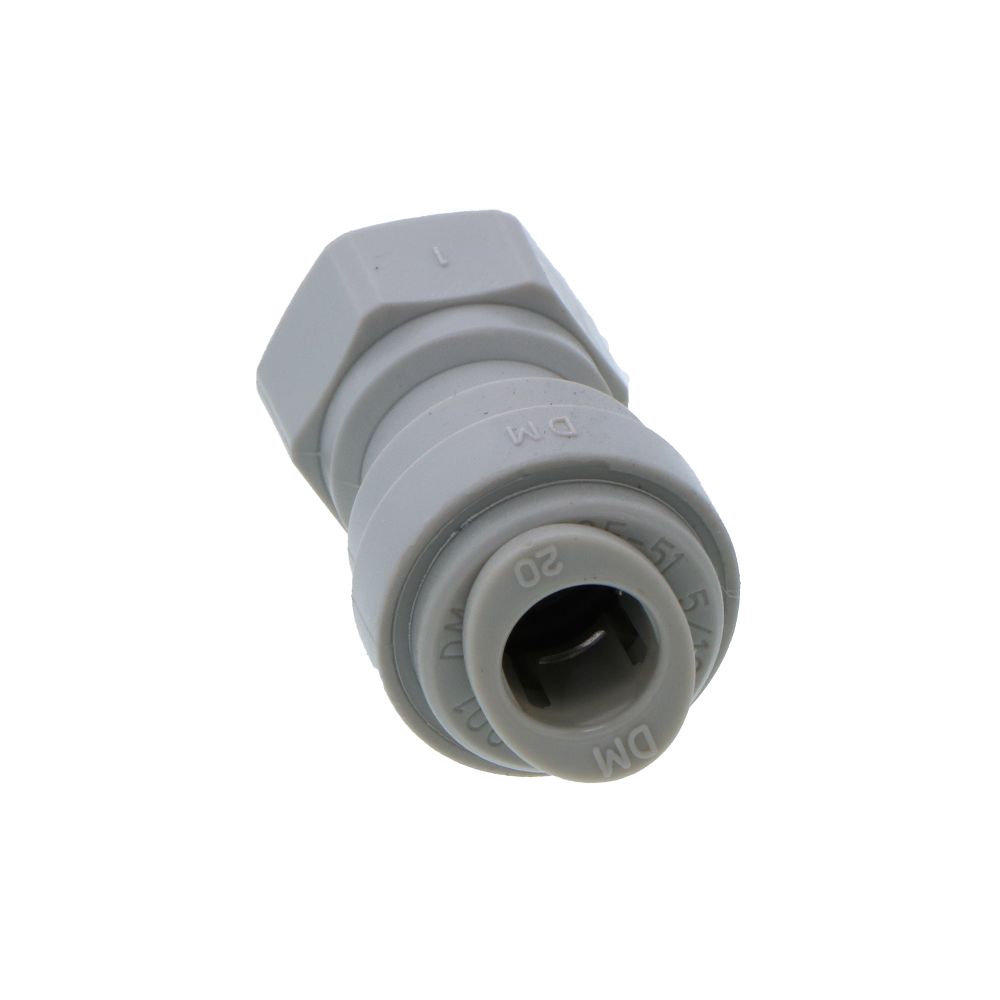

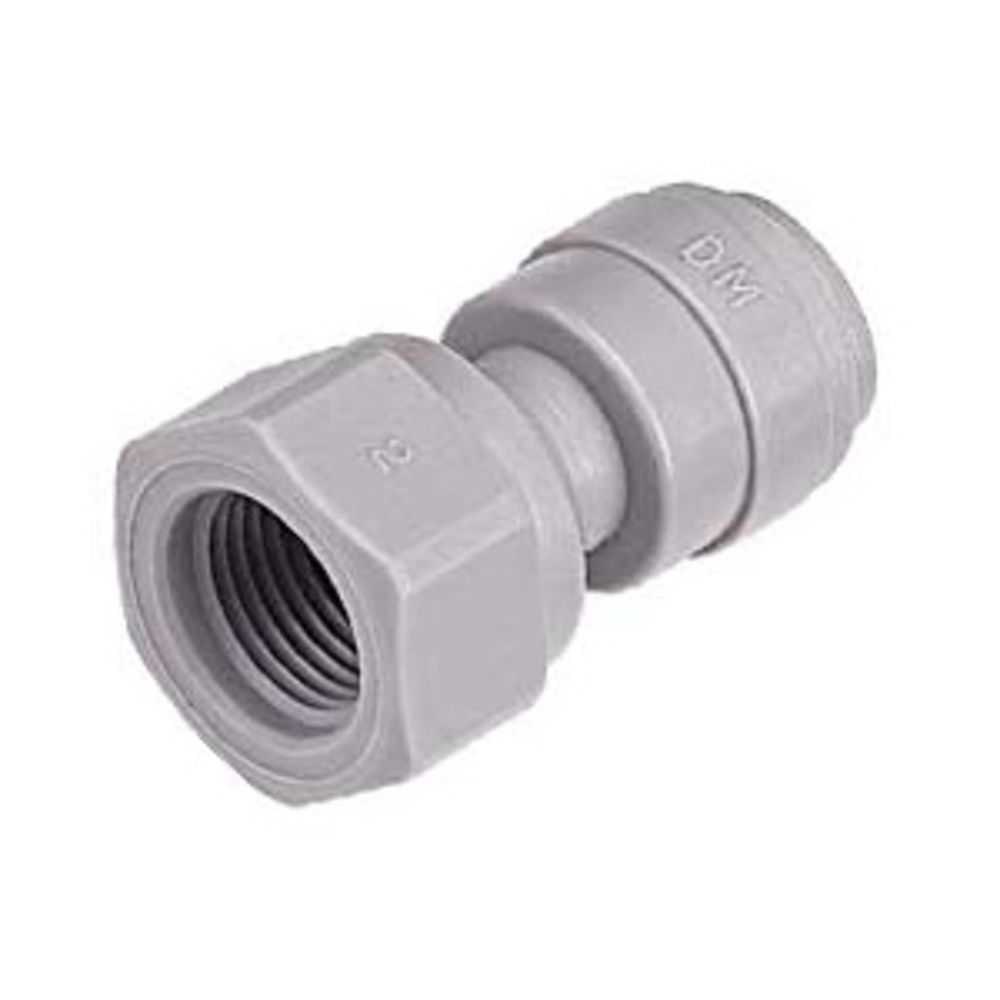

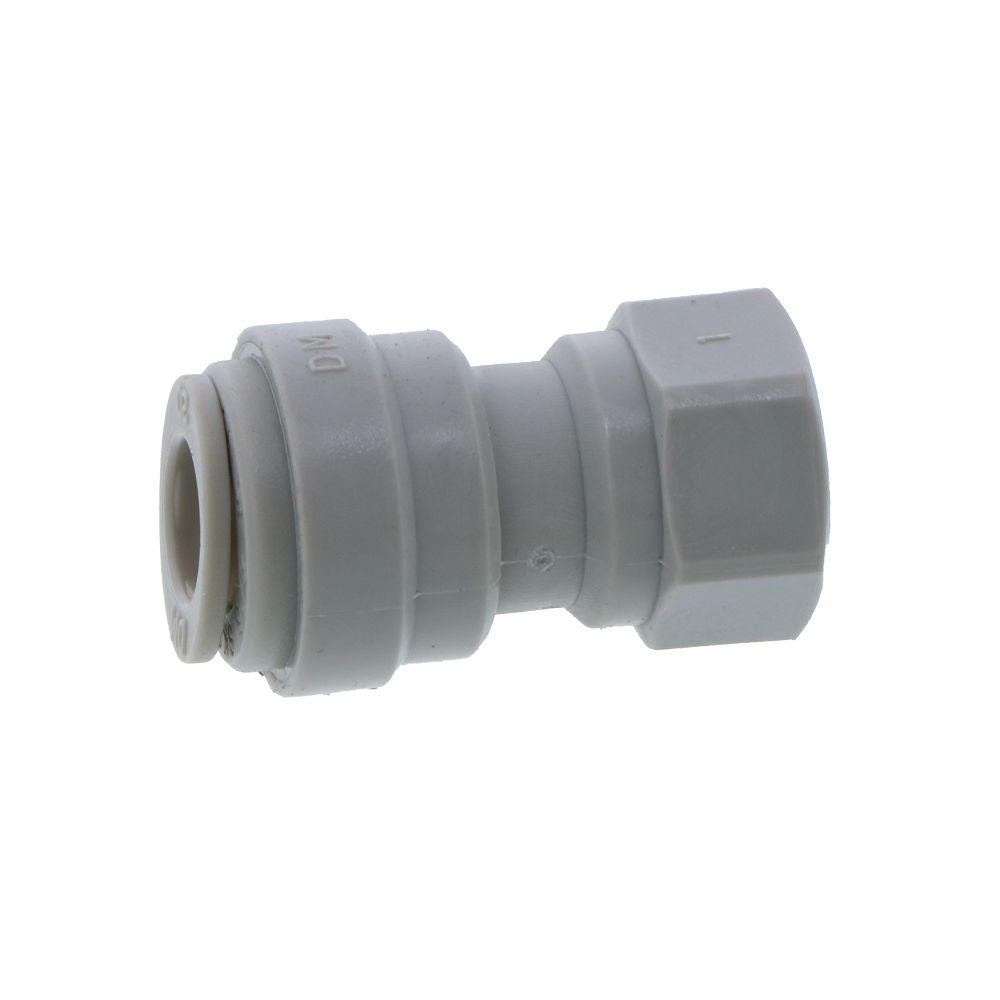

DMfit Female Faucet/Refrigerator Connector - 5/16" Push-in x 7/16-24 UNS

Part Number: AFAU057/16C

In Stock

out of stock

In Stock

$2.02

Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability




Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

0.63

Length (inches)

1.25

Weight (lbs)

0.00625

Width (inches)

0.63

Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Inlet/Outlet Connection

7/16-24 UNS

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Thread

Push-In Size

5/16" OD

Seal Material

Buna-N

Series

Acetal

Size

7/16-24

Color / Finish

Gray, White

Connection Type

UNS

Sub-Type

Faucet Adapter

Type

Adapter

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved



Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gasses, vacuum & liquids
  • NSF Certified 51 & 61
  • Fittings may be gray or white based on availability



Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

0.63

Length (inches)

1.25

Weight (lbs)

0.00625

Width (inches)

0.63

Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Inlet/Outlet Connection

7/16-24 UNS

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Thread

Push-In Size

5/16" OD

Seal Material

Buna-N

Series

Acetal

Size

7/16-24

Color / Finish

Gray, White

Connection Type

UNS

Sub-Type

Faucet Adapter

Type

Adapter

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
