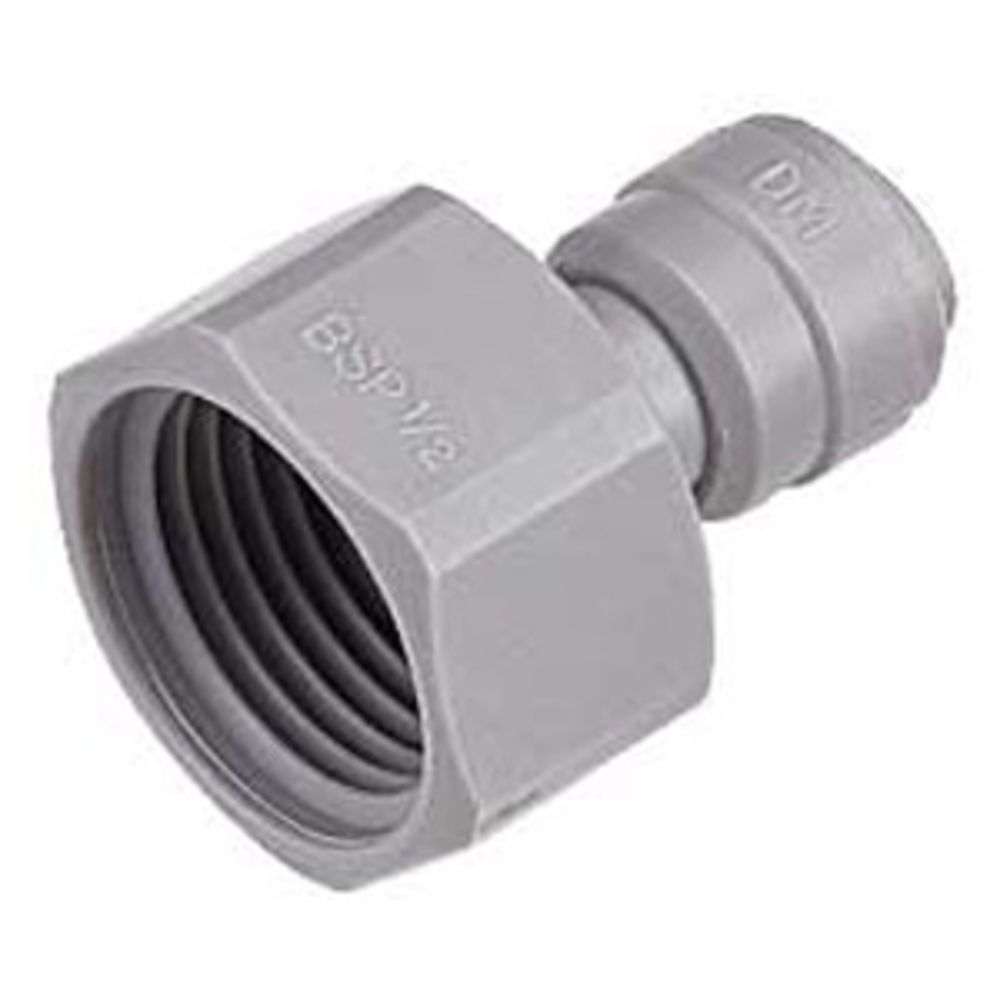

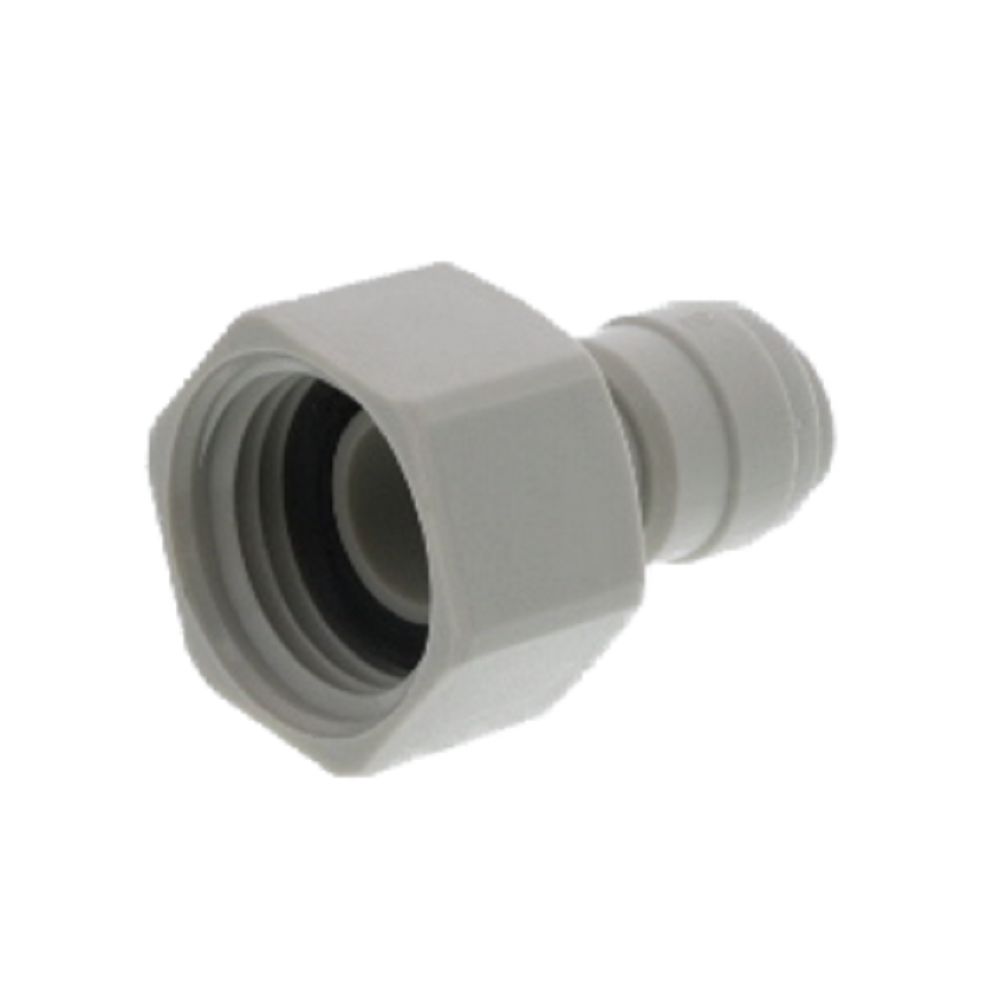

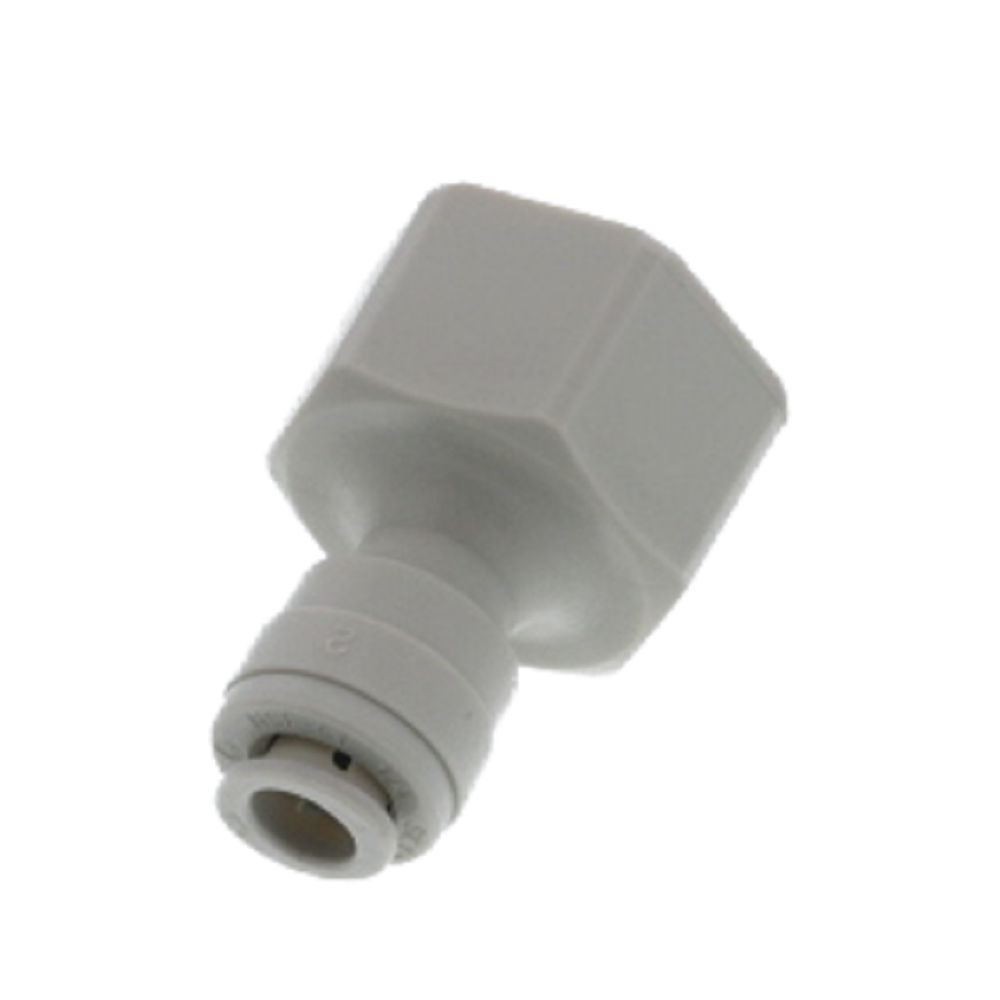

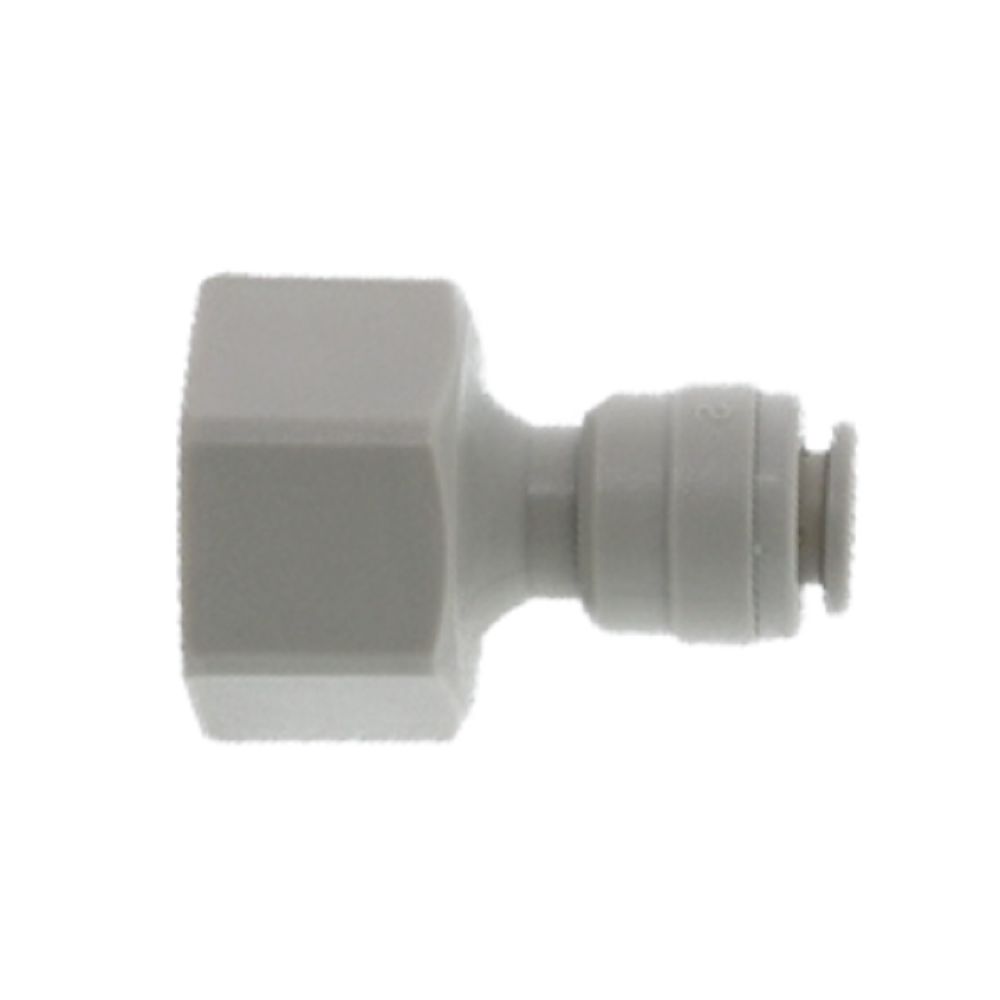

DMfit Female BSPP Connector Cone Type - 1/4" Push-in x 1/2" BSP(P)

5.0

(1 reviews)

Part Number: AFAB0407C

1 4

DMFit

DMfit Female BSPP Connector Cone Type - 1/4" Push-in x 1/2" BSP(P)

5.0

(1 reviews)

Part Number: AFAB0407C

$3.19

Quantity

Unit Price

Price

Savings

$3.19

—

$2.99

$29.99

$2.80

$140.36

12%

200

$2.61

$523.16

18%

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Features:

Acetal copolymer construction
O-rings are NBR (Buna-N)
Unique oval collet design
FDA approved materials
For water, air, gases, vacuum, & liquids
NSF Certified 51 & 62
Fittings may be gray or white based on availability

Specifications

Product Details
Inlet Connection	1/2" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	34°F
Outlet Connection	1/2" BSP
Push-In Size	1/4" OD
Series	Acetal
Shape	Straight
Size	1/2"
Color / Finish	Gray
Connection Type	BSP
Origin	Korea
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.41 in.
Shipping Width	0.94 in.
Shipping Height	0.94 in.
Product Weight & Dimensions
Product Height	0.94 in.
Product Length	1.41 in.
Product Width	0.94 in.
Product Weight (lbs)	0.0275

Product Details
Inlet Connection	1/2" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	34°F
Outlet Connection	1/2" BSP
Push-In Size	1/4" OD
Series	Acetal
Shape	Straight
Size	1/2"
Color / Finish	Gray
Connection Type	BSP
Origin	Korea
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	7 in.
Shipping Width	5 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Height	1 in.
Product Length	7 in.
Product Width	5 in.
Product Weight (lbs)	0.275

Product Details
Inlet Connection	1/2" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	34°F
Outlet Connection	1/2" BSP
Push-In Size	1/4" OD
Series	Acetal
Shape	Straight
Size	1/2"
Color / Finish	Gray
Connection Type	BSP
Origin	Korea
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	35 in.
Shipping Width	25 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Height	5 in.
Product Length	35 in.
Product Width	25 in.
Product Weight (lbs)	0.0275

Product Details
Inlet Connection	1/2" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	34°F
Outlet Connection	1/2" BSP
Push-In Size	1/4" OD
Series	Acetal
Shape	Straight
Size	1/2"
Color / Finish	Gray
Connection Type	BSP
Origin	Korea
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	7.5 in.
Shipping Width	11 in.
Shipping Height	6.25 in.
Product Weight & Dimensions
Product Height	6.25 in.
Product Length	7.5 in.
Product Width	11 in.
Product Weight (lbs)	5.5

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

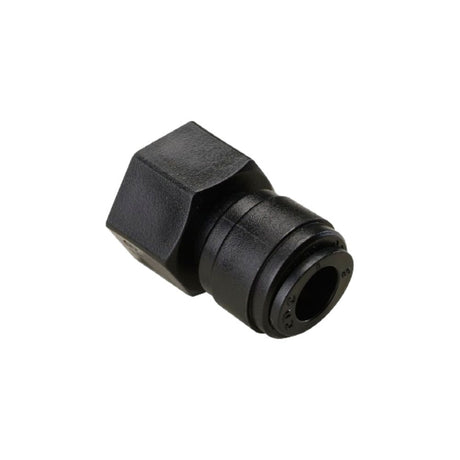

Facet	DMFit DMfit Female BSPP Connector Cone Type - 1/4" Push-in x 1/2" BSP(P) 5.0 Regular price From $3.19 Part #: AFAB0407C Save up to 18% with bulk pricing Current Product	John Guest John Guest Faucet Connector BSPP - 1/4 x 1/2 BSPP 4.5 Regular price From $3.03 Part #: CI320814S Save up to 12% with bulk pricing View details	NeoFit NeoFit - Acetal Black Female Adapter 1/4" tube x 1/2"BSP(P) - Cone Type Regular price From $2.42 Part #: AFAC4-G4-E Save up to 8% with bulk pricing View details
